YMU-TCF200SPFSK 12CH Cased Transmitter

User Manual FSK 12CH Cased Transmitter Model: TCF200SP Brand: RFRemotech The 12CH Cased Transmitter is 433MHz frequency with 200m transmitting range, can be powered by either external or internal 12V power supply—external 23A12VDC battery, internal 10-1.2V AAA rechargeable battery pack. Faceplate of the transmitter is with charger port, the battery pack can be charged directly once the charger is connected. Both external & internal power sauce are controlled by the Keyed on/off Switch, also there are two 3-way Rocker Switches, one for power sauce selection and the other for encoding selection. Detail Specification: 1. Operating Power Control. The Keyed Switch controls the main supply power. When the Keyed Switch is locked in Off Position, the circuit is disconnected; when the Keyed Switch is locked in On Position, the circuit is connected. 2. Selection of Internal/External Power. Internal/External Power is selected thru the 3-way Rocker Switch. When the Rocker Switch is in Int. Bat Position, the circuit is powered by the internal power; when the Rocker Switch is in Ext. Bat Position, the circuit is powered by the external power; when the Rocker Switch is in Middle Position, the circuit is off without power. 3. Charging. The transmitter comes with an external charger with LED for indicating the charging status. The Charger is American Standard with INPUT: AC100-240V, 50/60Hz and OUTPUT: DC13.8V/ 0.35A, 4. Lighting The faceplate of the transmitter is with an USB port for LED light that is not controlled by the Keyed Switch. LED light: 5V/0.5W. 5. Encoding The transmitter can be coded by both the internal coding pads & the external Rocker Switch 3-way Rocker Switch. The internal coding pads is constituted by 3-Positon (High, low & Floating) encoding 8-way DIP switch; the external coding is used 3-way (High, low & Floating) Rocker Switch- the first way is for High, the second is for Low and the third is for connecting to one of the 1-8(A0-A7) encoding pads. The PCB is with 10pin wire terminal blocks for the 3-way Rocker Switch, the order of 10pin terminal is high (5V), low (ground), 1-8 encoding address (A0-A7). Note: In use, once the terminal block is connected to the external Rocker Switch, the correspondent DIP Switch must be floating to avoid circuit shorted. 6. LED Indicator. 1) Charging LED lights in Green under charging. 2) Power/low-power LED (Power on in green, Low-power in Red) 3) Button pushed LED lights in Red under button pressed. 7. Buttons 12 buttons in 3 lines marked as letter A, B, C & D, then numeral 1-8. Button A, B, C & D is for bank selection and button1-8 is for the cue output selection. FCC ID: YMU-TCF200SP FCC Stat ement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WA R N I N G : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipments.

Mar.07, 2011 Federal Communication Commission Authorization and Evaluation Division FCC ID: YMU-TCF200SP Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature________ ___________ FCC grantee contact person information. Name/Title: Zuyuan Ye (General Manager) Company Name: RFRemotech Company Address: 18E, No.445, Tianhe Bei Rd., Guangzhou 510610, China TEL: +86-020-38934706 FAX: +86-020-38847420

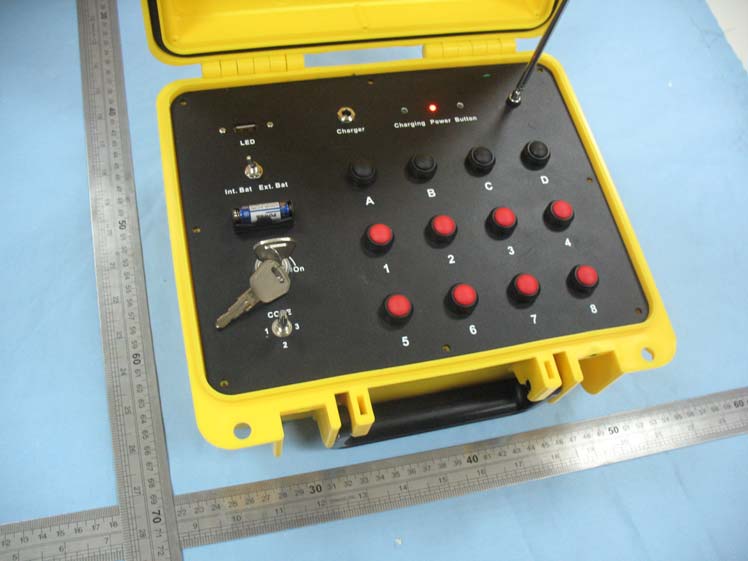

VIEW OF EUT-1 VIEW OF EUT-2

FCC ID Label Location

INTERNAL VIEW OF EUT – 1 INTERNAL VIEW OF EUT – 2 INTERNAL VIEW OF EUT – 3 INTERNAL VIEW OF EUT – 4

FCC Test Report Report No.: AGC01A110201F1 TEST NAME : FCC Part 15 FCC ID : YMU-TCF200SP PRODUCT DESIGNATION : FSK 12CH Cased Transmitter BRAND NAME : RFRemotech TEST MODEL : TCF200SP CLIENT : RFRemotech Company DATE OF ISSUE : Mar.03, 2011 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01A110201F2 Page 1 of 24 VERIFICATION OF COMPLIANCE RFRemotech Company Applicant: 18E, No.445, Tianhe Bei Rd., Guangzhou 510610, China RFRemotech Company Manufacturer: 18E, No.445, Tianhe Bei Rd., Guangzhou 510610, China Product Name: FSK 12CH Cased Transmitter Brand Name: RFRemotech Model Number: TCF200SP File Number: AGC01A110201F2 Date of Test: Feb.28 to Mar.03, 2011 We hereby certify that: The above equipment was tested by Attestation of Global Compliance Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003. The sample tested as described in this report is in compliance with the FCC Rules Part 15 The test results of this report relate only to the tested sample identified in this report. Checked By: Jekey Zhang Mar.03, 2011 Authorized By King Zhang Mar.03, 2011 Report No.: AGC01A110201F2 Page 2 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................. 4 1.1 PRODUCT DESCRIPTION.......................................................................................................................4 1.2 RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................5 1.3 TEST METHODOLOGY ...........................................................................................................................5 1.4 TEST FACILITY ........................................................................................................................................5 1.5 SPECIAL ACCESSORIES .......................................................................................................................5 1.6 EQUIPMENT MODIFICATIONS ...............................................................................................................5 2. SYSTEM TEST CONFIGURATION................................................................................. 6 2.1 EUT CONFIGURATION ............................................................................................................................6 2.2 EUT EXERCISE........................................................................................................................................6 2.3 GENERAL TECHNICAL REQUIREMENTS.............................................................................................6 2.4 CONFIGURATION OF TESTED SYSTEM .............................................................................................6 3. SUMMARY OF TEST RESULTS .................................................................................... 7 4. DESCRIPTION OF TEST MODES.................................................................................. 8 5. CONDUCTED LIMITS (NOT APPLICABLE)................................................................... 9 5.1 PROVISIONS APPLICABLE....................................................................................................................9 5.2 MEASUREMENT PROCEDURE..............................................................................................................9 5.3 TEST SETUP BLOCK DIAGRAM..........................................................................................................10 5.4 TEST EQUIPMENT USED .....................................................................................................................10 5.5 TEST RESULT ........................................................................................................................................ 11 6. FREQUENCY TOLERANCE......................................................................................... 12 6.1 PROVISIONS APPLICABLE..................................................................................................................12 6.2 MEASUREMENT PROCEDURE............................................................................................................12 6.3 TEST SETUP BLOCK DIAGRAM..........................................................................................................12 6.4 MEASUREMENT EQUIPMENT USED: .................................................................................................12 6.5 MEASUREMENT RESULT.....................................................................................................................13 7. RADIATED EMISSION.................................................................................................. 14 7.1 PROVISIONS APPLICABLE ..................................................................................................................14 7.2 MEASUREMENT PROCEDURE............................................................................................................14 7.3 TEST SETUP BLOCK DIAGRAM..........................................................................................................14 7.4 MEASUREMENT EQUIPMENT USED: .................................................................................................15 8. THE DURATION OF EACH TRANSMISSION .............................................................. 17 8.1 PROVISIONS APPLICABLE..................................................................................................................17 8.2 TEST SETUP ...........................................................................................................................…

Text truncated - open the document above for the full version.

RADIATED TEST SETUP
