YMUT10012LNTRANSMITTER A

User Manual Model: TCF100-12LN 1. Tech. Specfication: Tx Frequency: 433.92MHz±150KHz Modulation Type: OOK RF Power: ＜10mW Rated Voltage: DC12V（23A12V Battery） Rated Current: ＜10mA Encode Type: SN8P2711 1.5M 2. Operational Instruction: Press the button’s by 1-12, the LED indicator light, at the same time transmitting RF signal that encode data for D0, D1, D0+D1, D2, D0+D2, D1+D2, D0+D1+D2, D3, D0+D3, D1+D3, D0+D1+D3, D2+D3, release the button, the remote controll device to stop transmit, and off the indicator. 3. Note: Please replace the battery, if the transmitting distance getting near or LED indicator light dimmed. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

1 2 34 ABCD 4 3 2 1 D CBA 当前时间 当前日期 2010/05/24 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 ANT TCF100-12LNX BLOCK A/0 3 P4.2+P0.3 2 P4.2+P0.2 TCF100-12LN BLOCK DIAGRAM 433.92MHz 433.92MHz 13.560MHz 4 P4.1+P0.1 1 P4.2+P0.1 7 P4.0+P0.1 6 P4.1+P0.3 8 P4.0+P0.2 5 P4.1+P0.2 11 P0.0+P0.2 10 P0.0+P0.1 12 P0.0+P0.3 9 P4.0+P0.3 +12V +3V Vin 2 Vout 3 GND 1 U1 HT7130 BAT12V K1 ON/OFF

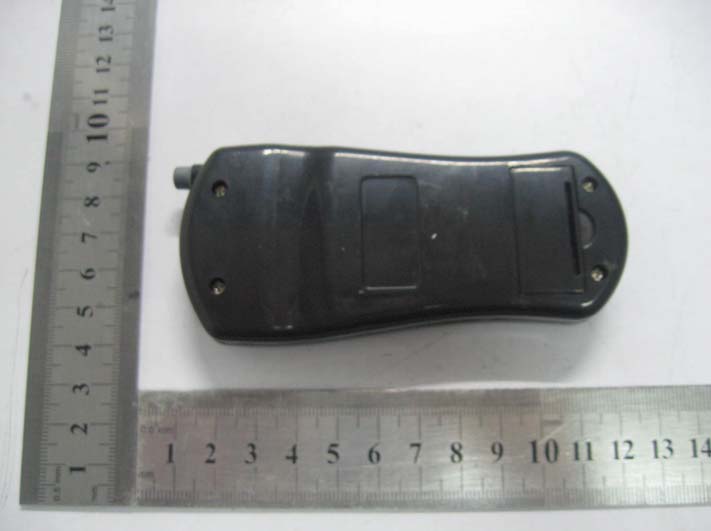

RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YMUT10012LN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YMUT10012LN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I FCC PART 15.231 Solder Board-Component View 2

Circuit Description The remote control tranmistter of model TCF100-12LN is a RF transmitter with a oscillator of 13.56MHz frequency, it’s main controller is MICRF113, the device consist of the encode circuit, modulation and high frequency circuit, output filter circuit and antenna. The encode circuit generated twelve way (D0, D1, D0+D1, D2, D0+D2, D1+D2, D0+D1+D2, D3, D0+D3, D1+D3, D0+D1+D3, D2+D3) data encode, and modulate base on high frequency carrier signal as RF signal of 433.92MHz, then throught the filter circuit, and the RF signal output by antenna. Tech. Specification: Tx Frequency: 433.92MHz Frequency Error: 433.92MHz±150KHz Modulation Type: OOK Tx Power: ＜10mW Rated Voltage: DC12V（23A12V Battery） Rated Current: 10mA

1 2 3 4 ABCD 4 3 2 1 D CBA 当前时间 当前日期 MAY 24 2010 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 TCF100-12LN 1 2 3 4 5 6 1 2 3 D3 4148-A1 1 2 3 D4 4148-A1 1 2 3 D5 4148-A1 7 1 2 3 D6 4148-A1 8 9 1 2 3 D84148-A1 12V 12 1 2 3 D11 4148-A1 11 1 2 3 D10 4148-A1 10 1 2 3 D9 4148-A1 R3 10K LED1 RED 1 2 3 D1 4148-A4 1 2 3 D2 4148-A4 12V R1010K R910K R810K R710K D0D1D2D3 VCC C15NC R4 NC TXD VDD 1 L H A0A1A2A3A4A5A6A7 A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 GND 9 D3 10 D2 11 D1 12 D0 13 TE 14 OSC2 15 OSC1 16 DOUT 17 VCC 18 U3NC VCC 1 2 3 D74148-A4 TXD D0D1D2 D3 VCC R11 220R R12 220R R13 220R R14 220R C16103 VCC 1 VSS 2 DOUT 3 D3 4 D2 5 D1 6 D0 7 OSC 8 U4PT2240B R5 1.5M C1347P C7 105 L1 33NH C116P L2 10NH C539PC439P C12NC C6NC C8104 C10NC +3 TXD C9102 R20R X1 13.560MHz PAOUT 1 GND 2 VDD 3 ASK 6 XTLIN 5 XTLOUT 4 U2MICRF113 ANT 433.92MHz L3NC C14NC R1 100K +3 +3 Vin 2 Vout 3 GND 1 U1 HT7130 C2104 C3NC C1104 VCC BAT1 12V K1 ON/OFF 12V

RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I PAGE 1 OF 18 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR RFRemotech Company 18E, No.445, Tianhe Bei Rd., Guangzhou 510610, China FCC ID: YMUT10012LN Report Concerns: Original Report Equipment Type: Transmitter A Model: TCF100-12LN Report No.: STR10078067I Test Date: 2010-07-12 to 2010-07-25 Issue Date: 2010-07-26 Test Engineer: Jason Chen Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I PAGE 2 OF 18 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B) RADIATED EMISSION .........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. §15.231(A) DEACTIVATION TESTING..............................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMARY…

Text truncated - open the document above for the full version.

RFRemotech Company Model: TCF100-12LN REPORT NO.: STR10078067I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
