  1. Home/
  2. RFRemotech Company/
  3. YMUT10012X

YMUT10012XTRANSMITTER B

RFRemotech Company
TRANSMITTER B - FCC ID YMUT10012X - RFRemotech Company
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jul 25, 2010
Application Purpose
Original Equipment
Date of Application
Jul 25, 2010
Equipment Note
TRANSMITTER B
Frequency Range
433.92000000 - 433.92000000
Company
RFRemotech Company
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual Model: TCF100-12LNX 1. Tech. Specfication: Tx Frequency: 433.92MHz±150KHz Modulation Type: OOK RF Power: <10mW Rated Voltage: DC12V(23A12V Battery) Rated Current: <10mA Encode Type: SN8P2711 1.5M 2. Operational Instruction: Press the button’s by 1-12, the LED indicator light, at the same time transmitting RF signal that encode data for D0, D1, D0+D1, D2, D0+D2, D1+D2, D0+D1+D2, D3, D0+D3, D1+D3, D0+D1+D3, D2+D3, release the button, the remote controll device to stop transmit, and off the indicator. 3. Note: Please replace the battery, if the transmitting distance getting near or LED indicator light dimmed. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram

1 2 34 ABCD 4 3 2 1 D CBA 当前时间 当前日期 2010/05/24 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 ANT TCF100-12LNX BLOCK A/0 3 P4.2+P0.3 2 P4.2+P0.2 TCF100-12LNX BLOCK DIAGRAM 433.92MHz 433.92MHz 13.560MHz 4 P4.1+P0.1 1 P4.2+P0.1 7 P4.0+P0.1 6 P4.1+P0.3 8 P4.0+P0.2 5 P4.1+P0.2 11 P0.0+P0.2 10 P0.0+P0.1 12 P0.0+P0.3 9 P4.0+P0.3 +12V +3V Vin 2 Vout 3 GND 1 U1 HT7130 BAT12V K1 ON/OFF

External Photos

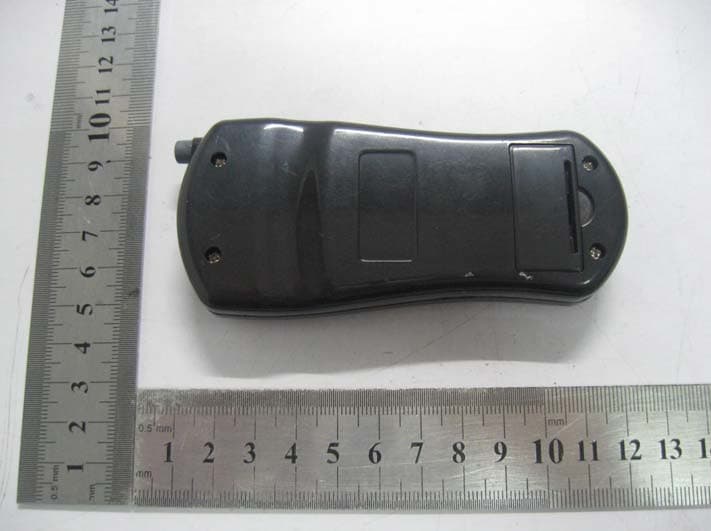

RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

ID Label/Location Info

RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YMUT10012X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ID Label/Location Info

RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YMUT10012X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Internal Photos

RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I FCC PART 15.231 Solder Board-Component View 2

Schematics

ABCD DCBA 当前时间 当前日期 MAY 24 2010 图名 绘制 图号 文件名 校对 审核 版本号 公司名称公司地址 TCF100-12LNX C1347P C7 105 L1 33NH C116P L2 10NH C539PC439P C12NC C6NC C8104 C10NC +3 TXD C9104 R20R X1 13.560MHz PAOUT 1 GND 2 VDD 3 ASK 6 XTLIN 5 XTLOUT 4 U2MICRF113 ANT 433.92MHz L3NC C14NC R1 100K +3 +3 Vin 2 Vout 3 GND 1 U1 HT7130 C2104 C1104 BAT1 12V K1 ON/OFF 12V 01 02 03 04 05 06 07 08 09 ALL 20 10 R5 10K R4 10K R3 10K R6 10K +3 +3 R7 510R LED1RED VDD 1 P0.3 2 P0.2 3 P0.4 4 P5.3 5 P5.4 6 P0.1 7 P0.0 8 P4.0 9 P4.1 10 P4.2 11 P4.3 12 P4.4 13 VSS 14 U3SN8P2711 TXD C15104

Test Report

RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I PAGE 1 OF 18 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR RFRemotech Company 18E, No.445, Tianhe Bei Rd., Guangzhou 510610, China FCC ID: YMUT10012X Report Concerns: Original Report Equipment Type: Transmitter B Model: TCF100-12LNX Report No.: STR10078068I Test Date: 2010-07-12 to 2010-07-25 Issue Date: 2010-07-26 Test Engineer: Jason Chen Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.(518101) Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I PAGE 2 OF 18 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B) RADIATED EMISSION .........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. §15.231(A) DEACTIVATION TESTING..............................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMA…

Text truncated - open the document above for the full version.

Test Setup Photos

RFRemotech Company Model: TCF100-12LNX REPORT NO.: STR10078068I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
