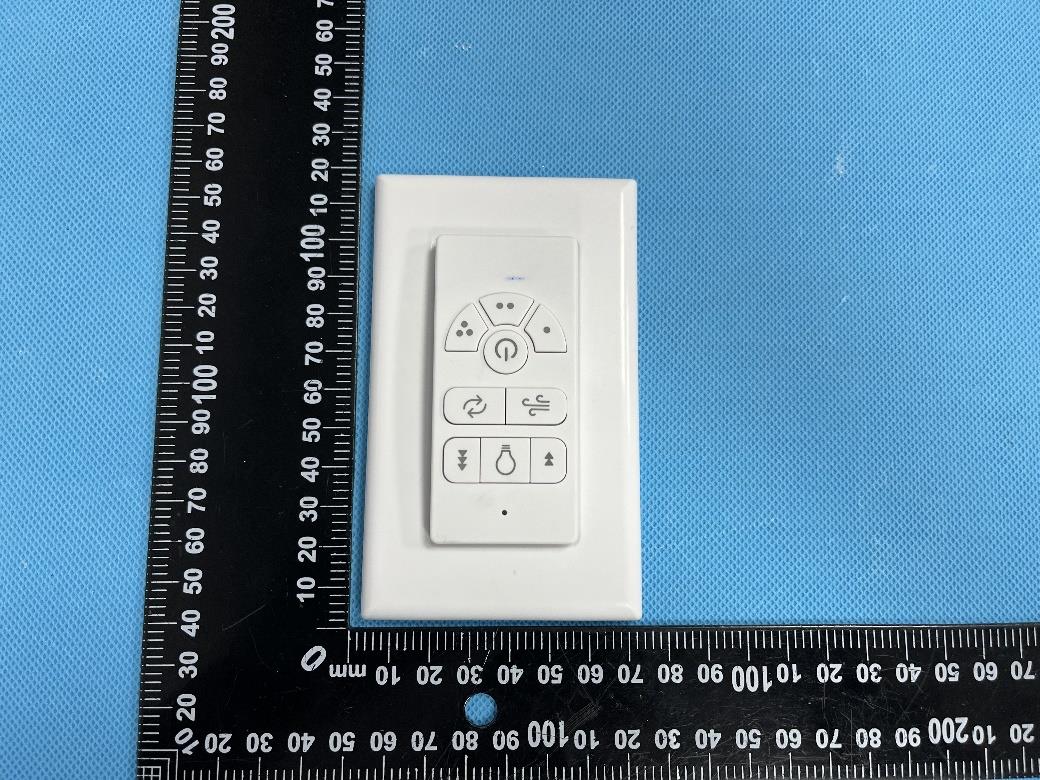

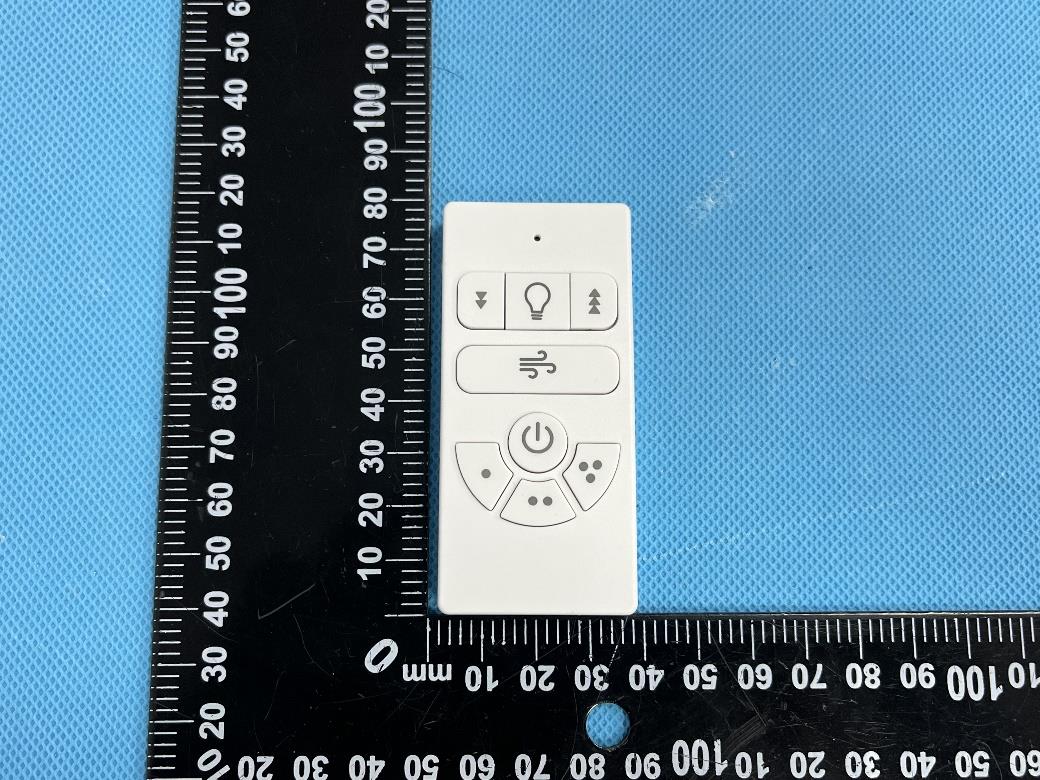

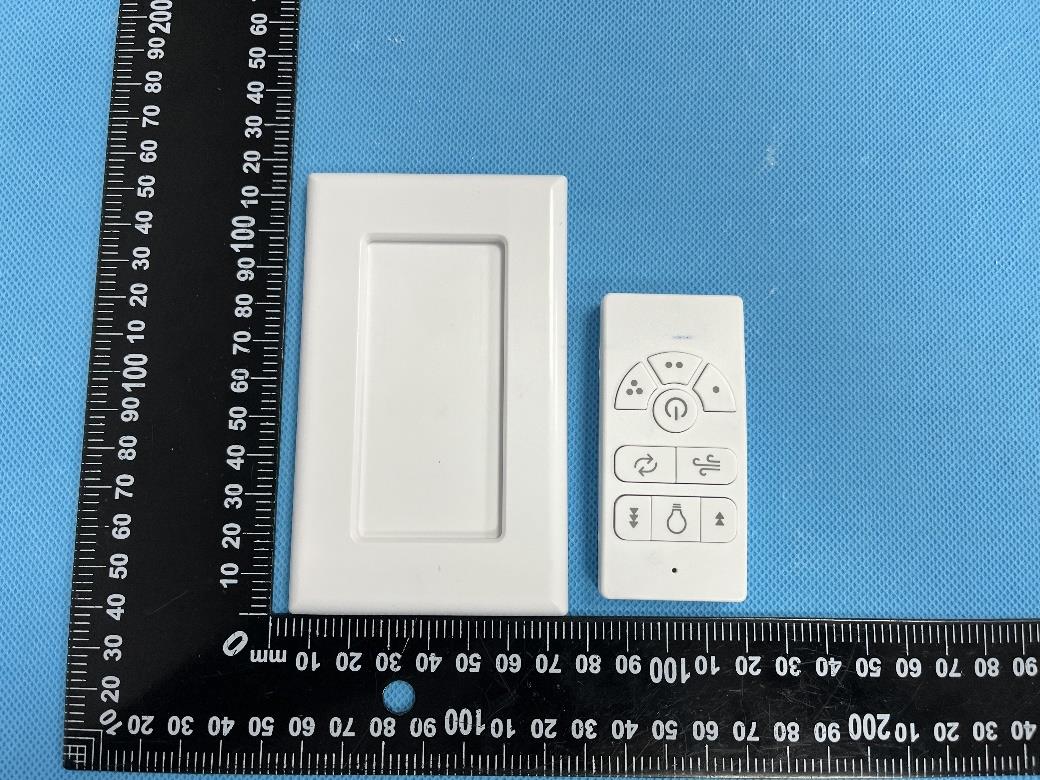

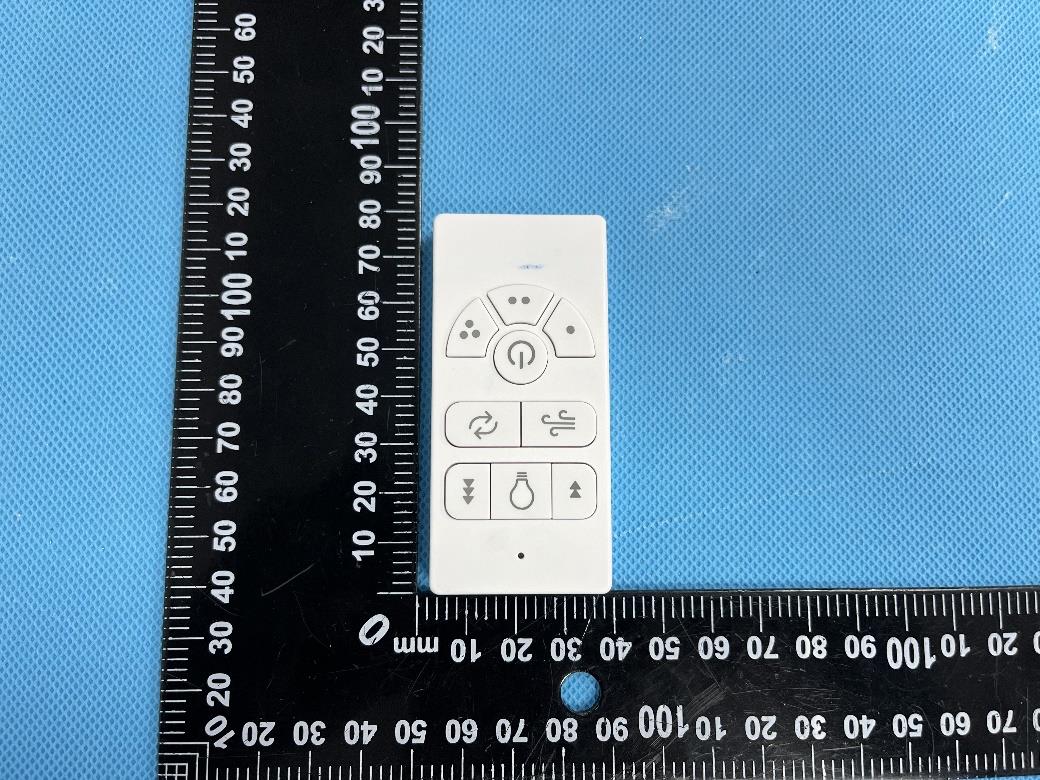

Reference No.: WTH23X08173738W Page 2 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS Model: 370135 EUT View 1 EUT View 2 Reference No.: WTH23X08173738W Page 3 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTH23X08173738W Page 4 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTH23X08173738W Page 5 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7 EUT View 8 Reference No.: WTH23X08173738W Page 6 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Model: 370125 EUT View 1 EUT View 2 Reference No.: WTH23X08173738W Page 7 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTH23X08173738W Page 8 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTH23X08173738W Page 9 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7 EUT View 8

Reference No.: WTH23X08173738W Page 1 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: YNE-000170-04 Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTH23X08173738W Page 10 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Model: 370135 EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTH23X08173738W Page 11 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Reference No.: WTH23X08173738W Page 12 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Model: 370125 EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTH23X08173738W Page 13 of 16 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Antenna View 304.25MHz Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Kichler Lighting LLC Address of applicant: 30455 Solon Road Solon Ohio 44139 United States Manufacturer: Satellite Electronic(Zhong shan)Ltd. Address of manufacturer: No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. General Description of EUT: Product Name: CEILING FAN REMOTE CONTROL Trade Name: / Model No.: 370135 Adding Model(s): 370125 Rated Voltage: DC3V Power Adapter Model: / FCC ID: YNE-000170-04 Equipment Type: Portable device Technical Characteristics of EUT: Frequency Range: 304.25MHz Max. Field Strength: 69.92dBuV/m(3m) Data Rate: / Modulation: ASK Antenna Type: PCB Antenna Antenna Gain: 0dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Max. Field Strength Antenna Gain Output Power Tune-Up Power ERP (MHz) (dBuV/m) (dBi) (dBm) (dBm) (dBm) SRD 304.25 69.92 0 -25.34 -25.00 -27.15 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 304.25 A / -25.00 0.01 1 0.01 Pass Note: 1. EIRP= E-104.8+20logD; Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Ratio 3 Simultaneous Ratio Limit Result Pass/Fail / / / / / / / Result: Pass

Unit: mm

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 27 TEST REPORT Reference No. .................... : WTH23X08173738W FCC ID ................................ : YNE-000170-04 Applicant ........................... : Kichler Lighting LLC Address.............................. : 30455 Solon Road Solon Ohio 44139 United States Manufacturer ..................... : Satellite Electronic(Zhong shan)Ltd. Address.............................. : No.8, Chuang Ye Road, Torch Development Zone, Zhongshan, Guangdong, China. Product Name ................... : CEILING FAN REMOTE CONTROL Model No... ......................... : 370135 Standards .......................... : FCC Part 15.231 Date of Receipt sample .... : 2023-08-08 Date of Test........................ : 2023-08-08 to 2023-08-16 Date of Issue ..................... : 2023-08-16 Test Report Form No. ....... : WTX_Part 15_231W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTH23X08173738W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 27 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .........................................................................4 1.2 TEST STANDARDS .................................................................................................................................................5 1.3 TEST METHODOLOGY ...........................................................................................................................................5 1.4 TEST FACILITY ......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE ..............................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................7 1.7 TEST EQUIPMENT LIST AND DETAILS ...................................................................................................................8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. ANTENNA REQUIREMENT ................................................................................................................................. 12 3.1 STANDARD APPLICABLE ..................................................................................................................................... 12 3.2 TEST RESULT ...................................................................................................................................................... 12 4. RADIATED EMISSIONS ....................................................................................................................................... 13 4.1 STANDARD APPLICABLE ..................................................................................................................................... 13 4.2 TEST PROCEDURE .............................................................................................................................................. 14 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ........................................................................................... 15 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 15 5. 20DB BANDWIDTH ............................................................................................................................................... 19 5.1 STANDARD APPLICABLE ..................................................................................................................................... 19 5.1 TEST PROCEDURE .............................................................................................................................................. 19 5.2 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 19 6. TRANSMISSION TIME .......................................................................................................................................... 21 6.1 STANDARD APPLICABLE ..................................................................................................................................... 21 6.2 TEST PROCEDURE .............................................................................................................................................. 21 6.3 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 21 7. DUTY CYCLE ......................................................................................................................................................... 23 7.1 STANDARD APPLICABLE ..................................................................................................................................... 23 7.2 TEST PROCEDURE ...............................…
