1 2 3 4 VCC+9V SP EAKER Morse code circuit Audio amplifier circuit Super- regener ative detector circuit High- frequency a mplifier circuit ANTENNA Oscillation circuit Modulation circuit Selected frequency antenna matching Change-over switch 27.145MHZ Title Size A4 Number Revision

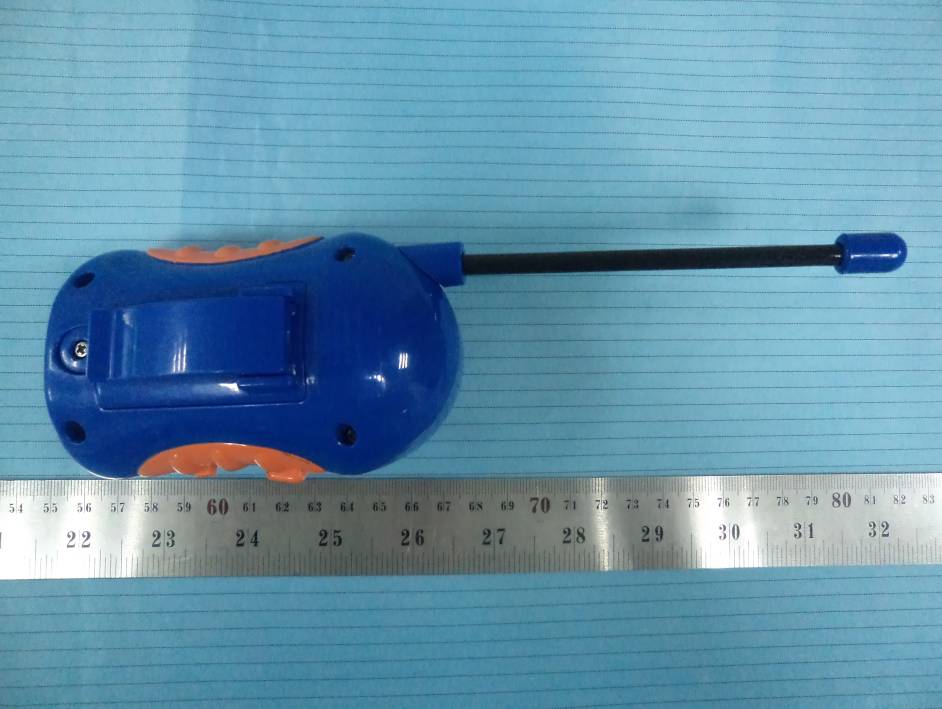

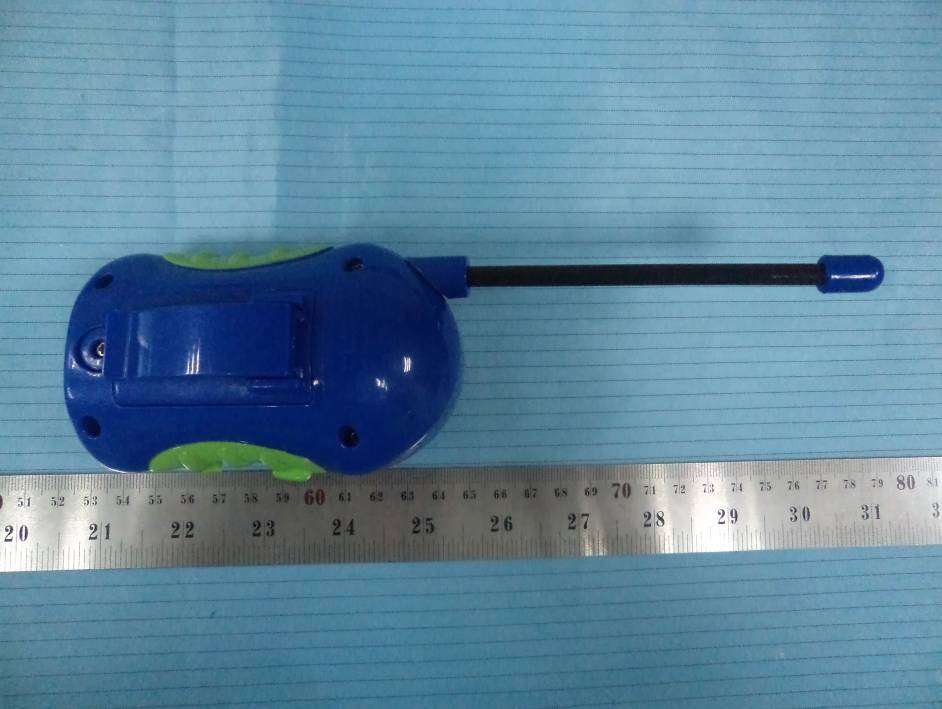

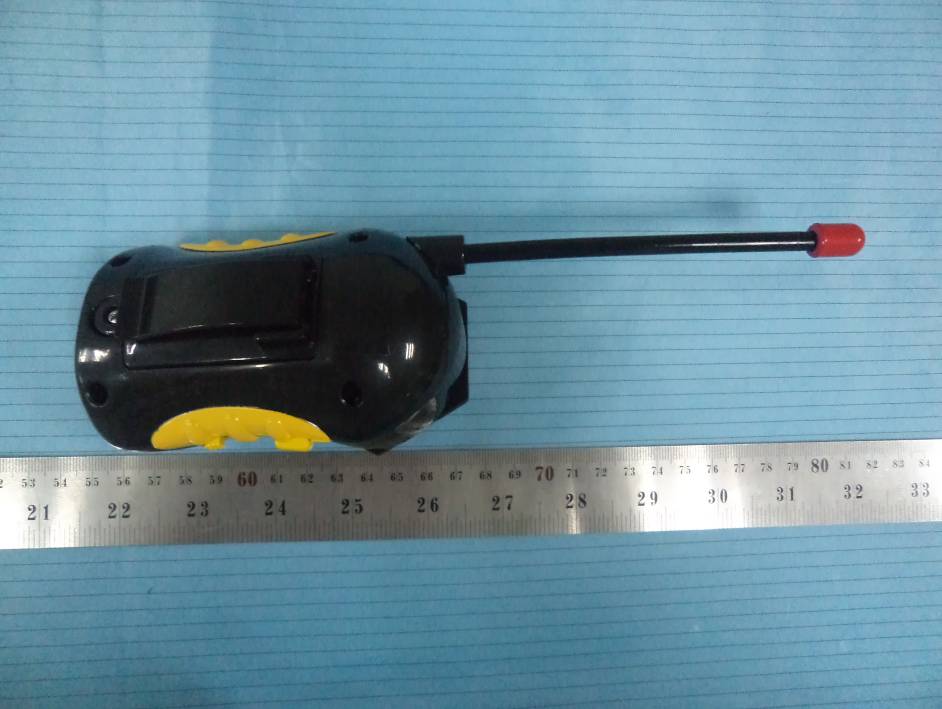

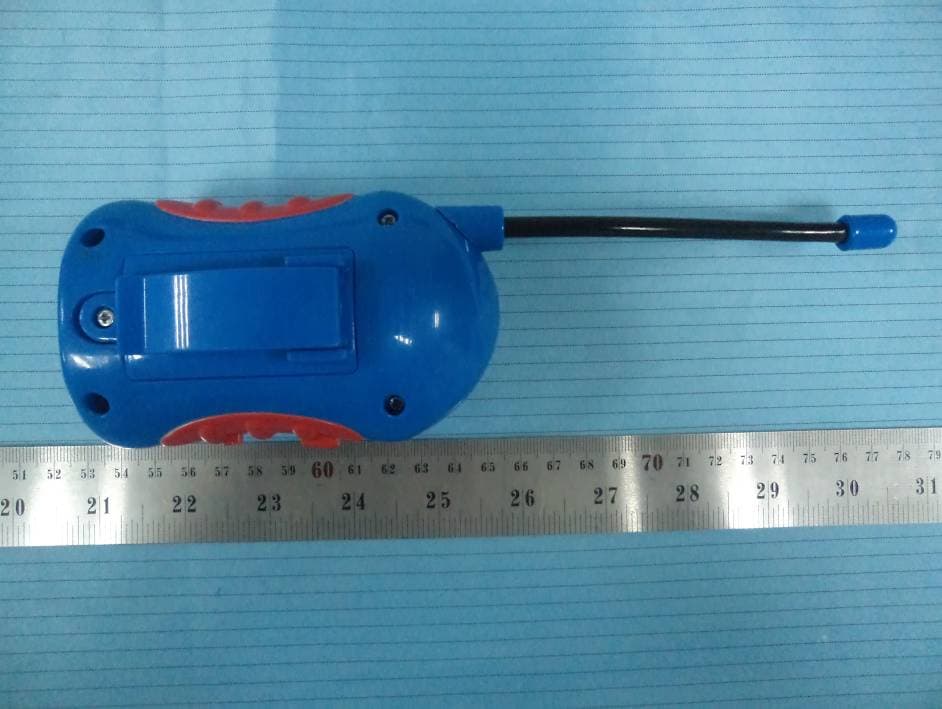

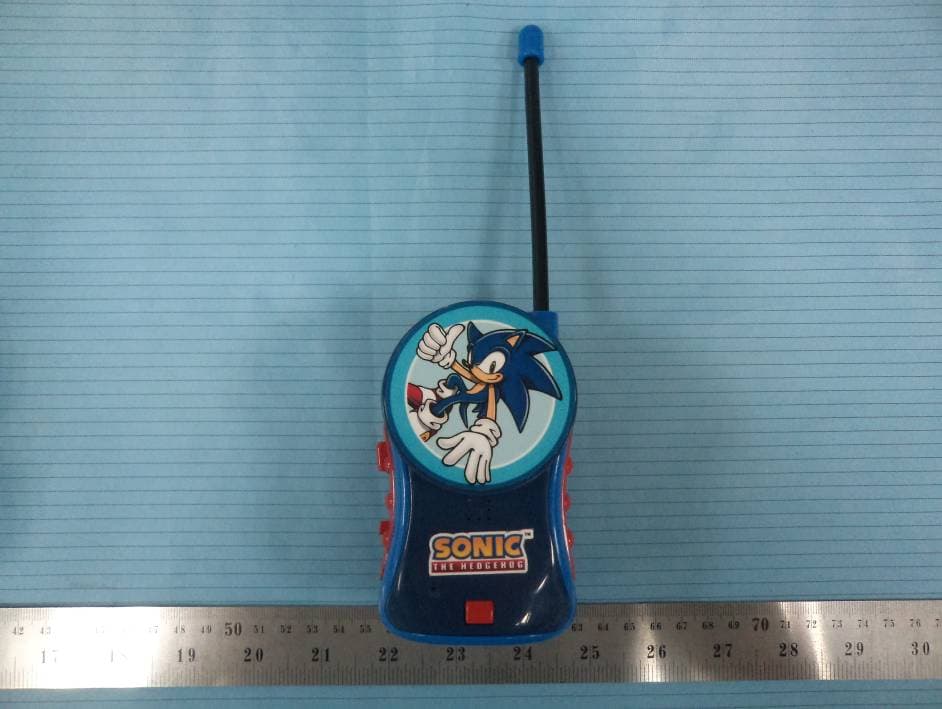

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View 1 (Model: 19130) EUT – Rear View 1 (Model: 19130) EUT – Front View 2 (Model: 19130) EUT – Rear View 2 (Model: 19130) EUT – Front View (Model: 13310) EUT – Rear View (Model: 13310) EUT – Front View (Model: 16100) EUT – Rear View (Model: 16100) EUT – Front View (Model: 17305) EUT – Rear View (Model: 17305) EUT – Front View (Model: 65410) EUT – Rear View (Model: 65410)

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View Antenna EUT – Main Board Top View EUT – Main Board Bottom View EUT – Antenna View

19130（27.145MHZ）Circuit Description 1）The received signal When received 27.145MHZ AM，After the antenna matching inductor T1 change-over switch KI added to the high frequency amplifier，The amplified high frequency signal through the super-regenerative detector，Detector out of the audio signal after the change-over switch K1 added to the audio power amplifier LM386 enlarge，The amplified audio signal through the speaker sound 2）Transmitter signal The operating frequency in 27.145MHZ，When the change-over switch is pressed to produce a 27.145MHZ oscillation signal，Microphone the received talk signal，After audio power amplifier LM386 enlarge，The amplified audio signal added to the modulation circuit is modulated to enlarge， Changeover switch K1 , T1 added to the antenna out。 3）Morse code function， When the Morse code switch is pressed , the audio signal through the LM386 audio power amplifier to enlarge，The amplified audio signal added to the modulation circuit is modulated to enlarge，After the change-over switch K1 , T1 added to the antenna。 4） The product use DC9V battery-powered (6F22)，The Receive operating current is 15mA to 20mA，The Transmit operating current is 25mA to 30mA Output Power 0.01mW to 0.02mW The operating frequency for 27.145MHZ ±100PPM

1 1 2 2 3 3 4 4 DD CC BB AA R17 100R R1 820K ANTENNA 123456 121110 987 K1 K1 T1 1 3 2 1 3 5 4 2 4 T2 R2 100R R4 22R C1 68P C5 82P C4 82P R5 33K C2 502P C12 100UF/16V R6 33K 1 2 3 4 8 7 6 5 U2 LM386 C18 10UF C17 10UF C11 220UF/10V C21 100UF/16V R7 10K C7 223P C15 104P C16 473P C8 68P R18 22R R10 33R Q3 C1959 R13 1K C3 68P C14 333P Q2 S9018 SPEAKER Y1 27.145MHZ R12 1K R8 22R C10 33P R14 8.2K 1 3 2 1 3 5 4 2 4 T3 C6 502P C9 82P Q1 S9018 R3 10K V- C13333P R11 10K MK1 S1 SW DPDT C19 333P C20 104P R19 1K R16 6.8K R9 270R SPK- MIC- MIC - SPK- V2+ V+ V2+ IN IN B B C C C22 502P Q4 1959 R25 560K R26 560K R24 10K R28 3.9K R27 3.9K C26 683P C23 683P C27 100P C25 683P C24 683P IN1 IN2 K2
