YNIJAZWARES13510WWE Walkie Talkie

JAZWARES INC. Item 13510 WWE WALKIE TALKIE instructions 1, open the battery cover,put one 9.0 v battery into the battery box 2, make the switch to the” on” position, walkie talkie can use. 3, hold the "push to talk" button shall could begin TO speak with ordinary, tone. 4, releae the"push to talk" button , you can hear each other. 5, hold "the rid_device_info_mouse" button, can detect intercom basic functions. 6, when using, interphone antennas must end up, can receive the signal. Note: 1 your intercom has been tuned the battery can be used, finish can be replaced, but don't run into other parts inside. 2 if the intercom voice decrescent, can replace the battery. 3 not use must turn off the switch. Radios 4 don't will intercom in moist place. 5 if long time no intercom, should take it out. 6 don't play the place of radio interference. Battery note: 1 installation or replace the battery on with correct polarity battery should be put. JAZWARES INC. Item 13510 2 the rechargeable batteries cannot charge. 3 cannot be mixed with old and new batteries or different types of cell. 4 spent batteries removed from toys. 5 terminal not short circuit.

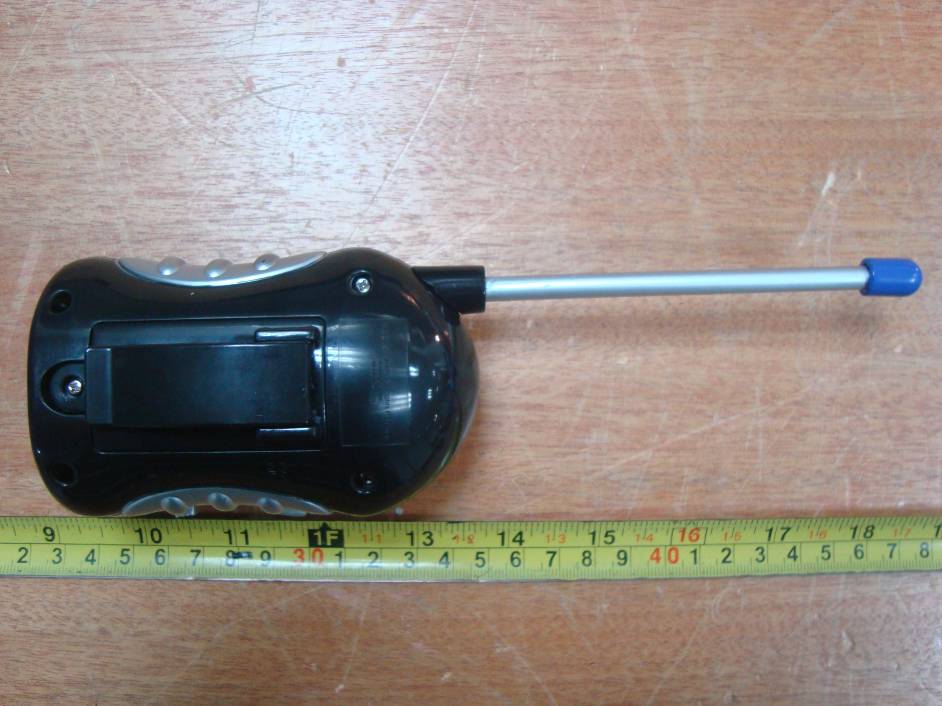

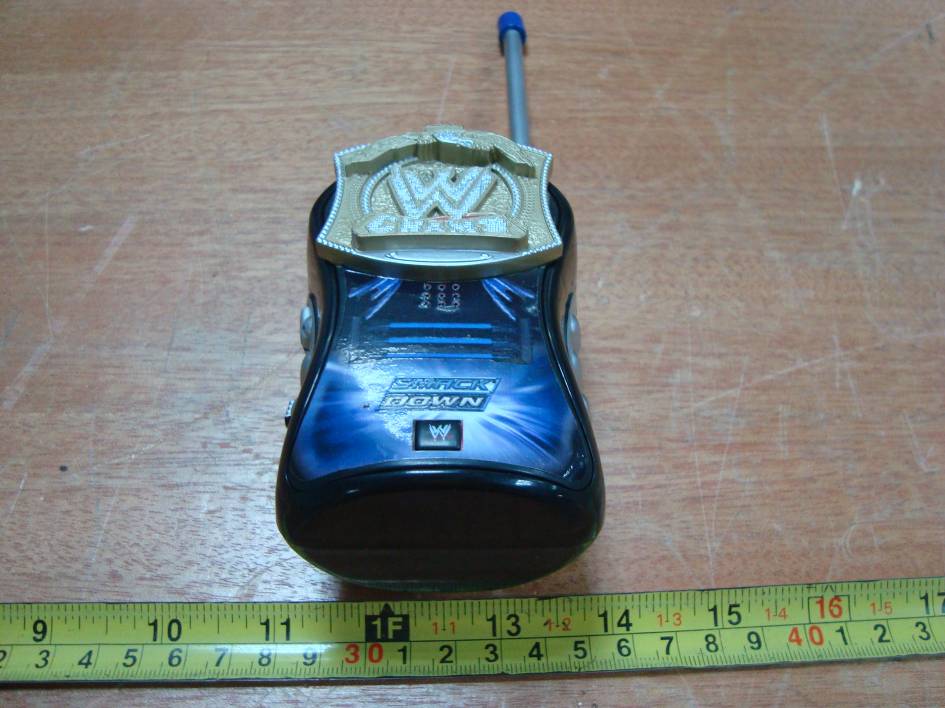

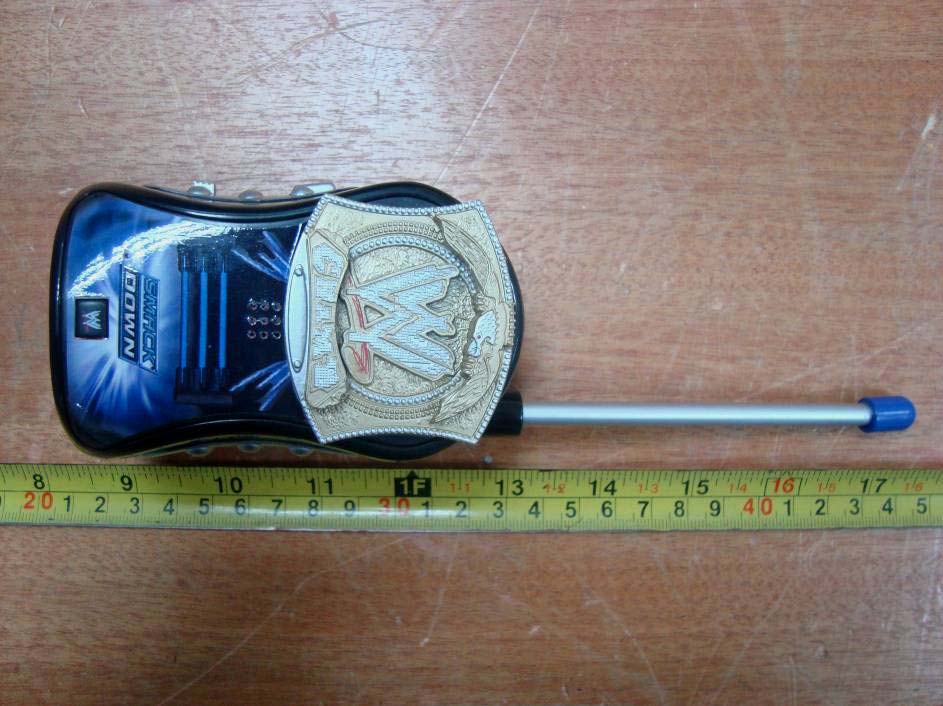

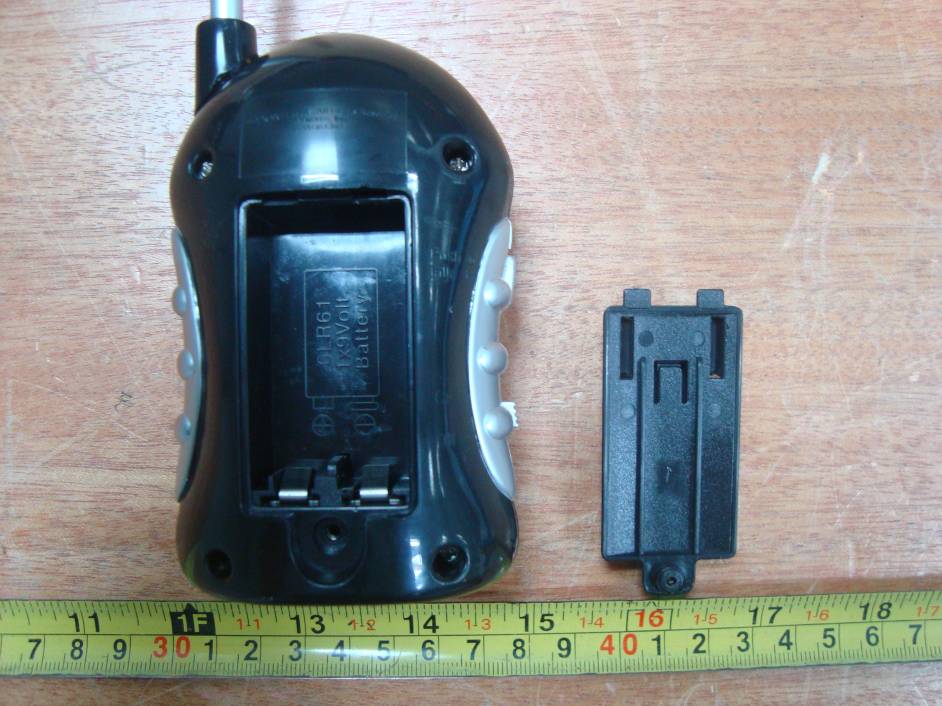

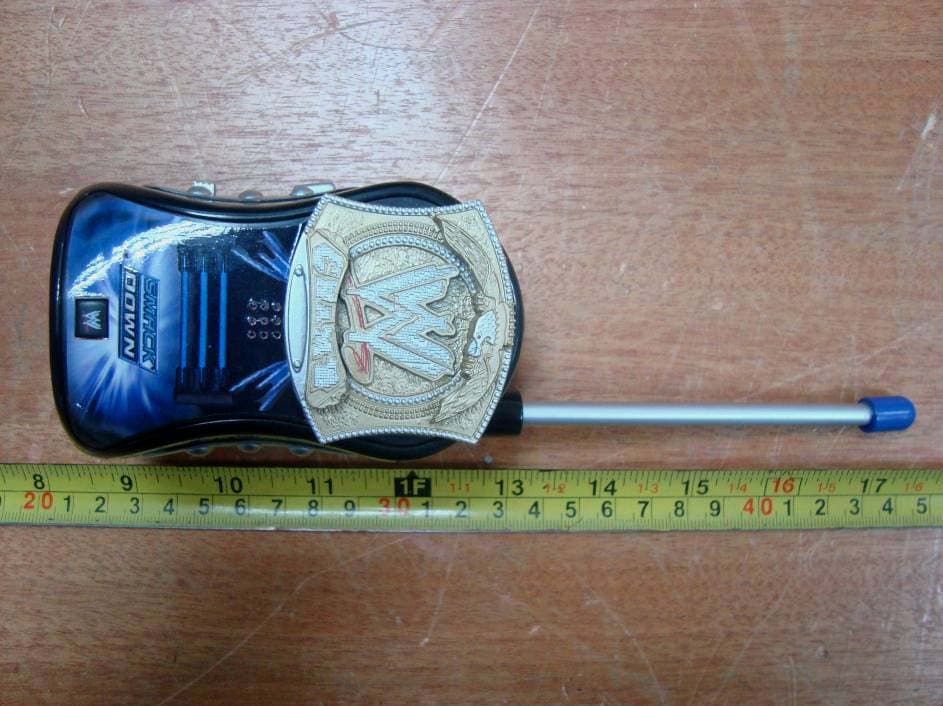

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View (Blue) EUT – Front View (Red) EUT – Rear View EUT – Side View EUT – Battery off View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View Antenna EUT – Main Board Top View EUT – Main Board Bottom View

地址：中國 廣東省中山市三鄉鎮平南村金山工業區 Add: Jin Shan Industrial Centre, Ping Nan, San Xiang Town, ZhongShan City, Guangdong,CHINA Te l：(86)760-86686236 Fax：(86)760-86685229 網址 Web Site:http://www.winly.cn E-mail:[email protected] 保密级别：公开 Certificate NO:30383 Declaration: 1064/DC/3 Code:C1710 WWE WALKIE TALKIE circuit describe First, in this circuit, when the switch in the middle as shown location, says in Q1, receiving state, T1, C4, C5, C8 etc ChaoZaiSheng detection circuit, this time, from the antenna above received signals, through Q1 T1, coupled to the audio signal after, detection by C9, R6, C11 coupled to Q2, via Q2, percentile, Q4 is prevented amplification push big speaker pronunciation. Second, when the switch in the opposite position as shown in the launch, said state, pick up the head voice, clomipramine R18, 10, C11 coupled to Q2, via Q2, sound amplification percentile, Q4 is prevented, then coupled to the Q1. To mix with modulation, through a emitted by the antenna (T1 Q1, T1, C4, C5, 地址：中國 廣東省中山市三鄉鎮平南村金山工業區 Add: Jin Shan Industrial Centre, Ping Nan, San Xiang Town, ZhongShan City, Guangdong,CHINA Te l：(86)760-86686236 Fax：(86)760-86685229 網址 Web Site:http://www.winly.cn E-mail:[email protected] 保密级别：公开 Certificate NO:30383 Declaration: 1064/DC/3 Code:C1710 C8, SanDianShi Y1 composition capacitance oscillating frequency resonant, stand at 49.860 MHZ).

Q1 2SC1623 Q2 9014C Q3 S9014C R2 47R R10 100R T6 中周 C4 27P C8 20P C7 18P R4 18K R1 10K R7 1.0M R95.6K R11 220R R12 10K C9 104 Y1 49.860MHZ SW1 SW SPDT R3 5.6K BAT 9.0V C23 47U E1 ANTENNA SPK 32Ω / 0.25W C2 502 C3 502 SW1-B C12 273 SW1-C SW1-D +9V SW1-A SW SPDT R8 6.8K T2 4.5UH C5 47P T1 中周 C14 502 SW1 SW-PB C25 100U C22 100U C24 100U R14 2.2R Mic MICROPHONE1 Q4 S9014C R12 10K C11 104 R18 39K C10 104 R13 39R C20 47U R15 1.0K C13 152P C21 403P L1 1.0UH UnRegistered

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.235 EMI MEASUREMENT AND TEST REPORT For Jazwares Inc. 1067 Shotgun Road, Sunrise, FL 33326, USA FCC ID: YNIJAZWARES13510 Report Type: Original Report Product Type: WWE Walkie Talkie Test Engineer: Allan An Report Number: RSZ110518801 Report Date: 2011-05-30 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Jazwares Inc. FCC ID: YNIJAZWARES13510 Report #: RSZ110518801 Page 2 of 15 FCC Part 15.235 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 FCC §15.205, §15.209(A) & §15.235(A) - RADIATED EMISSIONS .......................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA................................................................................................................................................................10 FCC §15.235(B) - BAND EDGES TESTING ............................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST DATA................................................................................................................................................................12 PRODUCT SIMILARITY DECLARATION LETTER..........................................................................................15 Jazwares Inc. FCC ID: YNIJAZWARES13510 Report #: RSZ110518801 Page 3 of 15 FCC Part 15.235 Test Report GENERAL INFORMATION Produc…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions – Front View Radiated Emissions – Rear View
