YNIJAZWARES15295CStar Wars-Dongle

2408-2474MHz 2.4G Filter/match Crystal X1 12.000MHz MA64101 USB Port

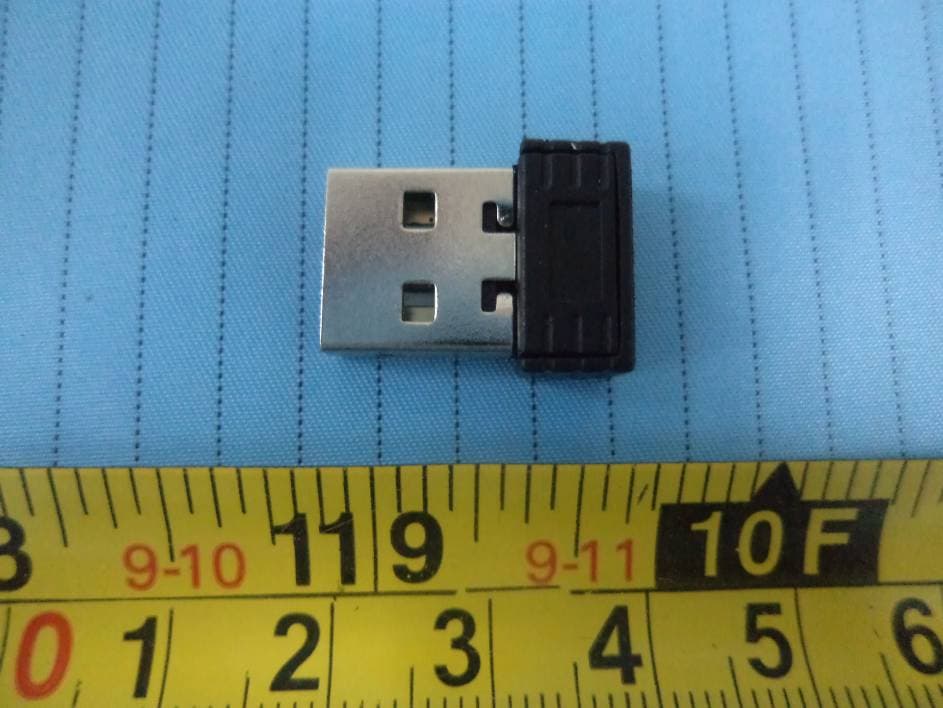

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT - Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View Antenna EUT – Main Board Bottom View

Circuit Description 1. CPU, MA64101 is a series of 8-bit Universal Serial Bus RISC architecture microcontroller. Operation frequency is 12 MHz. It needs an external 12 MHz crystal for reference frequency 2. USB port connects with stand USB interface of pc. 3. Built-in 12MHz to 48MHz PLL 4. Fully programmable PLL (2.4GHz) Built-in Channel filter Data Rate up to 1MHz

ABCD DCBA VPP 24 USBVDD 10 XRESET 5 REG_LOGIC 4 VD1 9 VD5(Ldo_in) 15 P00/XA 16 D+ 12 P03/YB 19 P02/YA 18 P01/XB 17 XCLKI 6 D- 11 VD3(Ldo_out) 14 XCLKO 7 IOVDD 20 VSS 13 VSS_Guard/_Logic 3 AVDD18/VDD18 8 P15/SPI1DO 22 P14/SPI1DI 21 P17/SPI1RDY 23 RSSI_DC 32 OP_OUT 27 V_CAP 26 VSS_BASE 25 REG_BASE 33 VOSP 31 VOSN 30 RSSI_O_90 29 RSSI_O_90_N 28 ANT_PA1 37 REG_LNA 34 VCO_Guard/REG_VCO 1 CP_OUT 40 VSS_VCO_G 39 ANT_PA0 38 VSS_AC2 36 VSS_DC 35 VCO_TUNE 2 U1 MA64101 5V C81nF C17 68pF R8 15K R3 4.7K C1556pF C18 1.8nF C4 0.1uF L222nH C2 0.1uF C1 0.1uF X1 12MHz C2030pF C1930pF R9 1M C70.1uF 3.0V 3.0V C50.1uF + C161uF 1.8V C60.1uF 3.0V 5V C224.7uF C114.7uF 3.0V C90.1uF C120.1uF C141pF LED1Power Stauts R10330 3.0V ID Key L11.8nH C3 P03GNDNC USB TYPE GND 4 D+ 3 D- 2 VBUS 1 CN1USB 2.4G Keyboard Mouse2.4G Wireless Mouse P02 C10=0RC10=NC Keymatrix mode 88 key Standard key V1.4 1 1 2011/08/09 ANTENNA Revision Date: Drawn By: sheet of D+D- D-D+ P02P03P01P00 P15 Standard key Fn+F1...F12=Media keys C10=0.1uF + C10 2408MHz-2474MHz

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15.249 TEST REPORT For Jazwares Inc 1067 Shotgun Road, Sunrise, FL 33326, USA FCC ID: YNIJAZWARES15295C Report Type: Original Report Product Type: STAR WARS-Dongle Test Engineer: Brown Lu Report Number: RSZ120420814-00 Report Date: 2012-04-28 Reviewed By: Alvin Huang EMC En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120420814-00 FCC Part 15.249 Page 2 of 19 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 LOCAL SUPPORT EQUIPMENT ....................................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 CONFIGURATION OF TEST SETUP ................................................................................................................................. 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 8 §15.207 (A) – AC LINE CONDUCTED EMISSIONS ................................................................................................ 9 APPLICABLE STANDARD .............................................................................................................................................. 9 MEASUREMENT UNCERTAINTY .................................................................................................................................... 9 EUT SETUP .................................................................................................................................................................. 9 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC§15.205, §15.209&§15.249- RADIATED EMISSIONS .................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 MEASUREMENT UNCERTAINTY .................................................................................................................................. 13 TEST EQUIPMENT SETUP ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 14 TEST …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions – Side View Radiated Emissions – Front View (30-1000 MHz) Radiated Emissions – Rear View (30-1000 MHz) Radiated Emissions – Front View (Above 1 GHz) Radiated Emissions – Rear View (Above 1 GHz)
