YNIJAZWARES38060Skelanimals Walkie Talkie

Congratulations on your purchase of the Skelanimals Walkie Talkies! To get the most out of your Walkie talkies please read this manual as it will help you explain to the child the safe a proper way to use this toy. Information: Requires 2 X 9Volt (6LR61) batteries (not included). Warning: Replacement of batteries must be done by an adult. Do not mix old and new batteries. Do not mix the alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries. The supply terminals are not to be short-circuited. Non-rechargeable batteries are not to be recharged. Exhausted batteries are to be removed. Only batteries of the equivalent type are to be used. Batteries are to be inserted with the correct polarity. Dispose of batteries properly. Do not dispose of batteries in fire ; batteries may explode or leak. Battery Operation : Remove the screw on the battery door with a screw driver. Open the battery door. Insert 2 X 9Volt (6LR61) batteries with correct polarity into the battery compartment. Close the battery door, and replace the screw on position. • Use this only as intended. • To prevent fire or shock hazard, do not expose this unit to rain or moisture. • Do not submerge the unit in any liquid • Do not disassemble SAFETY TIPS: Battery Information: Battery Information: Requires 1 X 9Volt (6LR61) Battery (not included) Requires 1 X 9Volt (6LR61) Battery (not included) Remove the screw on the battery door with a screw driver. Remove the screw on the battery door with a screw driver. Using Your Walkie Talkies: KitChungkee On/Off Button Light Up Heart On/Off Button Talk Button Flexible Antenna Call Button Call Button Talk Button Mic /Speaker Mic /Speaker Flexible Antenna Turning Power On/Off: Slide On/Off Button to activate or deactivate the Walkie Talkies. Remember to switch Walkie Talkies OFF after use to conserve battery life. Both Walkie Talkies must be turned ON in order to send and receive messages. Sending Voice Messages: Press and hold the Talk Button and speak into speaker. Receiving Voice Messages: Messages can not be received while the Talk Button is pressed. Messages are heard through the speaker Light Up Feature: Hearts Light Up when the Walkie Talkie is turned on. Troubleshooting: Replace Batteries If : One or more of the Walkie Talkies do not work Signal range decreases notably Be careful not to talk at the same time as your friend. Two people talking at once will affect performance of the units. This product does not transmit well through obstacles such as buildings, metal structures and trees. Need More Help? Do Not Return Item to Store. Call 1-800-370-1827and speak to a customer service representative. USER GUIDE © Jazwares, Inc. 2010 Ages 6+ Included in box: • Walkie Talkies : Set of 2 • User Guide and Warranty Please read the instructions along with the walkie talkies carefully before use, so that you can operate them conveniently. USER GUIDE Jazwares Inc. 555 Sawgrass Corporate Parkway Sunrise, Fl. 33325 A4R1 © Jazwares, Inc. 2010 Ages 6+ WHAT IS NOT COVERED - EXCLUSIONS & LIMITATIONS This warranty does not apply (a) to damage caused by accident, abuse, misuse, misapplication, or non - Jazwares, Inc. product, (b) to damage caused by service performed by anyone other than Jazwares, Inc. (c) to a product or a part that has been modified without the written permission of Jazwares, Inc. LIMITED WARRANTY DOES NOT COVER • Shipping charges to return defective product to Jazwares, Inc. • Product repair and/or part replacement because of improper installation, connections to improper voltage supply, abuse, neglect, accident, unauthorized repair or other cause not within the control of Jazwares, Inc. • Damage or claims for products not being available for use, or for lost data or lost software. • Damage occurring to product during shipping. • A product that requires modification or adaptation to enable it to operate in any country other then the country for which it was designed, manufactured approved and/or authorized, or repair of products damaged by these modifications. • Product lost in shipment and no signature verification receipt can be provided. • Failure to operate per Owner’s Manual. RMA REQUIREMENT BEFORE RETURNING ANY PRODUCT, CONTACT JAZWARES, INC. CUSTOMER SERVICE. Customer service is available 9-6 EST at 1-800-370-1877. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. JAZWARES, INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you This warranty gives you specific legal rights. You may have other rights which vary from state to state. This warranty is only valid in the Unites States of America. © Jazwares, Inc. If Jazwares, Inc.’s Customer Service verifies that the product is defective, the Return Authorization Department will issue an RMA number to be placed on the outer package of the product. Jazwares, Inc. can not accept any product that does not include an RMA number on the package. Limited Ninety (90) Day Warranty: WARRANTY COVERAGE Jazwares, Inc.’s warranty obligation is limited to the terms set forth below. WHO IS COVERED Jazwares, Inc. warrants the product to the original purchaser or the person receiving the product as a gift against defects in material & workmanship as based on the date of the original purchase from an authorized dealer or retailer. The original sales receipt showing the product name & the purchase date from an authorized retailer is considered such proof. Jazwares, Inc. warrants replacement products or parts p…

Text truncated - open the document above for the full version.

Just the appearance are different .

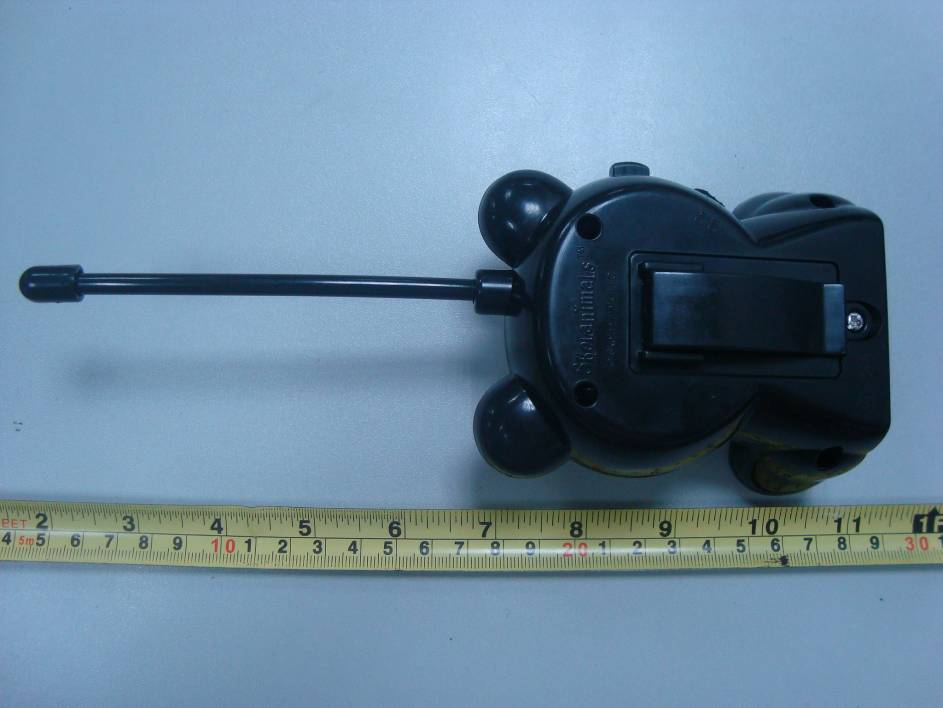

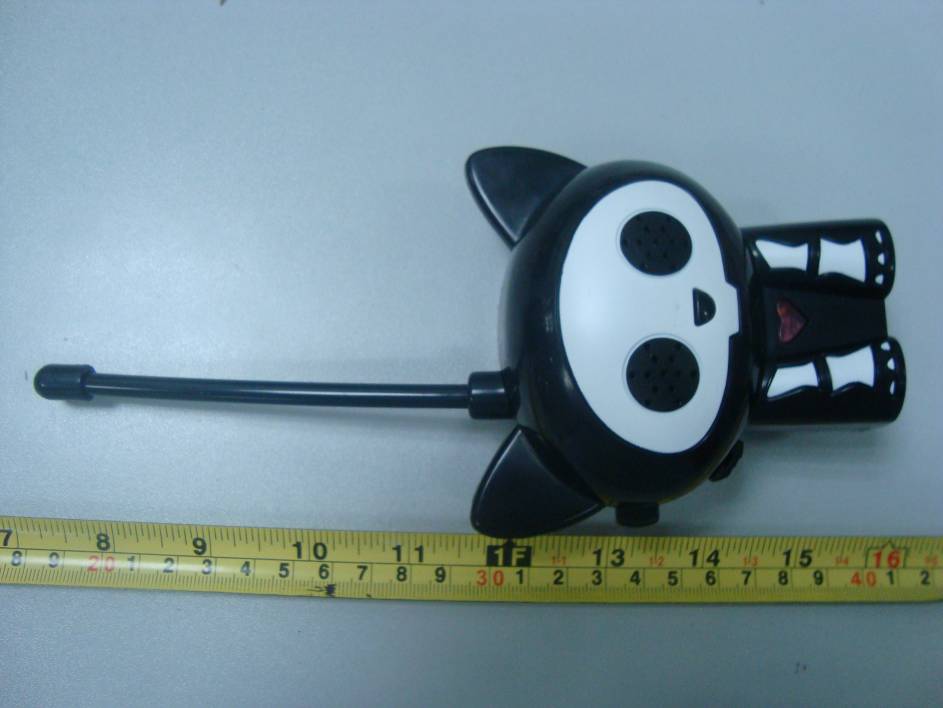

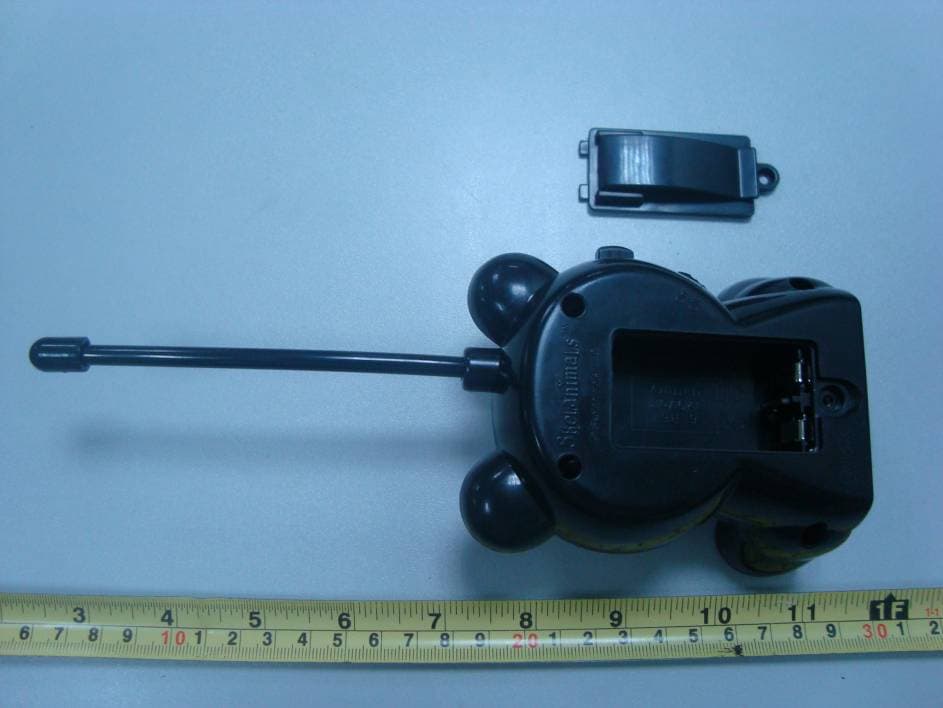

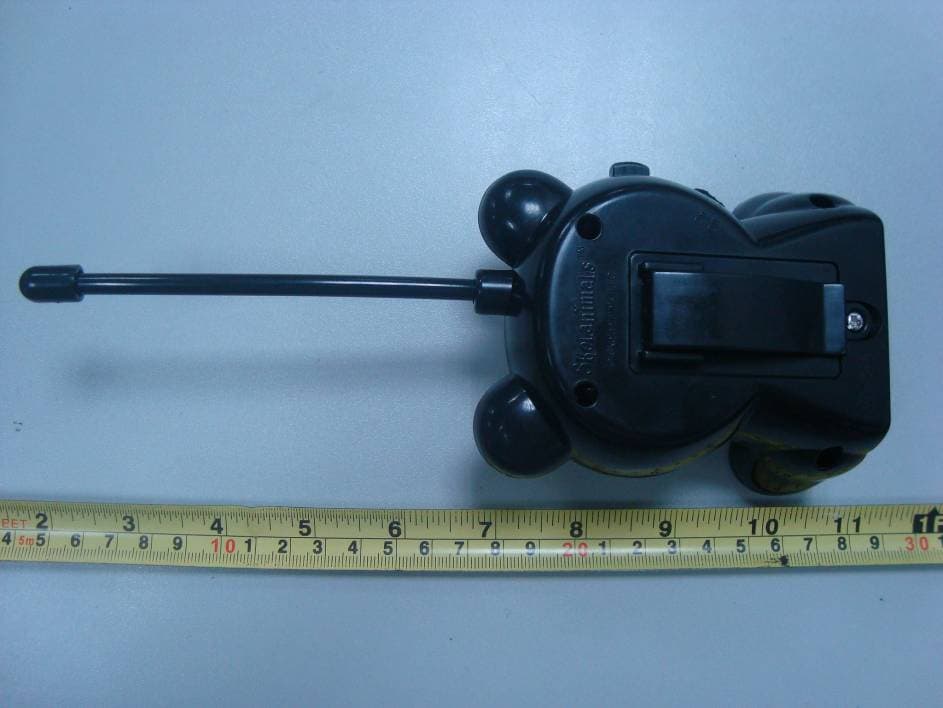

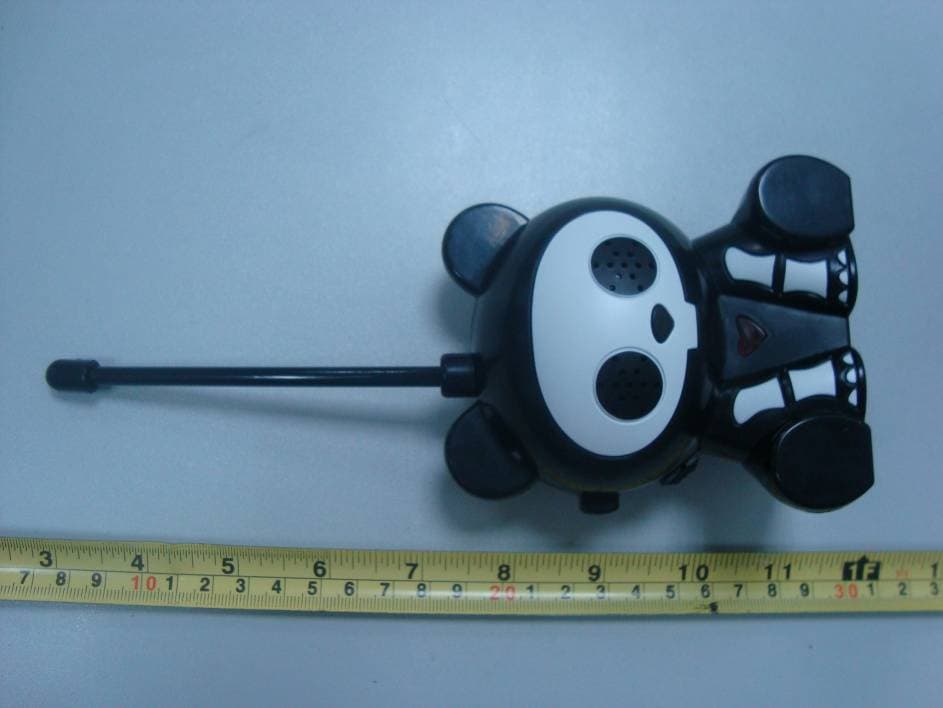

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View (Sitting) Antenna EUT – Back View (Sitting) EUT – Front View (Standing) EUT – Back View (Standing) EUT – Side View EUT – Remove Battery View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Label Proposed FCC ID Label Location Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Components View EUT – Main Board Circuit View EUT – LED PCB View 1 EUT – LED PCB View 2

General 1. Frequency: Channel =49.860MHz 2. Power supply: Batteries for receivers: 9V 6LR61 Batteries for transmitters: 9V 6LR61 3. Communication range: 30m 4. Modulation: AM 5.Operating temperature range:-20°C～+55°C

11 22 33 44 D D C C B B A A Scale Sheet Size FCSM No. DWG No. Rev A4 ANT L1 2.3UH T1 C1410pFC1539pFC1647pF R947Ω Q1 C380 R10 6.8KΩ R822KΩ C11 562 SW1-1 C1715pF R1118KΩ Y1 49.860MHz SW1-2 SW1-3 C19 472 R33.3KΩ R46K8 C7393 C3100UF R25.6KΩ R51MΩ C6500P C8562 C10 0.1uF C9 300pF NPO C5183 Q29014 Q39014 R6150Ω C447UF R7 820KΩ Coll R1100Ω T2 SW1-4 S19V BATTERY C1 100UF C2 100UF K155 3T:32T:2T EI145P 260T:260T:79T C125.6pF Ф29mm 8Ω 0.25W LED R22K7 24pF C13 38060 Walkie Talkies 38060 Walkie Talkies 38060 Walkie Talkies 38060 Walkie Talkies 49.860MHz

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.235 EMI MEASUREMENT AND TEST REPORT For Jazwares Inc New Mandarin Plaza, Tower B, Room 801, 14 Science Museum Road, TST East, Kowloon, Hong Kong FCC ID: YNIJAZWARES38060 Report Type: Original Report Product Type: Skelanimals Walkie Talkie Test Engineer: William Chen Report Number: RSZ10071387 Report Date: 2010-07-27 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Jazwares Inc FCC ID: YNIJAZWARES38060 Report # RSZ10071387.doc Page 2 of 15 FCC Part15.235 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 §15.209(A) §15.235(A) §15.205 - RADIATED EMISSIONS......................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 §15.235(B) - BAND EDGES TESTING .....................................................................................................................14 STANDARD APPLICABLE............................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................14 Jazwares Inc FCC ID: YNIJAZWARES3…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions - Stand View (Front) Radiated Emissions - Stand View (Rear)
