YNIJAZWARES65410Sonic Walkie Talkie

Congratulations on your purchase of the Sonic Walkie Talkies! To get the most out of your Walkie talkies please read this manual as it will help you explain to the child the safe a proper way to use this toy. Information: Requires 2 X 9Volt (6LR61) batteries (not included). Warning: Replacement of batteries must be done by an adult. Do not mix old and new batteries. Do not mix the alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries. The supply terminals are not to be short-circuited. Non-rechargeable batteries are not to be recharged. Exhausted batteries are to be removed. Only batteries of the equivalent type are to be used. Batteries are to be inserted with the correct polarity. Dispose of batteries properly. Do not dispose of batteries in fire ; batteries may explode or leak. Battery Operation : Remove the screw on the battery door with a screw driver. Open the battery door. Insert 2 X 9Volt (6LR61) batteries with correct polarity into the battery compartment. Close the battery door, and replace the screw on position. • Use this only as intended. • To prevent fire or shock hazard, do not expose this unit to rain or moisture. • Do not submerge the unit in any liquid • Do not disassemble SAFETY TIPS: Battery Information: Battery Information: Requires 1 X 9Volt (6LR61) Battery (not included) Requires 1 X 9Volt (6LR61) Battery (not included) Remove the screw on the battery door with a screw driver. Using Your Walkie Talkies: On/Off Button On/Off Button Talk Button Flexible Antenna Call Button Mic /Speaker Mic /Speaker Flexible Antenna Turning Power On/Off: Slide On/Off Button to activate or deactivate the Walkie Talkies. Remember to switch Walkie Talkies OFF after use to conserve battery life. Both Walkie Talkies must be turned ON in order to send and receive messages. Sending Voice Messages: Press and hold the Talk Button and speak into speaker. Receiving Voice Messages: Messages can not be received while the Talk Button is pressed. Messages are heard through the speaker Troubleshooting: Replace Batteries If : One or more of the Walkie Talkies do not work Signal range decreases notably Be careful not to talk at the same time as your friend. Two people talking at once will affect performance of the units. This product does not transmit well through obstacles such as buildings, metal structures and trees. Need More Help? Do Not Return Item to Store. Call 1-800-370-1827and speak to a customer service representative. USER GUIDE © Jazwares, Inc. 2010 Ages 6+ Included in box: • Walkie Talkies : Set of 2 • User Guide and Warranty Please read the instructions along with the walkie talkies carefully before use, so that you can operate them conveniently. Talk Button Remove the screw on the battery door with a screw driver. Call Button USER GUIDE Jazwares Inc. 555 Sawgrass Corporate Parkway Sunrise, Fl. 33325 A4R2 © Jazwares, Inc. 2010 Ages 6+ WHAT IS NOT COVERED - EXCLUSIONS & LIMITATIONS This warranty does not apply (a) to damage caused by accident, abuse, misuse, misapplication, or non - Jazwares, Inc. product, (b) to damage caused by service performed by anyone other than Jazwares, Inc. (c) to a product or a part that has been modified without the written permission of Jazwares, Inc. LIMITED WARRANTY DOES NOT COVER • Shipping charges to return defective product to Jazwares, Inc. • Product repair and/or part replacement because of improper installation, connections to improper voltage supply, abuse, neglect, accident, unauthorized repair or other cause not within the control of Jazwares, Inc. • Damage or claims for products not being available for use, or for lost data or lost software. • Damage occurring to product during shipping. • A product that requires modification or adaptation to enable it to operate in any country other then the country for which it was designed, manufactured approved and/or authorized, or repair of products damaged by these modifications. • Product lost in shipment and no signature verification receipt can be provided. • Failure to operate per Owner’s Manual. RMA REQUIREMENT BEFORE RETURNING ANY PRODUCT, CONTACT JAZWARES, INC. CUSTOMER SERVICE. Customer service is available 9-6 EST at 1-800-370-1877. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. JAZWARES, INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you This warranty gives you specific legal rights. You may have other rights which vary from state to state. This warranty is only valid in the Unites States of America. © Jazwares, Inc. If Jazwares, Inc.’s Customer Service verifies that the product is defective, the Return Authorization Department will issue an RMA number to be placed on the outer package of the product. Jazwares, Inc. can not accept any product that does not include an RMA number on the package. Limited Ninety (90) Day Warranty: WARRANTY COVERAGE Jazwares, Inc.’s warranty obligation is limited to the terms set forth below. WHO IS COVERED Jazwares, Inc. warrants the product to the original purchaser or the person receiving the product as a gift against defects in material & workmanship as based on the date of the original purchase from an authorized dealer or retailer. The original sales receipt showing the product name & the purchase date from an authorized retailer is considered such proof. Jazwares, Inc. warrants replacement products or parts provided under this warranty against defects in materials & workmanship from the date of the replacement …

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA Scale Sheet Size FCSM No. DWG No. Rev 0 of 0 A4 ANT 49.860MHz Super-regenerative receiver modulator RT S? T T T R R R 49.860MHz Battery 9VBattery 9VAudio Amplifier Morse codeMorse code Key Speaker/ Microphone Oscillator 65410 SONIC WALKIE TALKIE Block diagram Frequency:49.860MHz

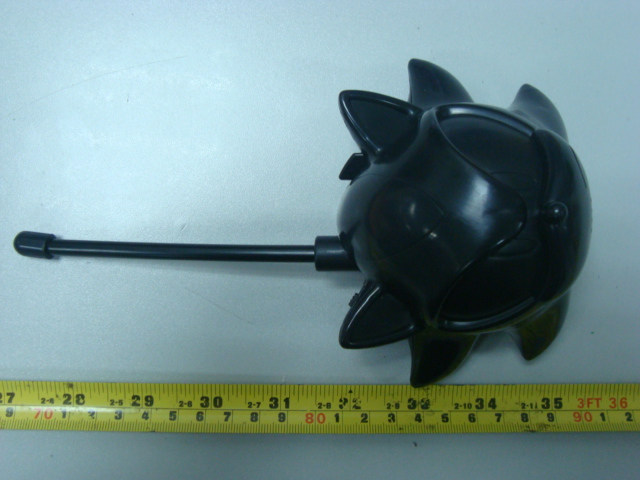

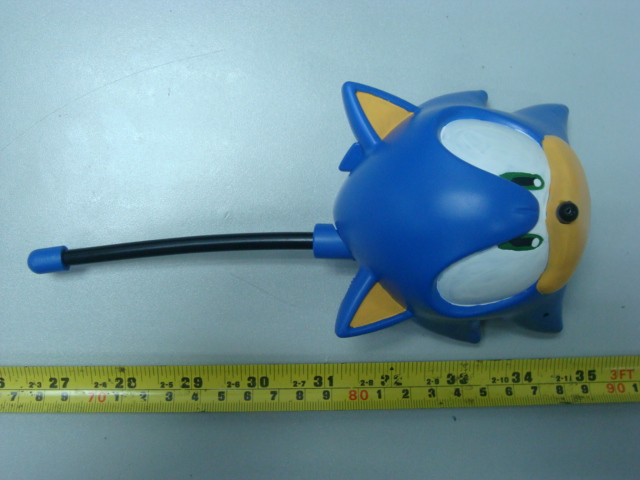

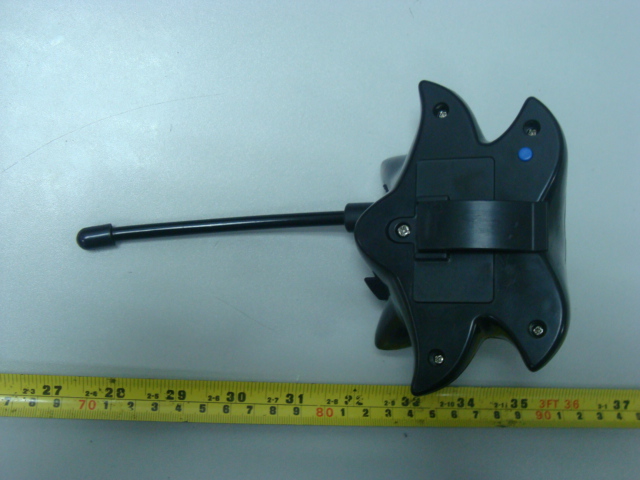

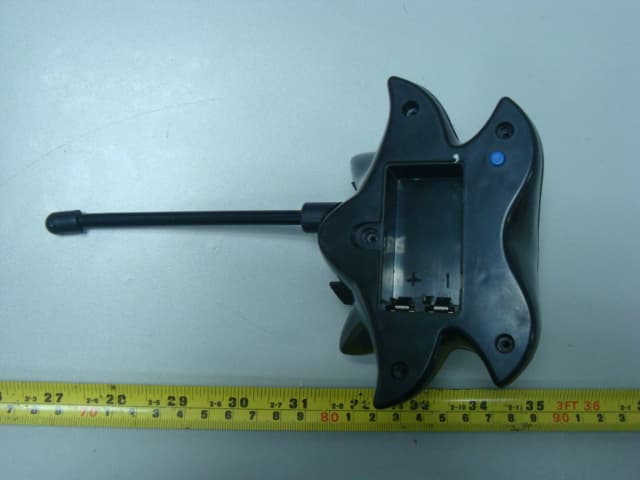

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View (Black) Antenna EUT – Back View (Black) EUT – Front View (Blue) EUT – Back View (Blue) EUT – Battery off View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Mainboard with Antenna View 1 EUT – Mainboard with Antenna View 2 EUT – Main Board Components View EUT – Main Board Circuit View EUT – LED PCB View 1 EUT – LED PCB View 2

Circuit Description The Walkie talkies unit consists of four major sections, RF sections and oscillation sections and amplifier sections and power sections. 1) RF sections: The section is made up of: - Antenna matching network The section is made up of : L1,C12,C18,T1 - Receiver circuit (as emission circuit.) The section is made up of: T1,C3,C4,C5,R3,R4,C2,R2,Q1,SW1-1,SW1_3,C6. While the push button is pressed the oscillation and emission circuit will be turned on and send out the radio frequency signal. While the push button is no pressed the oscillation circuit will be turned off and receiver circuit will be turned on. The walkie talkies will receives incoming radio signals and converts them to perceptible sound. Process of signals and function : The circuit is to be in a state of transmitting when the "push button" is pressed ,the section of circuit can amplify the 49.860MHz BPSK signals recieved from the "amplifier sections" and then transmit it through the antenna .If the "push button" is not pressed ,the section of circuit would be in a state of receiving , it could amplify the BPSK signals received through the antenna then modulate it into audio-frequency signals and after that, send it to the "amplifier sections" to amplify its audio-frequency. 2) Oscillation sections The section is made up of: Y1 49.860MHz, R1,C1, SW1_2 The oscillation circuit is controlled by the push button. While the push button is pressed the oscillation circuit will be turned on。The oscillation circuit is provide the 49.860MHz signals for the RF sections. 3) Amplifier sections The section is made up of: R8,R12,C7,C13,R7,R6,C8,C9,R5,C16,R10,R9,C11,T2,Q2,Q3,C17,SPEAKER,SW1_4,C10. The Amplifier sections circuit is controlled by the push button. The amplifier circuit will enlarge the audio signals, when the push button is pressed . Process of signals and function: The circuit is to be in a sate of transmitting when the "push button" is pressed ,this section of circuit would amplify the audio-frequency received from the pickup ,then send it to "RF button" to modulate immediately .When the "push button" is not pressed ,this section of circuit would in a state of receiving ,it amplifies the audio-frequency signals received from "RF section" ,and then transforms the audio-frequency signals into sounds through loudspeaker . 4) Power sections The section is made up of: Battery (DC9V), C14,C15. This section of circuit would support the power of batteries to the three sections of circuits above.

1 2 34 ABCD 4 3 2 1 D CBA S cale Sheet Size FCSM No. DWG No. Rev 0 of 0 A4 ANT L1 2.7U H T1 C310pFC440pFC550pF R447 Ω Q1C3 80 R36.8K Ω R222K Ω C2 5000pF SW 1-1 C115pF R118K Ω Y1 49.860M Hz SW 1-2 SW 1-3 C65000pF R83.3K Ω R1 2 4.7K Ω C7 40000pF C1 3 100UF R75.6K Ω R61M Ω C8500pF C95000pF C 10 0.1uF C1 6 300pF C1 7 20nF Q29014 Q39014 R9150 Ω C1 1 47UF R5820K Ω TG R1 0 220 Ω T2 SW 1-4 SW 2 9VBA TTERY C1 5 100UF C1 4 100UF K 155 3T:32T:2T E I145P 260T :260T:79T C1 2 5.6pF C1 8 24pF 65410 SONIC WALKIE TALKIE 49.86 MHz

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.235 EMI MEASUREMENT AND TEST REPORT For Jazwares Inc. New Mandarin Plaza, Tower B, Room 801, 14 Science Museum Road, TST East, Kowloon, Hong Kong FCC ID: YNIJAZWARES65410 Report Type: Original Report Product Type: Sonic Walkie Talkie Test Engineer: Chris You Report Number: RSZ10080581 Report Date: 2010-08-17 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Jazwares Inc. FCC ID: YNIJAZWARES65410 Report #: RSZ10080581 Page 2 of 14 FCC Part 15.235 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 FCC §15.205, §15.209(A), §15.235(A) & §15.109 - RADIATED EMISSIONS ........................................................9 APPLICABLE STANDARD..............................................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 FCC §15.235(B) - BAND EDGES TESTING ............................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 Jazwares Inc. FCC ID: YNIJAZWARES65410 Report #: RSZ10080581 Page…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions - Stand View (Front) Radiated Emissions - Stand View (Rear)
