ZT-TRX433 Multi-use 8-bit Transceiver The 8-bit Transceiver is used in the Impact Sensor and the Bedbox to send data. This unit senses when the state of any of the 8 I/O pins change and sends the status of those pins. When any I/O pin’s status changes the status of the pins are sent. Features • 50ft wireless range • Adaptable to many applications • 433MHz wireless radio • 8 pull-up inputs • Connected to PIC16F687 Requirements • 2.3V - 3.6V input • 20 pin 2mm header connection • Sending: Avg: 10mA, MAX: 20mA • Idle Avg < 70uA Dimensions 65 x 25 x 8 mm 2.56 x 1.0 x .32 in Figure 1: Side View and Bottom View R1 47k C1 10n + U1 3.3 To I/O To PIC • TRX transmit • The TRX waits for an acknowledgement. • Device sends the RF signal to Controller. Controller decodes the RF signal and relays to PC. • Device shall receive ACK signal from Controller. • If Device does not receive ACK signal more than 0.5 second, it will re-send RF signal again. • PC will check the Device Type and Address. If they match with the data stored in PC, PC will send ACK instruction to the Controller. • If Device re-sends RF signal additional 2 times and it does not receive the ACK signal, it stops sending any RF signal until next event. Software Protocol Info (FDT): Device Type: 0x06 Command Data 0x01 0x0000 HeartBeat (once every 4 hours) 0x02 0x8000 Normal Voltage Ë IO is High 0x0000 Low Voltage Ë IO is Low 0x03 0x0000 Enrolled Signal 0x07 0x0000 – 0x00FF When one of the eight bits is toggled the TRX sends the data 0xFE Tx' Address Acknowledgement The "HearBeat" signal is transmitted every 4 hours when the sensor is in the idle mode. The sensor detects the voltage before transmitting RF signal. The "Low-Voltage" RF signal is sent when the "Low-Voltage" status is detected more than 10 times in succession. If the voltage status change from "Low-Voltage" into "Normal-Voltage", the sensor will transmit "Normal-Voltage" RF signal. Fall Detector The Fall Detector, only offered with the WellAWARE™ System, is placed on the floor and detects vibrations through the floor. It can detect disabling falls in a fifteen foot radius. The Data Manager uses this data in tandem with the motion sensors to infer whether a fall has happened in the apartment. The Impact Sensor can differentiate between a solid object falling and a person falling hard. Installation: The batteries (8 D-cell) are installed by unscrewing the retainer screw on one side of the detector. Pull the battery compartment open. The battery pack comes out of the box. After the batteries are replaced and reconnected to the box carefully place the battery pack in the box as shown. The top can then be replaced by sliding it straight on and tightening the screws. First the floor type needs to be determined. There are 4 settings: These are set by the slide switch near the bottom of the detector. This switch can be changed carefully by simply sliding it from one side to the other. The settings from left to right go from least sensitive to most sensitive. A wooden floor will need a less sensitive setting because the vibrations being detected will show up easily. A concrete slab floor will need a much more sensitive setting since vibrations don’t travel as well through it. Less Sensitive ... More Sensitive Wood Mezzanine Noisy Slab Slab Make sure the switch is clicked in place. If it is in between settings the sensor will behave unpredictably. Set the floor to the one that best describes the where it will be placed, i.e. if it is a 2 nd floor of concrete in a building where there is industrial equipment nearby this would be considered noisy mezzanine. The more solid the floor is (concrete etc) the more sensitive the setting will need to be. If the floor is less solid (a 2 nd story wood floor) it will need to be set to the less sensitive side. When the Impact Sensor is in place out of the way it can be tested. Test it by walking near it. The LED shouldn’t light up. If this is not the case you should use a less sensitive setting. Then stomp three times near it. The LED should light up. If this is not the case try using a more sensitive setting. Considerations: This sensor does not detect falls. It detects impacts associated with hard falls within a fifteen foot radius. If the sensor is placed near a wall its range may be limited. However load bearing walls have more of a limiting effect than partitions. In some cases you may be able to place a sensor close to a wall and increase the sensitivity a notch to compensate for the dampening effect of the wall. The sensor must be placed out of the way and preferably out of sight. If it is in plain sight it may be tampered with resulting in faulty data. Good examples for placement are: under the bed, between a partition and a table etc. FCC COMPLIANCE：

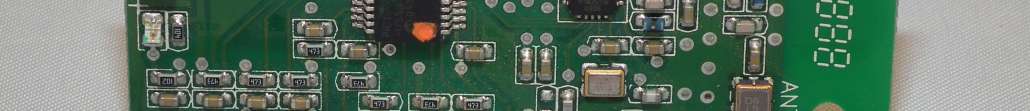

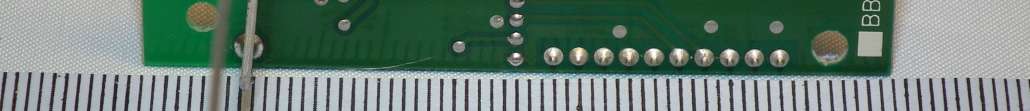

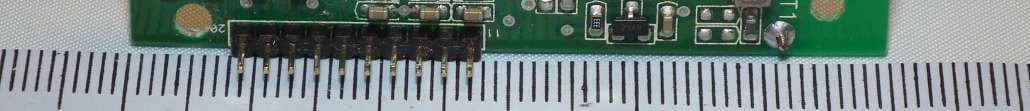

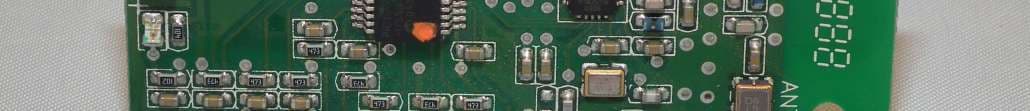

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: YNVZTTRX433 Report No.: RF991011D06 Operational Description The transmitter of the EUT (Radio Transmitter Module) is powered by 5Vdc from battery. The type of antenna is Monopole Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF991011D06 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF9901011D06 MODEL NO.: ZT-TRX433 FCC ID: YNVZTTRX433 RECEIVED: Oct. 11, 2010 TESTED: Oct. 13 ~ 19, 2010 ISSUED: Oct. 22, 2010 APPLICANT: WellAWARE Systems Inc. ADDRESS: 5500 Cox Rd, Glen Allen, VA23060 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991011D06 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION.........................................................................................3 2. SUMMARY OF TEST RESULTS.................................................................4 2.1 MEASUREMENT UNCERTAINTY...............................................................4 3. GENERAL INFORMATION..........................................................................5 3.1 GENERAL DESCRIPTION OF EUT............................................................5 3.2 DESCRIPTION OF TEST MODES..............................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................9 3.4 DESCRIPTION OF SUPPORT UNITS........................................................9 4. TEST TYPES AND RESULTS...................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT............................................10 4.2 RADIATED EMISSION MEASUREMENT.................................................10 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................10 4.2.2 TEST INSTRUMENTS..............................................................................12 4.2.3 TEST PROCEDURES...............................................................................13 4.2.4 DEVIATION FROM TEST STANDARD.....................................................13 4.2.5 TEST SETUP............................................................................................14 4.2.6 EUT OPERATING CONDITIONS..............................................................14 4.2.7 TEST RESULTS........................................................................................15 4.3 20dB OCCUPIED BANDWIDTH MEASUREMENT...................................18 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT...........................18 4.3.2 TEST INSTRUMENTS..............................................................................18 4.3.3 TEST PROCEDURE.................................................................................18 4.3.4 DEVIATION FROM TEST STANDARD.....................................................19 4.3.5 TEST SETUP............................................................................................19 4.3.6 TEST RESULTS........................................................................................20 4.4 DEACTIVATION TIME...............................................................................21 4.4.1 LIMITS OF DEACTIVATION TIME MEASUREMENT................................21 4.4.2 TEST INSTRUMENTS..............................................................................21 4.4.3 TEST PROCEDURES...............................................................................21 4.4.4 DEVIATION FROM TEST STANDARD.....................................................21 4.4.5 TEST SETUP............................................................................................21 4.4.6 TESE RESULTS........................................................................................22 5. PHOTOGRAPHS OF THE TEST CONFIGURATION................................23 6. INFORMATION ON THE TESTING LABORATORIES..............................24 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.....................................................25 Report No.: RF991011D06 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Radio Transmitter Module BRAND NAME: MODEL NO.: ZT-TRX433 APPLICANT: WellAWARE Systems Inc. TESTED: Oct. 13 ~ 19, 2010 TEST SAMPLE: MASS-PRODUCTION STANDARDS: FCC Part 15, Subpart C (Section 15.231) ANSI C63.4-2003 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Oct. 22, 2010 ( Jessica Cheng / Specialist ) TECHNICAL ACCEPTANCE : , DATE: Oct. 22, 2010 Responsible for RF ( Jamison Chan / Supervisor ) APPROVED BY : , DATE: Oct. 22, 2010 ( Ken Liu / Manager) Report No.: RF991011D06 4 Report Format Version 3.0.1 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.231) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test N/A Power supply is 5Vdc from battery 15.209 15.231(b) Radiated Emission Test PASS Minimum passing margin is –0.6dB at 433.92MHz 15.231(c) Emission Bandwidth Measurement PASS Meet the requirement of limit 15.231(a) De-activation PASS Meet the requirement of limit 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for test…
