YOPGS1500MLOW POWER WI-FI MODULE

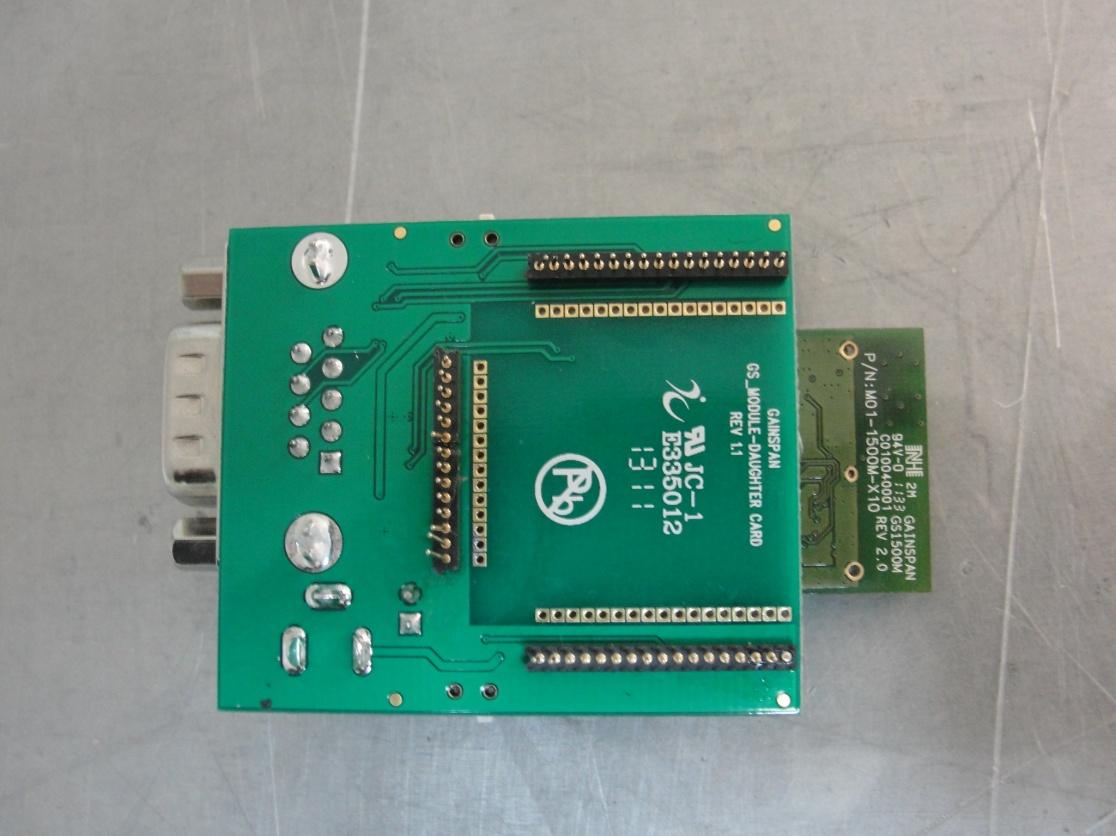

Figure A External Picture- Front View Figure B External Picture- Rear View

GainSpan Wi ‐ Fi Module Product Label Specifications: Sample Label: GS1500M 2.0FCC ID: YOPGS1500MIC ID: 9154A-GS1500MYYWW NNNN TW Line #5: Barcode of MAC Line #4: Date Code, Lot number, and Manufacturing Location Line #6: MAC Address = Serial Number Line #2: FCC ID 0.800"" 0.600"" Line #1: GainSpan Part Number and Revision number Product Label shall be applied on top of the RF Shield below the venting holes. GS1500M 2.0FCC ID: YOPGS1500MIC ID: 9154A-GS1500MYYWW NNNN TWMAC: 001DC9XXXXXX Line #3: IC ID Specifications: PRODUCT INFORMATION: Label Specification: Line #1: GainSpan Product Part Number and Revision Number. (Note Revision number shall be specified by GainSpan in the applicable contract/purchase order. ) Line #2: FCC ID Number Line #3: IC ID Number Font Size: Must be 6 IC ID Number Format IC ID: 9154A-GS1500M Font Type: Arial Narrow Font Type: Arial Narrow Font Size: Must be 6 Font Size: 6 minimum FCC ID Number Format FCC ID:YOPGS1500M Part No. & Revision No. GS1500M 2.0 Font Type: Arial Mark Method: Laser Print Label Dimensions 0.800" X 0.600" X 0.005" Color White Print Material: Non-erasable Ink PACKAGE DIMENSIONS: 0.900" X 1.280" X 0.143" Material: Polyimide PRODUCT: GS1500M PACKAGE TYPE: MODULE Line #4: Date Code, Lot Number, and Manufacturing Location (Country of Origin ) (Allow equal spacing between these numbers for symetrical display.) Line #5: Barcode of MAC Address Standard Barcode Format. Size of barcode shall be a minimum of 3.5 mm in height. Line #6: MAC address = Serial Number Font Type: Arial Narrow Font Size: Must be 6 Manufacturing Location Format: 2 - digit for country codeTW for TaiwanUS for USACN for China MAC Address Format MAC: 001DC9XXXXXX Font Type: Arial Font Size: 6 minimum Font Size: 6 minimum Font Type: Arial Font Size: 6 minimum Lot Number format NNNN Data Code Format YYWW Font Type: ArialNNNN = 4 -digit Production Sequencial Lot Number assigned by Contract Manufacturer.YY = 2 -digit Year Number = Last 2 digits of YearWW = 2-digit Week Number of the Work Week

Figure 1 Internal Top View Figure 2 Internal Bottom View

FCCID : GS1500M MPE Calculations (WLAN : 802.11n) - Frequency range : 2412 MHz - 2462 MHz - Maximum RF output power : 15.9 dBm - Maximum antenna peak gain : 5.0 dBi The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows : EIRP = P + G = 15.9 dBm + 5.0 dBi = 20.9 dBm Note : P = RF output power at the antenna terminal (dBm) G = RF gain of the antenna (dBi) The power density at the specific separation : S = P G / ( 4 R 2 π ) = 38.9 x 3.16 / ( 4 x 20 2 x π ) = 0.02446 mW/cm 2 S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric gain of the antenna R = Distance to the center of the radiation of the antenna (20cm) Conclusion : The exposure condition of this device is compliant with FCC rules . The maximum permissible exposure (MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . The power density at 20cm does not exceed the 1.0 mW/cm 2 .

Test Report issued under the responsibility of: ITC ENGINEERING SERVICES, INC. CFR 47 Part 15 Subpart C §15.247 – Intentional Radiators – Operation within the Bands 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz Industry Canada Radio Standard Specification RSS-Gen Issue 3 General Requirements and Information for the Certification of Radio Apparatus Industry Canada Radio Standard Specification RSS-210 Issue 8 License-exempt Radio Apparatus (All Frequency Bands): Category I Equipment Report Reference No. ............... : 20110916-01 FCC/IC Date of Issue ................................ : November 16, 2011 Total Number of Pages ................ : 78 Testing Laboratory .................... : ITC Engineering Services, Inc. Address ........................................ : 9959 Calaveras Road, Box 543, Sunol CA 94586 Applicant’s Name ..................... : GainSpan Corporation Address ........................................ : 125 South Market Street, Suite 400 San Jose, CA 95113 Contact ........................................ : Mr. Ken Trang Phone ........................................... : (408) 673-2900 Fax ................................................ : N/A Test Specification Standard ....... : CFR 47 Part 15 Subpart C Section 15.247 ANSI C63.4-2009; RSS-Gen & RSS-210 FCC ID ........................................... : IC ID.............................................. : YOPGS1500M 9154A-GS1500M Judgment ..................................... : Complies as Tested Test Item Description................ : Low Power Wi-Fi Module with 802.11n/b/g Manufacturer Logo ...................... : Manufacturer .............................. : GainSpan Corporation Model/Type Reference ................ : GS1500M RF Operating Frequency .............. : 2.412- 2.462 GHz ISO 17025 Accredited Laboratory Lab Code 200172-0 Applicant: GainSpan Corporation Report No. 20110916-01 FCC/IC Prepared By: ITC Engineering Services, Inc. 9959 Calaveras Road, PO Box 543 Sunol, California 94586-0543 Tel: +1(925) 862-2944 Fax: +1(925) 862-9013 Email: [email protected] Web: www.itcemc.com Page 2 of 78 Product: Low Power WiFi Module Model: GS1500M Contents 1 DOCUMENTATION ......................................................................................................................................................... 8 1.1 TESTING LOCATION ........................................................................................................................................................... 8 1.2 REVISION HISTORY ............................................................................................................................................................ 8 1.3 SUMMARY OF TESTS ......................................................................................................................................................... 9 1.4 DECLARATION/DISCLAIMER .............................................................................................................................................. 9 1.5 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 9 1.6 CONDITION OF EUT ......................................................................................................................................................... 10 1.7 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 10 1.8 DESCRIPTION OF ANTENNA WITH FCC 47 CFR PART 15C 15.203 REQUIREMENTS. ....................................................... 11 1.9 LIST OF APPLICANT PERIPHERALS USED DURING TEST ................................................................................................... 11 1.10 GENERAL TEST REMARKS ................................................................................................................................................ 11 2 CONDUCTED EMISSION ................................................................................................................................................ 12 2.1 FCC §15.207, RSS-GEN 7.2.2 ........................................................................................................................................... 12 2.1.1 Administrative and Environmental Details ........................................................................................................... 12 2.1.2 Test Equipment ..................................................................................................................................................... 12 2.1.3 Test Results ........................................................................................................................................................... 12 2.1.4 Test Setup ............................................................................................................................................................. 12 2.1.5 Test Data .............................................................................................................................................................. 13 2.1.6 Test Setup Pictures ............................................................................................................................................... 13 3 TRANSMITTER RADIATED EMISSION ............................................................................................................................ 14 3.1 FCC §15.247 (C), RSS-GEN 4.9 & 6, RSS-210 A8.5 ........................................................................................................... 14 3.1.1 Administrative and Environmental Details ........................................................................................................... 14 3.1.2 Test Equipment .................................................................................................…

Text truncated - open the document above for the full version.

Figure A Radiated Emission Test Setup Figure B Conducted Emission Test Setup

Figure 1 EUT Position X-Axis Figure 2 EUT Position Y-Axis Figure 3: EUT Position Z-Axis
