YRK-GTITS04ToolSmart BT Enabled Digital Multimeter

ToolSmart ™ DIGITAL MULTIMETER USER’S MANUAL TS04 Please read this manual carefully and thoroughly before using this product. TS04 Manual_ES-fin-011216.qxp_Layout 1 1/12/16 10:22 AM Page 1 TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 What’s in the Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 –6 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 –7 Setup Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Install Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . .8 – 13 General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Holding Readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Choosing a Measurement Range . . . . . . . . . . . . . . . . . . 9 Disabling Auto Power Off . . . . . . . . . . . . . . . . . . . . . . . . 9 Measuring AC or DC Voltage . . . . . . . . . . . . . . . . . . . . . 9 Measuring AC or DC Current . . . . . . . . . . . . . . . . .9 – 10 Measuring Resistance . . . . . . . . . . . . . . . . . . . . . . . . .11 Measuring Temperature . . . . . . . . . . . . . . . . . . . . . . .11 Checking for Continuity . . . . . . . . . . . . . . . . . . . . . . . .12 Checking the Integrity of a Diode . . . . . . . . . . . . . . . .12 Checking Battery Voltage . . . . . . . . . . . . . . . . . . . . . .13 Using the NCV Detector . . . . . . . . . . . . . . . . . . . . . . . .13 Using the Digital Multimeter with the ToolSmart ™ App and an Apple iOS or Android Smartphone . . . . . . . . . .13 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 – 15 Operating & Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . .16 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Return for Repair Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Manual del Usuario (en Español) . . . . . . . . . . . . . . . . .21 – 40 2 TS04 Manual_ES-fin-011216.qxp_Layout 1 1/12/16 10:22 AM Page 2 INTRODUCTION Thank you for purchasing General Tools & Instruments’ (General’s) TS04 ToolSmart ™ Digital Multimeter (DMM). Please read this user’s manual carefully and thoroughly before using the instrument. The DMM can be used as a standalone multimeter, or with General’s free ToolSmart ™ app running on your mobile phone. When used in concert with an iPhone ® or Android ™ smartphone, the DMM can stream—via Bluetooth ® — to the phone all measurements it makes. The phone initiates the data transfer using the ToolSmart ™ app, which can be downloaded from the iTunes ® App Store or Google Play Store. The measurements can then be used to tag photos taken by the phone’s camera. For example, the app can apply current readings to icons of different AC outlets in a rendering of a room as a way to compare their efficiency. KEY FEATURES • 10 functions, 26 ranges • Measures AC/DC voltage, AC/DC current, resistance and surface temperature • Also checks continuity, diode integrity and battery voltage • Non-contact voltage (NCV) detector • ETL certified safe for CAT III 600V use • True RMS measurements • 2 in. (51mm) diagonal, 3-3/4 digit (4000 count) LCD with 3/4 in. (19mm) high digits • Powered by “9V” battery (included) • Low battery indication WHAT’S IN THE PACKAGE The meter is supplied in a display box along with a pair of double-insulated test lleads, a bead thermocouple probe and plug adapter, and a “9V” battery. 3 iPhone ® and iTunes ® are trademarks of Apple Inc., registered in the U.S. and other countries. Android ™ is a trademark of Google Inc. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by General Tools & Instruments is under license. TS04 Manual_ES-fin-011216.qxp_Layout 1 1/12/16 10:22 AM Page 3 PRODUCT OVERVIEW Fig. 1 shows the labels and positions of the controls, LCD and physical structures of the meter. Fig. 2 shows all possible indications on the LCD. Familiarize yourself with the functions and meanings of all controls, indications and connectors before moving on to the safety, setup and operating instructions. 1. LCD 2. Activates Bluetoothtransmission 3. Range selector. Selects Autoranging or Manual Ranging mode and specific manual range, if manual ranging is selected (see page 8) 4. Four-function FUNCbutton. 1) Toggles between AC and DC measurement with the rotary dial in the , , or position. 2) Selects resistance measurement, continuity checking or diode checking with the rotary dial in the position. 3) Toggles between ºC and ºF units with the rotary switch in the TEMPposition. 4) Disables the meter’s Auto Power Off function when pressed and held while moving the rotary function switch out of the OFFposition. 5. Data holdbutton. “Freezes” the display when pressed. Cancels the hold function when pressed again. 6. Rotary switch. Selects the meter’s primary function. 7. Ainput jack 8. COMinput jack 9. main input jack (for all functions except measuring current >400mA) 10. NCV sensor and visual indicator(red LED) 11. Battery compartment cover/flip-up stand (on back) TEMP mAμAVΩ μA A mA Ω 4
     Fig. 1. The DMM's controls, indicators and physical features TS04 Manual_ES-fin-011216.qxp_Layout 1 1/12/16 10:22 AM Page 4 1. Indicates DC voltage or current measurement 2. Indicates AC voltage or current measurement 3. Negative polarity indicator 4. Bluetooth enabled indicator 5. Indicates Auto power off function is enabled 6. Low battery indicator 7. Indicates detection of non- contact voltage 8. Autoranging mode indicator 9. Indicates…

Text truncated - open the document above for the full version.

“Precision, Specialty and Innovation...Since 1922” General Tools & Instruments Co., LLC ● 75 Seaview Drive ● Secaucus, NJ 07094 Tel: 212.431.6100 ● Fax: 212-431-6499 ● www.generaltools.com General Tools Instruments Date : December 27, 2015 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for GENERAL TOOLS & INSTRUMENTS CO. LLC, 75 SEAVIEW DRIVE, SECAUCUS, NJ 07094, U.S.A. to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of GENERAL TOOLS & INSTRUMENTS CO. LLC. Product name : ToolSmart Bluetooth Enabled Digital Multimeter Model : TS04 This authorization will expire one year from the date of this letter. Print name：Karen Kwong Title: Engineering and QA Manager Signature:

Page 1 Company Name: GENERAL TOOLS & INSTRUMENTS CO. LLC Address: 75 SEAVIEW DRIVE, SECAUCUS, NJ 07094, U.S.A. Date: 2015/12/25 FCC ID: YRK-GTITS04 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “GENERAL TOOLS & INSTRUMENTS CO. LLC” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Print name： Karen Kwong Title: Engineering and QA Manager Signature: Page 2 Date : 2015-12-25 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for GENERAL TOOLS & INSTRUMENTS CO. LLC, 75 SEAVIEW DRIVE, SECAUCUS, NJ 07094, U.S.A. to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of GENERAL TOOLS & INSTRUMENTS CO. LLC. Product name : ToolSmart Bluetooth Enabled Digital Multimeter Model : TS04 This authorization will expire one year from the date of this letter. Print name： Karen Kwong Title: Engineering and QA Manager Signature: Page 3 Date : 2015-12-25 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. KC Lee Dear Sir, Re.: Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, Print name： Karen Kwong Title: Engineering and QA Manager Signature:

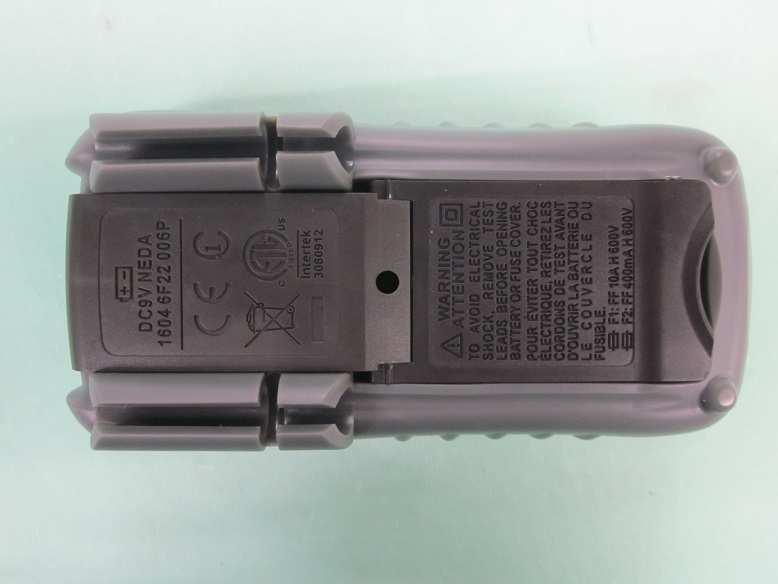

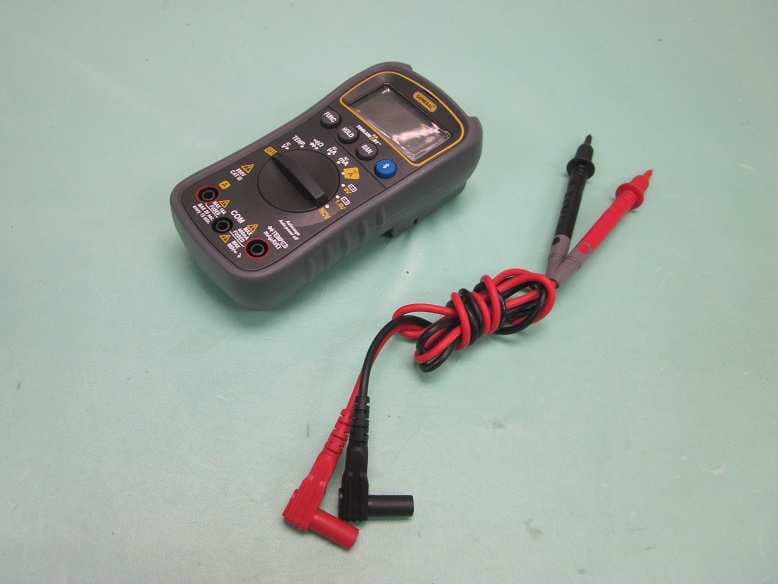

FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT

Autorange Auto power off FUNC HOLD RAN 600V CAT III mA μA A A V TEMP mAμAV TEMP COM MAX 30 sec. every 15 min. MAX FUSED 10A MAX 400mA FUSED MAX 600V 9V 1.5V NCV kMΩHz %°C°F μmFVA n AUTOMAX MIN NCV TO AVOID ELECTRICAL SHOCK, REMOVE TEST LEADS BEFORE OPENING BATTERY OR FUSE COVER. WARNING ATTENTION POUR ÉVITER TOUT CHOC ÉLECTRIQUE, RETIREZ LES CORDONS DE TEST AVANT D'OUVRIR LA BATTERIE OU L E C O U V E R C L E D U FUSIBLE. F2: FF 400mA H 600V F1: FF 10A H 600V DC9V NEDA 1604 6F22 006P 3080912 YRK-GTITS04

FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT FCC ID: YRK-GTITS04 PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2016-01-08 Page 1 of 32 No.: DM122145 Applicant: GENERAL TOOLS & INSTRUMENTS CO., LLC 75 SEAVIEW DRIVE, SECAUCUS, NJ 07094, U.S.A. Manufacturer: Dongguan Huayi Mastech Co., Ltd. Yuliangwei Industrial Area, Qingxi Town, Dongguan, China Description of Sample(s): Submitted sample(s) said to be Product: ToolSmart Bluetooth Enabled Digital Multimeter Brand Name: GENERAL Model Number: TS04 FCC ID: YRK-GTITS04 Date Sample(s) Received: 2015-12-29 Date Tested: 2016-01-04 to 2016-01-08 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.10: 2013 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2016-01-08 Page 2 of 32 No.: DM122145 CONTENT: Cover Page 1 of 32 Content Page 2 of 32 1.0 General Details 1.1 Test Laboratory Page 3 of 32 1.2 Equipment Under Test [EUT] Page 3 of 32 Description of EUT operation 1.3 Date of Order Page 3 of 32 1.4 Submitted Sample(s) Page 3 of 32 1.5 Test Duration Page 3 of 32 1.6 Country of Origin Page 3 of 32 2.0 Technical Details 2.1 Investigations Requested Page 4 of 32 2.2 Test Standards and Results Summary Page 4 of 32 3.0 Test Results 3.1 Emission Page 5-27 of 32 Appendix A List of Measurement Equipment Page 28 of 32 Appendix B Photographs of EUT Page 29-32 of 32 STC Test Report Date: 2016-01-08 Page 3 of 32 No.: DM122145 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: ToolSmart Bluetooth Enabled Digital Multimeter Manufacturer: Dongguan Huayi Mastech Co., Ltd. Yuliangwei Industrial Area, Qingxi Town, Dongguan, China Brand Name: GENERAL Model Number: TS04 Rating: 9.0Vd.c. (“6F22” size battery x1) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a ToolSmart Bluetooth Enabled Digital Multimeter of GENERAL TOOLS & INSTRUMENTS CO., LLC. the transmission signal is digital modulated with channel frequency range 2402-2480MHz. 1.3 Date of Order 2015-12-29 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2016-01-04 to 2016-01-08 1.6 Country of Origin China STC Test Report Date: 2016-01-08 Page 4 of 32 No.: DM122145 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations and ANSI C63.10: 2013 for FCC Certification. According FCC KDB 558074 DTS Measurement Guidance . 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Output Power of Fundamental Emissions FCC 47CFR 15.247(b)(3) ANSI C63.10: 2013 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.10: 2013 N/A Conducted Emissions FCC 47CFR 15.207 ANSI C63.10: 2013 N/A Power Spectral Density FCC 47CFR 15.247(e) N/A N/A 6dB Bandwidth FCC 47CFR 15.247(a)(2) N/A N/A Band Edge Emissions FCC 47CFR 15.247(d) N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A - Not Applicable STC Test Report Date: 2016-01-08 Page 5 of 32 No.: DM122145 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Output Power Test Requirement: FCC 47CFR 15.247(b)(3) Test Method: N/A Test Date: 2016-01-04 Mode of Operation: TX mode Test Method: The RF output of the EUT was connected to the peak power meter. All the attenuation or cable loss will be added to the measured maximum output power. The results are recorded in mW. Test Setup: Note: a temporary antenna connector was soldered to the RF output. EUT Peak Power Meter STC Test Report Date: 2016-01-08 Page 6 of 32 No.: DM122145 Limits for Peak Output Power of Fundamental & Harmonics Emissions [FCC 47CFR 15.247]: For Digital Transmission systems in 2400-2483.5 MHz Band: 1 Watt (30dBm) Results of Tx ModeGFSK (2402MHz to 2480MHz) : Pass (TX Unit) Maximum conducted output power Channel Frequency(MHz) Output Power(Watt) Low 2402 0.000607 Middle 2440 0.000593 High 2480 0.000533 Calculated measurement uncertainty : 30MHz to 1GHz 1.7dB 1GHz to 26GHz 1.7dB STC Test Report Date: 2016-01-08 Page 7 of 32 No.: DM122145 3.1.2 Radiated Emissions Test Requirement: FCC 47CFR 15.209 Test Method: ANSI C63.10: 2013 Test Date: 2016-01-07 Mode of Operation: Tx mode Test Method: For emission measurements at or below 1 GHz, the sample was placed 0.8m above the ground plane of semi-anechoic Chamber*. For emission measurements above 1 GHz, the sample was placed 1.5m above the ground plane of semi-anechoic Chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. * Semi-anechoic chamber located on the G/F of “STC (Dongguan) Company Limited” with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 629686. Test Setup: Measurement Receiver Computer Ground Plane Absorbers Absorbers placed on top of the ground plane are for measurements above 1000MHz only. Turn-table Distance = 3m Semi-Anechoic Chamber EUT STC Test Report Date: 2016-01-08 Page 8 of 32 No.…
