YRKDCS400RWireless Video Receiver

Wireless video Transmitter/ Wireless video Receiver Model: DCS400T/ DCS400R Operation Manual 1 Wireless Video Transmitter/ Wireless Video Receiver Model: DCS400T/ DCS400R Overview DCS400T/ DCS400R Multifunction video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (eg. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on). The product has a high clarity color LCD of 3.5 ’’ size. The camera head is connected to the probe and with adjustable LED lights, which helps you to reach gaps and holes.The camera head has equipped with several accessories, which makes it flexible. The magnetic tip is used to pick up small metal objects. The mirror tip is easy to view the 90 ° angle. The hook is used to grab onto objects. DCS400T/ DCS400R can take a photo wirelessly .It has built-in polymer lithium battery, also could use AC adapter for charging with LED indicator. The screen can detach from grip, the back inside magnet facilitate hands-free operation, having functions of Micro SD interfaceǃTV output interfaceǃUSB interface, supporting cameraǃvideoǃimage zoomǃrotationǃcomputer connection .etc. It has the advantages of small sizeǃclear imageǃ stable performanceǃeasy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance. Safety Instructions Failure to follow the instructions listed below may result in electric shock or personal injury. ƔRead and understand all instructions prior to any operation. ƔDo not remove any labels from the tool. ƔKeep the work area clean and well lit, cluttered and dark areas may cause accidents. ƔDo not operate the tool with the presence of flammable/explosive gases. ƔDo not use the product around corrosive chemicals, which can ruin the picture quality. ƔKeep bystandersǃchildren and visitors away while operating the tool. ƔStay alert, watch what you are doing and use common sense. A moment of inattention will result in serious personal injury. ƔDo not overreach. Keep proper footing and balance all the time. ƔAlways wear protective eyewear. Dust maskǃnon-skid safety shoesǃhard hat or hearing protection must be used for appropriate conditions. ƔDo not place this product on any unstable cart or surface. The product may fall causing serial injury to a person or serious damage to the product. ƔFor safety please always keep the video inspection away from any kind of liquid. Liquid increases the risk of electrical shock and damage to the product. 2 ƔDo not use this device for personal or medical use. ƔThe unit is not shock-resistant. Do not use it as a hammer or drop it. Battery precautions Ɣ Please use the standard factory power adapter, otherwise will destroy the inside battery. Ɣ Plese completely exhaust the power for the first time. And we recommend full charging and full discharging for the first three times. And the charging time should not less than 12 hours. Fully activate the battery could play maximum capacity of the built-in battery. Ɣ The charging and discharging time differs because the different power from the factory. Ɣ Please always keep the charging connector away from the metal and oily objects. Ɣ Please fully charging the battery before it is not for use, to make sure the high performance while using. Ɣ Don’t compress and puncture the inside battery. Ɣ Please stop operating if the inside battery is broken. Ɣ Don’t throw the product into fire, which will cause explosion. Ɣ Please dispose the battery properly. High temperature will cause the battery to explode. Please follow the local regulations for disposing the old batter y. Product Configures 1ˊCamera head and Probe 2ˊThe grip 3ˊLCD Screen 4ˊMagnetic tip 5ˊHook tip 6ˊMirror tip 7ˊDC adapter 8ˊOne into two cable 9ˊMicro SD memory card 10ˊMicro SD to SD transition pocket 3 11ˊTV cable 12ˊUSB cable Tool components AˊCamera protection BˊCamera head CˊProbe DˊProbe connector EˊPower indicator——Green lights means normal power; Red light means low battery. FˊSwitch / Wheel button to adjust the LED brightness GˊCharging light indicator HˊCharging interface Iˊ JˊLock buckle KˊSignal connector slot LˊCharging light indicator MˊCharging interface NˊMicro SD socket OˊUSB interface PˊVideo Out Qˊ RˊŸ SˊMENU Tˊź Uˊ VˊLCD screen 4 WˊBase stand—facilitate hands-free operation Descriptions for keys Ke ysView modePlayback modeMenu set Switch into playback mode; Hold for 3s to turn off the unit. Switch into view mode; Hold for 3s to turn off the unit. Hold for 3s to turn off the unit. MENUSwitch into menue set. Switch into current file operation,delete singleǃallǃformat the memory card .etc Set functionsǃset date and time Take a photo yourself Show the last photo or video; Moving to left; Take a videoShow t he next p hot o or video;Moving to right ŸImage rotation Playǃpause the video file; Moving up / progressive increase data and time; ź Image magnify Stop video file; View six files or six folders. Moving down / progressive decrease data and time; Operation Instructions ƔBattery Charging 1ǃConnect the DC cable to the grip or screen. 2ǃPlug the AC plugs to household power outlet. 3ǃThe LED L turns red ,means charging. 4ǃThe LED L turns green, means fully charging 5ǃPull out the AC plug of adapter. Notes˖If you want to charge both the grip and screen, please use one to two cable. One end to the adapter, and the other end to screen and grip. ƔConnect the display unit to camera head and probe The inspecting grip must be connected to the camera head and probe. To connect the probe to the grip, make sure the keyed ends are properly aligned. (Fig7). Once they are aligned, finger tighten the nut. ƔAccessories installation If you need to use the three accessories as FIG2 (magnetic tipǃhook tipǃmirror tip), please accord the steps followed to connect. 5 As showed in Fig 8, hold the camera head .Slip the semicircle end of the accessory over the flats of ca…

Text truncated - open the document above for the full version.

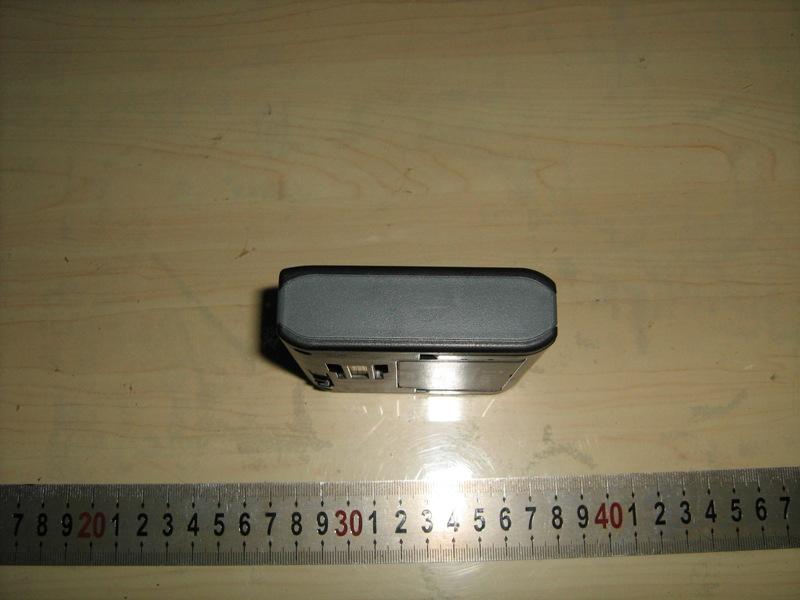

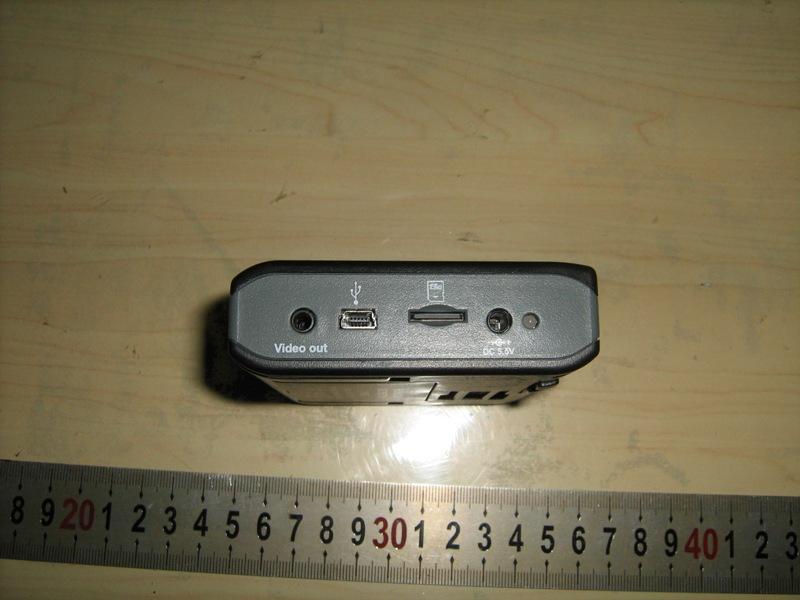

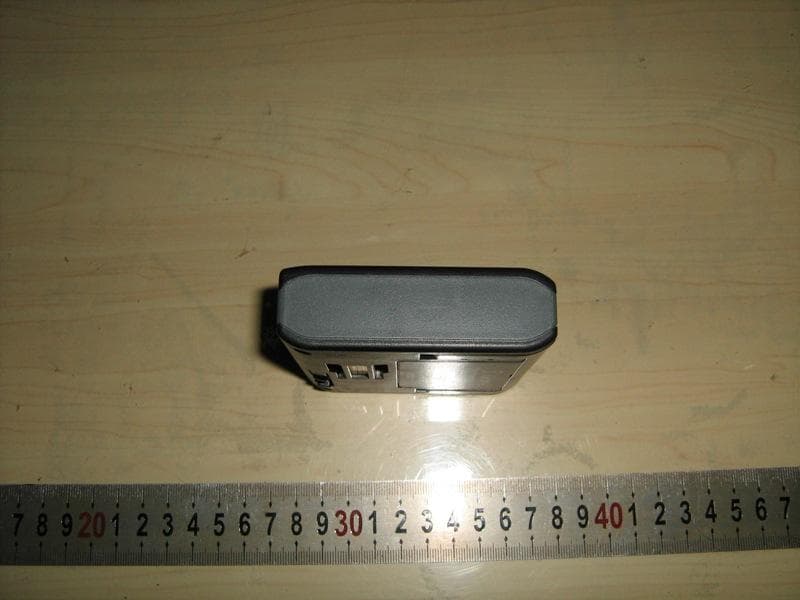

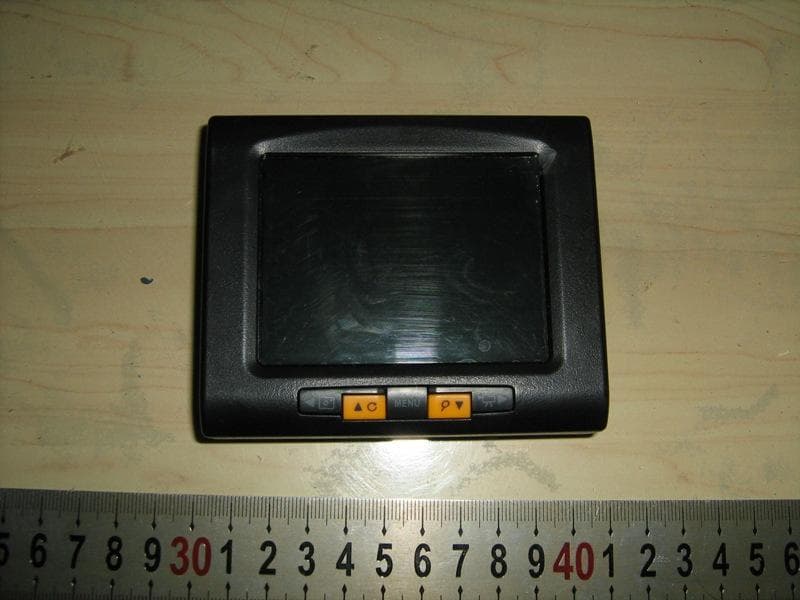

Document 57010087Report 03 Issue 1September 2010 Appendix External Photos COMMERCIAL-IN-CONFIDENCE FCC ID: YRKDCS400R COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 1 of 2 COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 2 of 2

Label Statement: 1. The FCC warning has been added to the user manual. 2. The current label size is too small to contain the warning sentence. 3. The product has no other efficient smooth room to paste other label. It can be seen clearly from the attached external photos. So the FCC warning hasn’t be shown on the product, it’s listed in the user manual

Document 57010087Report 03 Issue 1September 2010 Appendix Internal Photos COMMERCIAL-IN-CONFIDENCE FCC ID: YRKDCS400R COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 1 of 2 COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 2 of 2 COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 3 of 2

Document 57010087 Report 03 Issue 1September 2010 Report On FCC Testing of the GENERAL TOOLS & INSTRUMENTS COMPANY LLC. Short Range Device Wireless Video Receiver DCS400R In accordance with FCC CFR 47 Part 15 Part B COMMERCIAL-IN-CONFIDENCE FCC ID: YRKDCS400R TÜV Product Service Ltd Beijing Branch 9 th Floor, Landmark Tower 2, No.8 North Dongsanhuan Road, Beijing 100004, P.R. China Tel: +86-10 6590 6186. W ebsite:www.tuv-sud.cn CO MME RCI AL-IN-CO NFI DE NCE Document 57010087 Report 03 Issue 1Page 1 of 21 COMMERCIAL-IN-CONFIDENCE REPORT ONFCC CRF 47 Parts 15 B: 2008 Testing of the GENERAL TOOLS & INSTRUMENTS COMPANY LLC. Short Range Device Wireless Video Receiver DCS400R Document 57010087 Report 03 Issue 1 September 2010 PREPARED FORGENERAL TOOLS & INSTRUMENTS COMPANY LLC. 80 WHITE STREET, NEW YORK,NY 10013, USA PREPARED BY Chen Jie Project Engineer APPROVED BY ZHANGChangxin Manager DATED27 Sep. 10 COMMERCIAL-IN-CONFIDENCE Document 57010087 Report 03 Issue 1Page 2 of 21 COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1REPORT SUMMARY .............................................................................................................. 3 1.1Introduction ............................................................................................................................. 4 1.2Brief Summary of Results ........................................................................................................ 5 1.3Declaration of Build Status ....................................................................................................... 6 1.4Product Information ................................................................................................................. 7 1.5Test Conditions........................................................................................................................ 9 1.6Deviations From the Standard.................................................................................................. 9 1.7Modification Record ................................................................................................................. 9 1.8Alternative Test Site................................................................................................................. 9 2TEST DETAILS ..................................................................................................................... 10 2.1Conducted Emissions on Power Line ..................................................................................... 11 2.2Enclosure Radiated Emissions............................................................................................... 14 3TEST EQUIPMENT USED..................................................................................................... 17 3.1Test Equipment Used ............................................................................................................ 18 3.2Measurement Uncertainty ...................................................................................................... 19 4DISCLAIMERS AND COPYRIGHT ......................................................................................... 20 4.1Disclaimers and Copyright ..................................................................................................... 21 COMMERCIAL-IN-CONFIDENCE Document 57010087 Report 03 Issue 1Page 3 of 21 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC Testing of the GENERAL TOOLS & INSTRUMENTS COMPANY LLC. Short Range Device Wireless Video Receiver DCS400R in accordance with FCC CFR 47 Part 15B COMMERCIAL-IN-CONFIDENCE Document 57010087 Report 03 Issue 1Page 4 of 21 COMMERCIAL-IN-CONFIDENCE 1.1INTRODUCTION The information contained in this report is intended to show verification of the GENERAL TOOLS & INSTRUMENTS COMPANY LLC. Short Range Device Wireless Video Receiver DCS400R to the requirements of FCC CFR 47 Part 15B: 2008. Testing was carried out in support of an application for Grant of Equipment Authorisation of Short Range Device Wireless Video Receiver DCS400R. Objective To perform FCC Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. ManufacturerGENERAL TOOLS & INSTRUMENTS COMPANY LLC. Model Number(s)Wireless Video Receiver DCS400R Serial Number(s)Engineering sample Antenna Gain0dBi Number of Samples Tested1 Test Specification/Issue/DateFCC CFR 47 Part 15B: 2008 Incoming Release Date Declaration of Build Status 24 August 2010 Start of Test31 August 2010 Finish of Test14 September 2010 Related Document(s)ANSI C63.4:2003 COMMERCIAL-IN-CONFIDENCE Document 57010087 Report 03 Issue 1Page 5 of 21 COMMERCIAL-IN-CONFIDENCE 1.2BRIEF SUMMARY OF RESULTS A brief summary of results in accordance with FCC CFR 47 Part 15B: 2008 is shown below. Configuration - Short Range Device W ireless Video Receiver Section FCC Clause Test DescriptionModeMod State ResultComments 2.115.107Conduct ed Emissions on Power LineIdle/r eceive0Pass 2.215.109Enclosure Radiated EmissionsIdle/r eceive0Pass COMMERCIAL-IN-CONFIDENCE Document 57010087 Report 03 Issue 1Page 6 of 21 COMMERCIAL-IN-CONFIDENCE 1.3DECLARATION OF BUILD STATUS MAIN EUT MANUFACTURING DESCRIPTION Short Range DeviceWireless Video Receiver MANUFACTURER GENERAL TOOLS & INSTRUMENTS COMPANY LLC. TYPE DCS400R SERIAL NUMBE R Engineering sample COUNTRY OF ORIGIN America FCC ID YRKDCS400T TECHNICAL DESCRIPTION (a brief description of the intended use and operation) DCS400R is a Short Range Device Wireless Video Receiver MANUFACTURING DESCRIPTION The Wireless Video Receiver DCS400R was powered by by Polymer lithium battery; The batteries could be charged by the adaptor: Input: AC 100 – 240V, 50/60Hz Output: DC 5.5V 1.5A It has standard USB connection. No responsibility will be accepted by TÜV Product Service Beijing Branch as to the accuracy of the information declared in this document by the manufacturer. COMMERCIAL-IN-CONFIDENCE Document 57010087 Report 03…

Text truncated - open the document above for the full version.

Document 57010087Report 03 Issue 1September 2010 Appendix Setup Photos COMMERCIAL-IN-CONFIDENCE FCC ID: YRKDCS400R COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 1 of 2 Radiation Emission Test Setup COMMERCIAL-IN-CONFIDENCE Doc Number 57010087 Report 03 Issue 1 Page 2 of 2 Conducted Emissions Test Setup
