YUYSSRC001Brushless DC Tubular Motor for Motorized Blinds System

S S S a a a n n n h h h s s s i i i n n n Patents： 1. U.S. Invention Patent－US 7839035 B2 2. R.O.C. Invention Patent－I 357400 3. R.O.C. Utility Model Patent－M329633 , M329100 4. China Invention Patent－CN 101304205 B 5. China Utility Model Patent－CN 201087053 Y B B B r r r u u u s s s h h h l l l e e e s s s s s s D D D C C C T T T u u u b b b u u u l l l a a a r r r M M M o o o t t t o o o r r r f f f o o o r r r M M M o o o t t t o o o r r r i i i z z z e e e d d d B B B l l l i i i n n n d d d s s s S S S y y y s s s t t t e e e m m m Operation Manual Apply on： SS40E series motor SSRC05E remote control  Thank you for purchasing this product.  To protect your right, please contact the distributor for warranty card.  In the warranty card, be sure to fill the date of purchase and the distributor's name. - 2 - Table of Content Before Using Safety recautions 3 Name of Each Part 4 Installation 6 Settings Switch Setting Mode / User Mode 10 Switch blind system 12 Set Connection Between Motor and Remote Control 13 Cancel the Connection 14 Switch Between Forward and Reverse Rotations 15 Set Upper and Lower limits 16 Duplicate Remote Control 18 Cancel『Other』Remote Control 19 Set \ Cancel Preferred Position 20 Operate Preferred Position 21 Quick Command Guide 22 Miscellaneous Troubleshooting 24 Appendix 25 - 3 -  Before using this product , please read the manual carefully.  After reading , please keep this manual properly for future reference.  In this manual, the precautions indicated as Warnings and Cautions. Please observe the following precautions to ensure safety. Warning This indicates " Possible death or serious injury may occur ". Caution This indicates " Possible injury or material damage may occur". Warning  The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.  Children being supervised not to play with the appliance.  Important safety instructions. Follow all instructions, since incorrect installation can lead to severe injury.  Do not allow children to play with fixed controls. Keep remote controls away from children  Frequently examine the installation for imbalance and signs of wear or damage to cables and springs. Do not use if repair or adjustment is necessary.  Full all-pole disconnection from the supply mains must be provided in the fixed wiring in accordance with the wiring rules. Caution To reduce the fire risk of electric shock or product damage:  Do not expose the equipment to rain, moist, water dripping or water splashing environment; and do not place objects fully filled with water next to the equipment.  Do not disassemble this equipment.  Do not use any power supply with a voltage not complying with the rated voltage of the equipment.  If there is any abnormal condition or when it needs repair, please contact your distributor or the original dealer. If you find any errors in this manual, or if you are not clear about the description in this manual, please contact the distributor. Thank you! Safety Precautions ！ ！ ！ ！ - 4 -  SS40E series Tubular Motor 1. Driving Wheel：  It connects the tubular motor to the aluminum tube so that the motor may drive the aluminum tube to rotate. 2. Code Button：  It is for setting the communication code between the remote control unit and the tubular motor. 3. Crown. 4. Antenna：  It is for receiving instructions from the remote control unit. 5. AC Power Cord Name of Each Part 1 2 34 5 - 5 -  SSRC05E remote control unit （Front） （Real） 6. Up button：  It controls the blinds to move upwards. 7. Stop button：  It controls the blinds to stop, or to switch rotations between forward & backward（P.15）, or to stop at preferred positions. 8. Down button：  It controls the blinds to move downward. 9. LED channel indicators：  It indicates the window channel – from the left to the right: 1、2、3、4、5; if all indicators are lit, it is ready to control all windows in a group (group control mode)。  The cycle of indicators is 1→2→3→4→5→all indicators →1.  In the setting mode, only single indicator is lit. 10. Channel selection button：  To select the window channel individually or select the group control mode. 11. Battery cover 6 7 8 9 10 11 - 6 - 1. Select a suitable aluminum tube 2. Insert the tubular motor into tube Installation  Installation of motorized blinds： Cylindrical Aluminum Tube Inside d iameterφ40 5㎜ 13㎜ Slot size Molded Aluminum Tube ATD46 Molded Aluminum Tube ATD50 a "plastic ring for ATD50" is required Molded Aluminum Tube ATD51 a "plastic ring for ATD51" is required Molded Aluminum Tube ATO43 specified tube for venetian blinds - 7 - 3. Position the Crown pin into the slot. 4. Fasten the tube at the motor end with screws (not a necessity, may skip this step). 5. Inset the idler wheel onto tube. Cylindrical Aluminum Tube Molded Aluminum Tube Position for inserting the Positioning Pin of the Crown Positions for mounting the screws - 8 - 6. Fasten the tube at the idler wheel end with screws (not a necessity, may skip this step) 7. Install the brackets: Measure a suitable distance for installing the brackets to the target position (in the curtain box or on the wall). 8. Install the motorized blinds: Install the motorized blinds onto the brackets. 9. Connect to the electric power: Connect power cord to AC power before setting and operation. Notice！The positioning slot should be firmly fixed into the bracket. Positions for mounting the screws - 9 -  Battery installation 1 3 2 1. Open the battery cover 2. Insert the battery (notice the polarity ○ ＋ /○ － ) 3. Close the battery cover 4. Battery specification: DC 3V (CR2430) ※Notice: About the battery  The battery provided with the product is prepared for your initial use.  For the battery replacement, please use a battery with the same specifications.  If the remote control is not going to be used for a long time, please take th…

Text truncated - open the document above for the full version.

- 2 - Table of Content Before Using Safety recautions 3 Name of Each Part 4 Installation 7 Settings Switch Setting Mode / User Mode 11 Switch blind system 13 Set Connection Between Motor and Remote Control 14 Cancel the Connection 15 Switch Between Forward and Reverse Rotations 16 Set Upper and Lower limits 17 Set Group Control 19 Duplicate Remote Control 21 Cancel『Other』Remote Control 22 Set \ Cancel Preferred Position 23 Operate Preferred Position 24 Quick Command Guide 25 Miscellaneous Troubleshooting 27 Appendix 28 - 3 -  Before using this product , please read the manual carefully.  After reading , please keep this manual properly for future reference.  In this manual, the precautions indicated as Warnings and Cautions. Please observe the following precautions to ensure safety. Warning This indicates " Possible death or serious injury may occur ". Caution This indicates " Possible injury or material damage may occur". Warning  The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.  Children being supervised not to play with the appliance.  Important safety instructions. Follow all instructions, since incorrect installation can lead to severe injury.  Do not allow children to play with fixed controls. Keep remote controls away from children  Frequently examine the installation for imbalance and signs of wear or damage to cables and springs. Do not use if repair or adjustment is necessary.  Full all-pole disconnection from the supply mains must be provided in the fixed wiring in accordance with the wiring rules. Caution To reduce the fire risk of electric shock or product damage:  Do not expose the equipment to rain, moist, water dripping or water splashing environment; and do not place objects fully filled with water next to the equipment.  Do not disassemble this equipment.  Do not use any power supply with a voltage not complying with the rated voltage of the equipment.  If there is any abnormal condition or when it needs repair, please contact your distributor or the original dealer. If you find any errors in this manual, or if you are not clear about the description in this manual, please contact the distributor. Thank you! Safety Precautions ！ ！ ！ ！ - 4 -  SS40E series Tubular Motor 1. Driving Wheel：  It connects the tubular motor to the aluminum tube so that the motor may drive the aluminum tube to rotate. 2. Code Button：  It is for setting the communication code between the remote control unit and the tubular motor. 3. Crown 4. Antenna：  It is for receiving instructions from the remote control unit. 5. AC Power Cord Name of Each Part 1 2 3 4 5 - 5 -  SSRC16C remote control  Front side details 1. LCD Screen： A. Group channel : 4 group control channels available from G1 to G4. B. Window channel: 16 window channels available from 1 to 16. C. All: to control all channels at the same time. D. Battery: appears only low battery. E. OK: a confirm key during group control settings. 2. Channel selection buttons「癶」、「辵」、「<」、「>」:  To select window channel or group channel or All. 3. ENTER :：  To confirm channel selected. 4. UP :：  To lift blinds upward. 5. STOP：  To stop blinds movement, or move blinds to preferred position, or switch between forward and backward rotations. 6. DOWN：  To move blinds downward. 1 4 5 6 2 3 2 AD BC E LCD Screen detail - 6 -  Reverse side details 1. Duplicate button：  To duplicate or cancel the remote control（P.21~22） 2. Mode switch：  To switch between USER MODE and SETTING MODE（P. 11）。 3. Battery cover 2 1 3 ※Notice: About the remote control:  Please do not install the socket at a location that may be exposed to direct sunlight.  If the Remote Control activates other electronic appliances, please contact the distributor. Caution: 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. - 7 - 1. Select a suitable aluminum tube 2. Insert the tubular motor into tube Installation  Installation of motorized blinds： Cylindrical Aluminum Tube Inside d iameterφ40 Slot size 13㎜ 5㎜ Molded Aluminum Tube ATD46 Molded Aluminum Tube ATD50 A "plastic ring for ATD50" is required Molded Aluminum Tube ATD51 A " ring for ATD51" is required Molded Aluminum Tube ATO43 Specified tube for venetian blinds - 8 - 3. Position the Crown pin into the slot. 4. Fasten the tube at the motor end with screws (not a necessity, may skip this step) 5. Inset the idler wheel onto tube. Cy…

Text truncated - open the document above for the full version.

Declaration for model numbers Hereby, We Name: SAN HSIN PLASTECH CO., LTD. Address: NO. 17 JIANGUO E.RD., City: TAOYUAN Country: Taiwan declares that this equipment: Product description:Brushless DC Tubular Motor for Motorized Blinds System Type designation(s):SSRC001, SSRC05E, SSRC16C Trademark:SAN HSIN The differences between all model numbers are in the following table: Model No.SSRC001SSRC05ESSRC16C Operating Frequency 433.92MHz Modulation TypeASK Number of Muti Window Control 16CH5CH16CH DisplayLCD Display PanelLED Lght LCD Display Panel Operating function keys 10keys Up, Stop, Down, Left, Rignt, Front, Rear, ENT, SET, Copy 6keys Up, Stop, Down、 MODE、SET、 COPY 10keys Up, Stop, Down, Left, Rignt, Front, Rear、ENT、 SET、COPY The circuit design and layout between of all model numbers are the same. Date:Feb. 04, 2015 City:TAOYUAN Name:Judy Sung Function:Safety Engineer Signature:

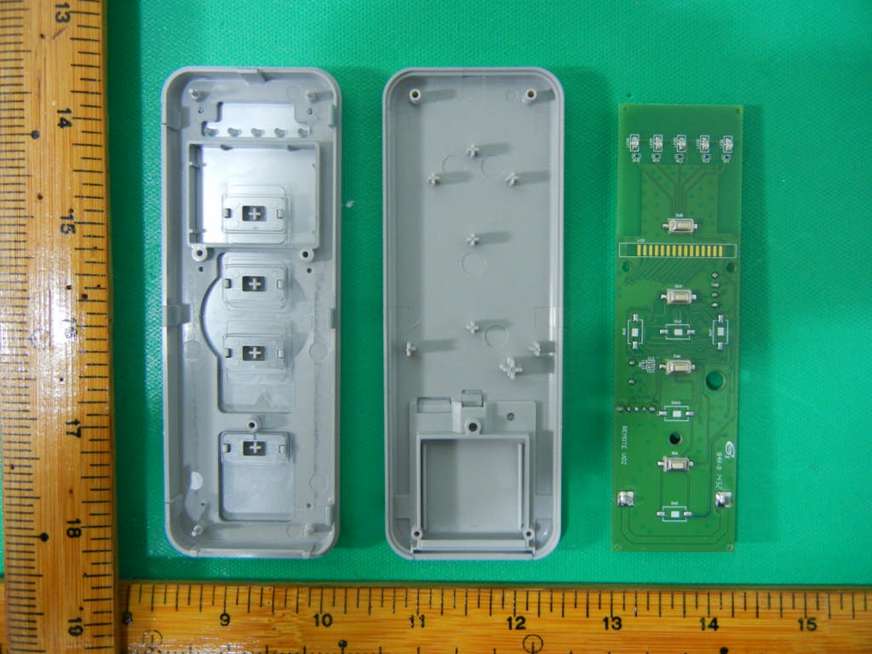

CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A1 of A8 FCC ID:YUYSSRC001 Appendix A. Photographs of EUT Model: SSRC001, SSRC16C CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A2 of A8 FCC ID:YUYSSRC001 CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A3 of A8 FCC ID:YUYSSRC001 Model: SSRC05E CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A4 of A8 FCC ID:YUYSSRC001 CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A5 of A8 FCC ID:YUYSSRC001

Label & Location SSRC05E-N SSRC16C-N INPUT：DC 3V USE BATTERY：CR2430 FREQUENCY：433.92MHz SanHsin RF REMOTE CONTROL MODEL：SSRC05E FCC ID：YUYSSRC001 S A N H S I N P L A S T E C H C O ; L T D . MADE IN TAIWAN KEEP AWAY FROM THE SOURCE OF WATER PLEASE DON'T DISMANTLE WANTONLY OPERATE ACCORDING TO THE INSTRUCTION W A R N I N G INPUT：DC 3V USE BATTERY：CR2430 FREQUENCY：433.92MHz SanHsin RF REMOTE CONTROL MODEL：SSRC16C FCC ID：YUYSSRC001 S A N H S I N P L A S T E C H C O ; L T D . MADE IN TAIWAN KEEP AWAY FROM THE SOURCE OF WATER PLEASE DON'T DISMANTLE WANTONLY OPERATE ACCORDING TO THE INSTRUCTION W A R N I N G

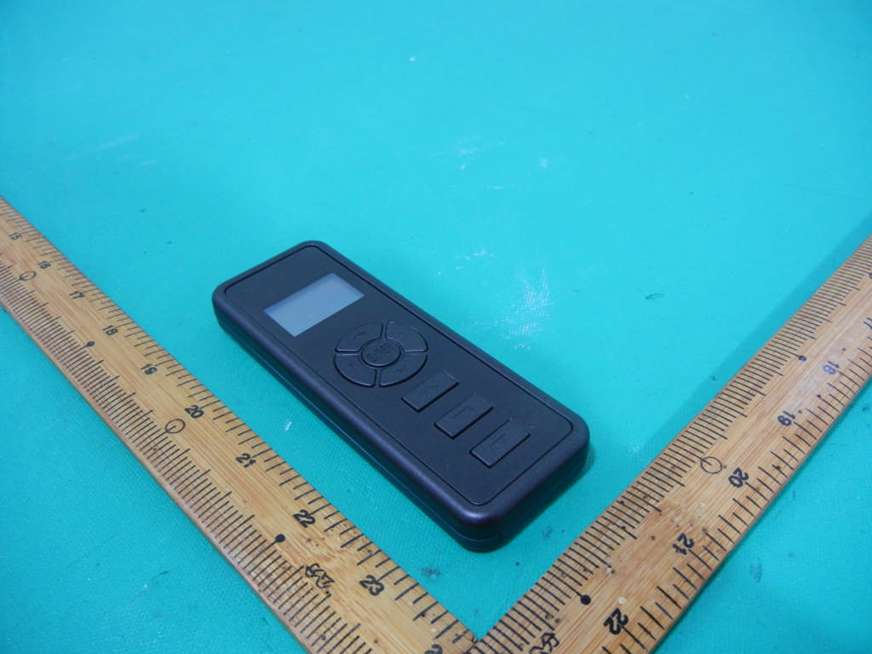

CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A6 of A8 FCC ID:YUYSSRC001 Model: SSRC001 CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A7 of A8 FCC ID:YUYSSRC001 Model: SSRC16C CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued Date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:A8 of A8 FCC ID:YUYSSRC001 Model: SSRC05E

CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:1 of 28 FCC ID:YUYSSRC001 FCC TEST REPORT According to FCC Part 15, Subpart C (15.231) / ANSI C63.4: 2003 Applicant:SAN HSIN PLASTECH CO., LTD. Address: NO. 17 JIANGUO E.RD., Tao Yuan District, Tao Yuan City 330, Taiwan, R.O.C. Equipment: Brushless DC Tubular Motor for Motorized Blinds System Model No.: SSRC001, SSRC05E, SSRC16C FCC ID.: YUYSSRC001 Trade Name: SAN HSIN The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. Laboratory Accreditation CERPASS TECHNOLOGY CORP. Report No.: TEFL1412120 Cerpass Technology Corp.Issued date:Jan. 26, 2015 Tel:886-3-3226-888 Fax:886-3-3226-881Page No.:2 of 28 FCC ID:YUYSSRC001 Contents 1.Report of Measurements and Examinations ....................................................................................5 1.1List of Measurements and Examinations ...................................................................................5 2.Test Configuration of Equipment under Test ...................................................................................6 2.1Feature of Equipment under Test...............................................................................................6 2.2Difference of model numbers .....................................................................................................6 2.3Test Mode and Test Software.....................................................................................................7 2.4Description of Test System.........................................................................................................7 2.5General Information of Test........................................................................................................8 2.6Measurement Uncertainty ..........................................................................................................8 3.Antenna Requirements.......................................................................................................................9 3.1Standard Applicable ...................................................................................................................9 3.2Antenna Construction and Directional Gain...............................................................................9 4.Test of Conducted Emission............................................................................................................10 4.1Test Limit ..................................................................................................................................10 4.2Test Procedures .......................................................................................................................10 4.3Typical Test Setup .................................................................................................................... 11 4.4Test Result and Data ................................................................................................................ 11 5.Test of Radiated Emission ...............................................................................................................12 5.1Test Limit ..................................................................................................................................12 5.2Test Procedures .......................................................................................................................13 5.3Typical Test Setup ....................................................................................................................16 5.4Measurement Equipment .........................................................................................................16 5.5Test Result and Data ................................................................................................................17 5.6Test Photographs (30MHz~1GHz) ...........................................................................................23 5.7Test Photographs (Above 1GHz) .............................................................................................24 6.20dB Occupied Bandwidth Measurement ......................................................................................25 6.1Test Procedure .........................................................................................................................25 6.2Test Setup Layout ....................................................................................................................25 6.3Limits of Band Edges Measurement ........................................................................................25 6.4Measurement Equipment .........................................................................................................25 6.5Test Result and Data ................................................................................................................25 7.Transmission Time Control..............................................................................................................27 7.1Test Procedure .........................................................................................................................27 7.2Test Setup Layout ....................................................................................................................27 7.3Test Limit ..................................................................................................................................27 7.4Measurement Equipment .........................................................................................................27 7.5Test Result and Data ................................................................................................................27 Appendix A. Photographs of EUT.....…
