YVP-X3000IPAD KEYBOARD CASE with Bluetooth

C T E C H T E C H N O L O G Y www.applecase.net Operation Instruction of the Ipad Keyboard Case Step I Place your Ipad into the case Put Ipad into the case Stick the holder to prevent the Ipad from slipping off C T E C H T E C H N O L O G Y www.applecase.net Place the case to a comfortable position Step II Turn the keyboard and bluetooth signal on On the right side of the case, there are charging port, the power and the bluetooth switches。 C T E C H T E C H N O L O G Y www.applecase.net *The built-in lithium battery will last for 45 days when charged. You should charge the keyboard with the USB cable coming in the kit. *Turn the power button on and you can start to use the bluetooth keyboard. When the power is on, the light on the right top of the keyboard will flash in blue color for a few seconds. When it is recharging, The other blue light will be on. *If it’s your first time to use this keyboard, you also need to complete the following step. Step III Pair the bluetooth keyboard to your Ipad Press the bluetooth key to send bluetooth signal C T E C H T E C H N O L O G Y www.applecase.net Turn your Ipad on, and tap “Setting” C T E C H T E C H N O L O G Y www.applecase.net Tap “Bluetooth” Slide the button to “ ““ “On” and your Ipad will start to search the Bluetooth devices When it finds the bluetooth keyboard, tap the “Bluetooth Keyboard” option C T E C H T E C H N O L O G Y www.applecase.net Then a blue window comes out Enter the password showing on the blue window and press the “enter” key on the keyboard Then the Bluetooth keyboard is successfully connected to your Ipad C T E C H T E C H N O L O G Y www.applecase.net StepIII is only needed when you first use this keyboard case. After the first connection, the keyboard is automatically connected to your Ipad every time when you turn the power on. You can active the keyboard by pressing any keys on keyboard. Then you can start to use the Bluetooth keyboard C T E C H T E C H N O L O G Y www.applecase.net About the Keyboard This Keyboard is customized just for Ipad, some keys are unique C T E C H T E C H N O L O G Y www.applecase.net Technical Specification Of The Product: Bluetooth Specification： ：： ：Version 2.0 Operation Current： ：： ： <5mA Standby Current: 1.2mA Operation Voltage： ：： ： 4.2V Charging Voltage: 110-240V Battery Type: Lithium Battery Charging period： ：： ： 4hours (For the first time, please charge for 12 hours) Duration of Charged battery: 45 days Weight: 478g Dimension: C T E C H T E C H N O L O G Y www.applecase.net Trouble Shooting： ：： ： If you are unable to connect the keyboard to your Ipad, please try the following:
Check if the battery is low. When the battery is low, some keys will react slowly and even don’t work. Then, you should charge the battery.
Check the power switch, make sure it is on. When it is on, the power light on the right top of the keyboard will flash for two seconds
Restart the Bluetooth switch, make sure your Ipad can search this device
Ensure the password for pairing is correct. FCC ID: YVP-X3000 IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipments.

LS2042KM MODULE BLOCK DIAGRAM

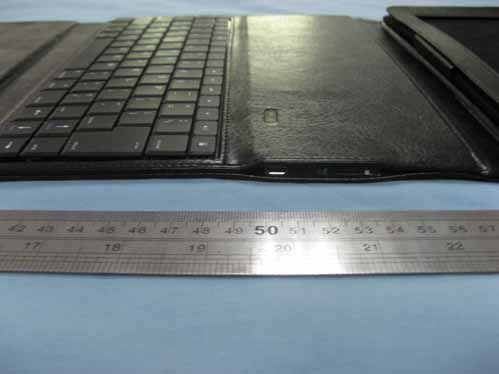

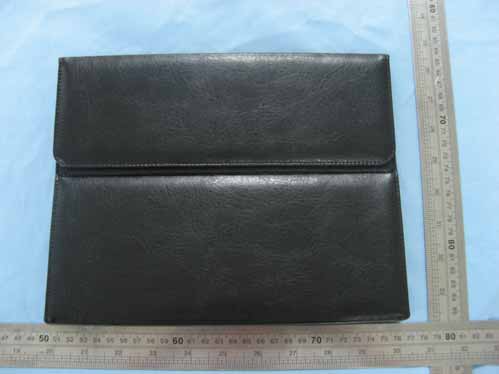

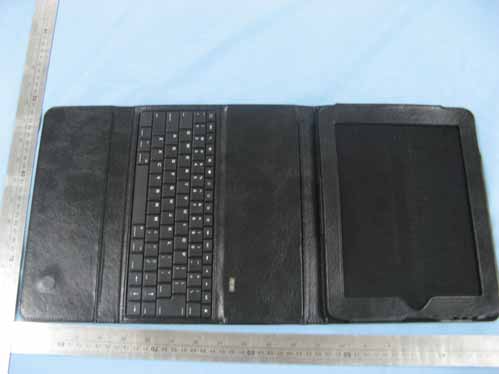

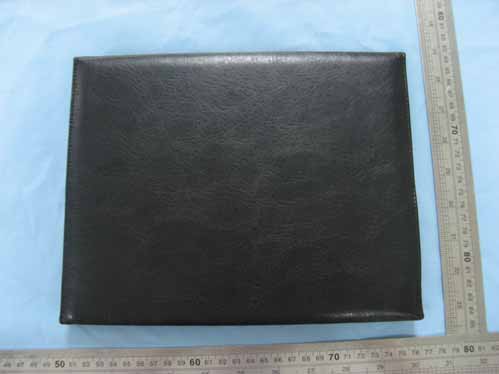

PHOTOGRAPHS OF THE EUT TOP VIEW OF SAMPLE BACK VIEW OF SAMPLE OPEN VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE

FCC ID Label Location

INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 INTERNAL PHOTO OF SAMPLE – 3

Operational description Bluetooth frequency 2402‐2480MHz Bluetooth version 2.0 Modulation GFSK Charging Voltage 110‐240V Operation Voltage 4.2V Charging period 4 hours Duration of charged battery 45 days Weight 478g Transmitter Power 0.0017W RF IC BCM2042 Crystal 24MHz

FCC Test Report Report No.: AGC11581009SZ12‐1F1 TEST NAME : FCC Part 15 FCC ID : YVP‐X3000 PRODUCT DESIGNATION : IPAD KEYBOARD CASE BRAND NAME : N/A TEST MODEL NAME : X3000 CLIENT : SHENZHEN CTECH SCIENCE & TECHNOLOGY DEVELOPMENT CO., LTD. DATE OF ISSUE : Oct.13, 2010 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC11581009SZ12-1F1 Page 1 of 62 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN CTECH SCIENCE & TECHNOLOGY DEVELOPMENT CO., LTD. Address 10G. Baihe yindu, Longgang District, Shenzhen, China Manufacturer Name: FLAGSHIP INDUSTRIAL DESIGN CO., LTD Address: A-302.Shennan Garden, Kexing Road, Nanshan District, Shenzhen, China Product Description: IPAD KEYBOARD CASE Brand Name: N/A Model Number: X3000, X3001, X3002, X3003, X3004, X3005, X3006, X3007, X3008, X3009 Model Difference All the models are the same, only different from the appearance. FCC ID YVP-X3000 Report Number: AGC11581009SZ12-1F1 Date of Test: Oct. 01, 2010 to Oct.13, 2010 WE HEREBY CERTIFY THAT: The above equipment was tested by Shenzhen Attestation of Global Compliance Science & Technology Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. Checked By: Jekey Zhang Oct.13, 2010 Authorized By King Zhang Oct.13, 2010 Report No.: AGC11581009SZ12-1F1 Page 2 of 62 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................ 4 1.1 PRODUCT DESCRIPTION .................................................................................................................... 4 1.2 TABLE OF CARRIER FREQUENCYS ................................................................................................ 4 1.3 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................ 4 1.4 TEST METHODOLOGY .......................................................................................................................... 4 1.5 TEST FACILITY ....................................................................................................................................... 5 1.6 SPECIAL ACCESSORIES ..................................................................................................................... 5 1.7 EQUIPMENT MODIFICATIONS ............................................................................................................ 5 2. SYSTEM TEST CONFIGURATION ............................................................................................... 6 2.1 CONFIGURATION OF TESTED SYSTEM .......................................................................................... 6 2.2 EQUIPMENT USED IN TESTED SYSTEM ......................................................................................... 6 3. SUMMARY OF TEST RESULTS ................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................ 7 5. CONDUCTION EMISSIONS ........................................................................................................... 8 5.1 MEASUREMENT PROCEDURE: ......................................................................................................... 8 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................... 8 5.3 MEASUREMENT EQUIPMENT USED ................................................................................................ 8 5.4 LIMITS AND MEASUREMENT RESULT ............................................................................................ 9 MEASURING INSTRUMENT AND SETTING .................................................................................. 9 The following table is the setting of receiver. ............................................................................. 9 TEST RESULT AT CHARGE MODE ......................................................................................................... 10 TEST RESULT OF LINE –L CONDUCTED EMISSION TEST ............................................................. 10 6.MAXIMUM OUTPUT POWER ....................................................................................................... 12 6.1 MEASUREMENT PROCEDURE ......................................................................................................... 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 12 6.3 MEASUREMENT EQUIPMENT USED ............................................................................................... 15 6.4 LIMITS AND MEASUREMENT RESULT ........................................................................................... 16 7.20 DB BANDWIDTH ....................................................................................................................... 19 7.1 MEASUREMENT PROCEDURE ......................................................................................................... 19 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 19 7.3 MEASUREMENT EQUIPMENT USED ............................................................................................... 19 7.4 LIMITS AND MEASUREMENT RESULTS ........................................................................................ 19 8.MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY (N/A) ........................ 23 R…
