QNA Proprietary MEMO-1102190153 Page 1 of 1 QNATSG0346 Form Rev D This document is proprietary and its contents are the exclusive property of QinetiQ North America (QNA). This document may NOT be reproduced in any format without prior written permission from QNA. MEMORANDUM TO: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 DATE: 2/11/14 FROM: QinetiQ North America, Inc. Technology Solutions Group 350 Second Avenue Waltham, MA 02451 NUMBER: MEMO-1102190153 CC: REVISED: 7/10/14 SUBJECT: CONFIDENTIALITY REQUEST FOR PRD-1102192009/PRD- 1102192010/PRD-1102192011/PRD-1102192012/YWLLWLV140002 FOR FCC CERTIFICATION ATTACHMENT: To Whom It May Concern: This letter serves as an official request for confidentiality for FCC certification under sections 0.457 and 0.459 of CFR 47. We have requested that all items identified by and pertaining to PRD-1102192009, PRD-1102192010, PRD-1102192011, and PRD-1102192012, including the schematics, block diagrams, user manual, operational description, and all parts lists of the device required to be submitted with this application be permanently withheld from public review, unless otherwise instructed by QNA. The above documents are QNA proprietary information, which contain intellectual property, and QNA requests that they not be shared with the public. Please contact me if there is any information you may need. Sincerely, Chuck DeLoid Systems Engineer

QNA Proprietary Page 1 of 1 This document is proprietary and its contents are the exclusive property of QinetiQ North America (QNA). This document may NOT be reproduced in any format without prior written permission from QNA. MEMORANDUM TO: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 DATE: 2/19/14 FROM: QinetiQ North America, Inc. Technology Solutions Group 350 Second Avenue Waltham, MA 02451 NUMBER: 1102197342 CC: REVISED: 7/17/14 SUBJECT: LVSS Differentiation Between 4 Models ATTACHMENT: To whom it may concern: The intent of the letter is to capture the similarities and differences between the four QNA LVSS products at the request of the MET Labs. All LVSS products use the exact same circuit card assembly (PN: 1102191085-002) which includes the radio circuitry. Also, all products use the same sensing clamp assembly (PN: 1102191058), and enclosure type (plastic NEMA 4X COTS box). The table below summarizes the differences between the products. Model Number Difference 1 – number of external clamp assemblies and corresponding penetrations in the enclosure Difference 2 – Clamp Cable Length Difference 3 – Mounting Bracket Presence PRD-110219009 4 5 Yes PRD-110219010 4 5 No PRD-110219011 3 5 Yes PRD-110219012 3 3.5 No Please contact me if there is any information you may need. Sincerely, Chuck DeLoid Systems Engineer

AND NOT USED FOR FABRICATION.NOTES: THIS DRAWING IS INTENDED TO BE FOR REFERENCE ONLY REVISIONS ZONE REV. DESCRIPTION DATE DRAWN CHK'ED APPROVED N/A 1 SAMPLE LABEL FOR FCC DO CUMENTATION 07/17/2014 JRG N/A N/A QinetiQ North America Technology Solutions Group QINETIQ NORTH AMERICA, INC. PROPRIETARY INFORMATION PROJECT: 63 1 OF 1 D C A AB C D 2 5 6 7 8 8 7 65 4 3 2 1 4 3 1 B 1 CAGE 5B2G7 REV WEIGHT: SHEET: APPLICATION SIZE HEAT TREATMENT:MATERIAL: FINISH: SCALE: B N/A N/A N/A N/A 2:1 SEE NOTES N/AN/A N/AN/APLSS MACHINE: SPECIFIED DIMENSIONS .X ± 1102192009 JRGIRD-110219 FINAL ASSY:NEXT ASSY: APPROVEDCHECKEDDRAWN TOLERANCES ARE: ± DECIMALS 07/17/2014 1102190069 0.0 UNLESS OTHERWISE .XX ± -DIMENSIONS APPLY AFTER ARE IN INCHES. 1/64 .5 .010 .005 .030 DO NOT SCALE DRAWING SAMPLE LABEL, PRD- -ALL THREADS ARE CLASS 2-REMOVE BURRS .XXX ± THIRD ANGLE PROJECTION FINISH RMS SURFACE FINISH: INTERPRET DRAWINGS IN ACCORDANCE WITH ASME Y14.5M-1994UNLESS OTHERWISE SPECIFIED:-BREAK EDGES .005-.015 ANGLES ± ºFRACTIONS LBS CLEAR COVER 1.750 2.750 .125

CLEAR COVER 1.750 2.750 .125 QinetiQ North America Technology Solutions Group QINETIQ NORTH AMERICA, INC. PROPRIETARY INFORMATION PROJECT: 63 1 OF 1 D C A AB C D 2 5 6 7 8 8 7 65 4 3 2 1 4 3 1 B 1 CAGE 5B2G7 REV WEIGHT: SHEET: APPLICATION SIZE HEAT TREATMENT:MATERIAL: FINISH: SCALE: B N/A N/A N/A N/A 2:1 SEE NOTES N/AN/A N/AN/APLSS MACHINE: SPECIFIED DIMENSIONS .X ± 1102192010 JRGIRD-110219 FINAL ASSY:NEXT ASSY: APPROVEDCHECKEDDRAWN TOLERANCES ARE: ± DECIMALS 07/17/2014 1102190068 0.0 UNLESS OTHERWISE .XX ± -DIMENSIONS APPLY AFTER ARE IN INCHES. 1/64 .5 .010 .005 .030 DO NOT SCALE DRAWING SAMPLE LABEL, PRD- -ALL THREADS ARE CLASS 2-REMOVE BURRS .XXX ± THIRD ANGLE PROJECTION FINISH RMS SURFACE FINISH: INTERPRET DRAWINGS IN ACCORDANCE WITH ASME Y14.5M-1994UNLESS OTHERWISE SPECIFIED:-BREAK EDGES .005-.015 ANGLES ± ºFRACTIONS LBS AND NOT USED FOR FABRICATION.NOTES: THIS DRAWING IS INTENDED TO BE FOR REFERENCE ONLY REVISIONS ZONE REV. DESCRIPTION DATE DRAWN CHK'ED APPROVED N/A 1 SAMPLE LABEL FOR FCC DO CUMENTATION 07/17/2014 JRG N/A N/A

CLEAR COVER 1.750 2.750 .125 QinetiQ North America Technology Solutions Group QINETIQ NORTH AMERICA, INC. PROPRIETARY INFORMATION PROJECT: 63 1 OF 1 D C A AB C D 2 5 6 7 8 8 7 65 4 3 2 1 4 3 1 B 1 CAGE 5B2G7 REV WEIGHT: SHEET: APPLICATION SIZE HEAT TREATMENT:MATERIAL: FINISH: SCALE: B N/A N/A N/A N/A 2:1 SEE NOTES N/AN/A N/AN/APLSS MACHINE: SPECIFIED DIMENSIONS .X ± 1102192011 JRGIRD-110219 FINAL ASSY:NEXT ASSY: APPROVEDCHECKEDDRAWN TOLERANCES ARE: ± DECIMALS 07/17/2014 1102190067 0.0 UNLESS OTHERWISE .XX ± -DIMENSIONS APPLY AFTER ARE IN INCHES. 1/64 .5 .010 .005 .030 DO NOT SCALE DRAWING SAMPLE LABEL, PRD- -ALL THREADS ARE CLASS 2-REMOVE BURRS .XXX ± THIRD ANGLE PROJECTION FINISH RMS SURFACE FINISH: INTERPRET DRAWINGS IN ACCORDANCE WITH ASME Y14.5M-1994UNLESS OTHERWISE SPECIFIED:-BREAK EDGES .005-.015 ANGLES ± ºFRACTIONS LBS AND NOT USED FOR FABRICATION.NOTES: THIS DRAWING IS INTENDED TO BE FOR REFERENCE ONLY REVISIONS ZONE REV. DESCRIPTION DATE DRAWN CHK'ED APPROVED N/A 1 SAMPLE LABEL FOR FCC DO CUMENTATION 07/17/2014 JRG N/A N/A

CLEAR COVER 1.750 2.750 .125 QinetiQ North America Technology Solutions Group QINETIQ NORTH AMERICA, INC. PROPRIETARY INFORMATION PROJECT: 63 1 OF 1 D C A AB C D 2 5 6 7 8 8 7 65 4 3 2 1 4 3 1 B 1 CAGE 5B2G7 REV WEIGHT: SHEET: APPLICATION SIZE HEAT TREATMENT:MATERIAL: FINISH: SCALE: B N/A N/A N/A N/A 2:1 SEE NOTES N/AN/A N/AN/APLSS MACHINE: SPECIFIED DIMENSIONS .X ± 1102192012 JRGIRD-110219 FINAL ASSY:NEXT ASSY: APPROVEDCHECKEDDRAWN TOLERANCES ARE: ± DECIMALS 07/17/2014 1102190066 0.0 UNLESS OTHERWISE .XX ± -DIMENSIONS APPLY AFTER ARE IN INCHES. 1/64 .5 .010 .005 .030 DO NOT SCALE DRAWING SAMPLE LABEL, PRD- -ALL THREADS ARE CLASS 2-REMOVE BURRS .XXX ± THIRD ANGLE PROJECTION FINISH RMS SURFACE FINISH: INTERPRET DRAWINGS IN ACCORDANCE WITH ASME Y14.5M-1994UNLESS OTHERWISE SPECIFIED:-BREAK EDGES .005-.015 ANGLES ± ºFRACTIONS LBS AND NOT USED FOR FABRICATION.NOTES: THIS DRAWING IS INTENDED TO BE FOR REFERENCE ONLY REVISIONS ZONE REV. DESCRIPTION DATE DRAWN CHK'ED APPROVED N/A 1 SAMPLE LABEL FOR FCC DO CUMENTATION 07/17/2014 JRG N/A N/A

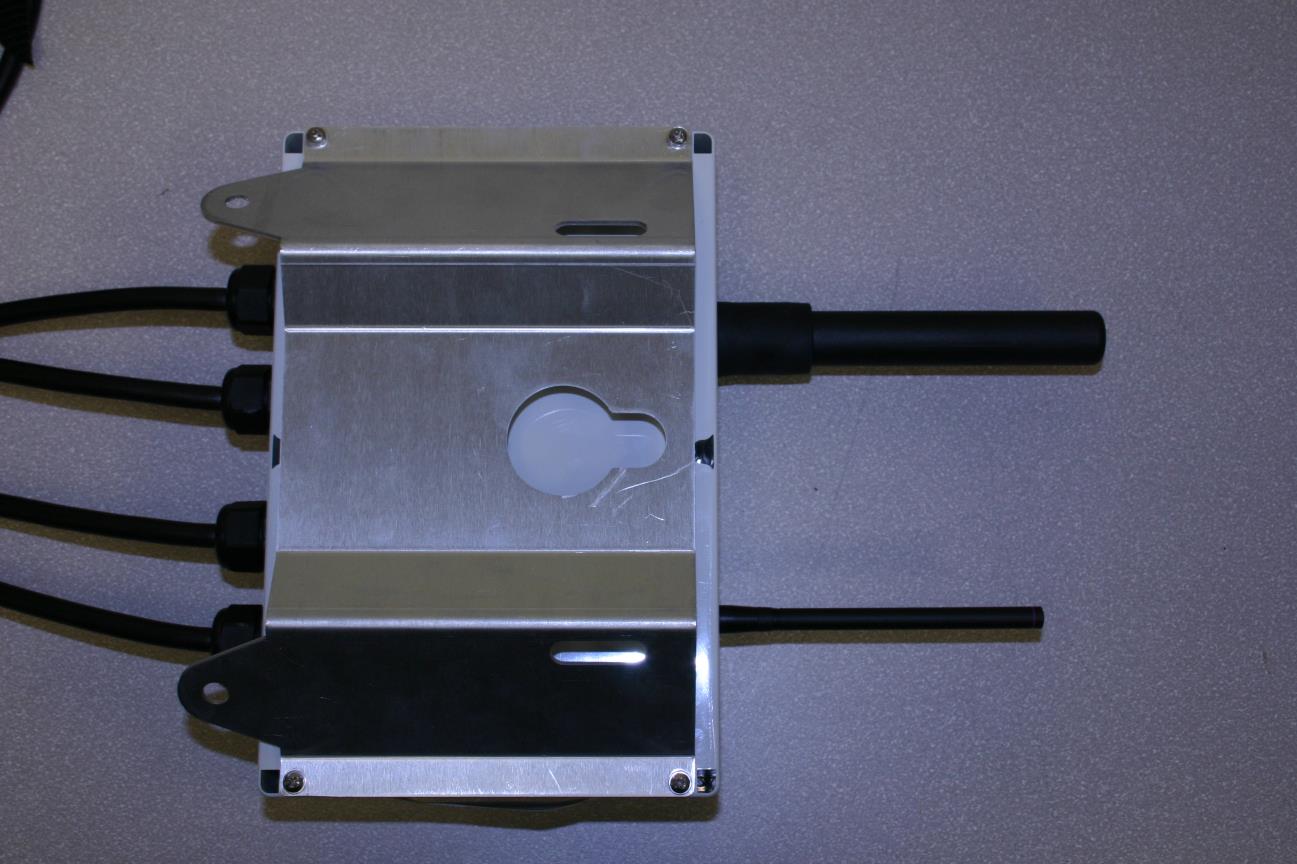

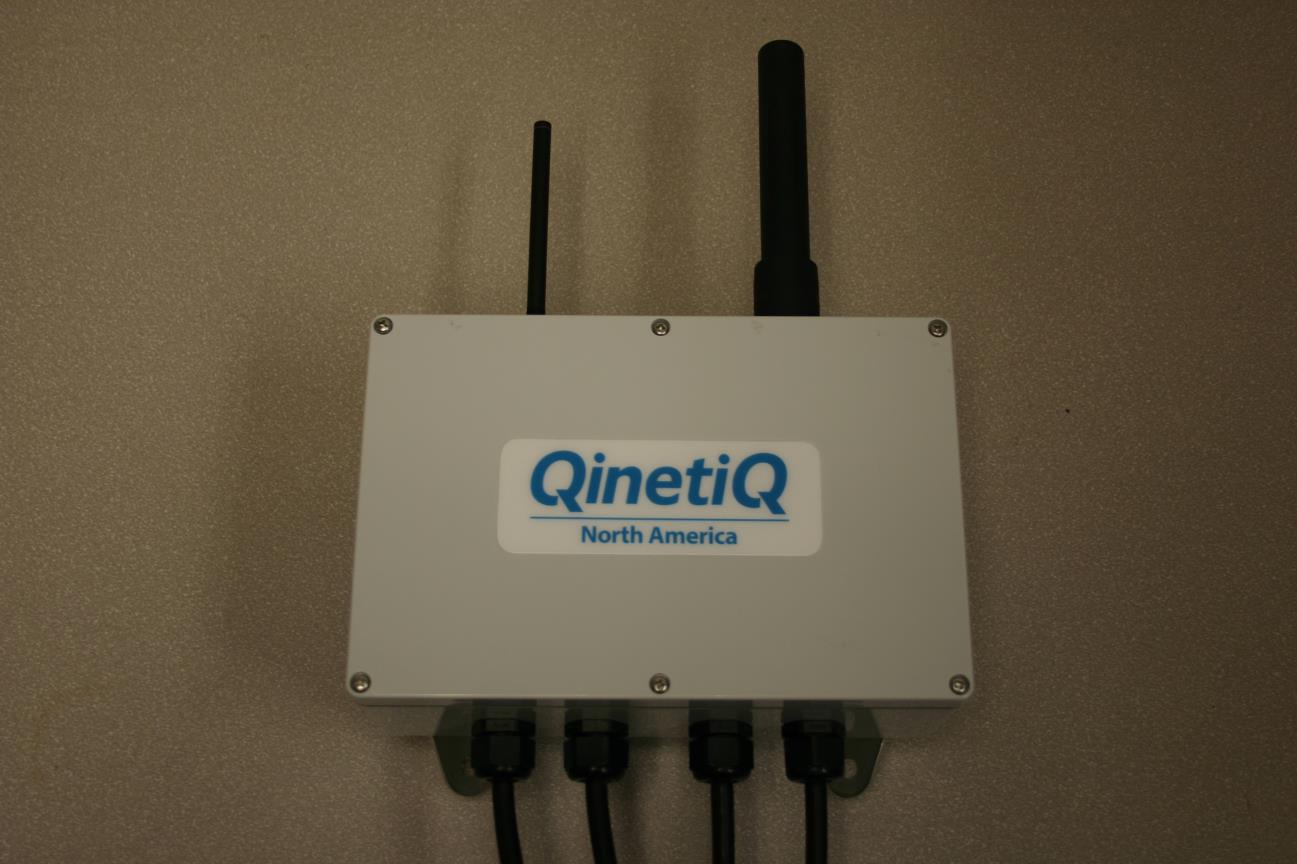

Photograph 1. Transformer Meter – Complete – No Cover (1) Photograph 2. Transformer Meter – Complete – No Cover (2) Photograph 3. Transformer Meter – PCB - Back Photograph 4. Transformer Meter – PCB - Bottom Photograph 5. Transformer Meter – PCB - Front Photograph 6. Transformer Meter – PCB – Side (1) Photograph 7. Transformer Meter – PCB – Side (2) Photograph 8. Transformer Meter – PCB – Top Photograph 9. Transformer Meter – PCB – No Shield, Back Photograph 10. Transformer Meter – PCB – No Shield, Side (1) Photograph 11. Transformer Meter – PCB – No Shield, Bottom Photograph 12. Transformer Meter – PCB – No Shield, Front Photograph 13. Transformer Meter – PCB – No Shield, Side (2) Photograph 14. Transformer Meter – PCB – No Shield, Top

REV.DATEDRAWNCHK'EDAPPRV A7/11/2013JWFHJTBAPK MANUF. PART # MANUF. CAGE CODE MANUFACTURER MANUF. ADDRESS MANUF. TELEPHONE SUPPLIER ADDRESS SUPPLIER TELEPHONE SUPPLIER WEBSITE SPEC. SHEET LINK SEE RBSEE RB SEE RBSEE RB SEE RBSEE RB REV SIZECAGE B5B2G7SHEET:1OF2 DRAWN: C000099 QNATSG1303 Form Rev B http://www.radiall.com/ CHK'ED: APPRV: A MANUF. WEBSITE PREFERRED SUPPLIER STRAIGHT DIPOLE ANTENNA, N TYPE, 900 MHZ MD13-006 SUPPLIER PART # SUPPLIER CAGE CODETBD TBD TBD MD13-006 RADIALL 0FDA5 GOV. OR COMMERCIAL SPEC. # TBD TITLE LINE 1 REVISIONS N/A DESCRIPTION TITLE LINE 2 INTIAL RELEASE TEMPE, AZ 85284 STRAIGHT DIPOLE ANTENNA, N TYPE, 900 MHZ MD13-006 8950 SOUTH 52ND STREET (480) 682-9400 STE 401 REFERENCE DATA SOURCE CATALOG ID TBD TBD N/A N/A MANUFACTURER WEBSITEMANUFACTURER CATALOG REV SHEET2OF2 STRAIGHT DIPOLE ANTENNA, N TYPE, 900 MHZ MD13-006 A C000099 QNATSG1303 Form Rev B

REV.DATEDRAWNCHK'EDAPPRV A11/5/2013MSLJCTJFG MANUF. PART # MANUF. CAGE CODE MANUFACTURER MANUF. ADDRESS MANUF. TELEPHONE SUPPLIER ADDRESS SUPPLIER TELEPHONE SUPPLIER WEBSITE SPEC. SHEET LINK SEE RBSEE RB SEE RBSEE RB SEE RBSEE RBREV SIZECAGE B5B2G7SHEET:1OF2 SUPPLIER PART # SUPPLIER CAGE CODE P/N: ANT-2.4-CW-HW-SMA N/A QNATSG1303 Form Rev C ANT-2.4-CW-HW-SMA-ND THIEF RIVER FALLS, MN 56701 USA 701 BROOKS AVENUE SOUTH 2S894 APPRV: N/A CATALOG ID DRAWN: DESCRIPTION GRANTS PASS, OR 97526 1-541-471-6256 INITIAL RELEASE ANT-2.4-CW-HW-SMA LINX TECHNOLOGIES INC 351T2 https://www.linxtechnologies.com/en/home REFERENCE DATA SOURCE PREFERRED SUPPLIERDIGI-KEY SENSOR, RF ANTENNA, LINX TECHNOLOGIES INC P/N: ANT-2.4-CW-HW-SMA CHK'ED: https://www.linxtechnologies.com/resources/data-guides/ant-2.4-cw-hw.pdf REVISIONS A 575 SE ASHLEY PL GOV. OR COMMERCIAL SPEC. # C000216 TITLE LINE 1 1-800-344-4539 MANUF. WEBSITE SENSOR, RF ANTENNA, LINX TECHNOLOGIES INC TITLE LINE 2 MANUFACTURER WEBSITEMANUFACTURER CATALOG REV SHEET:2OF2 SENSOR, RF ANTENNA, LINX TECHNOLOGIES INC P/N: ANT-2.4-CW-HW-SMA A QNATSG1303 Form Rev C C000216

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230-3432 • PHONE (410) 354-3300 • FAX (410) 354-3313 33439 WESTERN AVENUE • UNION CITY, CALIFORNIA 94587 • PHONE (510) 489-6300 • FAX (510) 489-6372 3162 BELICK STREET • SANTA CLARA, CA 95054 • PHONE (408) 748-3585 • FAX (510) 489-6372 13301 MCCALLEN PASS • AUSTIN, TEXAS 78753 • PHONE (512) 287-2500 • FAX (512) 287-2513 DOC-EMC700 9/17/2007 Electromagnetic Compatibility MPE Calculation For the QinetiQ, NA Transformer Meter Tested under Title 47 of the Code of Federal Regulations (CFR), Part 15 Subpart C MET Report: EMCS42319-MPE August 7, 2014 Prepared For: Qinetiq, NA 350 2 nd Avenue Waltham, MA 02451 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 Electromagnetic Compatibility Qinetiq MPE Calculation Transformer Meter CFR Title 47, Part 15, Subpart C MET Report: EMCS42319-MPE © 2014, MET Laboratories, Inc. Page 2 of 5 Electromagnetic Compatibility MPE Calculation For the Qinetiq, NA Transformer Meter Tested under Title 47 of the Code of Federal Regulations (CFR), Part 15 Subpart C MET Report: EMCS42319-MPE Ben Taylor, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the applicable limits. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Title 47 of the CFR, Part 15, Subpart C under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Qinetiq MPE Calculation Transformer Meter CFR Title 47, Part 15, Subpart C MET Report: EMCS42319-MPE © 2014, MET Laboratories, Inc. Page 3 of 5 Electromagnetic Compatibility Criteria for Intentional Radiators RF Exposure Test Purpose: Co-location of two radios; RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. Electromagnetic Compatibility Qinetiq MPE Calculation Transformer Meter CFR Title 47, Part 15, Subpart C MET Report: EMCS42319-MPE © 2014, MET Laboratories, Inc. Page 4 of 5 MPE Calculation – 2.4 GHz WiFi (FCC ID: TFB-TIWI1-01) Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S MPE Limit Calculation: EUT’s operating frequency band is 2400 – 2483.5MHz; highest conducted power = 93 mW. Therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 1.0 dBi. where, S = Power Density (mW/cm 2 ) P = Power Input to antenna (93 mW) G = Antenna Gain (1.2 numeric) S = (93*1.2/ 4*3.14*20.0 2 ) = 0.022 mW/cm 2 @ 20cm separation MPE Calculation – 900 MHz Radio MPE Limit Calculation: EUT’s operating frequencies @ 902-928 MHz; highest conducted power = 28.88 dBm (peak) therefore, Limit for Uncontrolled exposure: 0.6 mW/cm 2 or 6 W/m 2 EUT maximum antenna gain = 0 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density P = Power Input to antenna (774 mW) G = Antenna Gain (1 numeric) R = 20 cm S = (774*1/ 4π*202) = 0.154 mW/cm 2 @ 20cm separation Electromagnetic Compatibility Qinetiq MPE Calculation Transformer Meter CFR Title 47, Part 15, Subpart C MET Report: EMCS42319-MPE © 2014, MET Laboratories, Inc. Page 5 of 5 MPE Calculation – Co-Location MPE Summary: Frequency Range MPE Result (mW/cm 2 ) Limit (mW/cm 2 ) 2.4GHz 0.022 1 900 MHz 0.154 0.6 Test Requirements: [MPE(f1) / limit(f1) + MPE(f2) / limit(f2)] < 1 Test Results: MPE(f1) MPE(f2) Calculation [MPE(f1) / limit(f1) + MPE(f2) / limit(f2)] MPE Result (mW/cm 2 ) Frequency (MHz) Frequency (MHz) 2400 900 0.022 / 1 + 0.154/ 0.6 = (0.022+ 0.255) 0.277 Therefore, the combined total power density is less than 1 mW/cm 2 at 20cm.

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # 310117 LSR Job #: C-884 Compliance Testing of: TiWi Module Test Date(s): April 15, 22, May 6, June 13, August 7-9, 24, 31, Sept 8, 2010 Prepared For: LS Research Attn: Brian Petted W66 N220 Commerce Ct Cedarburg, WI 53012 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Industry Canada (IC) RSS 210 Annex 8 Operating in the Frequency Band 2400 MHz – 2483.5 MHz This Test Report is issued under the Authority of: Signature: Date: 10.20.2010 Test Report Reviewed by: Signature: Date: 10.20.2010 Tested by: Peter Feilen, EMC Engineer Signature: Date: 10.20.10 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 2 of 108 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 9 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 10 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4: DECLARATION OF CONFORMITY 11 EXHIBIT 5: RADIATED EMISSIONS TESTING 12 Note: Items 5.1 through 5.8 are for TRANSMIT MODE Item 5.9 is for RECEIVE MODE 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emissions Limits 14 5.6 Radiated Emissions Test Data Chart 15 5.7 Test Setup Photo(s) – Radiated Emissions Test 18 5.8 Screen Captures – Radiated Emissions Test 20 5.9 Receive Mode Testing 40 EXHIBIT 6: Conducted AC Line Emissions 50 6.1 Test Setup 50 6.2 Test Procedure 50 6.3 Test Equipment List 50 6.4 Test Results 50 6.5 FCC Limits of Test Data 51 6.6 Conducted Emissions Test Data 51 6.7 Conducted Emissions Data 56 Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 3 of 108 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 7: OCCUPIED BANDWIDTH 56 7.1 Limits 56 7.2 Method of Measurements 56 7.3 Test Equipment List 57 7.4 Test Data 57 7.5 Screen Captures – Occupied Bandwidth 58 EXHIBIT 8: BAND-EDGE MEASUREMENTS 66 8.1 Method of Measurements 66 8.2 Screen Captures 66 EXHIBIT 9: POWER OUTPUT (CONDUCTED): 15.247(b) 70 9.1 Method of Measurements 70 9.2 Test Equipment List 70 9.3 Test Data 70 9.4 Screen Captures – Power Output (Conducted) 74 EXHIBIT 10: POWER SPECTRAL DENSITY: 15.247(e) 80 10.1 Limits 80 10.2 Test Equipment List 80 10.3 Test Data 80 10.4 Screen Captures – Power Spectral Density 80 EXHIBIT 11: SPURIOUS RADIATED EMISSIONS: 15.247(d) 83 11.1 Limits 83 11.2 Test Equipment List 85 11.3 Test Data 85 11.4 Screen Captures – Spurious Radiated Emissions 87 EXHIBIT 12: FREQUENCY & POWER STABILITY OVER VOLTAGE & TEMPERATURE VARIATIONS 92 EXHIBIT 13: CHANNEL PLAN AND SEPARATION 93 13.1 Data Table 93 13.2 Summary Table 93 13.3 Screen Captures 94 EXHIBIT 14: MPE CALCULATIONS 98 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 103 APPENDIX B: TEST STANDARDS – RADIO 105 APPENDIX C: UNCERTAINTY STATEMENT 106 APPENDIX D: JUSTIFICATIONS OF AVERAGE DUTY FACTOR CALCULATIONS 107 Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 4 of 108 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.247 and 15.209 FCC Part 2, Section 2.1043 paragraph (b)1. RSS GEN and RSS 210 Annex 8 Title: FCC : Telecommunication – Code of Federal Regulations, CFR 47, Part 15. IC : Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment Purpose of Test: To gain FCC and IC Certification Authorization for Low- Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification:  Commercial, Industrial or Business  Residential 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2008-10 Code of Federal Regulations - Telecommunications RSS 210 Annex 8 2007 June Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment ANSI C63.4 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. FCC Public Notice DA 00-1407 2000 Part 15 Unlicensed Modular Transmitter Approval FCC ET Docket No. 99-231 2002 Amendment to FCC Part 15 of the Commission’s Rules Regarding Spread Spectrum Devices. FCC Procedures 2007 Measurement of Digital Transmission Systems operating under Section 15.247. Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 5 of 108 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IEC 1702…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # 310117 LSR Job #: C-884 Compliance Testing of: TiWi Module Test Date(s): April 15, 22, May 6, June 13, August 7-9, 24, 31, Sept 8, 2010 Prepared For: LS Research Attn: Brian Petted W66 N220 Commerce Ct Cedarburg, WI 53012 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Industry Canada (IC) RSS 210 Annex 8 Operating in the Frequency Band 2400 MHz – 2483.5 MHz This Test Report is issued under the Authority of: Signature: Date: 10.20.2010 Test Report Reviewed by: Signature: Date: 10.20.2010 Tested by: Peter Feilen, EMC Engineer Signature: Date: 10.20.10 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 2 of 108 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 9 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 10 3.1 Climate Test Conditions 10 3.2 Applicability & Summary of EMC Emission Test Results 10 3.3 Modifications Incorporated in the EUT for Compliance Purposes 10 3.4 Deviations & Exclusions from Test Specifications 10 EXHIBIT 4: DECLARATION OF CONFORMITY 11 EXHIBIT 5: RADIATED EMISSIONS TESTING 12 Note: Items 5.1 through 5.8 are for TRANSMIT MODE Item 5.9 is for RECEIVE MODE 5.1 Test Setup 12 5.2 Test Procedure 12 5.3 Test Equipment Utilized 13 5.4 Test Results 13 5.5 Calculation of Radiated Emissions Limits 14 5.6 Radiated Emissions Test Data Chart 15 5.7 Test Setup Photo(s) – Radiated Emissions Test 18 5.8 Screen Captures – Radiated Emissions Test 20 5.9 Receive Mode Testing 40 EXHIBIT 6: Conducted AC Line Emissions 50 6.1 Test Setup 50 6.2 Test Procedure 50 6.3 Test Equipment List 50 6.4 Test Results 50 6.5 FCC Limits of Test Data 51 6.6 Conducted Emissions Test Data 51 6.7 Conducted Emissions Data 56 Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 3 of 108 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 7: OCCUPIED BANDWIDTH 56 7.1 Limits 56 7.2 Method of Measurements 56 7.3 Test Equipment List 57 7.4 Test Data 57 7.5 Screen Captures – Occupied Bandwidth 58 EXHIBIT 8: BAND-EDGE MEASUREMENTS 66 8.1 Method of Measurements 66 8.2 Screen Captures 66 EXHIBIT 9: POWER OUTPUT (CONDUCTED): 15.247(b) 70 9.1 Method of Measurements 70 9.2 Test Equipment List 70 9.3 Test Data 70 9.4 Screen Captures – Power Output (Conducted) 74 EXHIBIT 10: POWER SPECTRAL DENSITY: 15.247(e) 80 10.1 Limits 80 10.2 Test Equipment List 80 10.3 Test Data 80 10.4 Screen Captures – Power Spectral Density 80 EXHIBIT 11: SPURIOUS RADIATED EMISSIONS: 15.247(d) 83 11.1 Limits 83 11.2 Test Equipment List 85 11.3 Test Data 85 11.4 Screen Captures – Spurious Radiated Emissions 87 EXHIBIT 12: FREQUENCY & POWER STABILITY OVER VOLTAGE & TEMPERATURE VARIATIONS 92 EXHIBIT 13: CHANNEL PLAN AND SEPARATION 93 13.1 Data Table 93 13.2 Summary Table 93 13.3 Screen Captures 94 EXHIBIT 14: MPE CALCULATIONS 98 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 103 APPENDIX B: TEST STANDARDS – RADIO 105 APPENDIX C: UNCERTAINTY STATEMENT 106 APPENDIX D: JUSTIFICATIONS OF AVERAGE DUTY FACTOR CALCULATIONS 107 Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 4 of 108 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.247 and 15.209 FCC Part 2, Section 2.1043 paragraph (b)1. RSS GEN and RSS 210 Annex 8 Title: FCC : Telecommunication – Code of Federal Regulations, CFR 47, Part 15. IC : Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment Purpose of Test: To gain FCC and IC Certification Authorization for Low- Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification:  Commercial, Industrial or Business  Residential 1.2 NORMATIVE REFERENCES Publication Year Title 47 CFR, Parts 0-15 (FCC) 2008-10 Code of Federal Regulations - Telecommunications RSS 210 Annex 8 2007 June Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment ANSI C63.4 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 2006-03 A1: 2006-09 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 2003 A1: 2004-04 A2: 2007-07 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. FCC Public Notice DA 00-1407 2000 Part 15 Unlicensed Modular Transmitter Approval FCC ET Docket No. 99-231 2002 Amendment to FCC Part 15 of the Commission’s Rules Regarding Spread Spectrum Devices. FCC Procedures 2007 Measurement of Digital Transmission Systems operating under Section 15.247. Prepared For: LS Research EUT: TiWi LS Research, LLC Report # 310117 Model #:TiWi- R1 LSR Job #: C-884 Serial #:0020303 Page 5 of 108 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IEC 1702…

Text truncated - open the document above for the full version.

Photograph 1. Radiated Emissions, Test Setup Photograph 2. Radiated Spurious Emissions, Test Setup Photograph 3. Radiated Spurious Emissions, Test Setup Above 1GHz
