Preliminary RT 1000 Deployment Guide February 21, 2011 R01 Part Number: 90-0004 When Real-time Matters Wireless Seismic, Inc. 361 Centennial Parkway, Suite 230 Louisville, CO 80027 720.242.9916 Preliminary To order additional copies of this document, send an email to your sales representative requesting the following: Part Number: 90-0004-PDF Part Number: 90-0004-Paper © 2010-2011 Wireless Seismic, Inc. All rights reserved. All other brands, company names, product names, trademarks or service marks referenced in this material are the property of their respective owners, who may or may not be affiliated with, connected to, or sponsored by Wireless Seismic, Inc. Wireless Seismic, Inc.'s trademarks, registered trademarks or trade dress may not be used in connection with any product or service that is not the property of Wireless Seismic, Inc., in any manner that is likely to cause confusion among customers, or in any manner that disparages or discredits Wireless Seismic, Inc. The products and services described in this material may not be available in all regions. Preliminary RT 1000 v1.03 Deployment Guide R01 © 2010-2011 Wireless Seismic, Inc. All rights reserved. Table of Contents 1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.1 About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.2 Who Should Use this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.3 Other Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1.4 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2. Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.2 Mobilization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.2.1 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.2.2 Getting Ready . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.2.3 Prepare the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.3 At the Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.3.1 Set Up the Central Recording System . . . . . . . . . . . . . . . . . . . . . . 15 2.3.2 Lay Out the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.3.2.1 Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.3.2.2 Assemble the Ground Equipment . . . . . . . . . . . . . . . . . . . . . . 15 2.3.2.3 Place the Ground Equipment in the Field . . . . . . . . . . . . . . . . 16 3. Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.2 Installing the Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.3 Upgrading the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.4 Upgrading the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 4. Backhaul. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 5. Testing and Maintaining the Equipment . . . . . . . . . . . . . . . . . . . .22 5.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5.2 Testing the Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5.2.1 Line Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5.2.2 Source Control Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5.2.3 Acquisition Parameter Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5.2.4 Built-In-Self-Test (BIST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5.3 Maintaining the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5.3.1 Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5.3.2 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Preliminary 4RT 1000 v1.0 Deployment GuideR01 © 2010-2011 Wireless Seismic, Inc. All rights reserved. Table of Contents 5.3.3 Geophones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 5.3.4 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 6. Rolling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 6.1 Rolling the Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 6.1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 6.1.2 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 6.2 Rolling the Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 6.2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 6.2.2 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 7. Demobilization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 7.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 7.2 Undeploy the Ground Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 7.3 Disassemble the Grou…

Text truncated - open the document above for the full version.

Wireless Seismic, Inc. 361 Centennial Parkway, Suite 230 (p) 720.242.9916 Louisville, CO 80027 (f) 720.242.9987 November 17, 2010 PCTEST TCB/CB Division of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Shannon Adams VP Finance & Administration

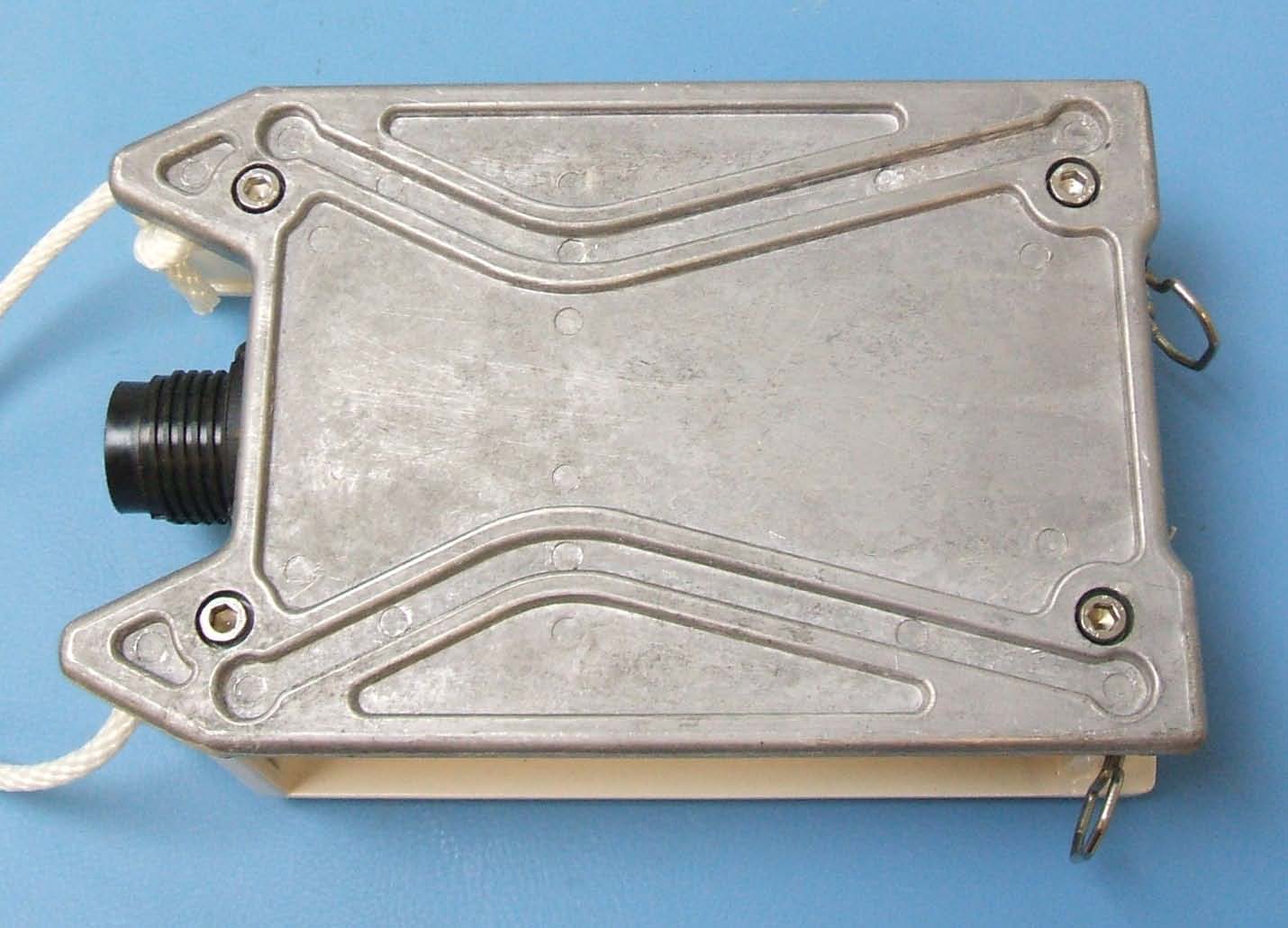

WRU FCC Photos

WRU FCC Label FCC ID YZO-00101 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Reviewed by: FCC ID: YZO-00101 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160869.YZO April 26, 2011 Wireless Remote Unit Page 1 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Wireless Seismic, Inc. April 26, 2011 361 Centennial Parkway, Suite 230 Test Site/Location: Louisville, CO 80027 PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0Y1105160869.YZO FCC ID: YZO-00101 APPLICANT: Wireless Seismic, Inc. EUT Type: Wireless Remote Unit FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: YZO-00101 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160869.YZO April 26, 2011 Wireless Remote Unit Page 2 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: YZO-00101 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160869.YZO April 26, 2011 Wireless Remote Unit Page 3 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Wireless Seismic, Inc. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Wireless Seismic Wireless Remote Unit FCC ID: YZO-00101 is a frequency hopping spread spectrum transmitter operating in the 2.4GHz frequency range. For this MPE evaluation the device is set to transmit at maximum power in non-hopping mode from the supplied antenna and the RF exposure is evaluated. EUT: FCC ID: YZO-00101 Model: RT 1000 Grantee: Wireless Seismic, Inc. Max. Peak Conducted Power: 15.21dBm Antenna Gain: 9dBi Reviewed by: FCC ID: YZO-00101 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160869.YZO April 26, 2011 Wireless Remote Unit Page 4 of 7 © 2011 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: YZO-00101 FCC Pt. 15.247 TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160868.YZO April 26, 2011 Wireless Remote Unit Page 1 of 32 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.6BTFI 01/04/11 Applicant Name: Date of Testing: Wireless Seismic, Inc. April 26, 2011 361 Centennial Parkway, Suite 230 Test Site/Location: Louisville, CO 80027 PCTEST Lab. Columbia, MD, USA Test Report Serial No.: 0Y1105160868.YZO FCC ID: YZO-00101 APPLICANT: Wireless Seismic, Inc. Application Type: Certification Model(s): RT 1000 EUT Type: Wireless Remote Unit Max. RF Output Power: 33.18 mW (15.21dBm) Conducted Frequency Range: 2403 – 2478MHz FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (15.247) IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 Reviewed by: FCC ID: YZO-00101 FCC Pt. 15.247 TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160868.YZO April 26, 2011 Wireless Remote Unit Page 2 of 32 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.6BTFI 01/04/11 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 RADIATED EMISSIONS ............................................................................................................................ 6 4.0 ANTENNA REQUIREMENTS ..................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................8 6.0 TEST RESULTS ......................................................................................................................................9 6.1 SUMMARY ................................................................................................................................................. 9 6.2 20DB BANDWIDTH MEASUREMENT .....................................................................................................10 6.3 OUTPUT POWER MEASUREMENT .......................................................................................................12 6.4 BAND EDGE COMPLIANCE.................................................................................................................... 14 6.5 CARRIER FREQUENCY SEPARATION.................................................................................................. 16 6.6 TIME OF OCCUPANCY ........................................................................................................................... 17 6.7 NUMBER OF HOPPING CHANNELS......................................................................................................20 6.8 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 21 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 26 6.10 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 30 7.0 CONCLUSION .......................................................................................................................................32 Reviewed by: FCC ID: YZO-00101 FCC Pt. 15.247 TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1105160868.YZO April 26, 2011 Wireless Remote Unit Page 3 of 32 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.6BTFI 01/04/11 MEASUREMENT REPORT FCC Part 15.247 § 2.1033 Genera…

Text truncated - open the document above for the full version.

WIRELESS SEISMIC FCC ID: YZO-00101 Model: RT 1000 Test Set-Up Photos EUT Type: Wireless Remote Unit Page 1 of 1 © 2011 PCTEST Engineering Laboratory Inc. T E S T S E T U P P H O T O G R A P H S
