YZP-BH1000Telematics Modem

Copyright ⓒ. 2014. All Rights Reserved. User Guide for the LTD-BH1000 1.Overview 2.Major features 3.Interface 4.Electrical specifications 5.RF specifications 6.Mechanical specifications 7.General specifications 8.Connectors 9. RFx information 10. FCC approval Table of Contents Product: WCDMA Wireless Modem Model name: LTD-BH1000 Copyright ⓒ. 2014. All Rights Reserved. The LTD-BH1000 is a personal mobile communication device that incorporates the latest compact radio technology, including smaller and lighter components and support for WCDMA(850/1900MHz) bands. This device acts as the vehicle’s telematics system and connects to WCDMA (HSPA+) wireless networks and wireless modules to allow voice and data communication. Furthermore, this device can operate on land and water as well as other similar areas. In HSPA+ mode, the device provides uplink speeds of up to 5.76 Mbps and downlink speeds of up to 14.4 Mbps for seamless transfer of data such as movies and video calls. The device also supports the transfer of large amounts of data. The device communicates with the host system via a standard RS-232 or USB port, and AT commands and control commands can be used to send data. Voice calls are also possible. 1. Overview Copyright ⓒ. 2014. All Rights Reserved. Mechanical Dimensions 93.7(L) x 42(W) x 7.6(T) mm Weight TBD g (max) Interface USB, general purpose I/O pins Antenna FAKRA connector Temperature* Operation: -20 °C - +70 °C Storage: -40 °C - +85 °C Technology Main chipset MDM 6200 Memory 1024Mb(NAND) / 512Mb(SDRAM) Standard 3GPP WCDMA (HSPA+) - DL Speed : 14.4 Mbps - UL Speed : 5.76 Mbps Band WCDMA B2, B5 Power WCDMA : Typ. 24dBm (Power Class 3) ETC DC power 4 V Functions Voice, data, SMS 2. Major features Copyright ⓒ. 2014. All Rights Reserved. 3. Interface Customer P/N is connected with outer device using 40 pin connector 3.1 Pin output Figure 1. Connector pin arrangement NC12NC GND34GND NC56NC NC78NC NC910NC BOOT_OK1112MSG NC1314NC NC1516PCM_3.3V_TXD GND1718PCM_3.3V_RXD PCM_3.3V_CLK1920PCM_3.3V_SYNC GND2122GND NC2324NC NC2526NC 96H_END2728RESET_IN USB_VBUS2930ACC_ON_SLEEP V_BATT3132V_BATT GND3334GND GND3536USB_D- UART_RXD3738USB_D+ UART_TXD3940GND Copyright ⓒ. 2014. All Rights Reserved. 3. Interface 3.2 Pin description Table 1. Pin descriptions Signal Name Type Pin Description USB USB_D+ USB_D- USB_VBUS IO IO I 38 36 29 USB differential data line (+) USB differential data line (-) USB power Supply Audio PCM PCM_3.3V_SYNC PCM_3.3V_CLK PCM_3.3V_TXD PCM_3.3V_RXD I I O I 20 19 16 18 PCM interface sync PCM interface clock PCM interface digital audio data out PCM interface digital audio data in User Interface BOOT_OK RESET_IN MSG 96H_END ACC_ON_SLEEP O I O O I 11 28 12 27 30 Indicates that the Modem boot is complete. Control line to unconditionally restart the module. Indicates that the Modem receive Urgent message. Indicates that the 96hr sleep mode is end. Control line to power on or 96hr sleep mode. Power VBATT GND I - 31,32 3,4,17,21,22,33 ,35,40 Power supply input (+) Power supply input (-) UART UART_RXD UART_TXD I O 37 39 UART RX DATA UART TX DATA NC RESERVED - 1,2,5,6,7,8,9,10 ,13,14,15,23,24 ,25,26 Reserved pins. Please leave these unconnected Copyright ⓒ. 2014. All Rights Reserved. 3. Interface 3.3 USB This device supports universal serial bus (USB) connections for high-speed data communication. The relevant hardware satisfies the USB 2.0 specifications and supports maximum communications speeds of 480 Mbps Table 2. USB Pin descriptions Pin NO. Signal Name Pin I/O (Modem host) Function Description 38 USB_D+ IO USB Differential data line (+) 36 USB_D- IO USB Differential data line (-) 29 USB_VBUS I USB Power Supply Copyright ⓒ. 2014. All Rights Reserved. 3. Interface 3.4 Audio This module includes a PCM interface. The pull-up and pull-down resistors attached to these pin must provide more than 50 Kohm of resistance. Table 3. PCM Pin descriptions 3.5 User interface Pin No. Signal Name Direction Function 11 BOOT_OK O Indicates that the Modem boot is complete. 28 RESET_IN I Control line to unconditionally restart the module. 12 MSG O Indicates that the Modem receive Urgent message. 27 96H_END O Indicates that the 96hr sleep mode is end. 30 ACC_ON_SLEEP I Control line to power on or 96hr sleep mode. Table 4. User interface Pin descriptions Pin NO. Signal Name Pin I/O (Modem host) Function Description 20 PCM_3.3V_SYNC I PCM Interface sync 19 PCM_3.3V_CLK I PCM Interface clock 16 PCM_3.3V_TXD O PCM Interface digital audio data out 18 PCM_3.3V_RXD I PCM Interface digital audio data in Copyright ⓒ. 2014. All Rights Reserved. 4. Electrical specifications 4.1 Power supply specifications The host system provides the power supply (V_BATT)DC 4 V, 1.5 A to the device. The internal power supply module manages the power supplied to the integral circuits and maintains constant voltages. This module also controls each power block to minimize power consumption. In particular, the PAM (power amplifier module) consumes a lot of power, so it receives a direct power supply of 4 V from the V_BATT. Therefore the V_BATT signal inputs only the supply power of the PAM, even when the absolute rating is higher. In addition, the entire power input module blocks and protects against high surges and ESD in the NAD module. Pin No. Signal Name Direction MIN TYP MAX 31,32 V_BATT I TBD V 4 V TBD V Table 5. Power supply specifications Copyright ⓒ. 2014. All Rights Reserved. 4. Electrical specifications 4.2 Logic level specifications 4.2.1 Digital logic level specifications Table 6. Digital logic level specifications Signal Name Type Low High Unit Min Max Min Max BOOT_OK O -0.3 0.63 1.17 2.1 V RESET_IN I 0 0.45 1.35 1.8 MSG O -0.3 0.63 1.17 2.1 96H_END O -0.3 0.63 1.17 2.1 ACC_ON_SLEEP I 0 0.45 1.35 1.8 Copyright ⓒ. 2014. All Rights Reserved. 5. RF specifications 5.1 WCDMA 5.1.1 Receiver .- Bandwidth : 5MHz .- Frequency : 869MHz – 894MHz (B5), 1930MHz – 1990MHz (B2) .- RF to Baseband Direct conversion (Zero IF) .- Modulatio…

Text truncated - open the document above for the full version.

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: July 14, 2015 Letter of Authorization We, the undersigned, hereby authorize DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: YZP-BH1000 including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Innotek Co.,Ltd. . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jeong Inchang Director

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: July 14, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey Sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with UL Verification Services Inc. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database and Industry Canada contact information.

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: July 14, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: YZP-BH1000 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Innotek Co.,Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Innotek Co.,Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists and Tuned-up Procedure 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jeong Inchang Director

사내한 Copyrightⓒ. 2015. All Rights Reserved. Label location LTD-BH1000 Label 1.Mobile service provider 2.F/W Version 3.Vendor Part number 4.Barcode 5.M/N : LTD-BH1000 6.FCC ID : YZP-BH1000 7. IC : 7414C-BH1000 8.IFETEL ID 9.IMEI number 10.ICCID number Label 1 4 5 9 10 IMEI ICCID 2 3 6 FCC ID M/N 7 8 IC ID IFETEL ID

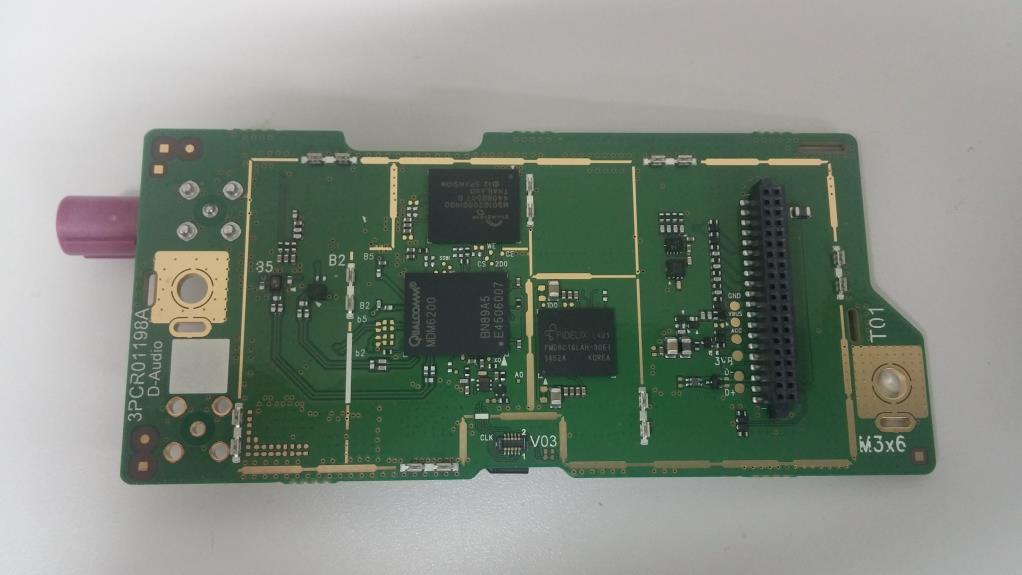

FCC ID: YZP-BH1000 IC: 7414C-BH1000 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1

~ ( ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) Conclusion : The exposure condition of this device is compliant with FCC rules. 0.26 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Requirment =0.55 The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. 1288.250 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) 5.603.45 dBd) Maximum EIRP : 31.10 dBm( 1288.250 )mW Max Target power : 25.50 dBm dBi Measured Conducted power : 24.04 dBm Maximum antenna gain (Available) : - FCC ID: YZP-BH1000LG Innotek Co., Ltd. MPE Calculation : WCDMA850 Frequency range : 826.40 MHz846.60 MHz ~ ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCC ID : YZP-BH1000LG Innotek Co., Ltd. MPE Calculation : WCDMA1900 Frequency range : 1852.40 MHz1907.60 MHz Max Target power : 25.50 dBm Measured Conducted power : 23.68 dBm Maximum antenna gain (Available) : 7.50 dBi Maximum EIRP : 33.00 dBm( 1995.262 )mW The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 1995.262 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Conclusion : The exposure condition of this device is compliant with FCC rules. 0.40 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Requirment =1.00

DTNC1506-03175, DTNC1506-03177 FCCID: YZP-BH1000 Report No.: DRTFCC1507-0173(1) IC: 7414C-BH1000 TRF-RF-210(06)150312 Page 2 / 55 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1507-0173 Jul. 22, 2015 Initial issue DRTFCC1507-0173(1) Jul. 28, 2015 Added the test of Frequency stability DTNC1506-03175, DTNC1506-03177 FCCID: YZP-BH1000 Report No.: DRTFCC1507-0173(1) IC: 7414C-BH1000 TRF-RF-210(06)150312 Page 3 / 55 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. INTRODUCTION ........................................................................ 5 2.1. EUT DESCRIPTION .......................................................................................... 5 2.2. Support equipment .......................................................................................... 5 2.3. MEASURING INSTRUMENT CALIBRATION.................................................... 5 2.4. TEST FACILITY ................................................................................................ 5 3. DESCRIPTION OF TESTS ......................................................... 6 3.1 ERP & EIRP ....................................................................................................... 6 3.2 PEAK TO AVERAGE RATIO .............................................................................. 8 3.3 OCCUPIED BANDWIDTH. ............................................................................... 10 3.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL. .................................... 11 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. .......... 12 3.6 RADIATED SPURIOUS EMISSIONS ............................................................... 13 3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 14 4. LIST OF TEST EQUIPMENT .................................................... 15 5. SUMMARY OF TEST RESULTS .............................................. 16 6. SAMPLE CALCULATION ........................................................ 17 7. TEST DATA .............................................................................. 18 7.1 CONDUCTED OUTPUT POWER ..................................................................... 18 7.2 PEAK TO AVERAGE RATIO ............................................................................ 19 7.3 OCCUPIED BANDWIDTH ................................................................................ 19 7.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ........... 19 7.5 BAND EDGE .................................................................................................... 19 7.6 EFFECTIVE RADIATED POWER..................................................................... 20 7.7 EQUIVALENT ISOTROPIC RADIATED POWER ............................................. 20 7.8 RADIATED SPURIOUS EMISSIONS ............................................................... 21 7.8.1 RADIATED SPURIOUS EMISSIONS (WCDMA850) .................................... 21 7.8.2 RADIATED SPURIOUS EMISSIONS (HSUPA850) ..................................... 22 7.8.3 RADIATED SPURIOUS EMISSIONS (WCDMA1900) .................................. 23 7.8.4 RADIATED SPURIOUS EMISSIONS (HSUPA1900) ................................... 24 7.9 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 25 7.9.1 FREQUENCY STABILITY (WCDMA850)..................................................... 25 7.9.2 FREQUENCY STABILITY (HSUPA850) ...................................................... 26 7.9.3 FREQUENCY STABILITY (WCDMA1900) ................................................... 27 7.9.4 FREQUENCY STABILITY (HSUPA1900) .................................................... 28 8. TEST PLOTS ........................................................................... 29 8.1 Peak to Average Ratio ................................................................................... 29 8.2 Occupied Bandwidth (99 % Bandwidth) ...................................................... 30 8.3 Spurious Emissions at Antenna Terminal ................................................... 38 8.4 Band Edge ..................................................................................................... 48 DTNC1506-03175, DTNC1506-03177 FCCID: YZP-BH1000 Report No.: DRTFCC1507-0173(1) IC: 7414C-BH1000 TRF-RF-210(06)150312 Page 4 / 55 Copyright ○ C 2015, DT&C Co., Ltd. 1. GENERAL INFORMATION Applicant Name: LG Innotek Co.,Ltd. Address: 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, South Korea FCC ID : YZP-BH1000 IC : 7414C-BH1000 FCC Classification : PCS Licensed Transmitter (PCB) EUT : Telematics Modem Model Name : LTD-BH1000 Add Model Name : N/A Supplying power : DC 4 V Antenna Type : External Mode Tx Frequency (MHz) Emission Designator Conducted Output Power Max. Power (W) Max. Power (dBm) WCDMA850 826.4 ~ 846.6 MHz 4M15F9W 0.254 W 24.04 dBm HSUPA850 826.4 ~ 846.6 MHz 4M15F9W 0.244 W 23.88 dBm WCDMA1900 1852.4 ~ 1907.6 MHz 4M15F9W 0.233 W 23.68 dBm HSUPA1900 1852.4 ~ 1907.6 MHz 4M16F9W 0.232 W 23.65 dBm DTNC1506-03175, DTNC1506-03177 FCCID: YZP-BH1000 Report No.: DRTFCC1507-0173(1) IC: 7414C-BH1000 TRF-RF-210(06)150312 Page 5 / 55 Copyright ○ C 2015, DT&C Co., Ltd. 2. INTRODUCTION 2.1. EUT DESCRIPTION The Equipment Under Test(EUT) supports a WCDMA/HSUPA/HSPA+ of Cellular/PCS bands. 2.2. Support equipment Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - Note: The above equipment were supported by manufacturer. 2.3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.4. TEST FACILITY The 3m test site and conducted measurement facility used to collect the radiated data are located at the 42, Yurim-ro, 154beon-gil, C…
