YZP-D660VTelematics Module

PRODUCT : CDMA/EVDO WIRELESS MODEM MODEL NAME : LTD-VH1000 1. Overview 2. Major Features 3. Interface 4. Electrical Specifications 5. RF Specifications 6. Mechanical Specification 7. General Specification 8. Parts Map 9. Connector 10. Antenna Specification 11, RFx information 1. Overview The LTD-VH1000 is achieved as personal mobile communication devices of the compact radio equipment, the latest design of the parts becoming smaller, lighter weight having the 850/1900MHz bands. It is the vehicle’s telematics system that connect with CDMA(EVDO) wireless network and the wireless module with voice and data communication. It can be operated at land, rivers, and other similar areas. On EVDO operating mode, It can be communicated with uplink 1.8Mbps, downlink up to 3.1Mbps data transfer speed such as a movie or a video call. It may be able to receive large amounts of data. Standard RS-232 port and USB port communicating with the host system via AT- command or control commands can be used to send data. Voice calls are possible 1.1. Product description The LTD-VH1000 module described in this manual is supported CDMA 1x (EVDO rev.A) connectivity to HYUNDAI TCU(Telecommunication control unit) This module is manufactured by LG INNOTEK and installed by HYUNDAI 1.2. Block diagram Figure 1 Block Diagram 2. Major Features Mechanical Dimension  38.4 (W) x 92 (L) x 7.6 (T) mm Interface  USB, UART, General Purpose I/O pins Antenna  FAKRA Connector Temperature *  Operation : -20°C ~ +70 °C  Storage : -40 °C ~ +85 °C CDMA Main Chipset  MDM 6600 Memory  512Mb(NAND) / 256Mb(SDRAM) Standard  3GPP2 CDMA 1X, EVDO Rev.A - DL Speed : 3.1 Mbps - UL Speed : 1.8 Mbps Band  CDMA 850(DCN), 1900 (PCS)  GPS(Not supported) Power  Max. 24dBm (Power Class 3) Etc. OS  Android 2.3 DC Power  3.8V Functions  Voice, Data, SMS 2.1 Automotive Parts No Item Manufacturer Operating Temperature/ Note 1 MDM6600 Qualcomm -20~ 85°C 2 PAM AVARGO -30 ~ 85°C 3 Filter EPCOS -20∼+85°C 4 Quadplexer AVARGO -20∼+85°C 5 MEMORY(NAND) NUMONYX Automotive Part 6 MEMORY(SDRAM_DDR) MICRON Automotive Part 7 Capacitor / Inductor Murata Automotive Part 8 Resistor YAGEO Automotive Part 9 TCXO KDS Automotive Part 10 PCB LGIT 6 Layer 3. Interface 3.1. Pin outs Customer P/N is connected with outer device using 40 pin connectors Figure 2 Modem Interface Connector Pin arrangement 3.2. Pin Descriptions NC Pin NO. Signal Name In/Out 기능 1, 2, 3, 4, 13, 15, 17, 38 NC V_BATT 31, 32 POWER POWER GND 21, 22, 33, 34, 40 GND GND PCM 16 PCM_3.3V_TXD O PCM DATA OUT 18 PCM_3.3V_RXD I PCM DATA IN 19 PCM_3.3V_CLK O PCM CLK 20 PCM_3.3V_SYNC O PCM SYNC UART2 (DM Port) 37 TXD2 I Serial Data Input 2 , HSDPA 디버깅 39 RXD2 O Serial Data Output 2, HSDPA 디버깅 USB (USB2.0) 29 USB_VBUS I Power supply for the USB transceiver 35 USB_D+ I/O USB differential data (+) 36 USB_D- I/O USB differential data (-) AUDIO (MIC/SPK) 23 MIC+ I Differential Microphone input (+) 24 MIC- I Differential Microphone input (-) 25 SPK+ O Analog Audio Differential Output (+) 26 SPK- O Analog Audio Differential Output (-) User Interface 9 SSl0 I Air-bag Signal input(Not use) 10 SSl1 I CAN Wake Up Signal input (Not use) 11 BOOT_OK O Modem Booting Completion / Modem Wake Up 12 MSG O Received emergency message from Center 14 AUIDIO_ON- O Signified in voice communication(not use) 27 48H_END O Signified in 48 hours standby mode ending 28 RESET_IN- I Modem Hardware reset input 30 ACC(POWER_ON) I Modem Power ON/ Modem POWER Sleep GPIO 5, 6, 7, 8, 9, 10, 14 GPIO I/O Possible to connect to GPIO/ Table 1 Pin Descriptions 3.3. UART ( RS-232 Interface ) This module is provided with interface supporting Standard RS-232 protocol. DCE(modem) is exchanged with data or control AT-Command through DTE(host). Pin NO. Signal Name Function (Modem) Pin Function Summary 37 TXD2 I Serial Data Input 2 39 RXD2 O Serial Data output 2 3.4. USB It is supported with universal serial bus for high data communication. It is satisfied with USB2.0 specification and supported with Max.480Mbps Pin NO. Signal Name Function (Modem) Pin Function Summary 29 USB_VBUS I Power supply for the USB transceiver 35 USB_D+ I/O USB differential data (+) 36 USB_D- I/O USB differential data (-) 3.5. AUDIO Modem is provided with condenser mic input, speaker output for voice call Speaker output can connect with 32Ω speaker Pin NO. Signal Name Function (Modem) Pin Function Summary 23 MIC+ I Differential Microphone input (+) 24 MIC- I Differential Microphone input (-) 25 SPK+ O Analog Audio Differential Output(+) 26 SPK- O Analog Audio Differential Output (-) 3.6. User Interface Signals Pin NO. Signal Name Function (Modem) Pin Function Summary 9 GPIO NC 10 GPIO NC 11 BOOT_OK O Modem booting end / Modem Wake Up 12 MSG O Received emergency message from center 14 GPIO NC 27 48H_END O Signified in 48 hours standby mode ending 28 RESET_IN- I Modem Hardware reset input 30 ACC(POWER_ON) I Modem Power ON/Modem POWER Sleep 3.7. PCM Signals Pin NO. Signal Name Function (Modem) Pin Function Summary 16 PCM_3.3V_TXD O PCM DATA OUT 18 PCM_3.3V_RXD I PCM DATA IN 19 PCM_3.3V_CLK O PCM CLOCK 20 PCM_3.3V_SYNC O PCM SYNC 4. Electrical Specifications 4.1. Power Supply Specification Modem power(V_BATT) should be provided DC3.8V ± 0.1V, 1.5A. Modem power is provided according to inner function and per block using DC regulated circuit. It is controlled with each power depending on the mechanism to reduce power consumption to a minimum. PA is used directly V_BATT because of a lot of power input power source. Thus, It can be resulted in breakage of PA in excess of the rated input power. In addition, surge and ESD should be designed to block the influx in order to prevent damage to the modem. Pin NO. Signal Name Function (Modem) MIN TYP MAX 31,32 V_BATT I 3.7V 3.8V 3.9V 4.2. Logic Level Specifications 4.2.1. Digital logic level specificatioons Basic interface level : CMOS 1.8V, 2.85V 5. RF Specifications 5.1. Receiver Bandwidth: 1.25MHz Frequency: 869MHz – 894MHz(BC0), 1930MHz –…

Text truncated - open the document above for the full version.

                !  "   #  $$    %  & '    %   '    (  &   )*+&   ,-. /   0.  1. "/. 23" 1 . $4 5  $617% &8&4 $3 . %  % &8&4  ". %      1  % 9 . 2    1 1 1%    1 . $/  "/3" 1 . $4 5  $617% &8&4 $3  ". %. .'.%%% -$  0.  1. "/  %/.- ":  %%  "% .  "%   &  %. ; 1"% )** +$&$$ *57$  0. 2 1&8&4  1-  1 2.-    "   7  /- ..  ' '  %.  %   1 <  "7   / 1% .%.'     1 '  % =  1     5   1       7   % .  %'  5$1$ 1    '  7   %  <  7    1  1  %   /   %. % -. .   %  ."1 <  7     %   . " 1.  %    '      / 1  1     %  -. ..  %   '  /     1  . 2<  7       %  %    % '   1  . / % .   /  %    9 "/.  %   '  <  %7   %   /  .    % " 1 %  / - .  %  <  17 '  .  %      /  . %      1 <  .7  ./ %     %       ." .  '   1 - .. 9 % .  %   '  <  7 keep a record of all complaints made known to the us relating to the product’s  - . 9 %.  ' .   ' " .  %   '  -. 9<  :7    - .  .  /%    %    ' .%% - .. 9 %    %  <  7 . $   ,. . 2  '  % . -  % . $    &   /?

Applicant/Grantee LG Innotek FCC ID: YZP-D660V Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y 3 The modular transmitter must have its own power supply regulation. Y 04 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

`^_TXSGqˆ•Ž‹œ’T‹–•ŽSGnžˆ•Žšˆ•TŽœ nžˆ•Ž‘œSG\W]T^ZXSGz–œ›Gr–™Œˆ G snGp••–›Œ’Gj–USGs›‹U ࣜ If you have not received all pages, please call the direct phone number. FAX : 031-428-5859 TEL : 031-428-5744 ࣜ Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Semilink, Inc., would like the following documents regarding this submission for FCC ID: YZP-D660V to be kept confidential. 1. Schematics 2. Operational Description 3  4. Tune up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Nam-Suk, Kim / Manager

External photos of EUT Front view of EUT Rear view of EUT Front view of EUT with antenna

FCC/IC Label 1. FCC/IC Label Drawing LG Innotek Model : LTD-VH1000 FCC ID : YZP-D660V Made in Korea 2. FCC/IC Label Location Bottom side of EUT

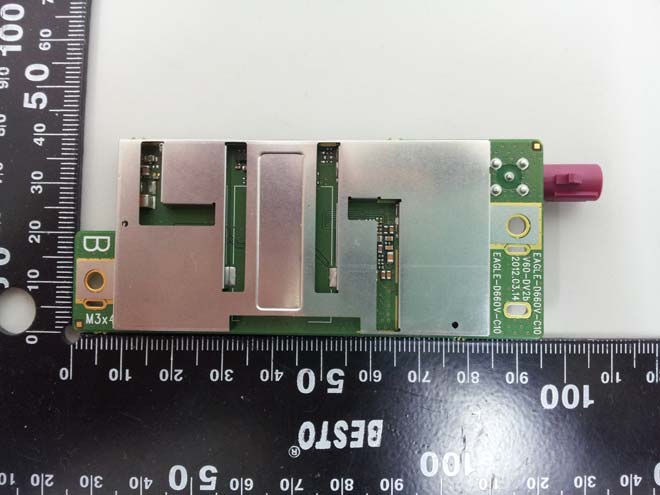

Internal photos of EUT Top view of EUT Bottom view of EUT

Report Number: F690501/RF-RTL005496-1 Page: 2 of 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX TABLE OF CONTENTS Page 1. General Information -------------------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission --------------------------------------- 8 3. Conducted Output Power ------------------------------------------------------------------------------- 17 4. Occupied Bandwidth 99 % ------------------------------------------------------------------------------25 5. Spurious Emissions At Antenna Terminal----------------------------------------------------------- 35 6. Band Edge --------------------------------------------------------------------------------------------------44 7. Frequency Stability --------------------------------------------------------------------------------------- 49 8. RF Exposure Evaluation--------------------------------------------------------------------------------- 54 Report Number: F690501/RF-RTL005496-1 Page: 3 of 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo laboratory) -705, Dongchun-Dong Sooji-Gu, Yongin-Si, Kyungki-Do, South Korea. -Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.ee.sgs.com/korea Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of applicant Applicant : LG Innotek Address : Square 19, 20F, Hangang-daero, Jung-Gu, Seoul, 100-714, Korea Contact Person : Lee, Duk-Gi Phone No. : +82 2 3777 0322 1.3. Description of EUT Kind of Product Telematics Module Model Name LTD-VH1000 Serial Number N/A Power Supply DC 12 V * power source used on vehicle (module voltage: DC 3.8 V) Rated Power CDMA800: 24 ໒m CDMA1900: 24 ໒m Frequency Range CDMA800: 824.70 ໬ ~ 848.31 ໬ CDMA1900: 1 851.25 ໬ ~ 1 908.75 ໬ Antenna Gain CDMA800: 3.204 ໒i CDMA1900: 1.399 ໒i Support Mode CDMA1900 1xRTT, EV DO Release 0, EV DO Revision A Emission Designator CDMA800 (1xRTT):1M27F9W CDMA800 (EV DO Revision A):1M28F9W CDMA1900(1xRTT): 1M27F9W CDMA1900 (EV DO Revision A):1M27F9W H/W Version EAGLE D660V-C10 S/W Version LTD-VH1000_0.2.0 Report Number: F690501/RF-RTL005496-1 Page: 4 of 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.4. Maximum output power The transmitter has a maximum ERP & EIRP and Average output power as follows: -Cellular Band Frequency Range (໬) Modulation Channel Average Output PowerE.R.P. ໒m໧໒m໧ 824.70 1xRTT RC1 55 (Loopback) 1013 24.42 276.69 27.99629.51 836.52 384 24.31 269.77 25.46351.56 848.31 777 24.18 261.82 27.89615.18 824.70 EV DO Revision A FETAP 307.2 k (2 slot) 1013 24.48 280.54 28.05638.26 836.52 384 24.25 266.07 26.22418.79 848.31 777 24.11 257.63 28.46701.46 -PCS Band Frequency Range (໬) Modulation Channel Average Output PowerE.I.R.P. ໒m໧໒m໧ 1 851.25 1xRTT RC1 2 (Loopback) 25 24.27 267.30 29.83961.61 1 880.00 600 24.21 263.63 28.28672.98 1 908.75 1175 24.04 253.51 28.52711.21 1 851.25 EV DO Revision A RETAP 128 rate 25 24.12 258.23 30.611 150.80 1 880.00 600 24.08 255.86 28.88772.68 1 908.75 1175 23.90 245.47 29.35860.99 1.5. Worst case configuration -Test mode CDMA (800 / 1900) We found out the test mode with the highest power level in the section of output power after we investigated average output power of all the modulations and (or) data rates for each mode. So we chose below test mode as a representative of worst case. - CDMA 1xRTT - CDMA EVDO Revision A (Rev A) -EUT position during the radiation test. The EUT was investigated for three types of positions “X, Y and Z” under the radiation test. In case of CDMA800, “Z“ position of fundamental is bigger than other positions. So we confirm that worst position is “Z“ position as a representative. In case of CDMA1900, “Z“ position of fundamental is bigger than other positions. So we confirm that worst position is “Z“ position as a representative. Report Number: F690501/RF-RTL005496-1 Page: 5 of 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.6. Test equipment list EquipmentManufacturer Model S/NCal Due. Signal Generator Agilent E4440A MY43362142 Mar. 29, 2013 Signal Generator Agilent 8648D 3847M00534 Mar. 29, 2013 Signal Generator R & S SMR40 100272 Jul. 15, 2012 Mobile Test Unit Agilent E5515C GB43345198 Mar. 29, 2013 Directional Coupler KRYTAR 152613 122661 Apr. 04, 2013 Attenuator AEROFLEX/INMET 26A-10dB 1 Jul. 02. 2013 High Pass Filter Wainwright WHK1.5/15G-6SS 4 Mar. 30, 2013 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jul. 07, 2012 DC power Supply Agilent U8002A MY49030063 Jan. 03, 2013 Preamplifier H.P. 8447F 2944A03909 Jul. 04, 2012 Preamplifier R & S SCU 18 10117 Jan. 02, 2013 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Jul. 04,…
