YZP-RBFAC21SAClass 2 Bluetooth Multimedia Module

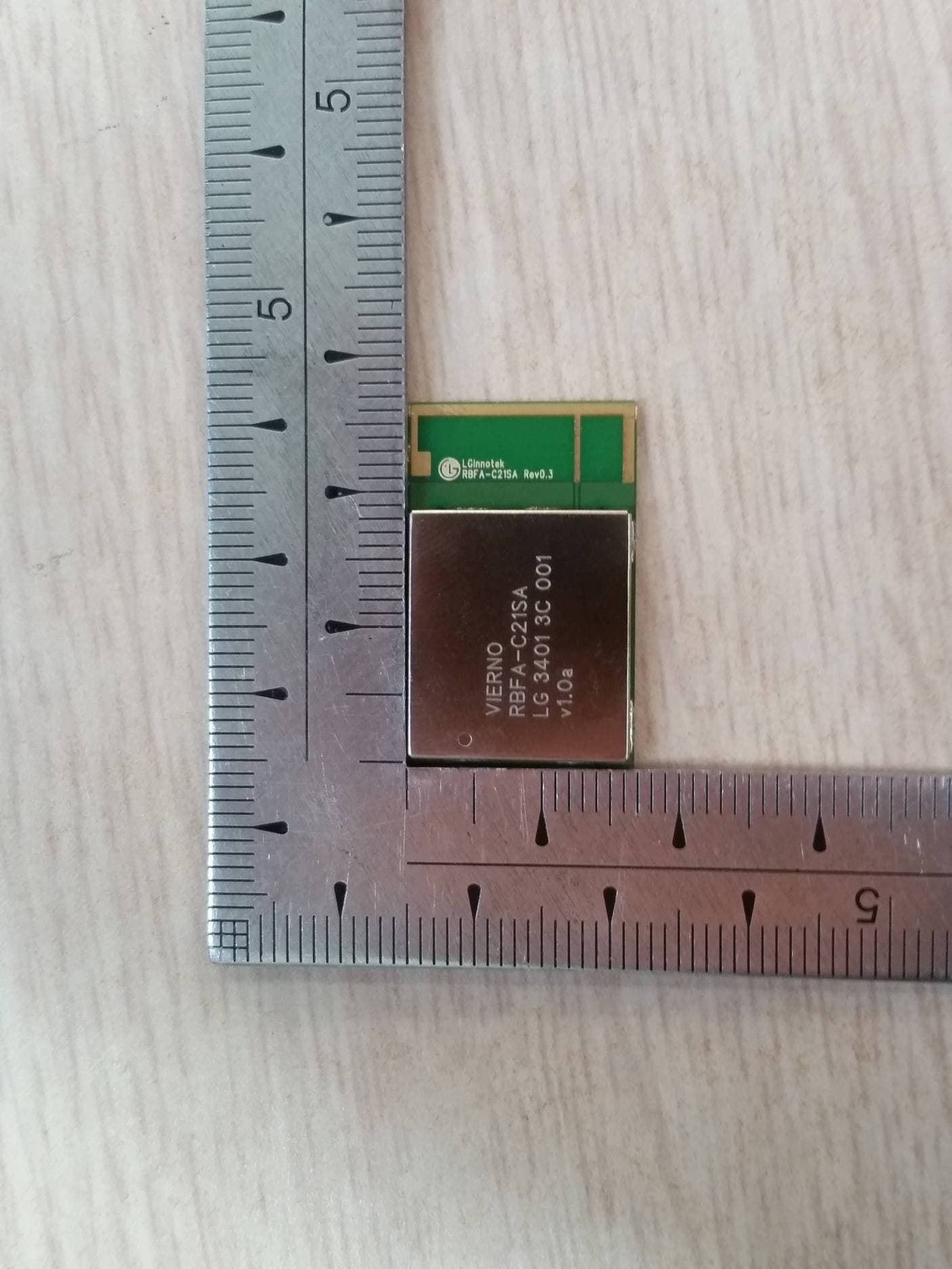

OPERATION DESCRIPTION Model: RBFA-C21SA FCC ID: YZP-RBFAC21SA Company LG INNOTEK CO.,LTD Signature Date 2014.10.06 Name J.S.SEO Title Engineer Description This product is applied to Class 2 Bluetooth Multimedia Module RBFA-C21SA which includes the CSR BC5-MM chipset and the integrated pattern antenna. Features - Sensitivity : Typ. -88dBm - Output Power : Typ. +2dBm Class 2 - Temperature Range : -40°C ~ +85°C - Supply Voltage : VDD – 3.1V to 3.6V - Interface : UART, USB - Bluetooth Specification v3.0 with EDR Compliant Applications - Automotive - Bluetooth automotive wireless gateways Dimensions • Product Information * Power Supply Specification The power of DC3.1V ~ 3.6V is should be supplied to the Bluetooth module power(VDD). The module supplies the power to the each block depending on the function. Module input power in excess of the rated input power may cause damage to the internal components. And the influx of Surge and ESD also may lead to the damage of the modem in the vehicle. For the prevention of this, the module is necessary to design block the influx of Surge and ESD. Pin No. Signal Name Function (Module case) MIN TYP MAX 11 VDD_3V3 In 3.1V 3.3V 3.6V * RESET The RESETB pin is an active low reset and is internally filtered using the internal low frequency clock oscillator. A reset in performed between 1.5 and 4.0ms following RESETB being active. LGIT recommends that RESETB be applied for a period greater than 5ms between the falling and the rising threshold voltage. 1) Bluetooth Module Features • Bluetooth Power Class 2 • Embedded Fully Bluetooth v2.0/v2.1/v3.0 + EDR System Compliant • Embedded Bluetooth Profile • Embedded AEC/NR Algorithm for Handsfree • Full-speed Bluetooth Operation with Full Piconet Support • Operation Voltage is 3.3V Single Power Rail • Excellent Compatibility with Cellular Telephones • Command and data Interface is UART and USB • 16-bit Internal Stereo CODEC • Support for 802.11 Co-existence • RoHS Compliant 2) Functionality Key Features : 2.1+EDR • Secure simple pairing • Sniff subrating • Encryption pause resume • Packet boundary flags • Encryption • Extended inquiry response 3) Functionality Key Features : 2.0+EDR • AFH, including classifier • Faster connection: enhanced inquiry scan (immediate FHS response) • LMP improvements • Parameter ranges • AFH as master and automatic channel classification • Fast connect: interlaced inquiry and page scan plus RSSI during inquiry • eSCO, eV3 + CRC, eV4, eV5 • SCO handle • Synchronization. 4) RBFA-C21SX Firmware Support Profile -. A2DP1.2 with apt-X and AAC -. AVRCP1.5(Controller) General Features Block Diagram Packing Infomation No. Pin Name I/O Pad Type Description 1 GND I  Ground 2 UART_RTS O Bidirectional CMOS output, tristate, with weak internal pullup UART request to send active low 3 UART_CTS I CMOS input with weak internal pull down UART clear to send active low 4 UART_Rx I CMOS input with weak internal pull down UART data input 5 UART_Tx O Bidirectional CMOS output, tristate, with weak internal pullup UART data output  Recommended external 4.7kΩ ΩΩ Ω Pullup resistor. 6 PCM_IN I CMOS input, with weak internal pull down Synchronous data input  The same pin as the I2S interface : SD_IN 7 PCM_OUT O CMOS output, with weak internal pulldown Synchronous data output  The same pin as the I2S interface : SD_OUT 8 PCM_SYNC I/O Bidirectional with weak internal pull down Synchronous data Sync  The same pin as the I2S interface : WS 9 PCM_CLK I/O Bidirectional with weak internal pull down Synchronous data clock  The same pin as the I2S interface : SCK 10 RESET# I CMOS input with weak internal pull up Reset if low. Input debounced so must be low for >5ms to cause a reset Recommended external 4.7kΩ ΩΩ Ω Pullup resistor & stability capacitor 11 VDD_3V3 I VDD Positive supply for Module  Supply voltage : Typical 3.3V. 12 GND I  Ground 13 SPI_MISO O CMOS output, tristate, with weak internal pulldown SPI data output  Used to program and configure (PS Keys), and debug the BC5MM 14 SPI_CSB I/O Input with weak internal pullup Chip select for SPI, active low  Used to program and configure (PS Keys), and debug the BC5MM 15 SPI_CLK I/O Input with weak internal pulldown SPI clock  Used to program and configure (PS Keys), and debug the BC5MM 16 SPI_MOSI I CMOS input, with weak internal pull down SPI data input  Used to program and configure (PS Keys), and debug the BC5MM 17 LED[1] O  LED 18 LED[0] O  LED 19 GND I  Ground 20 AGND   Analog Ground 21 MIC_A_P I Analog Microphone input positive, left 22 MIC_A_N I Analog Microphone input negative, left  Must be use external ESD protection PIN Descriptions No. Pin Name I/O Pad Type Description 23 Reserved 24 AGND   Analog Ground 25 SPK_B_N O Analog Speaker output negative, right 26 SPK_B_P O Analog Speaker output positive, right 27 SPK_A_N O Analog Speaker output negative, left 28 SPK_A_P O Analog Speaker output positive, left 29 GND I  Ground 30 GND I  Ground 31 AIO[0] I/O  TBD 32 PIO[0] I/O  TBD 33 PIO[1] I/O  TBD 34 PIO[2] I/O  TBD 35 PIO[3] I/O  TBD 36 USB_DN I/O  USB data minus 37 USB_DP I/O  USB data plus with selectable internal 1.5kE Pullup resistor 38 GND I  Ground 39 PIO[10] I/O  TBD 40 PIO[11] I/O  TBD 41 PIO[9] I/O  TBD 42 PIO[15] I/O  TBD 43 PIO[12] I/O  TBD 44 PIO[13] I/O  TBD 45 GND I  Ground 46 GND I  Ground 47 GND I  Ground 48 GND I  Ground FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This e…
