YZP-RBHAC213BBluetooth/WLAN Combo Module for Automotive

LG Innotek Co, Ltd PART NO. NAME MATERIAL SPEC FINISH SIZE UNIT SCALE DRAW DSGD CHKD APPD TITLE DOCUMENT NO. NO. Changes 0. 1 ` 15.08.21 Released RBHA-C213x User Manual(1/5) J S Seo I P Park K S Kim Description - Model : RBHA-C213x - Bluetooth: v4.0+EDR - WLAN : 802.11 b/g/n - Frequency Range : 2400MHz ~ 2483.5MHz Features - Dimension : 24.0mm x 18.5mm x 2.7mm - Temperature Range : -40°C ~ +85°C - Supply Voltage : VREGIN – 3.1V to 3.6V - Output Power BT: Typ. +1.5dBm(Class 2) WLAN : 12.5dBm(b), 10dBm(g), 10dBm(n), - Interface SDIO(WLAN), UART(BT),PCM/I2S Application -Automotive Dimensions • User Manual LG Innotek Co, Ltd PART NO. NAME MATERIAL SPEC FINISH SIZE UNIT SCALE DRAW DSGD CHKD APPD TITLE DOCUMENT NO. NO. Changes 0. 1 ` 15.08.21 Released RBHA-C213x User Manual(2/5) J S Seo I P Park K S Kim * Power Supply Specification The power of DC3.1V ~ 3.6V is should be supplied to the Bluetooth module power(VDD). The module supplies the power to the each block depending on the function. Module input power in excess of the rated input power may cause damage to the internal components. And the influx of Surge and ESD also may lead to the damage of the modem in the vehicle. For the prevention of this, the module is necessary to design block the infloux of Sugre and EDS. Pin NO. Signal Name Function (Module case) MIN TYP MAX 5,45,46 VDD3V3 In 3.1V 3.3V 3.6V *Absolute maximum ratings *Recommended operation conditions *Current consumption LG Innotek Co, Ltd PART NO. NAME MATERIAL SPEC FINISH SIZE UNIT SCALE DRAW DSGD CHKD APPD TITLE DOCUMENT NO. NO. Changes 0. 1 ` 15.08.21 Released RBHA-C213x User Manual(3/5) J S Seo I P Park K S Kim *Boot sequence LG Innotek Co, Ltd PART NO. NAME MATERIAL SPEC FINISH SIZE UNIT SCALE DRAW DSGD CHKD APPD TITLE DOCUMENT NO. NO. Changes 0. 1 ` 15.08.21 Released RBHA-C213x User Manual(4/5) J S Seo I P Park K S Kim General Features 1)Bluetooth Features • Bluetooth Power Class 2 • Embedded Fully Bluetooth v2.0/v2.1 + EDR System Compliant • Piconet and scatternet support • Support UART to 4Mbps • Integrated CSR AuriStream® low-power codec for wide-band voice quality • Bluetooth v3.0 specification compliant • Full qualified Bluetooth v4.0 system • Dual-mode Bluetooth low energy radio • Support for Bluetooth basic rate/EDR and low energy connections 2) WLAN Features • Support for IEEE 802.11b/g • Support for IEEE 802.11n(20MHz) single partial stream 2.4GHz • IEEE 802.11n support, including MPDU and MSDU aggregation, immediate block acknowledgement, PSMP and STBC. • Full support for IEEE 802.11 and WFA WPA / WPA2 security. • SDIO(SD1-bit / SD4-bit) up to maximum burst rate 200Mbit/s(In SD4-bit mode). • Encryption support for WEP40/64, WEP104/128, TKIP, CCMP (AES), BIP and CKIP provides functionality for WPA, WPA2, IEEE 802.11i™, IEEE 802.11w™ and CCX advanced security mechanisms. CSR6030 QFN Automotive adds SMS4 encryption hardware for WAPI security in China. • Support Access Point tethering functionality(Soft AP) • Design for Wi-Fi Direct RBHA-C213x satisfies the following standards LG Innotek Co, Ltd PART NO. NAME MATERIAL SPEC FINISH SIZE UNIT SCALE DRAW DSGD CHKD APPD TITLE DOCUMENT NO. NO. Changes 0. 1 ` 15.08.21 Released RBHA-C213x User Manual(5/5) J S Seo I P Park K S Kim PIN Description LG Innotek Co, Ltd PART NO. NAME MATERIAL SPEC FINISH SIZE UNIT SCALE DRAW DSGD CHKD APPD TITLE DOCUMENT NO. NO. Changes 0. 1 ` 15.08.21 Released RBHA-C213x User Manual(6/5) J S Seo I P Park K S Kim PIN Description FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.1. Reorient or relocate the receiving antenna. 1.2. Increase the separation between the equipment and receiver. 1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected. 1.4. Consult the dealer or experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. IC Information This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s), Son utilisation est soumise à Les deux conditions suivantes: (1) cet appareil ne peut pas provoquer d’interférences et (2) cet appareil doit accepter Toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. Information for OEM Integrator This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. End product labelling The label for end …

Text truncated - open the document above for the full version.

SCS-F26 Modular Approval Letter Page 2 of 2 Rev 10.0 (Date) September 15, 2015 (Product name) FCC ID : YZP-RBHAC213B , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; V 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; V 3 The module must contain power supply regulation on the module; V 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); V 5 The module must demonstrate compliance in a stand-alone configuration; V 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); V 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; V 8 The module must comply with RF exposure requirements V Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. ____________________________ Client’s signature : LG Innotek Co., Ltd. Client’s name / title : Jeong InChang / Director

WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : YZP-RBHAC213B Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. ____________________________ Client’s signature : LG Innotek Co., Ltd. Client’s name / title : Jeong InChang / Director Contact information / address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Telephone: +82-62-950-0332 Fax No.: +82-62-950-0368 E-mail: [email protected]

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 (September 15, 2015) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, LG Innotek Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Bluetooth/WLAN Combo Module for Automotive, RBHA-C213B) FCC ID: YZP-RBHAC213B ____________________________ Client’s signature : LG Innotek Co., Ltd. Client’s name / title : Jeong InChang / Director Contact information / address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Telephone: +82-62-950-0332 Fax No.: +82-62-950-0368 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 (September 15, 2015) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: YZP-RBHAC213B We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ____________________________ Client’s signature : LG Innotek Co., Ltd. Client’s name / title : Jeong InChang / Director Contact information / address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Telephone: +82-62-950-0332 Fax No.: +82-62-950-0368 E-mail: [email protected] SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0 (September 15, 2015) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: YZP-RBHAC213B To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - User Manual - External Photos - Internal Photos - Test Setup photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ____________________________ Client’s signature : LG Innotek Co., Ltd. Client’s name / title : Jeong InChang / Director Contact information / address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Telephone: +82-62-950-0332 Fax No.: +82-62-950-0368 E-mail: [email protected]

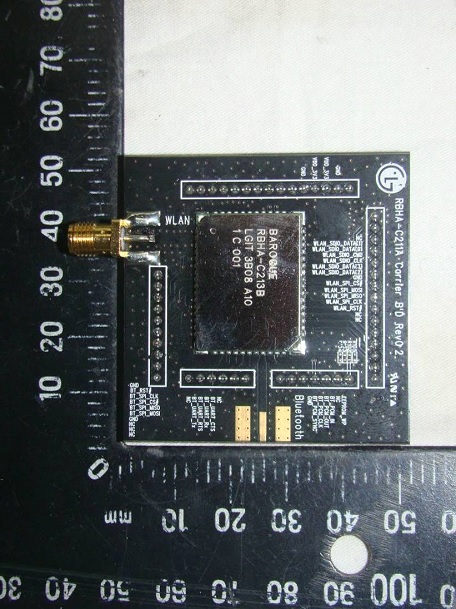

Page 1 of 3 Page 2 of 3 Page 3 of 3

Page 1 of 1 IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the rear side of the equipment FCC ID : YZP-RBHAC213B

Page 1 of 3 Page 2 of 3 Page 3 of 3

Page 1 of 7 Report No. : W159R-D026 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : W159R-D026 AGR No. : A158A-145 Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Manufacturer : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Type of Equipment : Bluetooth/WLAN Combo Module for Automotive FCC ID. : YZP-RBHAC213B Model Name : RBHA-C213B Serial number : N/A Total page of Report : 7 pages (including this page) Date of Incoming : August 27, 2015 Date of issue : September 14, 2015 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Reviewed by: Approved by: Ki-Hong, Nam / Asst, Chief Engineer Sung-Ik, Han/ Managing Director ONETECH Corp. ONETECH Corp. Page 2 of 7 Report No. : W159R-D026 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 4 2. GENERAL INFORMATION ............................................................................................................................................ 5 2.1 PRODUCT DESCRIPTION ................................................................................................................................................. 5 2.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 5 3. EUT MODIFICATIONS .................................................................................................................................................... 5 4. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................................................................... 6 4.1 RF EXPOSURE CALCULATION ....................................................................................................................................... 6 4.2 EUT DESCRIPTION ......................................................................................................................................................... 7 4.3 Test Result for BLUETOOTH ......................................................... 오류! 책갈피가 정의되어 있지 않습니다. Page 3 of 7 Report No. : W159R-D026 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) Revision History Issued Report No. Issued Date Revisions Effect Section W159R-D026 September 14, 2015 Initial Issue All Page 4 of 7 Report No. : W159R-D026 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 1. VERIFICATION OF COMPLIANCE Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Contact Person : Inchang, Jeong / Director Telephone No. : +82-62-950-0332 FCC ID : YZP-RBHAC213B Model Name : RBHA-C213B Serial Number : N/A Date : September 14, 2015 EQUIPMENT CLASS DSS – PART 15 SPREAD SPECTRUM TRANSMITTER E.U.T. DESCRIPTION Modular Transmitter, Bluetooth/WLAN Combo Module for Automotive THIS REPORT CONCERNS Original Grant MEASUREMENT PROCEDURES ANSI C63.10: 2013 TYPE OF EQUIPMENT TESTED Pre-Production KIND OF EQUIPMENT AUTHORIZATION REQUESTED Certification, Modular Approval EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) FCC PART 15 SUBPART C Section 15.247 Modifications on the Equipment to Achieve Compliance None Final Test was Conducted On 3 m, Semi Anechoic Chamber -. The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Page 5 of 7 Report No. : W159R-D026 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 2. GENERAL INFORMATION 2.1 Product Description The LG Innotek Co., Ltd., Model RBHA-C213B (referred to as the EUT in this report) is a Bluetooth/WLAN Combo Module for Automotive. Product specification information described herein was obtained from product…

Text truncated - open the document above for the full version.

Page 1 of 83 Report No. : W159R-D010 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : W159R-D010 AGR No. : A158A-145 Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Manufacturer : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, 506-731 Korea Type of Equipment : Bluetooth/WLAN Combo Module for Automotive FCC ID. : YZP-RBHAC213B Model Name : RBHA-C213B Serial number : N/A Total page of Report : 83 pages (including this page) Date of Incoming : August 27, 2015 Date of issue : September 09, 2015 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Reviewed by: Approved by: Ki-Hong, Nam / Asst, Chief Engineer Sung-Ik, Han/ Managing Director ONETECH Corp. ONETECH Corp. Page 2 of 83 Report No. : W159R-D010 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 6 2. TEST SUMMARY .............................................................................................................................................................. 7 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 7 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 7 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 7 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 7 2.5 TEST METHODOLOGY .................................................................................................................................................... 7 2.6 TEST FACILITY ............................................................................................................................................................... 7 3. GENERAL INFORMATION ............................................................................................................................................ 8 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 8 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 8 4. EUT MODIFICATIONS .................................................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION ............................................................................................................................... 9 5.1 JUSTIFICATION ............................................................................................................................................................... 9 5.2 PERIPHERAL EQUIPMENT .............................................................................................................................................. 9 5.3 CONFIGURATION OF TEST SYSTEM ............................................................................................................................... 9 5.4 ANTENNA REQUIREMENT .............................................................................................................................................. 9 6. PRELIMINARY TEST .................................................................................................................................................... 10 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 10 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 10 7. MINIMUM 20 DB BANDWIDTH .................................................................................................................................. 11 7.1 OPERATING ENVIRONMENT ......................................................................................................................................... 11 7.2 TEST SET-UP ................................................................................................................................................................. 11 7.3 TEST EQUIPMENT USED ................................................................................................................................................ 11 7.4 TEST DATA FOR 1 MBPS .....................................................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 3 - Conducted Emission Test Page 2 of 3 - Radiated Emission Test Page 3 of 3
