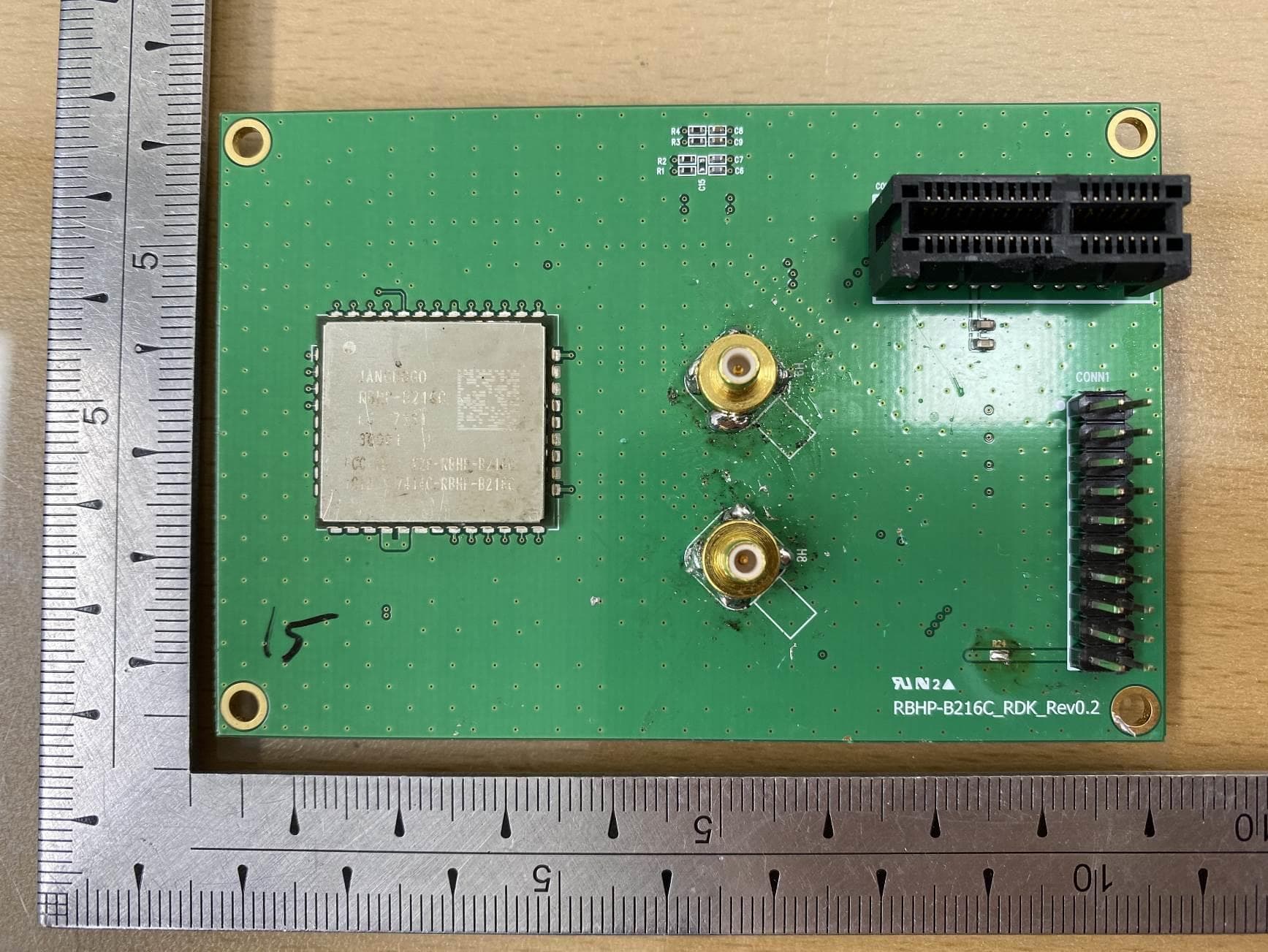

YZP-RBHPB216C1BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module

Copyrightⓒ. 2017. All Rights Reserved. 0 / 6 Internal Use Only Description - Model : RBHP-B216C - Bluetooth: v4.2+EDR - WLAN : 802.11 a/b/g/n/ac - Frequency Range : 2400MHz ~ 5835MHz - Device Type : OEM Device installed in vehicles Features - Dimension : 22.5mm x 20.0mm x 2.7mm - Temperature Range : -40°C ~ +85°C - Supply Voltage : VBAT 3.0V to 3.6V - Output Power BT: Typ. +1.5dBm(Class 2) WLAN : 16.0dBm(b), 13dBm(g), 12dBm(n), 13dBm(a), 10dBm(ac) - Interface PCIe(WLAN), UART(BT), I2S Application -Automotive Dimensions Copyrightⓒ. 2017. All Rights Reserved. 1 / 6 Internal Use Only •Power Supply Specification One Buck regulator, multiple LDO regulators, and a power management unit(PMU) are integrated into the BCM88359. All regulators are programmable via the PMU. These blocks simplify power supply design for Bluetooth and WLAN functions in embedded designs. A single VBAT(3.0V to 3.6V DC max) and VIO supply (1.8V to 3.3V) can be used, with all additional voltages being provided by the regulators in the BCM88359. Three control signals, BT_REG_ON, WL_REG_ON, and WPT_REG_ON(that is, WPT_1P8), are used to power-up the regulators and take the respective section out of reset. The CBUCK CLDO and LNLDO power up available. All regulators are powered down only when both BT_REG_ON an WL_REG_ON are deasserted. The CLDO and LNLDO may be turned off/on based on the dynamic demands of the digital baseband. The BCM88359 allows for an extremely low power-consumption mode by completely shutting down the CBUCK, CLDO, and LNLDO regulators. When in this state, MEMLPLDO and LPLDO(which is a low-power linear regulator supplied by the system VIO supply) provide the BCM88359 with all the voltage it requires, further reducing leakage currents. Copyrightⓒ. 2017. All Rights Reserved. 2 / 6 Internal Use Only *Boot sequence Copyrightⓒ. 2017. All Rights Reserved. 3 / 6 Internal Use Only General Features 1)Bluetooth Features Bluetooth Power Class 2. Provisioned for low energy angle-of –arrival applications. Complies with Bluetooth Core Specification Version 4.2 with provisions for supporting future specifications. Supports extended synchronous connections(eSCO), for enhanced voice quality by allowing for retransmission of dropped packets. Adaptive frequency hopping(AFH) for reducing radio frequency interference. Interface support, host controller interface(HCI) using a USB or high-speed UART interface and PCM for audio data Supports multiple simultaneous Advanced Audio Distribution Profiles(A2DP) for stereo sound. 2) WLAN Features Support for IEEE 802.11a/b/g/n/ac Dual-stream spatial multiplexing up to 867Mbps data rate. Tx and Rx low-density parity check(LDPC) support for improved range and power efficiency. Supports IEEE 802.11ac/n beamforming. Supports real simultaneous dual-band(RSDB). On-chip power amplifiers and low-noise amplifiers for both bands. PCIe mode complies with PCI Express base specification revision 3.0 for x1 lane and power management running at Gen1 speeds Security - WPA, WAPI STA, and WPA2(Personal) support for powerful encryption and authentication. - AES and TKIP in hardware for faster data encryption and IEEE 802.11i compatibility - Reference WLAN subsystem provides Cisco Compatible Extensions (CCX, CCX2.0, CCX3.0, CCX4.0) - Reference WLAN subsystem provides Wi-Fi Protected Setup(WPS) RBHP-B216C satisfies the following standards Copyrightⓒ. 2017. All Rights Reserved. 4 / 6 Internal Use Only PIN Description Copyrightⓒ. 2017. All Rights Reserved. 5 / 6 Internal Use Only PIN Description Copyrightⓒ. 2017. All Rights Reserved. 6 / 6 Internal Use Only PIN Description Copyrightⓒ. 2017. All Rights Reserved. Internal Use Only FCC MODULAR APPROVAL INFORMATION EXAMPLES for Manual This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Copyrightⓒ. 2017. All Rights Reserved. Internal Use Only OEM INTEGRATION INSTRUCTIONS: This device is intended only for OEM integrators under the following conditions: The module must be installed in the host equipment such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. The module shall be only used with the internal on-board antenna that has been originally tested and certified with this module. External ant…

Text truncated - open the document above for the full version.

Letter of Authorization Company : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, 506-731, Gwangju, South Korea : BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module : RBHP-B216C Product Name Model Number FCC ID : YZP-RBHPB216C1 W e authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. W e declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. N ame: Inchang Jeong Date: January 04, 2021 T itle: Senior Research Engineer Si gnature of applicant:

FCC – Modular Approval Request Rev 2.0 Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: LG Innotek Co., Ltd. FCC ID: YZP-RBHPB216C1 Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v01r04’. FCC ID YZP-RBHPB216C1 has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v01r04 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes. The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the RF board The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes. All modulation and data inputs are buffered by circuitry on the transmitter chip , as is shown in the schematic The module must contain power supply regulation on the module Yes. The module contains its own power supply regulation in the transmitter chip. Please refer to Block Diagram with this applica The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes. The module is the contain a unique antenna connector and be marketed and operated only with specific antenna The module must demonstrate compliance in a stand-alone configuration Yes. The module was tested stand-alone as shown in test setup photographs filed with this application The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes. There is a label on the module as shown in the labeling exhibit filed with this application The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee Yes. The module complies with FCC Part 15C requirements. Instructions to the OEM installer are provided in the installation manual filed with this application The module must comply with RF exposure requirements Yes. The module meets as shown in the RF exposure information filed with this application Name: Inchang Jeong Date: January 04, 2021 Title: Senior Research Engineer Signature of applicant:

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: January 04, 2021 Subject; Request for Confidentiality FCC ID: YZP-RBHPB216C1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Part List • Operational Description • Software Security Requirements for UNII devices Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Inchang Jeong Title: Senior Research Engineer

Page 1 of 6 Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

Page 1 of 1

Page 1 of 2 Page 2 of 2

Page 1 of 12 Report No.: OT-20D-RWD-064 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : OT-20D-RWD-064 Reception No. : 2012005224 Applicant : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Manufacturer : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Type of Equipment : BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module FCC ID. : YZP-RBHPB216C1 Model Name : RBHP-B216C Serial number : N/A Total page of Report : 12 pages (including this page) Date of Incoming : December 03, 2020 Date of issue : December 17, 2020 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 and FCC PART 15 SUBPART E Section 15.407 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Tested by Hyung-Kwon, Oh / Manager ONETECH Corp. Reviewed by Tae-Ho, Kim / Senior Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 12 Report No.: OT-20D-RWD-064 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 4 2. GENERAL INFORMATION ............................................................................................................................................ 5 2.1 PRODUCT DESCRIPTION ................................................................................................................................................. 5 2.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 8 3. EUT MODIFICATIONS .................................................................................................................................................... 8 4. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................................................................... 9 4.1 RF EXPOSURE CALCULATION ....................................................................................................................................... 9 4.2 EUT DESCRIPTION ......................................................................................................................................................... 9 4.3 CALCULATED MPE SAFE DISTANCE........................................................................................................................... 10 4.3.1 DATA for Antenna 0 ............................................................................................................................................. 10 4.3.2 DATA for Antenna 1 ............................................................................................................................................. 11 4.3.3 DATA for Intermodulation Transmit ................................................................................................................... 12 Page 3 of 12 Report No.: OT-20D-RWD-064 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Revision History Rev. No. Issue Report No. Issued Date Revisions Section Affected 0 OT-20D-RWD-064 December 17, 2020 Initial Release All Page 4 of 12 Report No.: OT-20D-RWD-064 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 1. VERIFICATION OF COMPLIANCE Applicant : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Contact Person : Jeong Inchang / Chief Research Engineer Telephone No. : +82-10-2326-9972 FCC ID : YZP-RBHPB216C1 Model Name : RBHP-B216C Brand Name : LG Innotek Co., Ltd. Serial Number : N/A Date : December 17, 2020 EQUIPMENT CLASS DTS – DIGITAL TRNSMISSION SYSTEM Unlicensed National Information infrastructure(UNII) E.U.T. DESCRIPTION Modular Transmitter, BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module THIS REPORT CONCERNS Original Grant MEASUREMENT PROCEDURES ANSI C63.10: 2013 TYPE OF EQUIPMENT TESTED Pre-Production KIND OF EQUIPMENT AUTHORIZATION REQUESTED Certification EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) FCC PART 15 SUBPART C Section 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 FCC PART 15 SUBPART E Section 15.407 789033 D02 General UNII Test Procedures New Rules v02r01 Modifications on the Equipment to Achieve Compliance None Final Test was Conducted On 3 m, Semi Anechoic Chamber -. The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Page 5 of 12 Report No.: OT-20D-RWD-064 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 2. GENERAL I…

Text truncated - open the document above for the full version.

Page 1 of 36 Report No.: OT-20D-RWD-062 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : OT-20D-RWD-062 Reception No. : 2012005224 Applicant : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Manufacturer : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Type of Equipment : BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module FCC ID. : YZP-RBHPB216C1 Model Name : RBHP-B216C Serial number : N/A Total page of Report : 36 pages (including this page) Date of Incoming : December 03, 2020 Date of issue : December 17, 2020 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Tested by Hyung-Kwon, Oh / Manager ONETECH Corp. Reviewed by Tae-Ho, Kim / Senior Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 36 Report No.: OT-20D-RWD-062 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 5 2. TEST SUMMARY .............................................................................................................................................................. 6 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 6 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 6 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 6 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 6 2.5 TEST METHODOLOGY .................................................................................................................................................... 6 2.6 TEST FACILITY ............................................................................................................................................................... 6 3. GENERAL INFORMATION ............................................................................................................................................ 7 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 7 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. .............................................................. 10 4. EUT MODIFICATIONS .................................................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 11 5.1 JUSTIFICATION ............................................................................................................................................................. 11 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................ 11 5.3 MODE OF OPERATION DURING THE TEST .................................................................................................................... 12 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 14 6. PRELIMINARY TEST .................................................................................................................................................... 14 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 14 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 14 7. MINIMUM 6 DB BANDWIDTH .................................................................................................................................... 15 7.1 OPERATING ENVIRONMENT ......................................................................................................................................... 15 7.2 TEST SET-UP ................................................................................................................................................................. 15 7.3 TEST DATE ................................................................................................................................................................... 15 7.4 TEST DATA FOR 1 MBPS ............................................................................................................................................... 16 8. MAXIMUM PEAK OUTPUT POWER ......................................................................................................................... 18 8.1 OPERATING ENVIRONMENT ...…

Text truncated - open the document above for the full version.

Page 1 of 60 Report No. : OT-211-RWD-001 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : OT-211-RWD-001 Reception No. : 2012005224 Applicant : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Manufacturer : LG Innotek Co., Ltd. Address : 26, Hanamsandan 5beon-ro Gwangsan-gu, Gwangju, 506-731, South Korea Type of Equipment : BT(V4.2) + WLAN(802.11a/b/g/n/ac) 2x2 MIMO Module FCC ID. : YZP-RBHPB216C1 Model Name : RBHP-B216C Serial number : N/A Total page of Report : 60 pages (including this page) Date of Incoming : December 03, 2020 Date of issue : January 04, 2021 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Tested by Hyung-Kwon, Oh / Manager ONETECH Corp. Reviewed by Tae-Ho, Kim / Senior Manager ONETECH Corp. Approved by Ki-Hong, Nam / General Manager ONETECH Corp. Page 2 of 60 Report No. : OT-211-RWD-001 It should not be reproduced except in full, without the written approval of ONETECH Corp. OTC-TRF-RF-001(0) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 5 2. TEST SUMMARY .............................................................................................................................................................. 6 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................. 6 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 6 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 6 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 6 2.5 TEST METHODOLOGY .................................................................................................................................................... 6 2.6 TEST FACILITY ............................................................................................................................................................... 6 3. GENERAL INFORMATION ............................................................................................................................................ 7 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 7 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. .............................................................. 10 4. EUT MODIFICATIONS .................................................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 11 5.1 JUSTIFICATION ............................................................................................................................................................. 11 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................ 11 5.3 MODE OF OPERATION DURING THE TEST .................................................................................................................... 12 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 13 5.5 ANTENNA REQUIREMENT ............................................................................................................................................ 13 6. PRELIMINARY TEST .................................................................................................................................................... 13 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 13 6.2 GENERAL RADIATED EMISSIONS TESTS ..................................................................................................................... 13 7. MIMIMUM 6 DB BANDWIDTH ................................................................................................................................... 14 7.1 OPERATING ENVIRONMENT ......................................................................................................................................... 14 7.2 TEST SET-UP ................................................................................................................................................................. 14 7.3 TEST DATE ................................................................................................................................................................... 14 7.4 TEST DATA FOR 802.11B WLAN MODE ...................................................................................................................... 15 7.5 TEST DATA FOR 802.11G WLA…

Text truncated - open the document above for the full version.

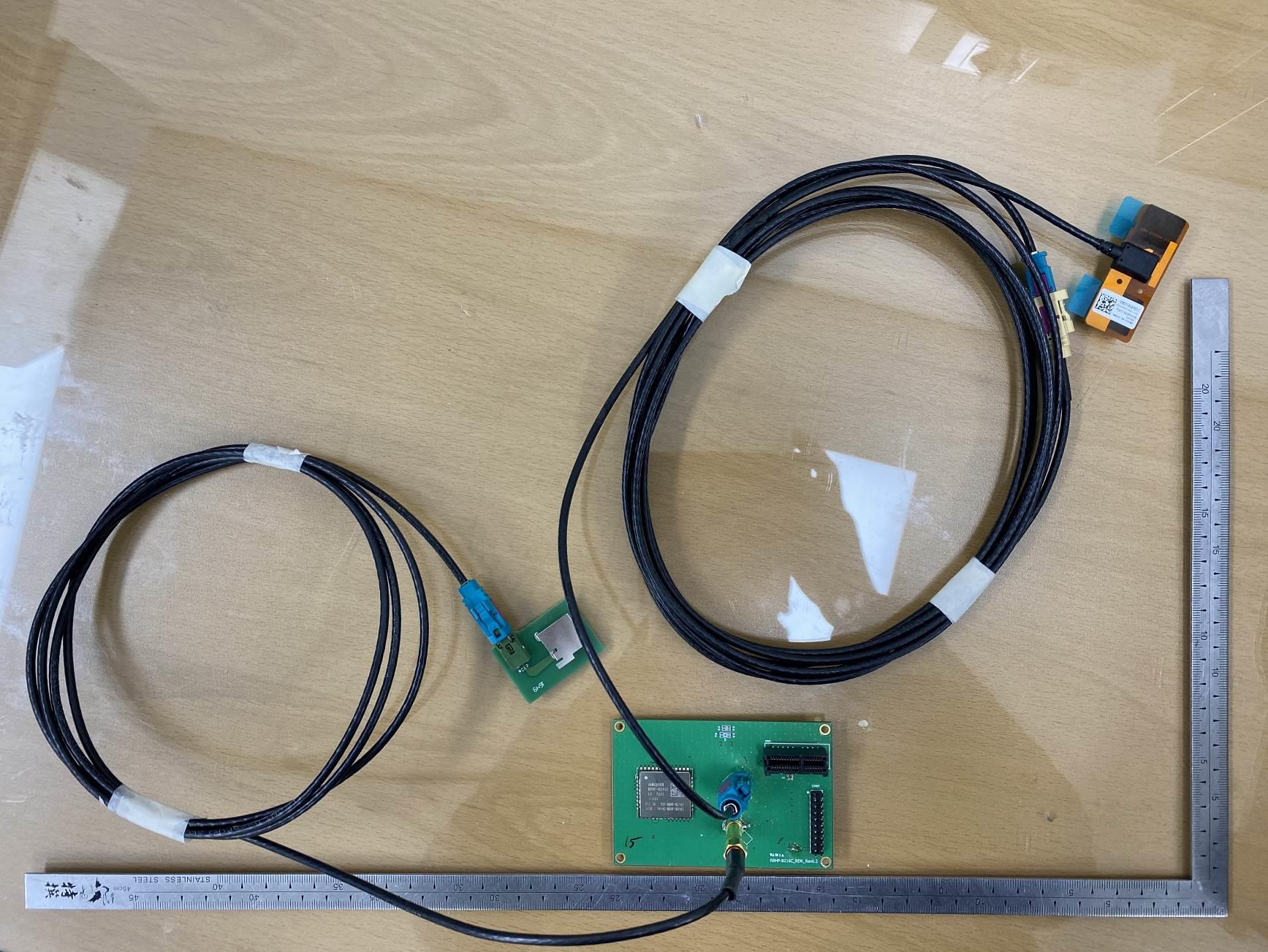

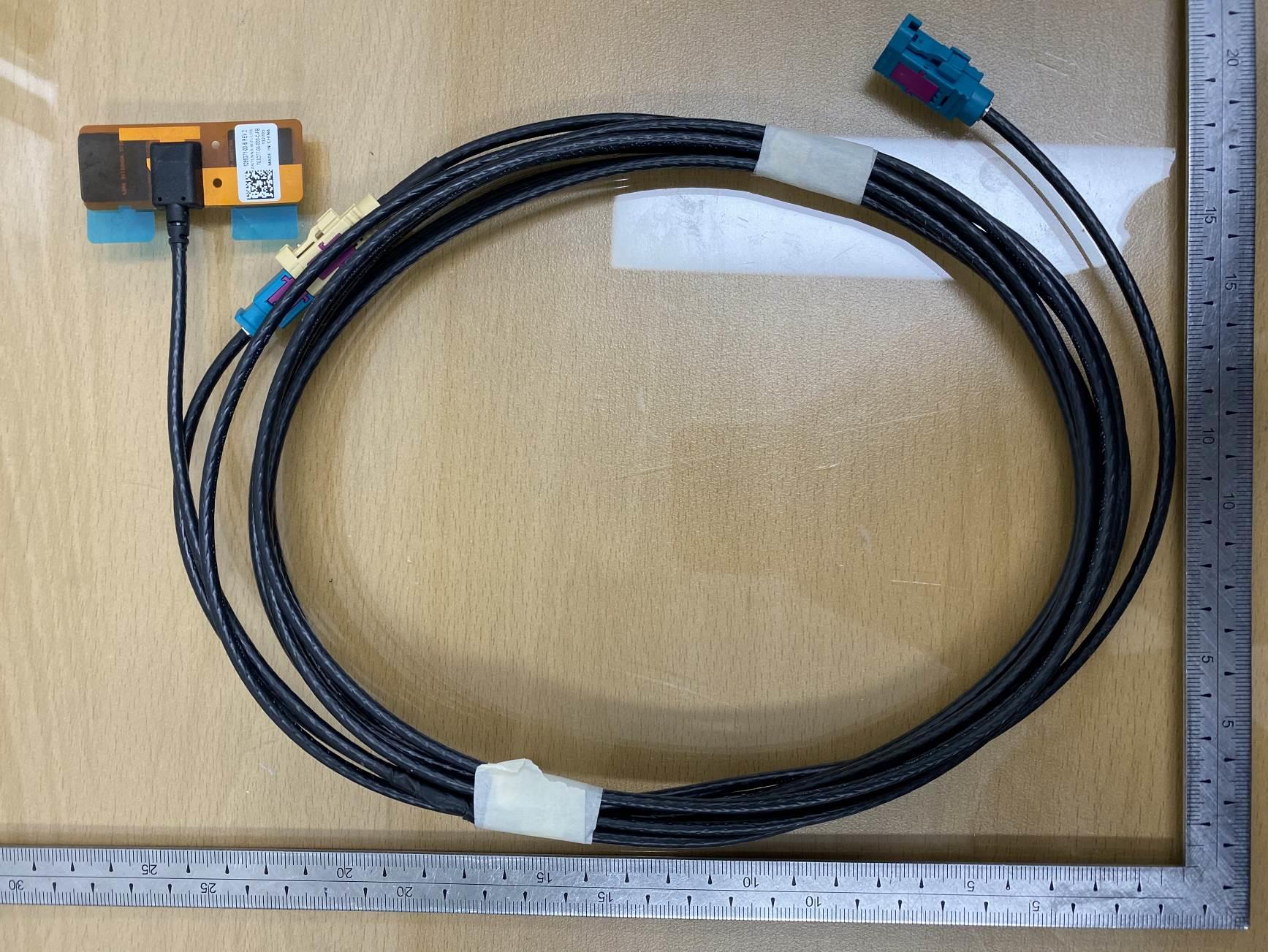

Page 1 of 4 - Radiated Emission Test Page 2 of 4 Page 3 of 4 Page 4 of 4
