YZP-TWCMB202DWi-Fi Module

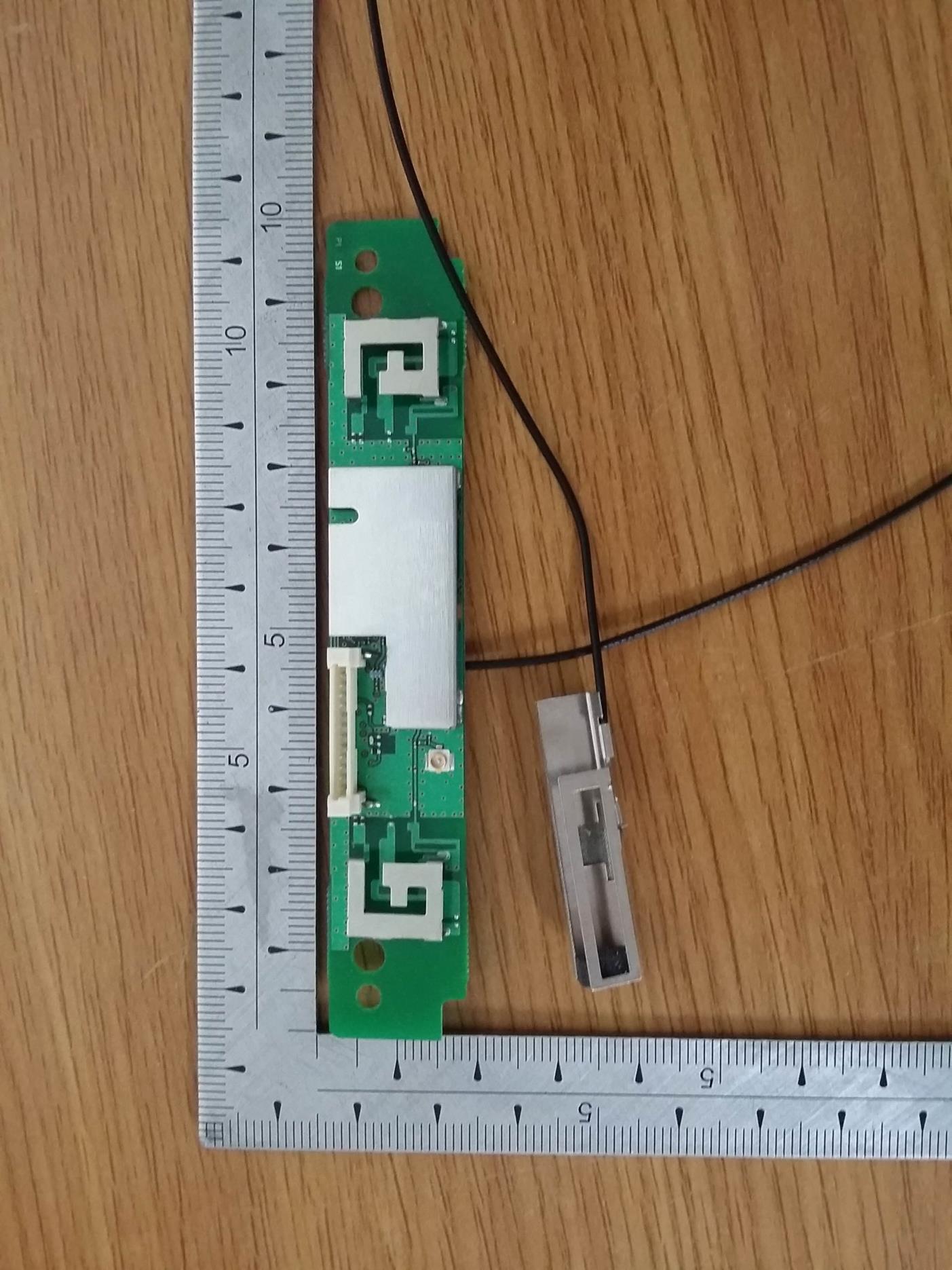

User Manual PRODUCT NAME : 802.11a/b/g/n/ac + Bluetooth Combo Module MODEL NAME : TWCM-B202D (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 1/ 11 Table of Contents No.DescriptionPage 1Features2 2Module Photo2 3Block Diagram3 4Storage Conditions4 4Operating Conditions4 5Power-up Sequence5 6Pin Description7 7Outline Drawing8 8Packing Information9 User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 2/ 11 2. Module Photo 1. Features TWCM-B202D is the small size and low power module for IEEE 802.11ac wireless LAN & BT4.1 + HS. TWCM-B202D is based on Broadcom BCM43569 solution. IEEE 802.11 a/b/g/n/acDual Band WLAN infrastructure Bluetooth 4.1 + HS Size : 100.0mm x 17.0mm x 8.4mm Two stream spatial multiplexing up to 300Mbps(802.11n)/ 867Mbps(802.11ac) Single-and dual-antenna Support -Two metal pressed antenna for WLAN and one external antenna for BT Use on-chip OTP (One-Time Programmable) Host Interface : USB2.0 (WLAN & BT) -This model is using the common USB2.0 to control WLAN and BT Security: WAPI, WEP, WPA, WPA2, WMM, AES, WEP, TKIP, CKP Application: DTV, DVR, HD DVDPlayer, Blue-ray Disk Player, STB User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 3/ 11 3. Block Diagram 802.11ac MAC Main Clock(40MHz) ANT1 2 x 2 Radio 802.11ac PHY Security OTP Internal Bus GPIO USB 2.0 3.3V BCM43569 Connector 5G SPDT 2G SPDT 5G SPDT 2G SPDT Diplexer ANT0 Diplexer LPF BT ANT (External) 5V DC/DC User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 4/ 11 4. Storage Conditions 5. Operating Conditions ParameterMinTypMaxUnit Ambient Temperature0-55°C Ambient Humidity (40°C)--85% Supply Voltage4.7555.25Vdc ParameterMinMaxUnit Storage Temperature-10+70°C Storage Humidity (40°C)-90% Caution: The specifications in Table 1 define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. . Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. < Table 1 > User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 5/ 11 6. Power-up Sequence •For both the WL_REG_ON and BT_REG_ON pins, there should be at least a 10ms time delay between consecutive toggles(where both signals have been driven low). This is to allow time for the CBUCK regulator to discharge. If this delay is not followed, then there may be a VDDIO in-rush current on the order of 36mA during the next PMU cold start. •The BCM43569 has an internal power-on reset(POR) circuit. The device will be held in reset for a maximum of 110ms after VDDC and VDDIO have both passed the POR threshold. •VBAT should not rise 10%-90% faster than 40 microseconds. VBAT should be up before or at the same time as VDDIO. VDDIO should NOT be present first or be held high before VBAT is high < WLAN = ON, Bluetooth = ON > User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 6/ 11 < WLAN Boot-up Sequence > User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 7/ 11 7. Pin Description Pin No.Pin NameI/OPin Description 1VCCI+5V 2WLAN_USB_D-I/OUSB Communication signal USB_DN 3WLAN_USB_D+I/OUSB Communication signal USB_DP 4GND-Ground 5BT_REG_ONIBT Reset 6BT_HOST_WAKEOBT_HOST wake up 7BT_DEV_WAKEIBT_DEV wake up 8N.C-N.C 9WLAN _REG_ONIWLAN Reset 10WLAN _HOST_WAKEOWLAN_HOST wake up 11WLAN _DEV_WAKEIWLAN_DEV wake up 12GND-Ground < Top view > ⑫ ① User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 8/ 11 8. Outline Drawing User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 9/ 11 9. Packing Information 9-1. Tray packing User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 10/ 11 9-2. Box packing User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 11/ 11 9-2. Box packing User Manual PAGE : REG. DATE : 2015.05.06 MODEL NAME :TWCM-B202D REV. DATE : 2015.05.06 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 12/ 11 FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with…
