YZP-TWFBR101DPoE Wi-Fi Bridge

Inside your life ! . PoE Wi-Fi Bridge Manual (PoE: Power over Ethernet) 2015. 03. 06 [Model Name : TWFB-R101D ] Copyrightⓒ. 2015. All Rights Reserved. 1. Appearance Description for PoE Wi-Fi Bridge WPS Reset Fig 1. Front View 1. Front Panel - The front panel has the 2-Button and status LEDs in the following figure. LEDs POWER WLAN DATA CAMERA Buttons Button Description WPS •To connect WPS to AP(Access Point) Reset •Reboot •Reset to Factory Default LED Description Power •Solid Yellow Green : Power on •Off : Power is not supplied to the PoE Wi-Fi Bridge WLAN •Solid Yellow Green : Wi-Fi Activity are in process •Blinking Yellow Green : Wireless data is being sent or received. •Blinking Red : The Wireless signal is weak signal •Off : Wi-Fi access fail DATA •Blinking Yellow Green : Ethernet link is detected Data Transmission on the port •Off : No data transmission CAMERA •Blinking Yellow Green : CAMERA link is detected Data Transmission on the port •Off : No data transmission Table 1. Front Description 1 / 12 Copyrightⓒ. 2015. All Rights Reserved. Fig 2. Back/side View 2. Back/side Panel & Label Information - The back/side panels have the wireless antenna, power plug and 2-Lan ports. - The label on the bottom shows the MAC address, serial Number. Fig 3. Label information DATA (DATA LED) CAMERA (CAMERA LED) Wireless Antenna AC 110V Power Label 2 / 12 Copyrightⓒ. 2015. All Rights Reserved. LAN Cable(CAMERA) 1. Log in connection Camera & Wi-Fi Bridge 1) Make sure that your camera is connected to the Wi-Fi Bridge CAMERA port with an Ethernet cable(wired) 2) Turn on the Wi-Fi Bridge and verify the following - The power LED is On. - The CAMERA LED is on for the LAN port that is connected to your Power device camera. - The WLAN LED is blinking. 3) Launch internet browser and enter http://172.19.1.254 in the address field. You are prompted to login; Fig 4. Login connection 2. Installation Guide 3 / 12 CAMERA WLAN Copyrightⓒ. 2015. All Rights Reserved. 2. Log in to the PoE 1) After entering http://172.19.1.254 , you can show Realtek WLAN AP webserver. Fig 5. Realtek WLAN webserver 4 / 12 Copyrightⓒ. 2015. All Rights Reserved. 3. Wireless Site Survey 1) Please click “Wireless” in the webserver. 2) Please click “Site Survey” in the webserver( ①, ②), to fine AP list Click ① Click ② Fig 6. Wireless Site Survey 5 / 12 Copyrightⓒ. 2015. All Rights Reserved. Click 4. AP Connection 1) After “Site Survey”, you can show AP lists. 2) Please select wanted SSID(AP Name) and click “Next” Fig 7. SSID Selection 6 / 12 Copyrightⓒ. 2015. All Rights Reserved. 3) Please click “Connect” 4) After “Connect” click, You can show ”Please Wait” message 5) It will be connected. Please click ”Reboot Later” 6) Finally, Please close your web browser. Click Click Fig 8. SSID Connection 7 / 12 Copyrightⓒ. 2015. All Rights Reserved. 3. Regulation Information INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 8 / 12 Copyrightⓒ. 2015. All Rights Reserved. 4. Regulation Information (French) Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. 9 / 12 Copyrightⓒ. 2015. All Rights Reserved. WPS Reset 5. Appendix 1. WPS Function - You can use WPS to connect AP without any password(WPA or WPA2). ① Push AP’ WPS button. ② Push PoE’ WPS Button(During 3 secs). ③ When try to connect AP, WLAN LED is pulsing RED. ④ After connect AP, WLAN LED is blinking Yellow Green.  If you didn’t push PoE’ WPS Button within 2min, It will be disconnected. * Notice - If you want to use WPS function, your AP must have WPS function. 2. Reset Function - If you push RESET Button for 3secs, the PoE will restart. 3. Factory Default Setting - Reset button can also be used to clear all data and restore the factory default settings. ① Press the Reset button(during 10 secs). ② Release the Re…

Text truncated - open the document above for the full version.

LG I nnotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwang Ju, Korea, Republic of Date: March 9, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner / Reviewing Engineer Subject: Attestation for used operating frequency band Applicant: LG Innotek Co., Ltd. Product: PoE Wi-Fi Bridge Model name: TWFB- R101D FCC ID: YZP-TWFBR101D Variant Model name: - To Whom It May Concern: This letter is to ascertain that LG Innotek Co., Ltd. has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. This model will be used only following frequencies : 2 412 ~ 2 462 MHz, 2 422 ~ 2 452 MHz. If you have any question or concerns, please contact us. Sincerely Yours, NAME: Jeong In Chang TITLE: Senior engineer E- MAIL: [email protected] TEL: +82 62-950-0332 FAX: 0303-5300-0563 LG Innot ek Co., Ltd.

LG I nnotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwang Ju, Korea, Republic of Date: March 9, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Samsung Electronics Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project : - Product: PoE Wi-Fi Bridge - Model name: TWFB-R101D - FCC ID: YZP-TWFBR101D I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, NAME: Jeong In Chang TITLE: Senior engineer E- MAIL: [email protected] TEL: +82 62-950-0332 LG Innotek Co., Ltd.

LG I nnotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwang Ju, Korea, Republic of FCC Confidentiality Request Letter Date: March 9, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: YZP-TWFBR101D We hereby request confidential treatment of information accompanying this application as outlined below: • Block diagram • Schematics • Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, NAME: Jeong In Chang TITLE: Senior engineer E- MAIL: [email protected] TEL: +82 62-950-0332 LG Innotek Co., Ltd.

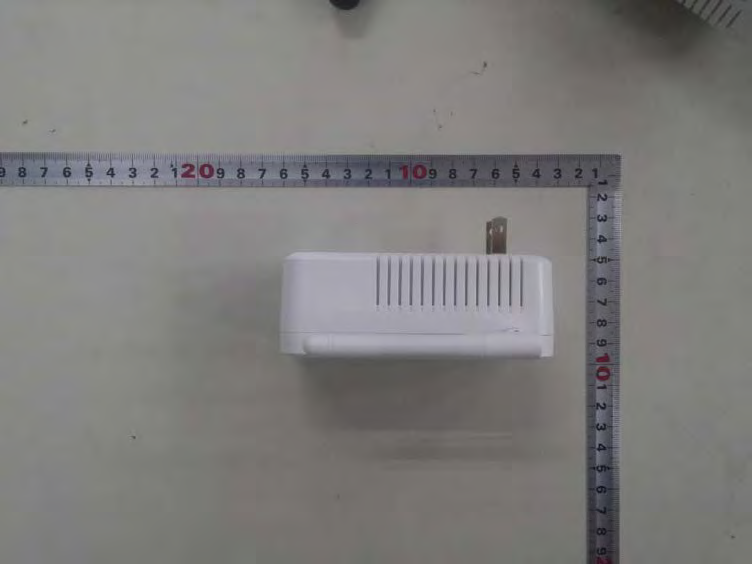

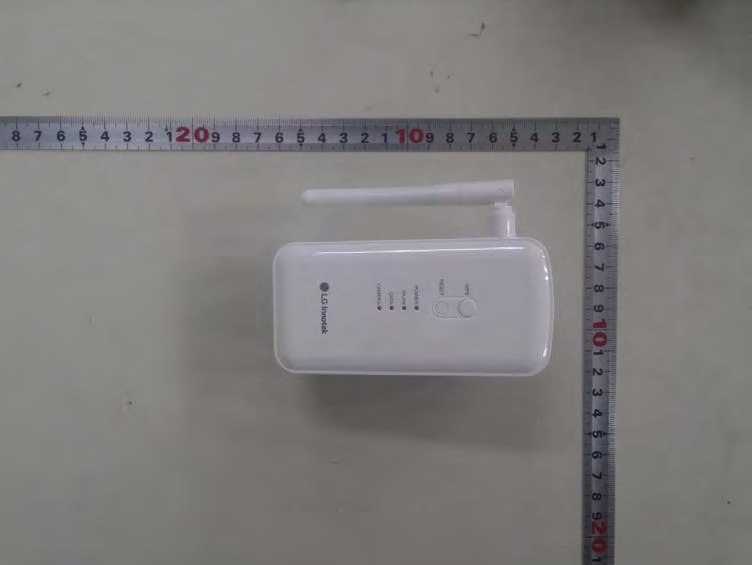

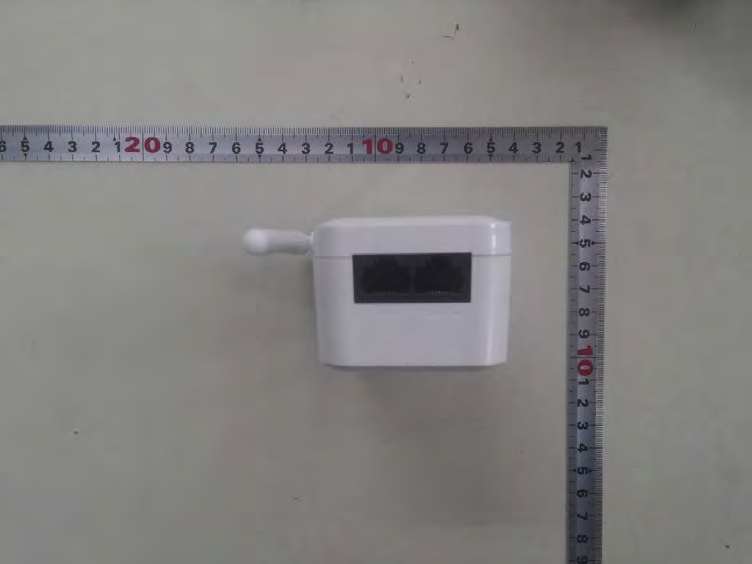

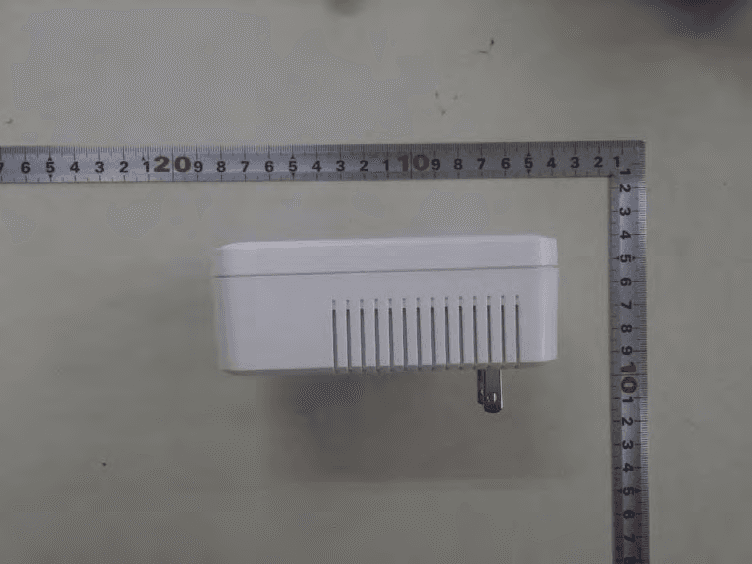

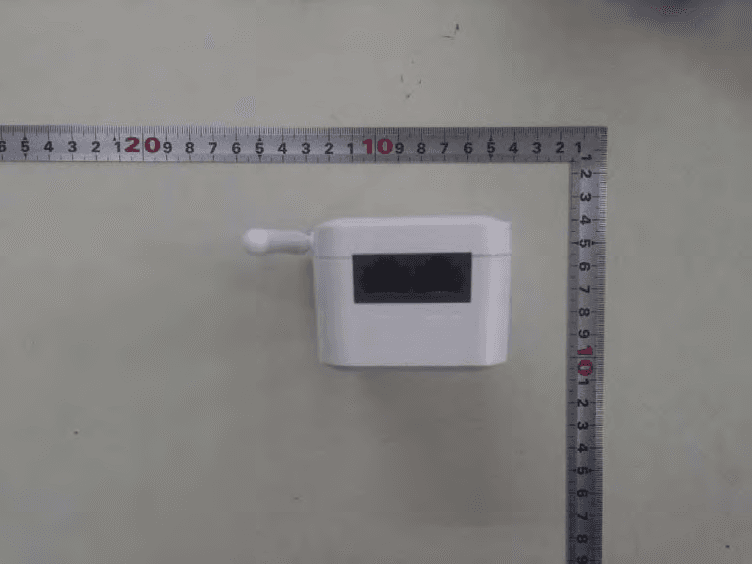

http://www.emc2000.co.kr External photos of EUT EMC compliance Ltd. Page: 1 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

<Label Info.> <Label Location>

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Internal photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Antenna 2 Antenna 1

http://www.emc2000.co.kr * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Averaging Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 () SPGRRPGSππ4 4 2 =⇒= S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] EMC compliance Ltd. Page: 1 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Ta rg e t power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈] [㏈] [㏈] [㎽] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] Wifi 2.4 GHz 19 ±2 21 125.89 6.14 4.11 0.102 97 1.000 00 4. Target power and tolerance, Max tuneup power WiFi 2.4 GHz_ANT 1 Mode Target power tolerance Max tuneup power 802.11b 16 ±2 18 802.11g 11 ±2 13 802.11n_HT20 11 ±2 13 802.11n_HT40 10 ±2 12 WiFi 2.4 GHz_ANT 2 Mode Target power tolerance Max tuneup power 802.11g 13 ±2 15 802.11n_HT20 13 ±2 15 802.11n_HT40 16 ±2 18 WiFi 2.4 GHz_MIMO (ANT 1+2) Mode Target power tolerance Max tuneup power 802.11g 15 ±2 17 802.11n_HT20 19 ±2 21 802.11n_HT40 17 ±2 19 EMC compliance Ltd. Page: 2 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0219 EMC compliance Ltd. Page: 2 of 149 80-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description ........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage ................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 13 5.4 6 dB Bandwidth(DTS Channel Bandwidth) ............................................................................................... 37 5.5 Spurious Emission, Band Edge and Restricted bands ................................................................................. 80 5.8 Conducted Emission ................................................................................................................................. 147 6. Test equipment used for test ......................................................................................................................... 149 http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0219 EMC compliance Ltd. Page: 3 of 149 80-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: LG Innotek Co., Ltd. Address: (Jangduk-dong) 26, Hanamsandan 5beon-ro, Gwangsan-gu, Gwangju, 506-731, Korea Telephone number: +82-62-950-0563 Contact person: Yoon DongHyeon / [email protected] Manufacturer#1: PT.LG Innotek Indonesia Address: Bekasi International Industrial Estate, Block C8 NO.12 & 12A,Lemahabang, Bekasi Timur, 17550, Jawa Barat, Indon Manufacturer#2: LG INNOTEK CO., LTD. Address: 978-1, JANGDUK-DONG, GWANGSAN-GU, GWANGJU, 506- 731, SOUTH KOREA http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0219 EMC compliance Ltd. Page: 4 of 149 80-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 80-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-70-5008-1021 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No.: KR0040 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0219 EMC compliance Ltd. Page: 5 of 149 80-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant LG Innotek Co., Ltd. Address of Applicant (Jangduk-dong) 26, Hanamsandan 5beon-ro, Gwangsan-gu, Gwangju, 506-731, Korea Manufacturer#1 PT.LG Innotek Indonesia. Address of Manufacturer Bekasi International Industrial Estate, Block C8 NO.12 & 12A,Lemahabang, Bekasi Timur, 17550, Jawa Barat, Indon Manufacturer#2 LG INNOTEK CO., LTD. Address of Manufacturer 978-1, JANGDUK-DONG, GWANGSAN-GU, GWANGJU, 506- 731, SOUTH KOREA Type of equipment Power over Ethernet Basic Model TWFB-R101D Serial number N/A 3.2 General description Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n_HT20)_MIMO 2 422 ㎒ ~ 2 452 ㎒ (802.11n_HT40)_MIMO Type of Modulation CCK, OFDM Number of Channels 11 ch (802.11b/g/n_HT20), 9 ch(802.11n_HT40) Antenna Gain ANT 1: 3.13 ㏈i ANT 2 :0.42 ㏈i Transmit Power 25.31㏈m Power supply AC 120 V* Product SW/HW version 1.0 Radio SW/HW version N/A Test SW Version MP TOOL-RTL819x 2.3 RF power setting in TEST SW Path 41 * Declared by the applicant. http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0219 EMC compliance Ltd. Page: 6 of 149 80-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Radiated Emission * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * 1 ㎓ Over Conducted Emission
