YZP-TWFMK001DWi-Fi module

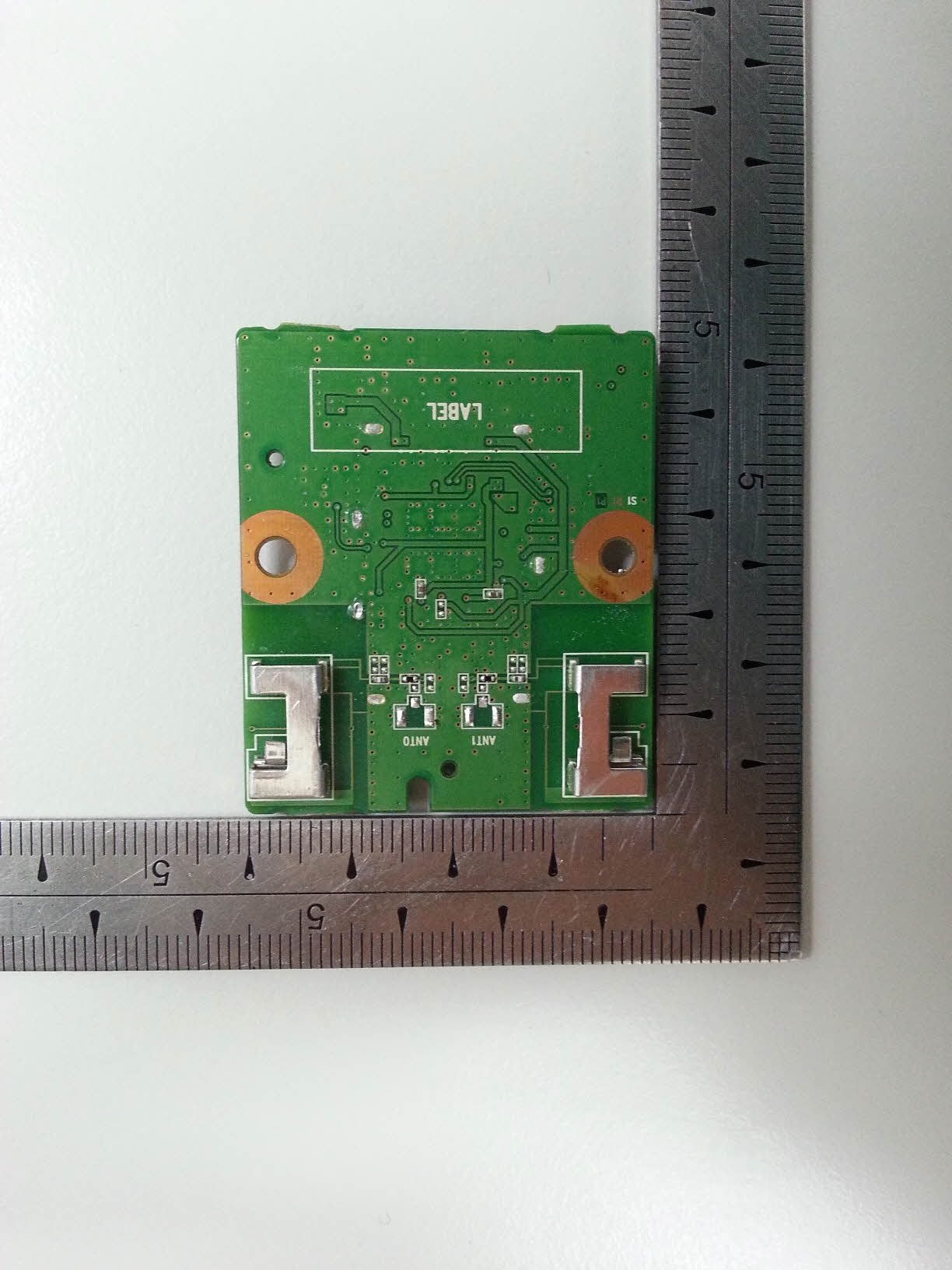

User Manual PRODUCT NAME : Dual Band 2T2R MIMO Wi-Fi Module MODEL NAME : TWFM-K001D (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 1 / 9 Table of Contents No Description Page 1 Features 2 2 Module Photo 2 3 Block Diagram 3 4 Storage Test Conditions 4 5 Operating Test Conditions 4 6 Pin Description 5 7 Outline Drawing 6 8 Packing Information 7 User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 2 / 9 2. Module Photo 1. Features TWFM-K001D is the module for IEEE 802.11a/b/g/n wireless LAN. TWFM-K001D is based on MTK MT7600 solution.
IEEE 802.11 a/b/g/n dual band WLAN infrastructure
Size : 40mm x 46.5mm x 8.25mm
2.4GHz and 5GHz, internal PA and LNA
Two stream spatial multiplexing up to 300Mbps
Metal pressed antenna
Use on-chip OTP (One-Time Programmable)
Interface : USB 2.0
Supports drivers for Linux and Windows
Security : WPA, WPA2, AES(TKIP), IEEE 802.1X • Application : DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB < Top view > < Bottom view > User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 3 / 9 3. Block Diagram MT7600 2.4GHz RF 5GHz RF 2.4GHz RF 5GHz RF WLAN Baseband 32bit RISC CPU MAC / Packet buffer / Security engine System Control PMU USB2.0 Interface USB I/F 6PIN CONNECTOR DC-DC 1.5MHZ) 3.3V 5V Main Clock 40MHz Patterned Diplexer Patterned Diplexer ANT0 ANT1 User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 4 / 9 Parameter Min Max Unit Storage Temperature -20 +80 °C Storage Humidity (@ 40°C) - 90 % Caution : The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. • Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°C and 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. 4. Storage Test Conditions Parameter Min Typ Max Unit Operating Temperature 0 - +60 °C Operating Humidity (40°C) - - 85 % Supply Voltage 4.5 5.0 5.5 Vdc 5. Operating Test Conditions User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 5 / 9 6. Pin Description < Top View > Note. 1) Recommend a Module install sequence for prevent USB device failure - Supply 5.0V power - Connect to data signal (USB_DP, USB_DN) 2) Connector : Connector, 6-Pin, 1.25-pitch A A 1 6 Pin No. Pin Name I/O Pin Description 1 VDD I VDD 5.0V 2 USB_DN I/O USB Communication signal USB_DN 3 USB_DP I/O USB Communication signal USB_DP 4 GND - GND 5 WoWLAN O Wake on Wireless LAN 6 Reset I Reset controlled by TV main SOC User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 6 / 9 7. Outline Drawing User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 7 / 9 8. Packing Information 8-1. Inner Box Packing ‘ ‘ TWFM-K001D User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 8 / 9 8-2. Carton Box Packing TWFM-K001D ‘ ‘ User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 9 / 9 8-3. Pallet Packing User Manual PAGE : REG. DATE : 2015.03.03 MODEL NAME : TWFM-K001D REV. DATE : 2015.03.03 REV.NO : 1.0 ©2015 LGIT. All rights reserved. 10 / 9
