YZP-TWFMK303DWI-FI Module

User Manual PRODUCT NAME : 1T1R Wi-Fi Module MODEL NAME : TWFM-K303D (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 1/ 11 Table of Contents No.DescriptionPage 1Features2 2Module Photo2 3Block Diagram3 4Storage Conditions4 4Operating Conditions4 5Software Programming5 6Pin Description7 7Outline Drawing8 8Packing Information9 User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 2/ 11 2. Module Photo 1. Features TWFM-K303D is the small size and low power module for IEEE 802.11b/g/n wireless LAN. TWFM-K303D is based on MeatekMT7601Usolution. IEEE 802.11 b/g/n SingleBand WLAN infrastructure Size : 41mm x 23mm x 13mm Auto-calibration 1T1R mode with 150Mbps PHY rate InternalANT: EPA(Embedded and Press Antenna) USB 2.0 Supports drivers for for Windows 7, Vista,XP,2000 and Linux Security: WFA, WPA,WPA2,WPS2.0, WAPI Application: DTV, DVR, HD DVDPlayer, Blue-ray Disk Player, STB Confidential User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 3/ 11 3. Block Diagram Confidential User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 4/ 11 4. Storage Conditions 5. Operating Conditions ParameterMinMaxUnit Storage Temperature-10+80 °C Storage Humidity (@ 40°C) -90% Caution: The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. •Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. ParameterMinTypMaxUnit Operating Temperature0-+50 °C Operating Humidity (40°C) --85% Supply Voltage4.755.05.25Vdc User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 5/ 11 6. Software Programming 1) Windows Utility Execute the released windows utility installer. (1) Run RaUI.exe (2) RaUI can co-exist with WZC. When coexisting with WZC, RaUI only provides monitoring functions, such as surveying the link status, network status, static counters, advanced features status, WMM status and WPS status. (3) When starting RaUI, the system will connect to the AP with best signal strength without setting a profile or matching a profile setting. It will issue a scan command to a wireless NIC. After two seconds, the AP list will be updated with the results of a BSS list scan. < Fig A.1 RaUIicon> < Fig A.2 Select WZC and RaUI> < Fig A.3 RaUIsection introduction> User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 6/ 11 (4) Button section. -Site survey, Link information, Profile, Advanced, Information, About page. -Help page. (5) When starting RaUI, a small Ralink icon appears in the notifications area of the taskbar, as shown in <Fig A.5>. * Please refer to the help page in detail usage manual. 2) Linux Device Driver Before compiling the driver, you should change make file or makefile.inc to meet your target platform. * Please refer to the release note in detail. < Fig A.4 Button section> < Fig A.5 Ralinkicon in system tray> User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 7/ 11 7. Pin Description < TOP View > < Bottom View > Pin No.Pin NameI/OPin Description 1GPIOOWi-Fi IC reset controlled by TV main chip 2VDDIVDD 5.0V 3USB_DNI/OUSB Communication signal USB_DN 4USB_DPI/OUSB Communication signal USB_DP 5GND-GND 6WOWLOWake up Wireless 1 6 Note. 1) Recommend a Module install sequence for prevent USB device failure -Supply 5.0V power -Connect to data signal (USB_DP, USB_DN) 2) Connector : A User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 8/ 11 8. Outline Drawing User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 9/ 11 9. Packing Information 1) Inner Box Packing 2) Carton Box Packing User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 10/ 11 3) Pallet Packing User Manual PAGE : REG. DATE : 2013.11.04 MODEL NAME :TWFM-K303D REV. DATE : 2013.11.04 REV.NO : 1.0 © 2013 LGIT. All rights reserved. 11/ 11 User Information The satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Contains Transmitter module FCC ID: YZP-TWFMK303D This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiating element of this device and the user. This device must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators and following statements shall be included to host user manual 1) The antenna must be installed such that 20cm is maintained between the antenna and users. 2) This module may not be co-located wit…

Text truncated - open the document above for the full version.

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea November 18, 2013 Attestation letter We apply to Country Region Code index “0” from EEPROM for use channel 1 ~ 11 only. The Country Region Code index can’t change easily by user, because this index is recorded at EEPROM. So, our device only supports from channel 1 to channel 11. Other channels are disabled when placing to USA. IndexSupport channel 0 Ch 1 ~ 11 1 Ch 1 ~ 13 2 Ch 10 ~ 11 3 Ch 10 ~ 13 4 Ch 14 5 Ch 1 ~ 14 6 Ch 3 ~ 9 7 Ch 5 ~ 13 30 Manual Channel (Refer to 0x118h~119h) 31 CH1 ~ 14 (CH1 ~ 11 active scan, CH12 ~ 14 passive scan) 32 CH1 ~ 13 (CH1 ~ 11 active scan, CH12 ~ 13 passive scan) 33 802.11b: CH1 to CH14 are active scan. 802.11g/n: CH1 to CH13 are active scan. CH14 is disallowed Jeong Inchang Director

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: November 14, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: November 14, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: YZP-TWFMK303D including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Innotek Co.,Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jeong Inchang Director

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: November 14, 2013 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: YZP-TWFMK303D To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Innotek Co.,Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Innotek Co.,Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Part Lists SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jeong Inchang Director

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA November 14, 2013 Modular Approval Attestation for Remote Control Module. Applicant: LG Innotek Co., Ltd. FCC ID: YZP-TWFMK303D No. FCC requirements 1 Have its own RF shielding RF Block shielded by Metal Case 2 Have buffered modulation/data inputs (if such inputs are provided), Yes, the module has buffered data input. 3 The modular transmitter must have its own power supply regulation. We used self own power supply regulation. 4 Meet the antenna requirements of section 15.203 This module uses Internal PIFA antenna This module meets the antenna requirements of section 15.203 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Yes, the EUT (module) was tested a stand alone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: YZP-TWFMK303D ” shall be placed on the outside of final product. 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. It complies with specific rules or operating requirements. And instruction is included User manual. 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operation under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) The exposure condition of this module is compliant with the requirements. Please refer to MPE calculation. Sincerely, Jeong Inchang Director

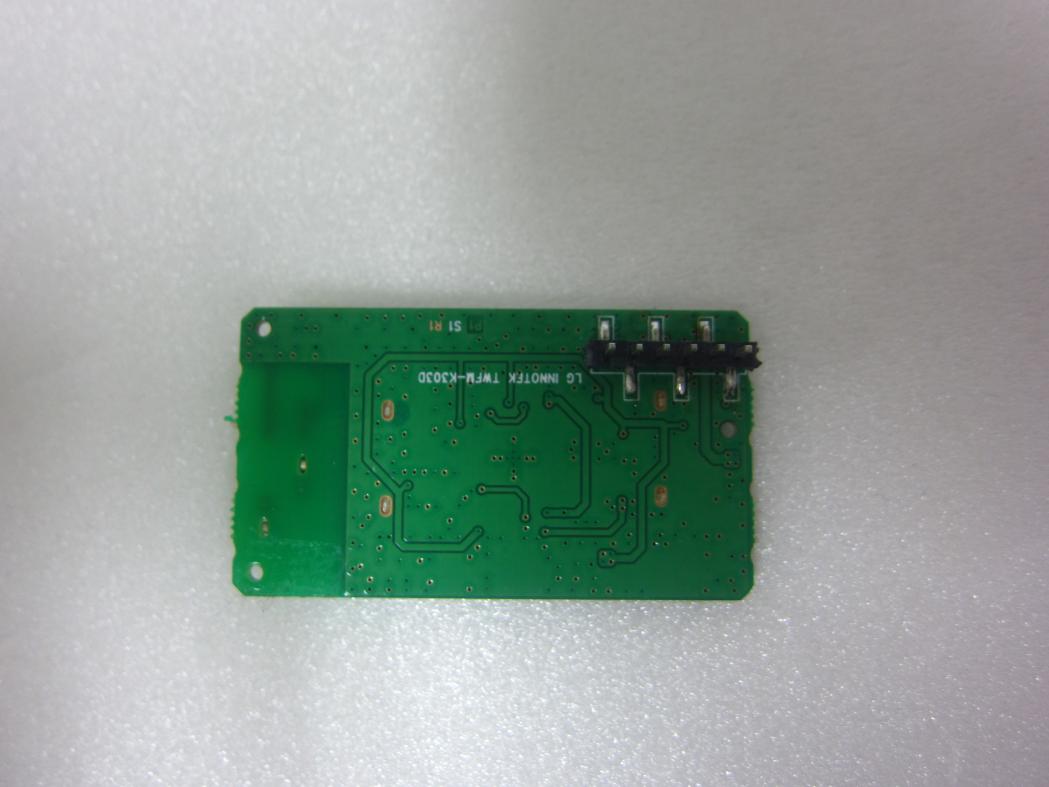

FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 1 FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 2 FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 3

1.인증번호: PCB에Print 2.FCC ID : YZP-TWFMK303D 2. 생산정보(MAC 포함) : Label지에Print하며, Shield Cover위에부착 ① ② ③ TWFM-K303D1311A2201 001EB2B00339 ④ ①Model No. ④Product Lot No. : 1311A2201 ②MAC Address BAR Code -13 : Year -22 : Date ③MAC Address No. -11: Month -01 : Manufactured -Revision No. : A Process

FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 1 FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. View 2 Antenna

-~ - - + &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = MPE Calculations(WLAN: 802.11b) dBm Min. Frequency range : 2412 MHz2462 MHz EIRP = Equivalent Isotropic Radiated Power(mW) 121.619 mW Maximum output power for the calculatio 16.50 P = Power input to the antenna(dBm) 20.85 dBm dBm The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the YZP-TWFMK303DLG Innotek Co.,Ltd. Target Power & Tolerance : 15.00 dBm1.5 dB ( Max. 16.5 - FCCID: R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . S = Maximum power dencity(mW/cm 2 ) 0.024196 mW/cm 2 / ( 4 X 20 2 X π ) 121.619 G = Power gain of the antenna(dBi) Power density at the specific separation EIRP / ( 4 R 2 π ) Note EIRPPGNote 16.50 dBm4.35 dBi Measured RF output power :15.53 dBm Maximum antenna peak gain : 4.35 dBi -~ - - + &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . MPE Calculations(WLAN: 802.11g) 0.007652 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 38.460 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 15.85 dBm38.46 mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 11.50 dBm4.35 dBi Maximum antenna peak gain : 4.35 dBi Maximum output power for the calculatio 11.50 dBm 1.5 dB ( Max. 11.5 dBm Min. Measured RF output power :10.38 dBm Target Power & Tolerance : 10.00 dBm - FCCID: YZP-TWFMK303DLG Innotek Co.,Ltd. Frequency range : 2412 MHz2462 MHz -~ - - + &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.007652 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 38.460 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 15.85 dBm38.46 mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 11.50 dBm4.35 dBi Maximum antenna peak gain : 4.35 dBi Maximum output power for the calculatio 11.50 dBm 1.5 dB ( Max. 11.5 dBm Min. Measured RF output power :9.49 dBm Target Power & Tolerance : 10.00 dBm - FCCID: YZP-TWFMK303DLG Innotek Co.,Ltd. MPE Calculations(WLAN: 802.11n HT20) Frequency range : 2412 MHz2462 MHz -~ - - + &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.006078 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 30.550 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 14.85 dBm30.55 mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 10.50 dBm4.35 dBi Maximum antenna peak gain : 4.35 dBi Maximum output power for the calculatio 10.50 dBm 1.5 dB ( Max. 10.5 dBm Min. Measured RF output power :9.02 dBm Target Power & Tolerance : 9.00 dBm - FCCID: YZP-TWFMK303DLG Innotek Co.,Ltd. MPE Calculations(WLAN: 802.11n HT40) Frequency range : 2422 MHz2452 MHz

FCCID: YZP-TWFMK303D DEMC1311-03348 Report No.: DRTFCC1311-1091 TRF-RF-213(02)130923 Page2 / 65 Copyright ○ C 2013, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1311-1091 Nov. 14, 2013 Initial issue FCCID: YZP-TWFMK303D DEMC1311-03348 Report No.: DRTFCC1311-1091 TRF-RF-213(02)130923 Page3 / 65 Copyright ○ C 2013, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................................... 6 4.2 EUT EXERCISE ................................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ..................................................................................... 6 4.4 DESCRIPTION OF TEST MODES..................................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6dB Bandwidth ................................................................................................................. 8 8.2 Maximum Peak Conducted Output Power ................................................................... 17 8.3 Maximum Power Spectral Density ................................................................................ 20 8.4 Out of Band Emissions at the Band Edge / Conducted Spurious Emissions .......... 29 8.5 Radiated Spurious Emissions ....................................................................................... 54 8.6 Power-line Conducted Emissions ................................................................................ 60 8.7 Occupied Bandwidth ...................................................................................................... 63 9. LIST OF TEST EQUIPMENT .................................................... 64 APPENDIX I ................................................................................. 65 FCCID: YZP-TWFMK303D DEMC1311-03348 Report No.: DRTFCC1311-1091 TRF-RF-213(02)130923 Page4 / 65 Copyright ○ C 2013, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant : LG Innotek Co.,Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, South Korea FCC ID : YZP-TWFMK303D EUT : WI-FI Module Model : TWFM-K303D Additional Model(s) : N/A Data of Test : 2013-11-06 ~ 2013-11-13 Contact person : DukSuOh 2. EUT DESCRIPTION Product WI-FI Module Model Name TWFM-K303D Power Supply DC 3.3 V Frequency Range 2.4GHz Band ▪ 802.11b/g/n(20MHz): 2412 ~ 2462 MHz ▪ 802.11n(40MHz): 2422~2452 MHz Max. RF Output Power 2.4GHz Band ▪ 802.11b: 19.28 dBm ▪ 802.11g: 21.22 dBm ▪ 802.11n (HT20): 20.62 dBm ▪ 802.11n (HT40): 20.37 dBm Modulation Type 802.11b: DSSS/CCK 802.11g/n(HT20/HT40): OFDM Antenna Specification Internal PIFA Antenna (1TX 1RX) ▪ 2.4GHz Band Max. peak gain: 4.35 dBi FCCID: YZP-TWFMK303D DEMC1311-03348 Report No.: DRTFCC1311-1091 TRF-RF-213(02)130923 Page5 / 65 Copyright ○ C 2013, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [4.6.1] Occupied Bandwidth (99%) RSS-Gen4.6.1 NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) <FCC 15.209 limits Radiated C Note.2 15.207 RSS-Gen [7.2.2] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. FCCID: YZP-TWFMK303D DEMC1311-03348 Report No.: DRTFCC1311-1091 TRF-RF-213(02)130923 Page6 / 65 Copyright ○ C 2013, Digital EMC Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r1. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions The power-line conducted emission test procedure is not described on the KDB 558074 v03r1. So this test was fulfilled with the requirements in Section 6.2 of ANSI C63.10. The EUT is placed on the turntable, which is 0.8 m above ground plane and the conducted emissions from the EUT mea…

Text truncated - open the document above for the full version.

FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. EUT Axis information X Axis Y Axis Z Axis FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup Photo of Radiated Measurement FCC ID: YZP-TWFMK303D Copyright Ⓒ 2013, Digital EMC Co., Ltd. Test Setup Photo of Conducted Emissions
