YZP-TWFML006DWi-Fi Module

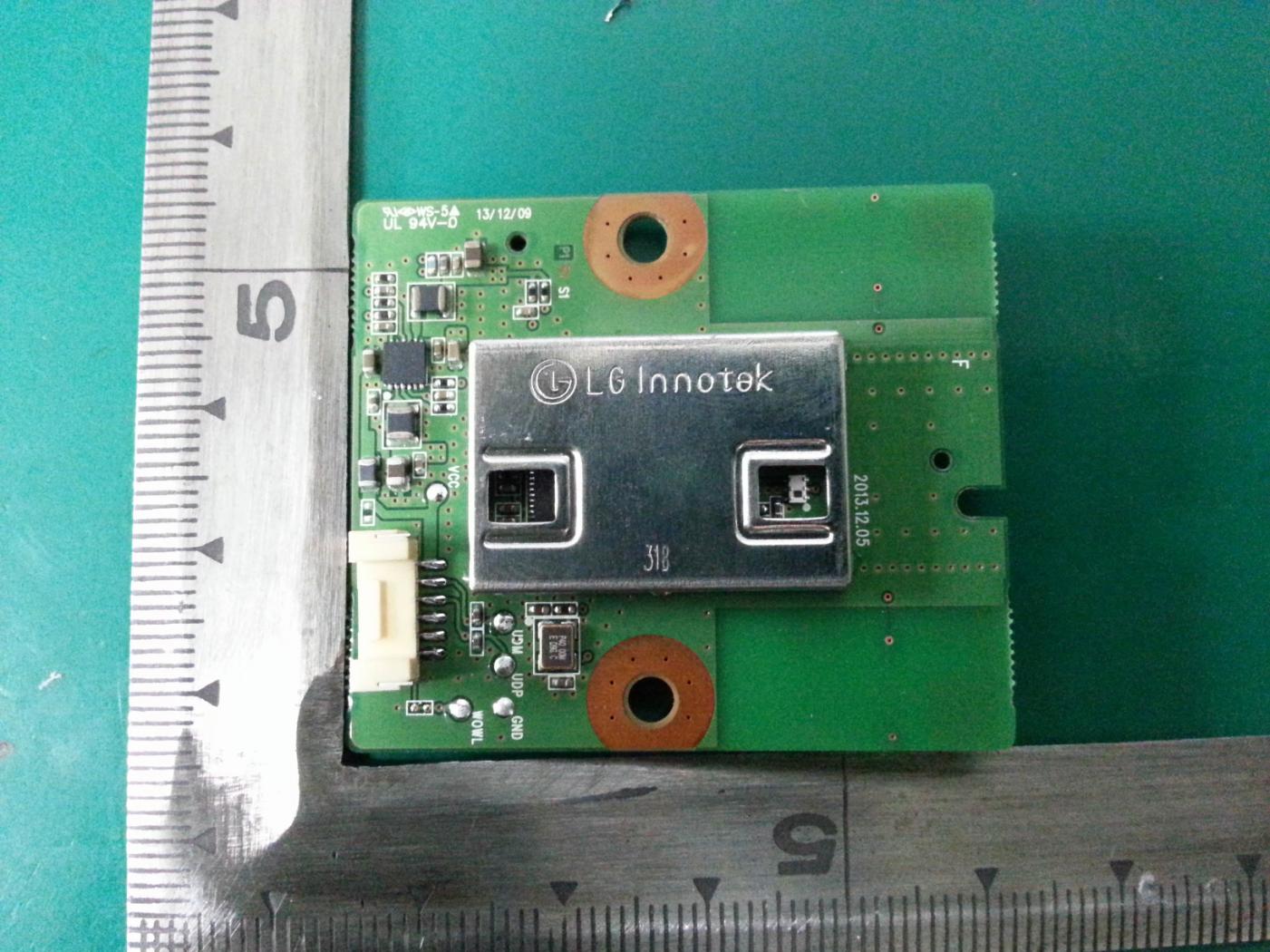

User Manual PRODUCT NAME : Dual Band 2T2R MIMO Wi-Fi Module MODEL NAME : TWFM-L006D (00)-0073 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 1/ 11 Table of Contents NoDescriptionPage 1Features2 2Module Photo2 3Block Diagram3 4Storage Test Conditions4 5Operating Test Conditions 4 6Software Programming5 7Pin Description7 8Outline Drawing8 9Packing Information9 User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 2/ 11 2. Module Photo 1. Features TWFM-L006D is the module for IEEE 802.11a/b/g/n wireless LAN. TWFM-L006D is based on MTK RT5572 solution. IEEE 802.11 a/b/g/n Dual Band WLAN infrastructure Size : 40mm x46.5mm x 8.25mm 2.4GHz and 5GHz,internal PAand LNA Two stream spatial multiplexing up to 300Mbps Metal Press Antenna Use on-chip OTP (One-Time Programmable) USB 2.0 Supports drivers forLinux, Windows Security: WPA,WPA2,AES(TKIP) ,IEEE 802.1X •Application: DTV, DVR, HD DVDPlayer, Blue-ray Disk Player, STB User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 3/ 11 3. Block Diagram DPX ANT0 RT5572 USB I/F 6Pin Connector 802.11n MAC Main Clock (40MHz) PA LNA 802.11n PHY Security E - Fuse (2K byte) Internal Bus GPIO USB 2.0 3.3V DC - DC (1.5MHz) 5V ANT1 Rec eiver Trans mitter DPX 1.5V PA LNA User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 4/ 11 ParameterMinMaxUnit Storage Temperature-20+80°C Storage Humidity (@ 40°C)-90% Caution: The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. •Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40°Cand 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. 4. Storage Test Conditions ParameterMinTypMaxUnit Operating Temperature0-+60°C Operating Humidity (40°C)--85% Supply Voltage4.55.05.5Vdc 5. Operating Test Conditions User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 5/ 11 6. Software Programming 1) Windows Utility Execute the released windows utility installer. (1) Run RaUI.exe (2) RaUI can co-exist with WZC. When coexisting with WZC, RaUI only provides monitoring functions, such as surveying the link status, network status, static counters, advanced features status, WMM status and WPS status. (3) When starting RaUI, the system will connect to the AP with best signal strength without setting a profile or matching a profile setting. It will issue a scan command to a wireless NIC. After two seconds, the AP list will be updated with the results of a BSS list scan. < Fig1.1 RaUI icon> < Fig1.2 Select WZC and RaUI> < Fig1.3 RaUI section introduction> User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 6/ 11 (4) Button section. -Site survey, Link information, Profile, Advanced, Information, About page. -Help page. (5) When starting RaUI, a small Ralink icon appears in the notifications area of the taskbar, as shown in <Fig1.5>. * Please refer to the help page in detail usage manual. 2) Linux Device Driver Before compiling the driver, you should change make file or makefile.inc to meet your target platform. * Please refer to the release note in detail. < Fig1.4 Button section> < Fig1.5 Ralink icon in system tray> User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 7/ 11 7. Pin Description Pin No.Pin NameI/OPin Description 1VDDIVDD 5.0V 2USB_DNI/OUSB Communication signal USB_DN 3USB_DPI/OUSB Communication signal USB_DP 4GND-GND 5WoWLANIWake on Wireless LAN 6GND-GND < Top View > Note. 1) Recommend a Module install sequence for prevent USB device failure -Supply 5.0V power -Connect to data signal (USB_DP, USB_DN) 2) Connector : Connector A1257WR0-6PS A A 16 User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 8/ 11 8. Outline Drawing User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 9/ 11 9. Packing Information 9-1. Inner Box Packing User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 10/ 11 9-2. Carton Box Packing User Manual PAGE : REG. DATE : 2013.12.13 MODEL NAME :TWFM-L006D REV. DATE : 2013.12.13 REV.NO : 1.0 ©2013 LGIT. All rights reserved. 11/ 11 9-3. Pallet Packing FCC Information This device complies with part 15 of the FCC Results. Operation is subject to the following two conditions : (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment…

Text truncated - open the document above for the full version.

Date: January 09, 2014 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention : Application Examiner / Reviewing Engineer Subject : Attestation for used operating frequency band Applicant : LG Innotek Co., Ltd. FCC ID : YZP-TWFML006D To whom it may concern, We, LG Innotek Co., Ltd. are guarantee for used frequency band as bellows, This model, TWFM-L006D will be used only following frequencies. * Used frequency band 2 412 ~ 2 462 MHz, 2 422 ~ 2 452 MHz, 5 180 ~ 5 240 MHz, 5 190 ~ 5 230 MHz, 5 260 ~ 5 320 MHz 5 270 ~ 5 310 MHz, 5 500 ~ 5 700 MHz, 5 510 ~ 5 670 MHz, 5 745 ~ 5 825 MHz, 5 755 ~ 5 795 MHz If you have questions or need further information, please contact the undersigned. Sincerely Yours, ____________________________ Mr. IC Jeong / Senior engineer LG Innotek Co., Ltd. E-mail : [email protected]

EMCCert DR. RAŠEK GmbH Date: January 09, 2014 Stoernhofer Berg 15 91364 Unterleinleiter GERMANY To whom it may concern: I, the undersigned, hereby authorize Mr. Gea-Won, Lee / Managing Director of ONETECH Corp., and hereafter to as ONETECH, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Ant and all acts carried out by Mr. Gea-Won, Lee of ONETECH on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits. that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing EMCC as our agent, we still recognize that we are responsible to : a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures of advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ____________________________ Mr. IC Jeong / Senior engineer LG Innotek Co., Ltd. E-mail : [email protected]

FCC Laboratory Date: January 09, 2014 7435 Oakland Mills Road Columbia, MD 21046 Attention : Application Examiner / Reviewing Engineer Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant : LG Innotek Co., Ltd. FCC ID : YZP-TWFML006D To whom it may concern, Request is hereby submitted, LG Innotek Co., Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics / Block Diagram / Parts List / Operational description Rationale for request for confidentiality: LG Innotek Co., Ltd., has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely Yours, ____________________________ Mr. IC Jeong / Senior engineer LG Innotek Co., Ltd. E-mail : [email protected]

Date : January 28, 2014 DTS-UNII Device Declaration Letter We have declared below featured for FCC equipment authorization, Device FCC ID:YZP-TWFML006D & IC Certification No. 7414C-TWFML006D (1) DFS Device -  Master  Client with Radar detection capability  Client without radar detection capability  N/A (2) Active / Passive Scanning, adhoc mode access point capability Frequency Band (MHz) Active Scanning (The device can transmit a probe(Beacon)) Passive Scanning (Where the device is can listen only with no probes) Ad Hoc Mode capability Accss Point capability 2 412 ~ 2 462  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 2 422 ~ 2 452  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 745 ~ 5 825  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 755 ~ 5 795  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 180 ~ 5 240  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 190 ~ 5 230  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 260 ~ 5320  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 270 ~ 5 310  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 500 ~ 5 700  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No 5 510 ~ 5 670  Yes ,  No  Yes ,  No  Yes ,  No  Yes ,  No (3) Country code selection ability -  Yes ,  No If no, pls explain how was implemented: Country code region setting is done in a specific file which is included in the driver. However, we don’t provide user to modify the country region. It cannot be modified by end user or an installer. (4) Meet 15.202 requirement -  Yes ,  No Pls check below :  A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signals to other devices  A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and /or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer.  Apply ,  No Apply. (If apply, pls help to provide explanation on how it was implement. (By hardware or software, and how software was controlled) On DFS channels, the WLAN driver on the device operates under the control of an AP at all times, except when in Ad-Hoc Mode, on US non-DFS channels. As described in the answer to question (2), the device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is locked by proprietary password and cannot be changed or modified by end user. Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, Korea. 506-731 Name an Job T itle : IC Jeong / Senior engineer Signature :

Date: January 09, 2014 Attn: Director of Certification Request for Single Modular Approval for FCC ID: YZP-TWFML006D Please accept our request for Single Modular Approval in accordance with the requirements of 15.212 as described below. 15.212(a)(1) Single modular transmitters must meet the following requirements to obtain a modular transmitter approval. (i) This module does have its own shielding (ii) This module has buffered modulation/data inputs. (iii) This module has integrated with Power Supply regulator. (iv) This module complied with the antenna requirement of section 15.207 and 15.247, because the antenna is PIFA antenna. (v) This module was tested in a standalone-configuration for radiated emissions (vi) The Module will be labeled with its own FCC ID Number. (vii) This module complies with the requirements of part 15.207 and 15.247 for AC power line conducted emissions and part 15.247 for operation in 2 412 MHz ~ 2 462 MHz, 2 422 MHz ~ 2 452 MHz, 5 180 MHz ~ 5 240 MHz, 5 190 MHz ~ 5 230 MHz, 5 260 MHz ~ 5 320 MHz, 5 270 MHz ~ 5 310 MHz, 5 500 MHz ~ 5 700 MHz, 5 510 MHz ~ 5 670 MHz, 5 745 MHz ~ 5 825 MHz, 5 755 MHz ~ 5 795 MHz frequency band and must only be used with the antenna that were tested in this filing. (Viii) This module complied with any applicable RF exposure requirement. Sincerely Yours, ____________________________ Mr. IC Jeong / Senior engineer LG Innotek Co., Ltd. E-mail : [email protected]

FCC ID. : YZP-TWFML006D Certification No : 7414C-TWFML006D Page 1 of 2 Report No. : E141R-009/E141R-012 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : YZP-TWFML006D Certification No : 7414C-TWFML006D Page 2 of 2 Report No. : E141R-009/E141R-012 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

FCC ID. : YZP-TWFML006D Page 1 of 1 Report No.: E141R-009/E141R-012 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the rear side of the equipment FCC ID AREA FCC ID : YZP-TWFML006D

FCC ID. : YZP-TWFML006D Certification No : 7414C-TWFML006D Page 1 of 2 Report No. : E141R-009/E141R-012 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : YZP-TWFML006D Certification No : 7414C-TWFML006D Page 2 of 2 Report No. : E141R-009/E141R-012 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

FCC ID. : YZP-TWFML006D Page 1 of 11 IC Certification No. : 7414C-TWFML006D It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E141R-016 AGR No. : A13NA-058, A13NA-059 Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, Korea. 506-731 Manufacturer : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, Korea. 506-731 Type of Equipment : Wi-Fi module FCC ID. : YZP-TWFML006D IC Certification No. : 7414C-TWFML006D Model Name : TWFM-L006D Serial number : N/A Total page of Report : 11 pages (including this page) Date of Incoming : December 03, 2013 Date of issue : January 07, 2014 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247, FCC PART 15 SUBPART E Section 15.407 and IC RSS-Gen Issue 3 and RSS 210 Issue 8. This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Approved by: Ki-Hong, Nam / Senior Engineer Gea-Won, Lee / Managing Director ONETECH Corp. ONETECH Corp. FCC ID. : YZP-TWFML006D Page 2 of 11 IC Certification No. : 7414C-TWFML006D It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 4 2. GENERAL INFORMATION ............................................................................................................................................ 5 2.1 PRODUCT DESCRIPTION ................................................................................................................................................. 5 2.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 6 3. EUT MODIFICATIONS ................................................................................................................................................... 6 4. SYSTEM TEST CONFIGURATION ............................................................................................................................... 7 4.1 JUSTIFICATION ............................................................................................................................................................... 7 4.2 PERIPHERAL EQUIPMENT ............................................................................................................................................... 7 5. MAXIMUM PERMISSIBLE EXPOSURE ...................................................................................................................... 8 5.1 RF EXPOSURE CALCULATION ....................................................................................................................................... 8 5.2 CALCULATED MPE SAFE DISTANCE ............................................................................................................................. 9 5.2.1 Test data for Antenna 0 .......................................................................................................................................... 9 5.2.2 Test data for Antenna 1 ........................................................................................................................................ 10 5.2.3 Test data for Multiple transmit ............................................................................................................................. 11 FCC ID. : YZP-TWFML006D Page 3 of 11 IC Certification No. : 7414C-TWFML006D It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) Revision History Issued Report No. Issued Date Revisions Effect Section E141R-016 January 07, 2014 Initial Issue All FCC ID. : YZP-TWFML006D Page 4 of 11 IC Certification No. : 7414C-TWFML006D It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 1. VERIFICATION OF COMPLIANCE Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, Korea. 506-731 Contact Person : IC Jeong / Senior engineer Telephone No. : +82-62-950-0332 FCC ID : YZP-TWFML006D CERTIFICATION NO. : 7414C-TWFML006D Model Name : TWFM-L006D Serial Number : N/A Date : January 07, 2014 EQUIPMENT CLASS FCC: DTS – DIGITAL TRNSMISSION SYSTEM Unlicensed National Information infrastructure(UNII) IC: Low Power License-Exempt Radio-communication Device E.U.T. DESCRIPTION Modular Transmitter, Wi-Fi module THIS REPORT CONCERNS Original Grant MEASUREMENT PROCEDURES ANSI C63.10: 2009 TYPE OF EQUIPMENT TES…

Text truncated - open the document above for the full version.

Page 1 of 459 Report No. : E141R-009 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E141R-009 AGR No. : A13NA-058, A13NA-059 Applicant : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, Korea. 506-731 Manufacturer : LG Innotek Co., Ltd. Address : 978-1, Jangduk-dong, Gwangsan-gu, Gwangju, Korea. 506-731 Type of Equipment : Wi-Fi module FCC ID. : YZP-TWFML006D IC Certification No. : 7414C-TWFML006D Model Name : TWFM-L006D Serial number : N/A Total page of Report : 459 pages (including this page) Date of Incoming : December 03, 2013 Date of issue : January 06, 2014 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 and IC RSS-Gen Issue 3 and RSS 210 Issue 8. This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Approved by: Ki-Hong, Nam / Senior Engineer Gea-Won, Lee / Managing Director ONETECH Corp. ONETECH Corp. Page 2 of 459 Report No. : E141R-009 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 9 2. TEST SUMMARY ............................................................................................................................................................ 10 2.1 TEST ITEMS AND RESULTS ............................................................................................................................................ 10 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ......................................................................................... 10 2.3 RELATED SUBMITTAL(S) / GRANT(S) .......................................................................................................................... 10 2.4 PURPOSE OF THE TEST ................................................................................................................................................. 10 2.5 TEST METHODOLOGY .................................................................................................................................................. 10 2.6 TEST FACILITY ............................................................................................................................................................. 10 3. GENERAL INFORMATION .......................................................................................................................................... 11 3.1 PRODUCT DESCRIPTION ............................................................................................................................................... 11 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. .............................................................. 11 4. EUT MODIFICATIONS ................................................................................................................................................. 11 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 12 5.1 JUSTIFICATION ............................................................................................................................................................. 12 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................. 12 5.3 MODE OF OPERATION DURING THE TEST..................................................................................................................... 13 5.4 CONFIGURATION OF TEST SYSTEM ............................................................................................................................. 15 5.5 ANTENNA REQUIREMENT ............................................................................................................................................ 15 6. PRELIMINARY TEST .................................................................................................................................................... 16 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 16 6.2 GENERAL RADIATED EMISSIONS TESTS ...................................................................................................................... 16 7. MIMIMUM 6 DB BANDWIDTH & 99 % OCCUPIED BANDWIDTH .................................................................... 17 7.1 OPERATING ENVIRONMENT ......................................................................................................................................... 17 7.2 TEST SET-UP ................................................................................................................................................................. 17 7.3 TEST EQUIPMENT USED ........................................................................................................................................…
