YZP-TWZTV001DWireless Module for Lighting Control

LG Innotek Co., Ltd.

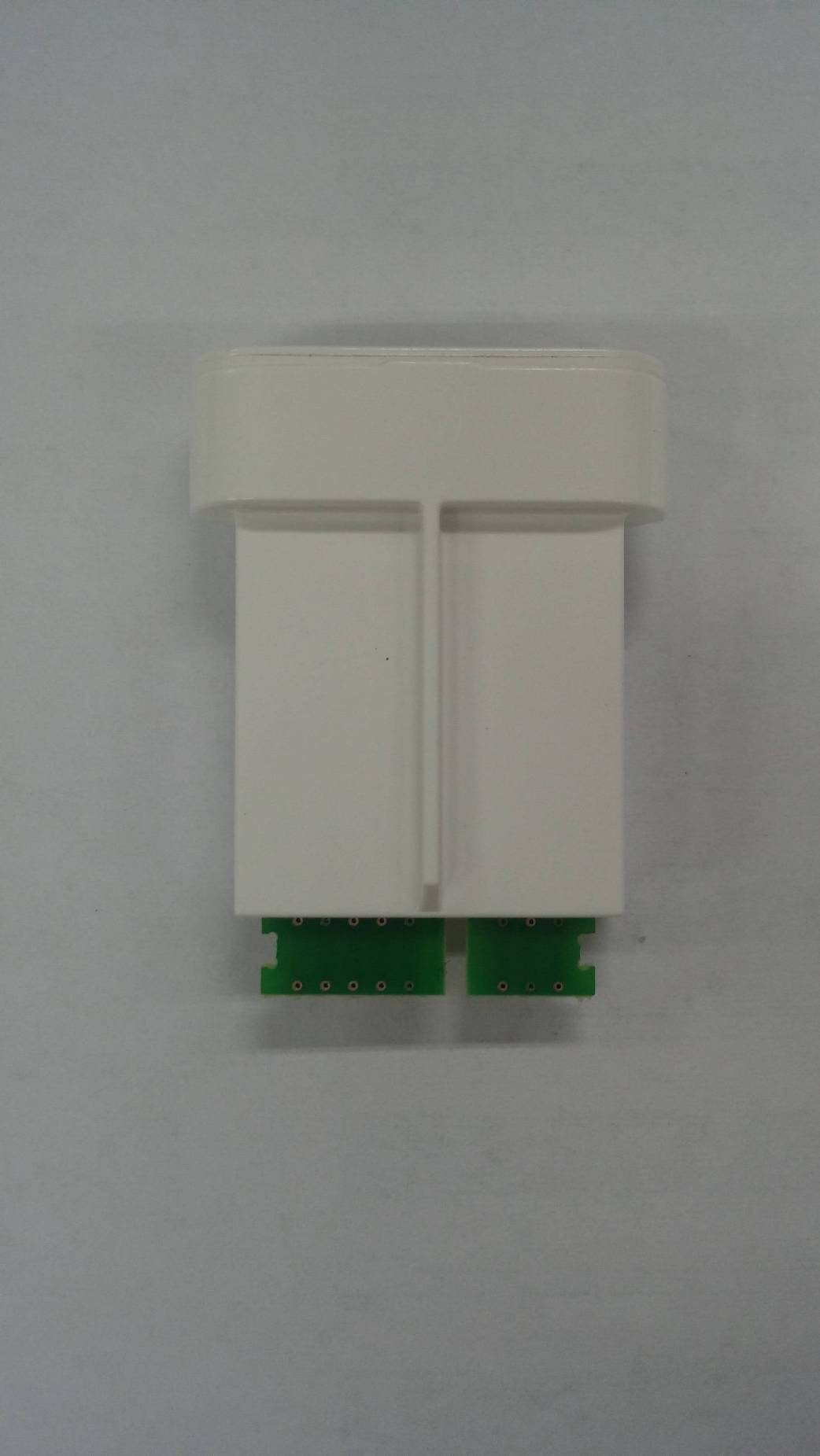

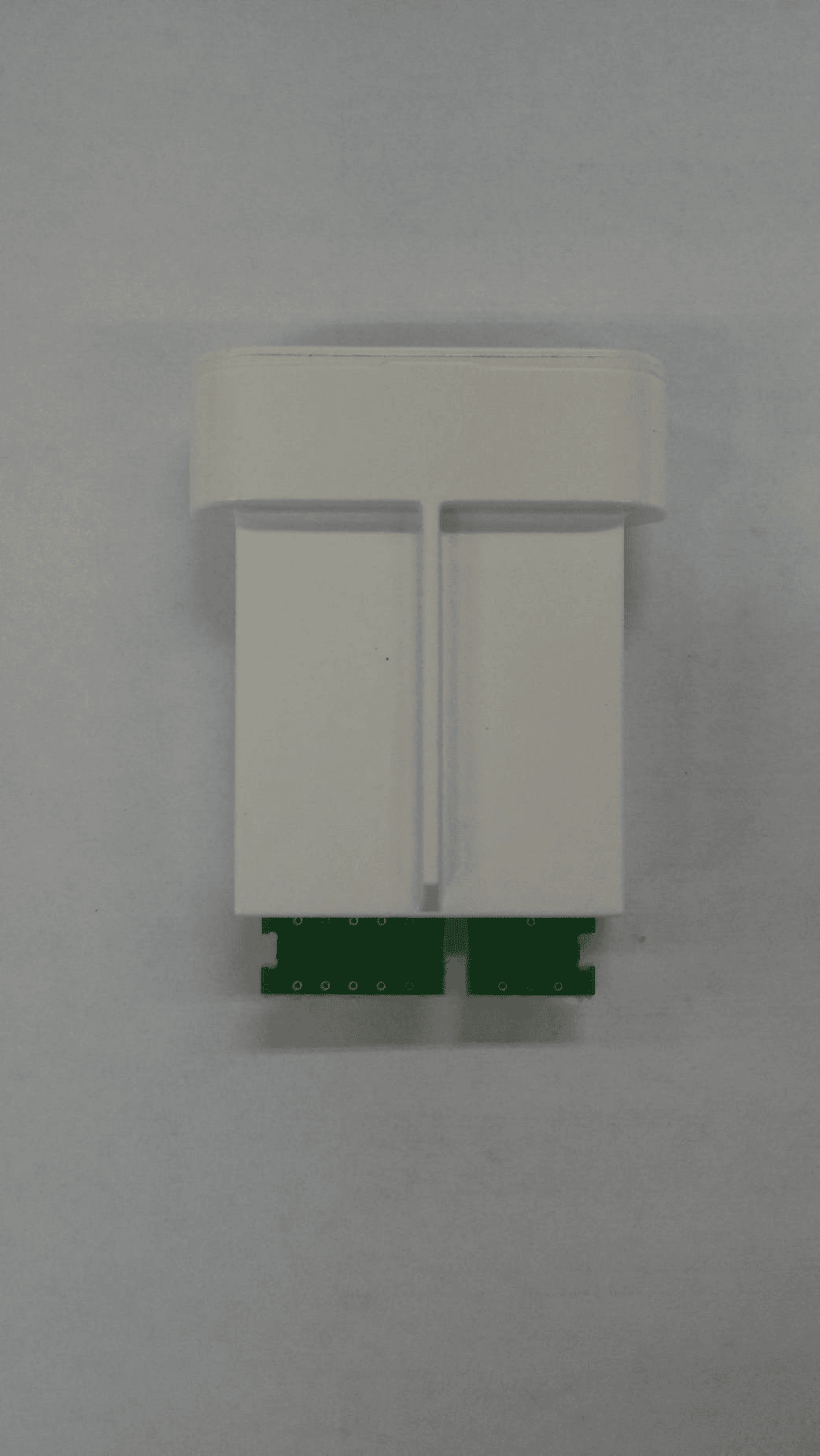

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Nov 17, 2014
Application Purpose: Original Equipment
Date of Application: Nov 17, 2014
Equipment Note: Wireless Module for Lighting Control
Frequency Range: 2405.00000000 - 2480.00000000
Company: LG Innotek Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SPECIFICATIONS PRODUCT NAME : Wireless Module for Lighting Control MODEL NAME : TWZT-V001D-F CUSTOMER MODEL NAME : Designed Checked Approved LG Innotek Co., Ltd. Ro Young Suk Kim Yong Gyu DOCUMENT No. 14-RFM-0174 ‘14.09.17 ‘14.09.17 ‘14.09.17 PAGE 21 The information contained herein is the exclusive property of LG Innotek and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of LG Innotek. Yun Yeong Uk S P E C I F I C A T I O N PAGE : REG. DATE : MODEL NAME : TWZT-V001D-F REV. DATE : . . REV. NO. : 0.4 REG. DATE : 2014. 9. 17 REV. DATE : 2014 10 29 2 / 20 Copyrightⓒ. 2014. All Rights Reserved. Record of Revision Revision Date Revision Description Remark 0.1 2014.09.17 Initial Release. 0.2 2014.10.07 Temperture spec changed. 0.3 2014.10.22 Current spec changed. Firmware Version Updated. 0.4 2014.10.29 Label spec Updated. S P E C I F I C A T I O N PAGE : REG. DATE : MODEL NAME : TWZT-V001D-F REV. DATE : . . REV. NO. : 0.4 REG. DATE : 2014. 9. 17 REV. DATE : 2014 10 29 3 / 20 Copyrightⓒ. 2014. All Rights Reserved. CONTENTS 1. GENERAL DESCRIPTION 2. FEATURES 3. BLOCK DIAGRAM 4. ABSOLUTE MAXIMUM RATING 5. RECOMMENDED OPERATING CONDITION 6. GENERAL CHARACTERISTICS 7. RF SPECIFICATIONS 8. ANTENNA SPECIFICATIONS 9.FIRMWARE INFORMTION 10. RELIABILITY SPECIFICATIONS 11. APPLICATION CIRCUIT 12. MODULE INTERFACE 13. MECHANICAL INFORMATION 14. PRODUCT LABEL INFORMATION 15. PACKING INFORMATION 16. ORDERING INFORMATION S P E C I F I C A T I O N PAGE : REG. DATE : MODEL NAME : TWZT-V001D-F REV. DATE : . . REV. NO. : 0.4 REG. DATE : 2014. 9. 17 REV. DATE : 2014 10 29 4 / 20 Copyrightⓒ. 2014. All Rights Reserved. 1. GENERAL DESCRIPTION LG Innotek’s Common Zigbee Module solution for IEEE 802.15.4, Zigbee( ZHA ) and RF4CE applications. In addition, this modules are high performance hardware feature and easy connectivity solution for wireless lighting control and smart home applications. It enables robust network nodes to be built with very low total bill-of material costs. This module is suited for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption. LG Innotek‘s common Zigbee Module contains the RF IC and necessary external components and integrated very small size PCB pattern Antenna. It is provides very simple hardware support for easy smart lighting control and WSN applications 2. FEATURES - 2.4GHz IEEE802.15.4 compliant RF Transceiver - Excellent Receiver Sensitivity and Robustness to interference - Programmable Output Power Up to 6.5 dBm -Small Module with PCB Pattern Antenna Solution : Size 22×29×7.7mm -High performance and Low power 32-bit RISC CPU - 192-KB In-System-Programmable Flash and External 256-KB Flash for OTA(Over the Air) - 8-Pin connection for Power Supply Unit - Support Standard Protocol ( ZHA ) - Support Wireless S/W Upgrade( OTA : Over the Air ) S P E C I F I C A T I O N PAGE : REG. DATE : MODEL NAME : TWZT-V001D-F REV. DATE : . . REV. NO. : 0.4 REG. DATE : 2014. 9. 17 REV. DATE : 2014 10 29 5 / 20 Copyrightⓒ. 2014. All Rights Reserved. 3. BLOCK DIAGRAM 2.4GHz Radio 32 - bit RISC CPU 2.4GHz Antenna Matching Components X-Tal R,L,C 8-Pin Connector Pin No. Pin Function 1 Mode Sel 2 Reserved 3 Power Supplied with Typ. 3.0V 4 Reserved 5 GND 6 Dimming ( PWM ) 7 Reserved 8 On/Off S P E C I F I C A T I O N PAGE : REG. DATE : MODEL NAME : TWZT-V001D-F REV. DATE : . . REV. NO. : 0.4 REG. DATE : 2014. 9. 17 REV. DATE : 2014 10 29 6 / 20 Copyrightⓒ. 2014. All Rights Reserved. 4. ABSOLUTE MAXIMUM RATING(1) NO ITEM RATING UNIT 1 Supply voltage All supply pins must have the same voltage(1) 3.6 V 2 Storage temperature range -20 ~ 85 °C 3 Input RF level 10 dBm 6. GENERAL CHARACTERISTICS Measured on LG Innotek [TWZT-V001D-F] design with VDD = 3.0V and TA=25°C, Unless otherwise noted. all limits apply over the entire operating range, TA = -20 ~ +85°C, VDD 3.0±0.3 and fc = 2.4 ~ 2.5GHz NO ITEM RATING UNIT 1 Operating ambient Temperature Range, TA -20 ~ +85 °C 2 Operating supply voltage (Typ. 3.0v), Power Ripple ±100mV 2.7 ~ 3.3 V 5. RECOMMENDED OPERATING CONDITIONS (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NO Test Item MIN. Typ. MAX. Unit Condition 1 Operating Supply Voltage 2.7 3.0 3.3 V - 2 Frequency Range 2400 - 2483.5 MHz 5MHz Channel Spacing 3 Peak Current Consumption Tx( at +6 dBm) 40 45 50 mA Active-Mode Rx( Boost mode ) 23 28 33 mA Active-Mode 4 ESD -15 - +15 KV Air Condition, No Electrical Problem -2.0 - +2.0 KV Contact Condition, No Electrical Problem S P E C I F I C A T I O N PAGE : REG. DATE : MODEL NAME : TWZT-V001D-F REV. DATE : . . REV. NO. : 0.4 REG. DATE : 2014. 9. 17 REV. DATE : 2014 10 29 7 / 20 Copyrightⓒ. 2014. All Rights Reserved. NO Test Item MIN. Typ. MAX. Unit Condition 1 Nominal Output Power 3 6 - dBm Single Ended 50Ω Load (Required Min.-3dBm) 2 Receiver Sensitivity - -100 -94 dBm PER=1% (Required -85dBm) 3 Maximum Input Level - - 0 dBm PER=1% (Required -20dBm) 4 Frequency Tolerance -20 - +20 ppm All Operating Temp. (Required Max. ±40ppm) 5 Error Vector Magnitude (EVM) - 10 35 % ( Required Max. 35% ) 6 Harmonic - - -31 dBm 2 nd Harmonic - -31 dBm 3 rd Harmonic 7 Spurious Emissions - - -31 dBm All Band (30MHZ ~ 12.5GHz) Measured on LG Innotek [TWZT-V001D-F] design with VDD = 3.0V and Ta=25°C, RF Conducted Test, Unless otherwise noted. All limits apply over the entire operating range, Ta =-20 ~ +85°C , VDD 3.0±0.3 and fc = 2.4 ~ 2.4835 GHz 7. RF SPECIFICATION ( Required ~ ) : refer to IEEE 802.15.4 8. ANTENNA SPECIFICATION NO Test Item MIN. Typ. MAX. Unit Conditi…
