YZP-VL2000Telematics Modem

Copyright ⓒ. 2014. All Rights Reserved. User Guide for LTD-VL2000 (Eagle) 1.Overview 2.Major feature 3.Interface 4.Electrical specification 5.RF specification 6.Mechanical specification 7.General specification 8.Connector 9. RFx information 10. FCC Approval Table of Contents Product : LTE/CDMA(EVDO) Wireless Modem Model name : LTD-VL2000 Copyright ⓒ. 2014. All Rights Reserved. The LTD-VL2000 is achieved as personal mobile communication devices of the compact radio equipment, the latest design of the parts becoming smaller, lighter weight having the LTE(700/1700MHz), CDMA(850/1900MHz) bands. It is the vehicle’s telematics system that connect with LTE and CDMA(EVDO) wireless network and the wireless module with voice and data communication. It can be operated at land, rivers, and other similar areas. On LTE operating mode, It can be communicated with uplink 50Mbps, downlink up to 100Mbps data transfer speed such as a movie or a video call. It may be able to receive large amounts of data. Standard RS-232 port and USB port communicating with the host system via AT-command or control commands can be used to send data. Voice calls are possible. 1. Overview Copyright ⓒ. 2014. All Rights Reserved. Mechanical Dimension 86.2(L) x 78.1(W) x 7.0(T) mm Weight 48g(max) Interface USB, General Purpose I/O pins Antenna FAKRA Connector Temperature * Operation : -20°C ~ +70 °C Storage : -40 °C ~ +85 °C Technology Main Chipset MDM 9615 Memory 2048Mb(NAND) / 1024Mb(SDRAM) Standard 3GPP Rel.9 LTE - DL Speed : 100 Mbps(20M bandwidth) - UL Speed : 50 Mbps(20M bandwidth) 3GPP2 CDMA 1X, EVDO Rev.A - DL Speed : 3.1 Mbps - UL Speed : 1.8 Mbps Band LTE B4, B13 CDMA 850(Cellular), 1900 (PCS) GPS Not Supported Power LTE : Typ. 23dBm(Power Class 3) CDMA : Typ. 24dBm (Power Class 3) ETC DC Power 12V Functions Voice, Data, SMS 2. Major feature Copyright ⓒ. 2014. All Rights Reserved. 3. Interface Customer P/N is connected with outer device using 40 pin connector 3.1 Pin output Figure 1. Connector pin arrangement Copyright ⓒ. 2014. All Rights Reserved. 3. Interface 3.2 Pin description Table 1. Pin descriptions Signal Name Type Pin Description USB USB-NAD_D+ USB-NAD_D- USB_POW_ON USB-GND IO IO I - 13 14 11 12 USB Differential data line (+) USB Differential data line (-) Control line USB Power Supply USB-Ground internal connected to GND Audio PCM D_Audio_NAD_SCLK D_Audio_NAD_LRCK D_Audio_NAD_SDTI D_Audio_NAD_SDTO O O I O 23 24 25 26 PCM Interface bit clock line PCM Interface frame clock line PCM Interface digital audio data in PCM Interface digital audio data out User Interface NAD_OnOff NAD_Reset NAD_Status PowerOn_Off HWakeUp I I O I O 15 16 9 10 17 Control line to power on or off the module Control line to unconditionally restart the module Indicates the power state of the module Control line to switch on the power supply of LGIT-M. Optional Control line to switch on host. Power KL30 (12V) GND I - 1,3,5,7 2,4,6,8 Power supply input (+) Power supply input (-) NC RESERVED - 18,27,28, 29,30,31, 32,33,34, 35,36,37, 38,39, 40 Reserved pins. Please leave the pins unconnected Copyright ⓒ. 2014. All Rights Reserved. 3. Interface 3.3 USB It is supported with universal serial bus for high data communication. And It is satisfied with USB2.0 specification and supported with max.480Mbps Table 2. USB Pin descriptions Pin NO. Signal Name Pin I/O (Modem host) Function Description 13 USB-NAD_D+ IO USB Differential data line (+) 14 USB-NAD_D- IO USB Differential data line (-) 11 USB_POW_ON I Control line USB Power Supply 12 USB-GND - USB-Ground internal connected to GND Copyright ⓒ. 2014. All Rights Reserved. 3. Interface 3.4 Audio This module is provided with PCM interface. The resistor of pulled-up or pulled-down in this pin must be over 50Kohm. Table 3. PCM Pin descriptions 3.5 User interface Pin No. Signal Name Direction Function 15 NAD_OnOff I Turn on and off the module Active High 9 NAD_Status O Indicate the active status of module Active High 10 PowerOn_Off O Supply the power of module Active High 17 HwakeUP O Be used to wake up the host system Active Low 11 USB_Pow_On I Communicate with USB device Active High Table 4. User interface Pin descriptions Pin NO. Signal Name Pin I/O (Modem host) Function Description 23 D_Audio_NAD_SCLK O PCM Interface bit clock line 24 D_Audio_NAD_LRCK O PCM Interface frame clock line 25 D_Audio_NAD_SDTI I PCM Interface digital audio data in 26 D_Audio_NAD_SDTO O PCM Interface digital audio data out Copyright ⓒ. 2014. All Rights Reserved. 4. Electrical specification 4.1 Power supply specification A Module Power supply(KL30) is delivered on DC 12V, 1.5A from host system. In Module internal power supply, it is design for power management integral circuits to distribute constant voltages, and can control the each power block to minimize the power consumptions. In particular, PAM(power amplifier module) has much power consumption so it is supplied for directly 3.8V converted from KL30. Therefore it should be careful to input the supply power of PAM when the absolute rating is over. In addition, all of power input should be design with blocking and protecting high surge and ESD in NAD module. Pin No. Signal Name Direction MIN TYP MAX 1, 3, 5,7 KL30(V_BATT) I 10.8V 12V 13.2V Table 5. Power supply specification Copyright ⓒ. 2014. All Rights Reserved. 4. Electrical specification 4.2 Logic level specification 4.2.1 Digital logic level specification Table 6. Digital logic level specification Copyright ⓒ. 2014. All Rights Reserved. 5. RF specification 5.1 CDMA 5.1.1 Receiver .- Bandwidth : 1.25MHz .- Frequency : 869MHz – 894MHz (BC0), 1930MHz – 1990MHz (BC1) .- RF to Baseband Direct conversion (Zero IF) .- Modulation method : QPSK, 8PSK and 16QAM .- Sensitivity : ≤-104dBm (PER = Under 0.5%) 5.1.2 Transmitter .- Frequency: 824MHz – 849MHz (BC0), 1850MHz – 1910MHz (BC1) .- Maximum RF Output : Power class3 (BC0), 23.01dBm ~ 25.5dBm Power class2 (BC1), 23.01dBm ~ 25.5dBm .- Modulation method : BPSK, QPSK AND 8PSK .- Ba…

Text truncated - open the document above for the full version.

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: March 23, 2015 Letter of Authorization We, the undersigned, hereby authorize DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: YZP-VL2000 including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Innotek Co.,Ltd. . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Jeong Inchang Director

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea Date: March 23, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: YZP-VL2000 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Innotek Co.,Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Innotek Co.,Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists and Tuned-up Procedure 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jeong Inchang Director

LG Innotek Co., Ltd. 978-1, Jangduk-dong, Gwangsan-gu, Gwangju-City, 506-731, Korea UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA March 24, 2015 Modular Approval Attestation for Remote Control Module. Applicant: LG Innotek Co., Ltd. FCC ID: YZP-VL2000 No. FCC requirements EUT 1 Have its own RF shielding RF Block shielded by Metal Case 2 Have buffered modulation/data inputs (if such inputs are provided), Yes, the module has buffered data input. 3 The modular transmitter must have its own power supply regulation. We used self own power supply regulation. 4 Meet the antenna requirements of section 15.203 Not applicable to licensed transmitters. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Yes, the EUT(module) was tested a stand-alone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: YZP-VL2000” shall be placed on the outside of final product. 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. It complies with specific rules or operating requirements. And instruction is included User manual. 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. The exposure condition of this module is compliant with the requirements. Sincerely, Jeong Inchang Director

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: March 23, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey Sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with UL Verification Services Inc. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database and Industry Canada contact information.

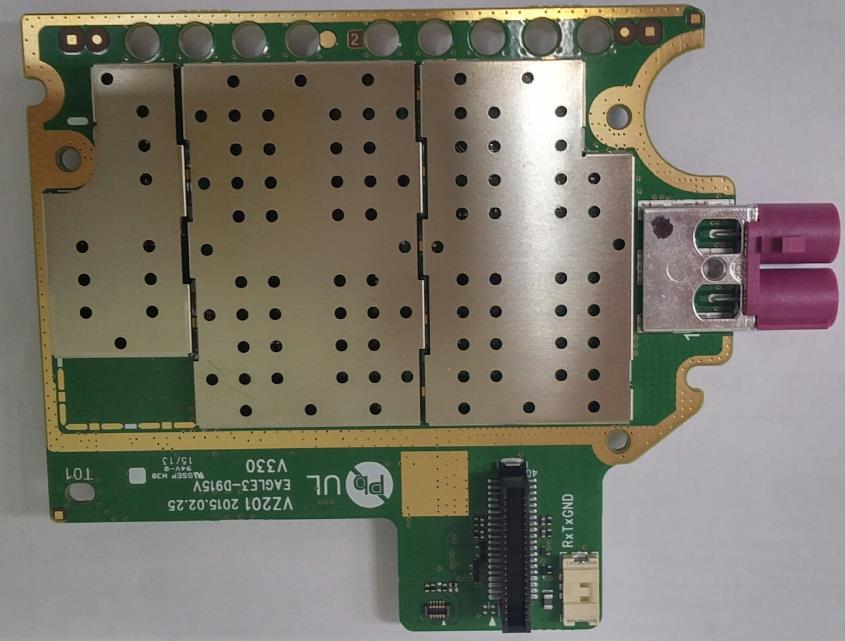

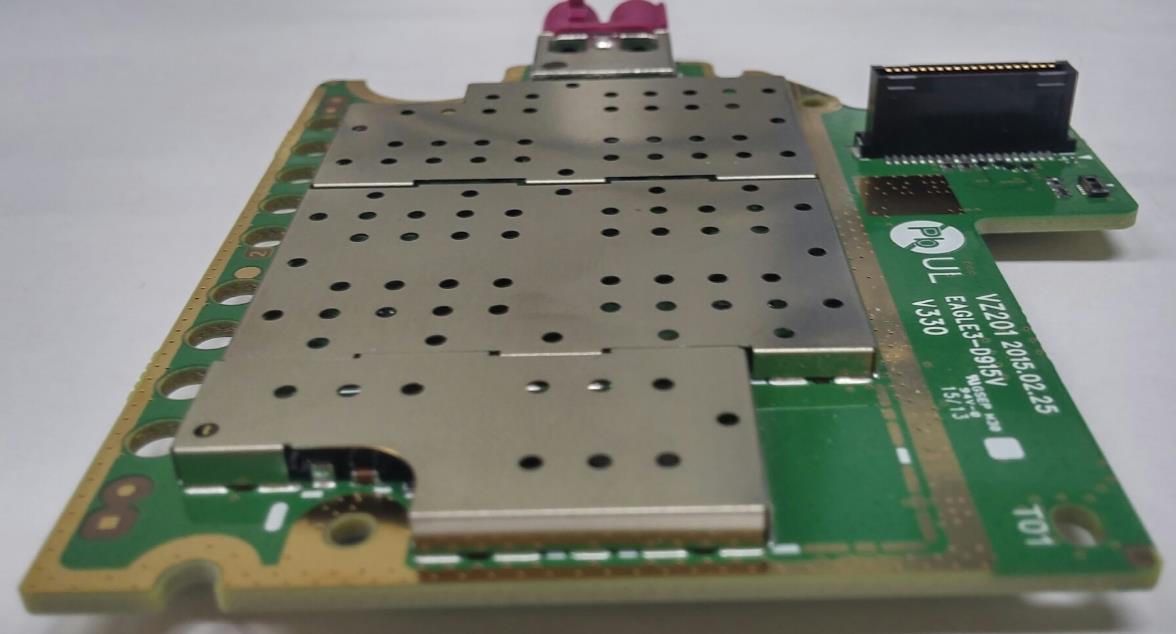

FCC ID: YZP-VL2000 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCC ID: YZP-VL2000 Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCC ID: YZP-VL2000 Copyright Ⓒ 2015, DT&C Co., Ltd. View 3

FCC ID: YZP-VL2000 Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate above the shield can - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

FCC ID: YZP-VL2000 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCC ID: YZP-VL2000 Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 Antenna

~ - ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Conclusion : The exposure condition of this device is compliant with FCC rules. 0.250 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Target power : dBm dB ~ dBm dBm Requirment =0.518 Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) 1256.637 - FCCID: YZP-VL2000LG Innotek Co., Ltd. 777.00 MHz784.50 MHz Frequency range : MPE Calculation : LTE Band 13 Maximum antenna gain(PK) : 6.49 dBi Tolerance : Max Target power : Measured Conducted power : 24.50 22.94 1.501.50 23.00 + dB Note Maximum EIRP : 30.99 dBm( The MPE calculation for this exposure is shown below. 1256.637 )mW The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. ~ - ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: YZP-VL2000LG Innotek Co., Ltd. MPE Calculation : LTE Band 4 Frequency range : 1710.70 MHz 1754.30 MHz Target power : 23.00 dBm Tolerance : + 1.50 dB ~ Max Target power : 24.50 dBm Measured Conducted power : 23.95 dBm Maximum antenna gain(PK) : 5.49 dBi Maximum EIRP : 29.99 dBm( 997.700 )mW 1 The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 997.700 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Requirment = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. Conclusion : The exposure condition of this device is compliant with FCC rules. 1.50dB 0.199 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) ~ - ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: YZP-VL2000LG Innotek Co., Ltd. MPE Calculation : CDMA 1X (Cellular) Frequency range : 824.70 MHz848.31 MHz Target power : 24.00 dBm Tolerance : + 1.50 dB ~ Max Target power : 25.50 dBm Measured Conducted power : 24.26 dBm Maximum antenna gain(PK) : 6.00 dBi Maximum EIRP : 31.50 dBm( 1412.460 )mW 0.549 The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 1412.460 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Requirment = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. Conclusion : The exposure condition of this device is compliant with FCC rules. 0.99dB 0.281 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) ~ - ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: YZP-VL2000LG Innotek Co., Ltd. MPE Calculation : CDMA 1X (PCS) Frequency range : 1851.25 MHz 1908.75 MHz Target power : 24.00 dBm Tolerance : + 1.50 dB ~ Max Target power : 25.50 dBm Measured Conducted power : 24.25 dBm Maximum antenna gain(PK) : 7.50 dBi Maximum EIRP : 33.00 dBm( 1995.262 )mW 1 The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 1995.262 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) Requirment = The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. Conclusion : The exposure condition of this device is compliant with FCC rules. 0.99dB 0.397 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) ~ - ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: YZP-VL2000LG Innotek Co., Ltd. MPE Calculation : CDMA 1X EVDO (Cellular) Frequency range : 824.70 MHz848.31 MHz Target power : 24.00 dBm Tolerance : + 1.50 dB ~ 0.99dB Max Target power : 25.50 dBm Measured Conducted power : 24.28 dBm Maximum antenna gain(PK) : 6.00 dBi Maximum EIRP : 31.50 dBm( 1412.460 )mW The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 1412.460 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. Conclusion : The exposure condition of this device is compliant with FCC rules. 0.281 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Requirment =0.549 ~ - ▪ ▪S=- = = ▪ mW/cm² (FCC Part 1.1310 Table 1 Limits for maximum permissible exposure(MPE) - FCCID: YZP-VL2000LG Innotek Co., Ltd. MPE Calculation : CDMA 1X EVDO (PCS) Frequency range : 1851.25 MHz 1908.75 MHz Target power : 24.00 dBm Tolerance : + 1.50 dB ~ 0.99dB Max Target power : 25.50 dBm Measured Conducted power : 24.29 dBm Maximum antenna gain(PK) : 7.50 dBi Maximum EIRP : 33.00 dBm( 1995.262 )mW The MPE calculation for this exposure is shown below. Calculation of power density at the specific separation EIRP / ( 4 R 2 π ) Note 1995.262 / ( 4 X 20 2 X π )S = Maximum power density(mW/cm 2 ) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. Conclusion : The exposure condition of this device is compliant with FCC rules. 0.397 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Requirment =1 ▪ ▪ ▪ Requirment =Σ of MPE ratios ≤ 1 - FCCID: YZP-VL2000LG Innotek Co., Ltd. CellularPCSCellularPCS CDMA Cellular(Voice) + EVDO PCS(Data) CDMA PCS(Voice) + EVDO Cellular(Data) Note: Above configuration was declared from applicant. 0.909 Band 13 Band 4 0.250.1990.2810.3970.2810.397 0.596 0.909 0.995 0.880 0.711 0.397 0.1990.512 RF Ex…

Text truncated - open the document above for the full version.

G FCCID: YZP-VL2000 DTNC1503-00940G Report No.: DRTFCC1503-0068(2) G TRF-RF-230(00)141110 Page 2 / 81 Copyright ̺ C 2015, DT&C Co., Ltd.G G Test Report Version Test Report No. Date Description DRTFCC1503-0068 Mar. 26, 2015 Initial issue DRTFCC1503-0068(1) Apr. 06, 2015 Add article 8.3, 8.4 note DRTFCC1503-0068(2) Apr. 13, 2015 Update max target power (tolerance), max antenna gain G FCCID: YZP-VL2000 DTNC1503-00940G Report No.: DRTFCC1503-0068(2) G TRF-RF-230(00)141110 Page 3 / 81 Copyright ̺ C 2015, DT&C Co., Ltd.G G Table of Contents 1. GENERAL INFORMATION ........................................................................ 5 2. INTRODUCTION ........................................................................................ 6 2.1 EUT DESCRIPTION ............................................................................................................. 6 2.2 MEASURING INSTRUMENT CALIBRATION ....................................................................... 6 2.3 TEST FACILITY .................................................................................................................... 6 3. DESCRIPTION OF TESTS ......................................................................... 7 3.1 ERP&EIRP ........................................................................................................................... 7 3.2 PEAK TO AVERAGE RATIO ................................................................................................ 9 3.3 OCCUPIED BANDWIDTH. ................................................................................................. 10 3.4 BAND EDGE EMISSIONS (Conducted) ............................................................................ 11 3.5 SPURIOUS AND HARMONIC EMISSIONS (Conducted) .................................................. 12 3.6 UNDESIRABLE EMISSIONS (Radiated) ........................................................................... 13 3.7 FREQUENCY STABILITY .................................................................................................. 14 4. LIST OF TEST EQUIPMENT ................................................................... 15 5. SUMMARY OF TEST RESULTS .............................................................. 16 6. SAMPLE CALCULATION ........................................................................ 17 7. TEST DATA .............................................................................................. 18 7.1 CONDUCTED OUTPUT POWER ....................................................................................... 18 7.2 OCCUPIED BANDWIDTH .................................................................................................. 20 7.3 PEAKTOAVERAGERATIO ................................................................................................. 20 7.4 BAND EDGE EMISSIONS (Conducted) ............................................................................ 20 7.5 SPURIOUS AND HARMONICS EMISSIONS (Conducted) ............................................... 20 7.6 EFFECTIVE RADIATED POWER (LTE Band 13) .............................................................. 21 7.7 EQUIVALENT ISOTROPIC RADIATED POWER (LTE Band 4) ......................................... 21 7.8 UNDESIRABLE EMISSIONS (RADIATED) ........................................................................ 22 7.8.1 UNDESIRABLE EMISSIONS (LTE Band 13) ............................................................. 22 7.8.2 UNDESIRABLE EMISSIONS IN 763 ~ 775 MHz & 793 ~ 805 MHz(LTE Band 13) .... 23 7.8.3 UNDESIRABLE EMISSIONS IN 1559 ~ 1610 MHz(LTE Band 13) ............................. 24 7.8.4 UNDESIRABLE EMISSIONS (LTE Band 4) ............................................................... 25 7.9 FREQUENCY STABILITY .................................................................................................. 26 7.9.1 LTE Band 13 ............................................................................................................... 26 7.9.2 LTE Band 4 ................................................................................................................. 27 8. TEST PLOTS ........................................................................................... 28 8.1 OCCUPIED BANDWIDTH .................................................................................................. 28 8.1.1 LTE Band 13 ............................................................................................................... 28 8.1.2 LTE Band 4 ................................................................................................................. 30 8.2 PEAK TO AVERAGE RATIO .............................................................................................. 36 8.2.1 LTE Band 13 ............................................................................................................... 36 8.2.2 LTE Band 4 ................................................................................................................. 38 8.3 BAND EDEG EMISSIONS(Conducted) ............................................................................. 44 G FCCID: YZP-VL2000 DTNC1503-00940G Report No.: DRTFCC1503-0068(2) G TRF-RF-230(00)141110 Page 4 / 81 Copyright ̺ C 2015, DT&C Co., Ltd.G G 8.3.1 LTE Band 13 ............................................................................................................... 44 8.3.2 LTE Band 4 ................................................................................................................. 51 8.4 SPURIOUS AND HARMONICS EMISSIONS(Conducted) ................................................ 63 8.4.1 LTE Band 13 ............................................................................................................... 63 8.4.2 LTE Band 4 ................................................................................................................. 65 G FCCID: YZP-…

Text truncated - open the document above for the full version.

FCCID: YZP-VL2000 DTNC1503-00940 Report No.: DRTFCC1503-0069(2) TRF-RF-210(05)141230 Page 2 / 55 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1503-0069 Mar. 26, 2015 Initial issue DRTFCC1503-0069(1) Apr. 06, 2015 Revise the conducted output power DRTFCC1503-0069(2) Apr. 13, 2015 Update max target power (tolerance), max antenna gain FCCID: YZP-VL2000 DTNC1503-00940 Report No.: DRTFCC1503-0069(2) TRF-RF-210(05)141230 Page 3 / 55 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. INTRODUCTION ........................................................................ 5 2.1. EUT DESCRIPTION .......................................................................................... 5 2.2. Support equipment .......................................................................................... 5 2.3. MEASURING INSTRUMENT CALIBRATION.................................................... 5 2.4. TEST FACILITY ................................................................................................ 5 3. DESCRIPTION OF TESTS ......................................................... 6 3.1 ERP & EIRP ....................................................................................................... 6 3.2 PEAK TO AVERAGE RATIO .............................................................................. 8 3.3 OCCUPIED BANDWIDTH. ............................................................................... 10 3.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL. .................................... 11 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. .......... 12 3.6 RADIATED SPURIOUS EMISSIONS ............................................................... 13 3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 14 4. LIST OF TEST EQUIPMENT .................................................... 15 5. SUMMARY OF TEST RESULTS .............................................. 16 6. SAMPLE CALCULATION ........................................................ 17 7. TEST DATA .............................................................................. 18 7.1 CONDUCTED OUTPUT POWER ..................................................................... 18 7.2 PEAK TO AVERAGE RATIO ............................................................................ 19 7.3 OCCUPIED BANDWIDTH ................................................................................ 19 7.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ........... 19 7.5 BAND EDGE .................................................................................................... 19 7.6 EFFECTIVE RADIATED POWER..................................................................... 20 7.7 EQUIVALENT ISOTROPIC RADIATED POWER ............................................. 20 7.8 RADIATED SPURIOUS EMISSIONS ............................................................... 21 7.8.1 RADIATED SPURIOUS EMISSIONS (Cellular CDMA 1x) .......................... 21 7.8.2 RADIATED SPURIOUS EMISSIONS (Cellular CDMA 1x EVDO (Rev. A)) . 22 7.8.3 RADIATED SPURIOUS EMISSIONS (PCS CDMA 1x) ................................ 23 7.8.4 RADIATED SPURIOUS EMISSIONS (PCS CDMA 1x EVDO (Rev. A)) ....... 24 7.9 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ........ 25 7.9.1 FREQUENCY STABILITY (Cellular CDMA 1x) ........................................... 25 7.9.2 FREQUENCY STABILITY (Cellular CDMA 1x EVDO (Rev. A)) .................. 26 7.9.3 FREQUENCY STABILITY (PCS CDMA 1x) ................................................. 27 7.9.4 FREQUENCY STABILITY (PCS CDMA 1xEVDO (Rev. A)) ......................... 28 8. TEST PLOTS ..................................................................…

Text truncated - open the document above for the full version.
