Z37FM-BFM Transmitter

User Manual for FM-04 FM transmitter 1: Transmit frequency wirelessly to MP3 in car. 2: with LCD screen display; with time display; real-time temperature display; the battery power display function. 3: 211 frequency (88.1-107.9MHz), effective range up to 5 meters 4: 1 function key “SET”; 3 frequency memory keys M1, M2, M3 (can store frequency when the battery off). 5: Power supply : AAA rechargeable battery, car charger, USB power supply plug. 6: Digital transmission chip, even if under the terrible environment of rapid change temperature, radio wave transmission will not be affected at all. The multi-frequency design can choose different frequency . 7: High fidelity, low stress, stereo sound, CD sound. 8: Applicable to MP3, MP4, PDA, Notebook, PC, CD, MD, DVD and other audio playback device. 9: Long working hours, 2 AAA battery (700mA/H) can be used continuously for more than 23 hours! 10: Low operating voltage, the voltage of the battery low to 2.7V still can work ! Use Method ★Install 2 AAA batteries or use an external power supply, battery cannot be used at the same time with external power supply ★plug 3.5 Jack of FM transmitter into the audio device (such as MP3), adjust the volume appropriate. ★Tune the radio frequency and volume (avoid the frequency to be occupied by the local station). ★Press the power switch, adjust the frequency of the FM transmitter same as the radio frequency. When the signal is occupied by the radio station, adjust another frequency of FM transmitter and radio. ★ ON/OFF switch: long press "ON/OFF" key to tune on or off. Short press "ON/OFF" to tune to transmitting mode or time mode ☆Frequency selection: short press "UP" or "DOWN" key to select frequency (88.1 - 107.9MHz); long press "UP" or "DOWN" key to select frequency quickly. ★ Frequency storage: press "UP" or "DOWN" key to select the frequency, long press "M1" or "M2" or "M3" key to memory; press "M1" or "M2" or "M3" key to find out the storage frequency.. ★Time setting: in the time mode, long press "SET" key to enter the hour set state, short press "SET" button, enter the minutes setting state, press "UP" or "DOWN" button to adjust the hour or minute; short press "SET" key to finish setup. FCC Notice: this device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Besstec Electronics (Zhongshan) Co., Ltd. FCC ID: Z37FM-B FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Minghua Zhan Position QC Manager Company Name Besstec Electronics (Zhongshan) Co., Ltd. Address Yujing Industrial Park, Torch Development Zone, No. 106, Qihao Road, Zhongshan, China Tel / Fax 86-760-88331776/86-760-88331706 E-Mail [email protected]

Besstec Electronics (Zhongshan) Co., Ltd. Authority to Act as an Agent We declare that the following representative (agent) Name Jack kang Position EMC Manager Company Name Shenzhen TCT Testing Technology Co., Ltd Address 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, China Tel / Fax +86-0755-27363466/+86-0755-27673332 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name FM Transmitter Model Name FM-04 Brand Name N/A Yours sincerely, Signatory Name Minghua Zhan Position QC Manager Company Name Besstec Electronics (Zhongshan) Co., Ltd. Address Yujing Industrial Park, Torch Development Zone, No. 106, Qihao Road, Zhongshan, China Tel / Fax 86-760-88331776/86-760-88331706 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

FM Attestation Letter APPLICANT: Besstec Electronics (Zhongshan) Co., Ltd. FCC ID: Z37FM-B The theory of FM Transmitter (Mode: FM-04): 1) How does this device operate? Input Through the audio and Powered by 3V 2 AAA battery or 12V car charger. It transmit the audio signal from a external audio source such as MP3 player by a FM transmitter tuned on 88.1MHz and the audio signal can be received by a common FM Broadcasting Radio which is tuned to the same transmitted frequency of the FM transmitter and regenerate the transmitted signal through the FM Broadcasting Radio. 2) Provide information on the device and antenna? The transmitter’s antenna is a Built-in antenna. 3) How is it installed? Powered by 3V 2 AAA battery or 12V car charger. 4) What test procedure was used? Operating condition is according to ANSI C63.4-2003. 5) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. EUT was adjusted to work at selected channels: 88.1MHz, 98.0MHz, and 107.9MHz. The EUT will not allow operation below 88.1MHz and will not allow operation above 107.9MHz. 6) Was the bandwidth properly tested with maximum audio input? Emissions from the intentional radiator shall be confined within a band 200 kHz wide centered on the operation frequency. The 200 kHz band shall lie wholly within the frequency range of 88-108 MHz .Setup the EUT and simulators as shown in the report. Enable RF signal and confirm EUT active. Modulate output capacity of EUT up to specifications. 7) If tested in a car, how was it configured? No, The EUT was tested in a 3m emi-anechoic chamber 8) Does the device operate in a vehicle? Please state that this was verified. The EUT can operate in a vehicle. It can be connected via Car charger. 9) Provide the test report. Test Report Submitted.

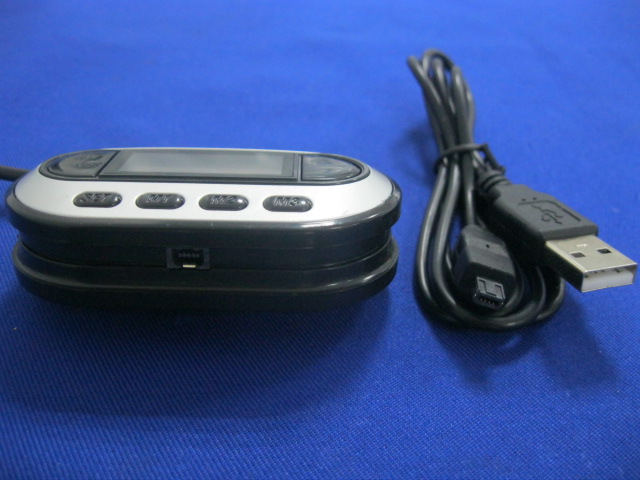

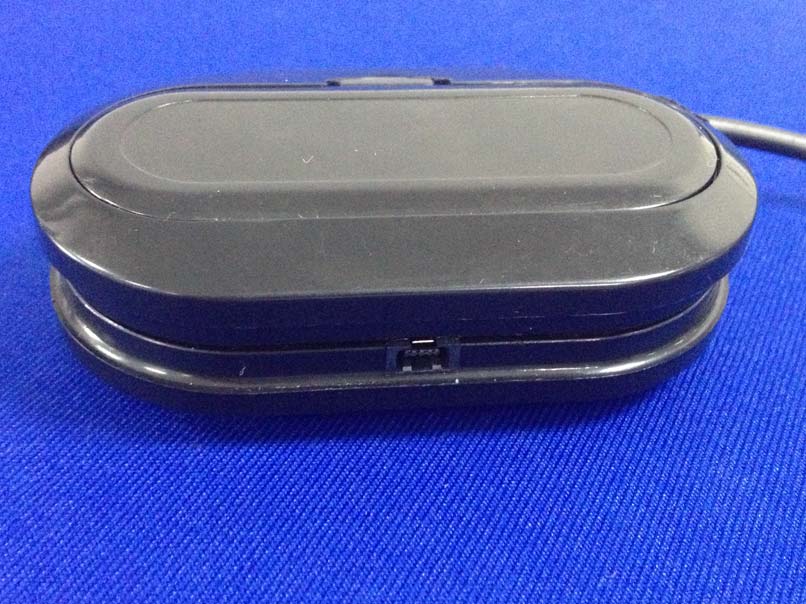

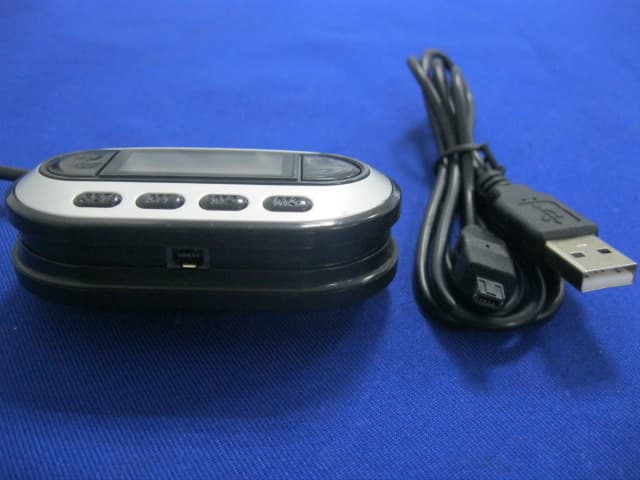

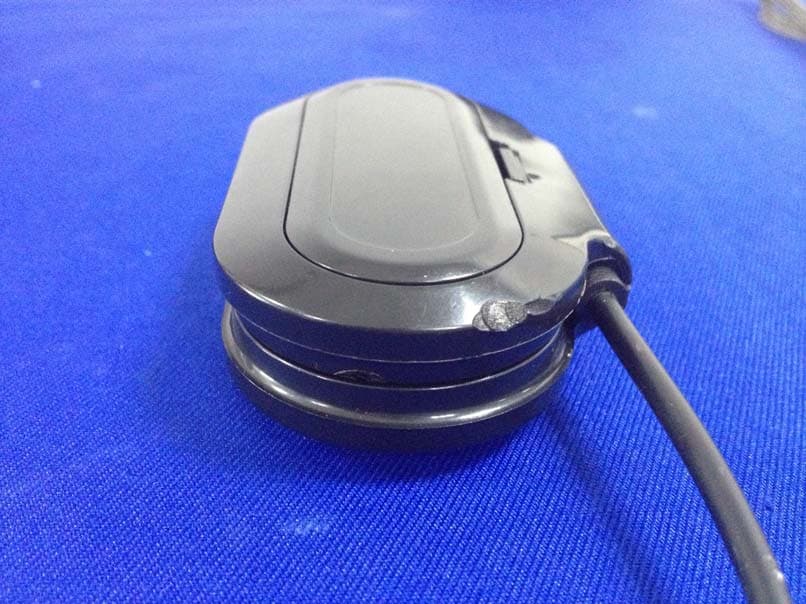

External photo

LABEL ARTWORK AND LOCATION Label Size: L*W=30mm*5mm FCC ID: Z37FM-B FCC ID Label Location

FCC ID TEST REPORT for FM Transmitter Model: FM-04 FCC ID: Z37FM-B Prepared for: Besstec Electronics (Zhongshan) Co., Ltd. Yujing Industrial Park, Torch Development Zone, No. 106, Qihao Road, Zhongshan, China Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27363466 FAX: +86-0755-27673332 Report Number：TCT130507013F2-1 Date of Test： May 10~16, 2013 Date of Report： May 16, 2013 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: Z37FM-B Report Number: TCT130507013F2-1 Page 2 of 23 Table of Contents 1.0 General Details ...................................................................................................3 1.1 Test Lab Details...................................................................................................3 1.2 Applicant Details.................................................................................................3 1.3 Description of EUT ..............................................................................................4 1.4 Submitted Sample.................................................................................................4 1.5 Test Duration....................................................................................................... 4 1.6 Test By............................................................................................................4 2.0 List of Measurement Equipment............................................................................5 3.0 Technical Details................................................................................................6 3.1 Summary of Test Results.......................................................................................6 3.2 Test Standards....................................................................................................6 4.0 EUT Modification...............................................................................................6 5.0 Measurement Uncertainty....................................................................................6 6.0 Power Line Conducted Emission Test......................................................................7 6.1 Schematics of the test...........................................................................................7 6.2 Test Method and Test Procedure...............................................................................7 6.3 EUT Operating Condition.......................................................................................7 6.4 Test Equipment...................................................................................................7 6.5 Conducted Emission Limit......................................................................................8 6.6 Photo documentation of the test set-up .....................................................................8 6.7 Test specification.................................................................................................8 6.8 Test result.........................................................................................................8 7.0 Fundamental Radiation Emission............................................................................11 7.1 Test Method and test Procedure..................................................................................11 7.2 Block diagram of Test setup.....................................................................................11 7.3 Limit...............................................................................................................11 7.4 Photo documentation of the test set-up........................................................................12 7.5 Test Equipment......................................................................................................12 7.6 Test specification.....................................................................................................12 7.7 Test result................................................................................................................12 8.0 Spurious Emission Test...........................................................................................13 9.0 Occupied Bandwidth...............................................................................................19 10.0 Antenna Requirement.........................................................................................22 11.0 FCC ID Label...................................................................................................23 FCC ID: Z37FM-B Report Number: TCT130507013F2-1 Page 3 of 23 1.0 General Details 1.1 Test Lab Details Name : Shenzhen TCT Testing Technology Co.,Ltd Address: 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China Telephone: +86-0755-27363466 Fax: +86-0755-27673332 Site Listed with Federal Communication Commission Registration Number: 572331 For 3m chamber Site Listed with Industry Canada of Ottawa, Canada Registration Number IC: 10668A-1 For 3m chamber 1.2 Applicant Details Applicant: Besstec Electronics (Zhongshan) Co., Ltd. Address: Yujing Industrial Park, Torch Development Zone, No. 106, Qihao Road, Zhongshan, China Telephone: 86-760-88331776 Fax: 86-760-88331706 Manufacturer: Besstec Electronics (Zhongshan) Co., Ltd. Address: Yujing Industrial Park, Torch Development Zone, No. 106, Qihao Road, Zhongshan, China Telephone: 86-760-88331776 Fax: 86-760-88331706 FCC ID: Z37FM-B Report Number: TCT130507013F2-1 Page 4 of 23 1.3 Description of EUT Product: FM Transmitter Model N…
