Z3WAIR49202 Port Gigabit Ethernet 11ac/11n Wireless Router

Wireless Regulatory Information FCC Statement : THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC CAUTION: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. IEEE 802 11b or 802 11g operation of this product in the USA is firmware limited to channel 1~11. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This device is restricted for indoor use. DFS Statement : Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band. SAFETY WARNINGS:  Do not use this product near water, for example, in a wet basement or near a swimming pool  Avoid using this product during an electrical storm There may be a remote risk of electric shock from lightning  This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm Wash hands after handling

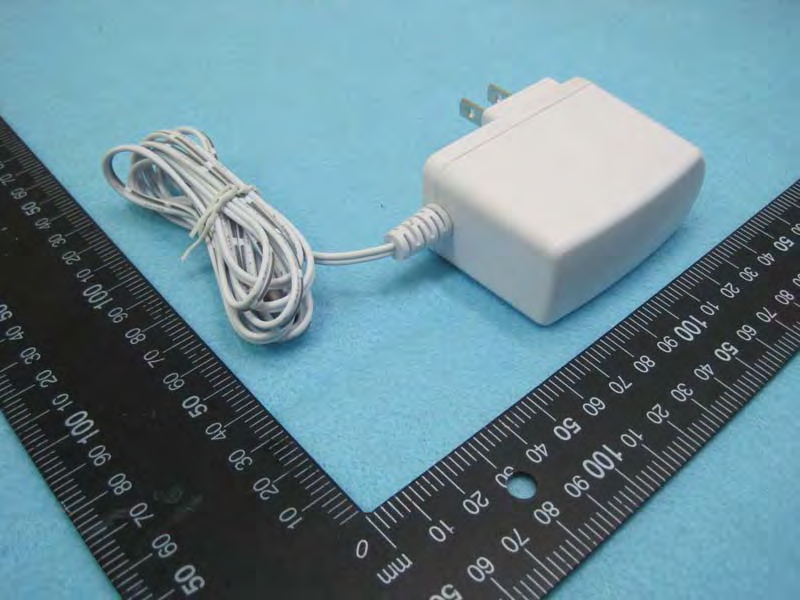

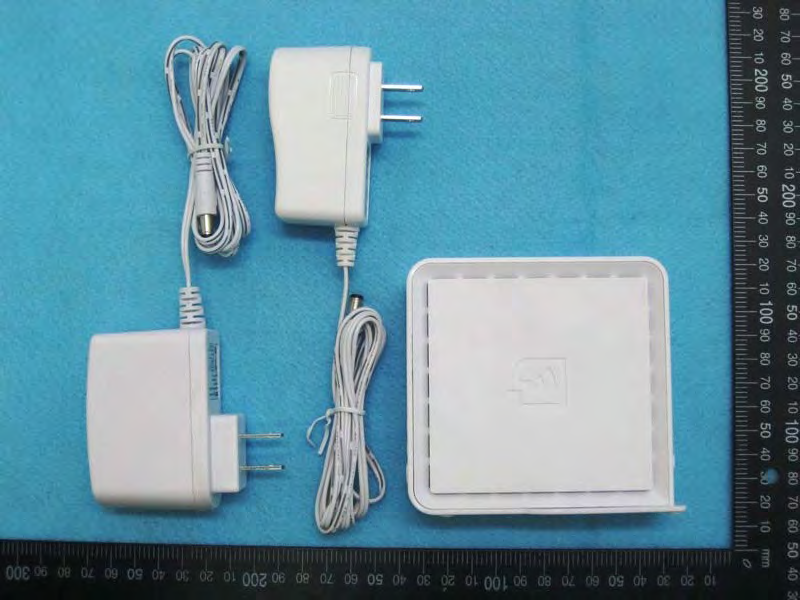

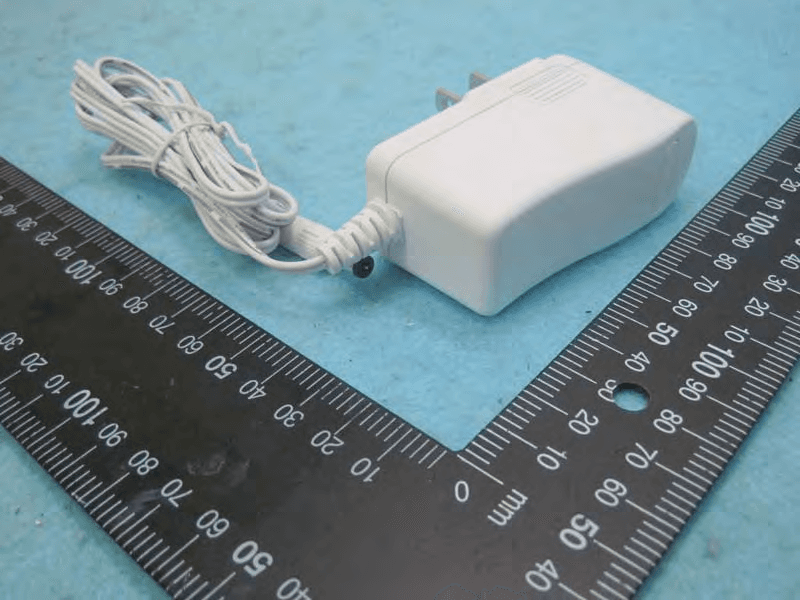

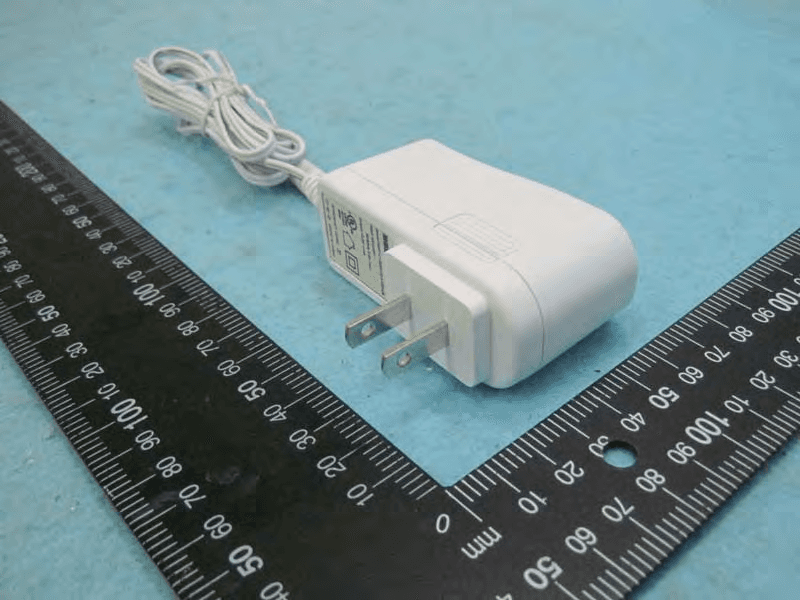

Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 1 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 2 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 3 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Adapter 1 Model No.: MSP-C1000IC12.0-12B-US Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 4 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 5 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Adapter 2 Model No.: MSP-C1500IC12.0-18W-US Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 6 OF 6 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973

Label: unit = mm Label Here

Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973 Report No.:490527-05 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-3-327-3456 ISSUED DATE : Feb. 03, 2015 FAX : 886-3-327-0973

Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11acVHT20 : 25.93 dBm The maximum combined Average Output Power Distance (m) Directional Gain Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 4.77 3.0000 25.9284 391.5972 0.233836 1 Complies Note: For 5GHz ISM Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11acVHT20 : 27.10 dBm The maximum combined Average Output Power Distance (m) Directional Gain Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 4.77 3.0000 27.0995 512.8031 0.306212 1 Complies Note: For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11b: 24.50 dBm Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2.50 1.7783 24.5000 281.8383 0.099759 1 Complies Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.099759 / 1 + 0.306212 / 1 = 0.405971, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 63% Test Engineer Lucas Huang / Andy Tsai Configurations 2.4G + 5G Horizontal Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company AirTies Wireless Networks Applicant Address Gülbahar Mah. Avni Dilligil Sok. Celik Is Merkezi ISTANBUL, 34394 Turkey FCC ID Z3WAIR4920 Manufacturer’s company SHENZHEN GONGJIN ELECTRONICS CO.,LTD. Manufacturer Address 2F/3F/4F Baiying Building,1019#Naihai RD, Nanshan Dist., Shenzhen, Guangdong, CHINA Product Name 2 Port Gigabit Ethernet 11ac/11n Wireless Router Brand Name AirTies Model No. Air 4920 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Oct. 22, 2014 Final Test Date Jan. 19, 2015 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D03 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR490527-05AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: Z3WAIR4920 Issued Date : Feb. 03, 2015 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. EUT Operation during Test .................................................................................................................................................................10 3.10. Duty Cycle ........................................................................................................................................................................................11 3.11. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................19 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................27 4.4. Power Spectral Density Measurement ..............................................................................................................................................30 4.5. Radiated Emissions Measurement ....................................................................................................................................................35 4.6. Band Edge Emissions Measurement .................................................................................................................................................50 4.7. Frequency Stability Measurement ....................................................................................................................................................56 4.8. Antenna Requirements .....................................................................................................................................................................60 5. LIST OF MEASURING EQUIPMENTS ....................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR490527-05 FCC ID: Z3WAIR4920 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW
