Z3WAIR492002 Port Gigabit Ethernet 11ac/11n Wireless Router

INTERNET YOUR MODEM YOUR STB 1 2 12 3 4 12 SUCCESS OUT OF RANGE Designed by AirTies in Europe. Manufactured in China. Wi-Fi Name: AirTies_Air4920_XXXX Wi-Fi Password: abcdef1234 Designed by AirTies in Europe. Manufactured in China. Wi-Fi Name: AirTies_Air4920_XXXX Wi-Fi Password: abcdef1234 INTERNET YOUR MODEM YOUR STB 1 WPS 2 WPS YOUR STBADDITIONAL UNIT SUCCESS SUCCESS SUCCESS INTERNET YOUR MODEM LED Indicators: Condition LED Color LED Behavior Timing S tate Identifier Explanation Recommended Action(s) Power OFF (OFF/Dark) - A Power on device if desired. No other action required. Power ON White Solid (No blinking) B No action required. If unit was just powered on, then please wait for at least 2 minutes for the unit to complete its boot process. Firmware upgrade in progress White Blinking 500ms OFF500ms ON C No action required. Please wait for the unit to reboot (and enter state B). WLAN is active and the node has an active strong Mesh/Repeater connection on the 5GHz Radio. Green Blinking 50ms OFF5000ms ON D No action required. WLAN is active and all MESH/Repeater links on 5GHz Radio are weak. Red Solid (No blinking) E Bring device closer to another device on the MESH. WLAN is active or Searching for radar activity (OFF/Dark) Both Radio LEDs are dark F No action required. WPS is in progress Green Blinking in sync with 2.4GHz led WPSCert. Compliant G No action required. WPS is succesful Green Solid (No blinking) WPSCert. Compliant H This behavior is temporary and lasts for about 10 seconds, after which the LEDs go to one of the following states:1) MESH with strong signal (state D), and2) MESH with poor signal (state E) If LE D is red (state E) then bring device closer to another device on the MESH. If LED is green (state D), then no action is required. Unconfigured device. Green Blinking in sync with 2.4GHz led 4000ms OFF4000ms ON I Device has factory setting and is not connected to the home network in any way (e.g., the device is not wired to the router-gateway) Configure device (refer to Quick Installation Guide) WLAN acti ve, Device configured, No Repeater/MESH link on 5GHz Radio. Green Solid (No blinking) J First AP (wired to router-gateway) No action required. There is configured MESH/Repeater connection on 5GHz, however connection is inactive. (Cannot connect.) Red Blinking 1000msec OFF 1000msec ON K AP is part of MESH, but unable to find any of its MESH partners. Make sure other device(s) that are part of the MESH network a re powered on and close enough to connect. WPS is not successful Red Blinking with 2.4GHz led WPSCert. Compliant L This behavior is temporary and lasts for about 10 seconds, after which the LEDs go back to the state the device was in before the WPS attempt On failure, repeat WPS attempt after bringing device next to another device that is already on the MESH network (i.e., in state D). Power 5 GHz This product makes use of software developed by the open source community. Any such software is licensed under the specific license terms applicable to that particular software (like GPL, LGPL etc). Detailed information on the applicable licenses and license terms can be found on the device's user interface. By using this product, you acknowledge that you have reviewed such license terms and that you agree to be bound by them. Where such terms entitle you to the source code of said software, that source code will be made available at cost upon request from AirTies. To obtain a copy of said source code, please send your request in writing via email to [email protected] or via snail mail to: AirTies Wireless Communications Gulbahar Mah. Avni Dilligil Sok. No:5 Celik Is Merkezi, Mecidiyeköy, 34394 ISTANBUL/Turkey AirTies will mail to you a CD with the requested source code for $9,99 plus the cost of shipping. For details please contact [email protected]

Wireless Regulatory Information FCC Statement : THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC CAUTION: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. IEEE 802 11b or 802 11g operation of this product in the USA is firmware limited to channel 1~11. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This device and it's antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. This device is restricted for indoor use. DFS Statement : Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band.  SAFETY WARNINGS:  Do not use this product near water, for example, in a wet basement or near a swimming pool  Avoid using this product during an electrical storm There may be a remote risk of electric shock from lightning  This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm Wash hands after handling

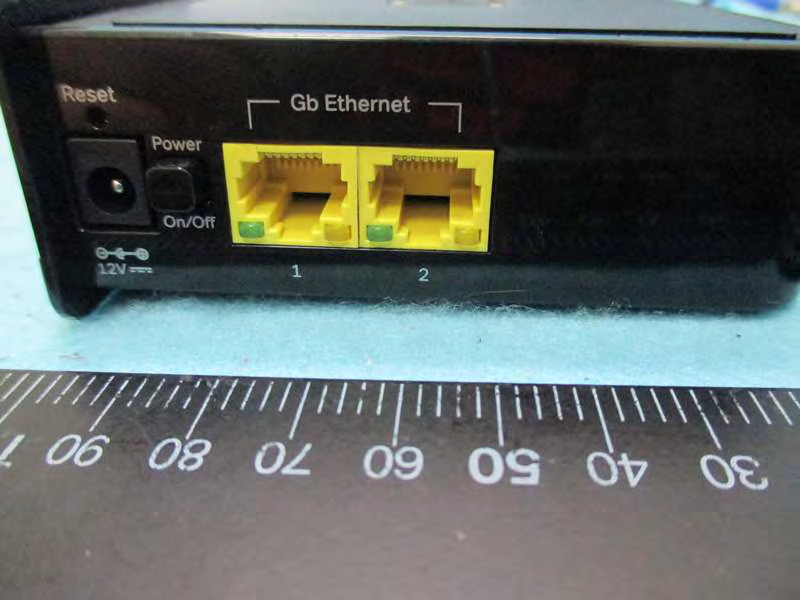

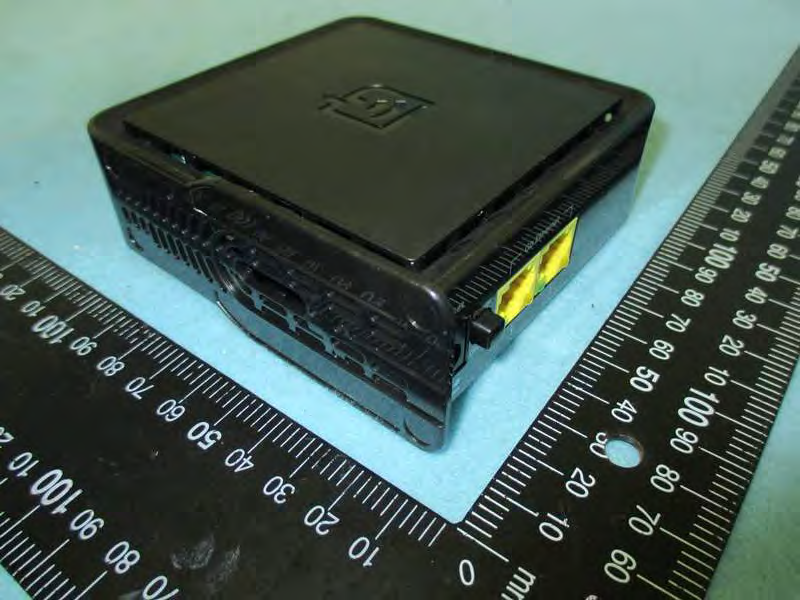

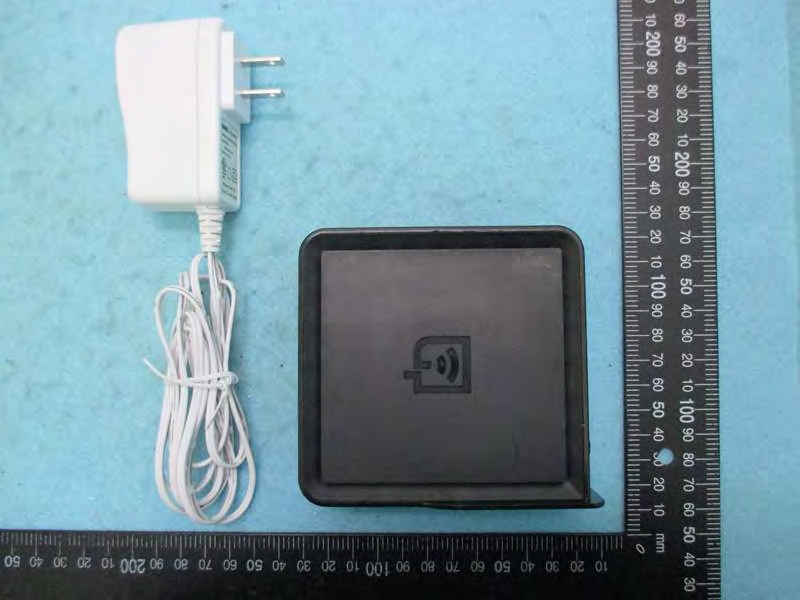

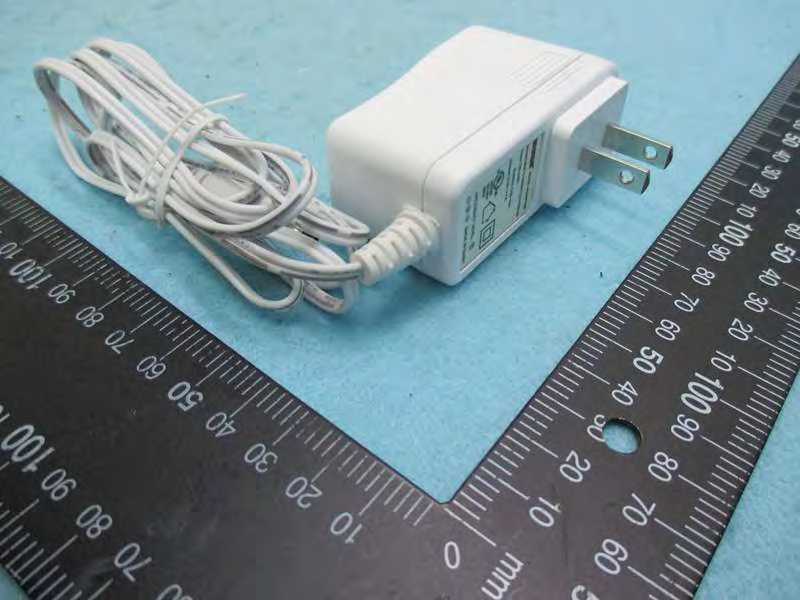

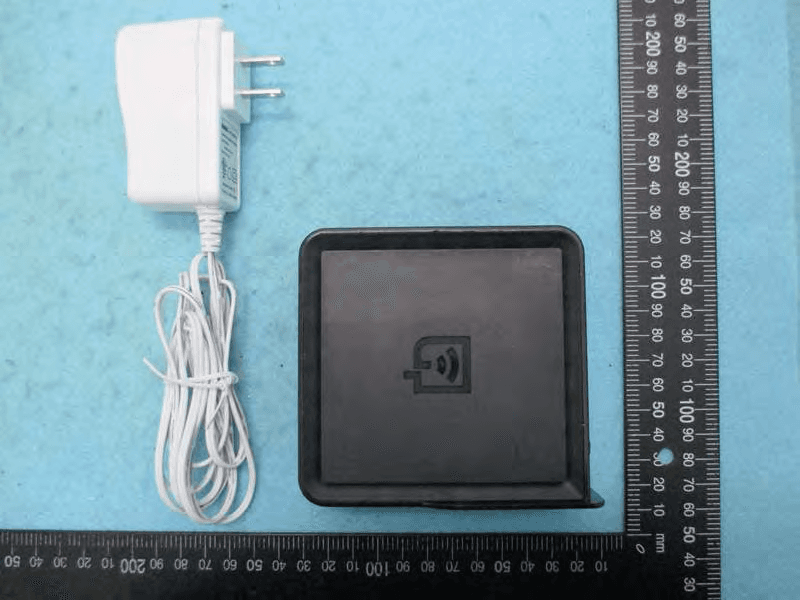

Report No.:552501 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:552501 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Adapter Model No.: MSP-C1000IC12.0-12B-US Report No.:552501 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973

Label Here

Report No.:552501 SPORTON International Inc. PAGE NUMBER : 1 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.:552501 SPORTON International Inc. PAGE NUMBER : 2 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 3 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 4 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 5 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 6 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 7 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 8 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 9 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 10 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 11 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 12 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973 Report No.:552501 SPORTON International Inc. PAGE NUMBER : 13 OF 13 TEL : 886-3-327-3456 ISSUED DATE : May 26, 2015 FAX : 886-3-327-0973

Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby that distance of at least 0.2 m is normally maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band (NII): Antenna Type : PCB Antenna Conducted Power for IEEE 802.11ac VHT20: 26.75dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5240 4.77 3.0000 26.7512 473.2872 0.282616 1 Complies For 5GHz Band (DTS): Antenna Type : PCB Antenna Conducted Power for IEEE 802.11ac VHT20: 26.85dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 5745 4.77 3.0000 26.8546 484.6883 0.289424 1 Complies Note: =4.77dBi For 2.4GHz Band: Antenna Type : PIFA Antenna Conducted Power for IEEE 802.11b: 24.50 dBm Average Output Power Distance (m) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 2437 2.50 1.7783 24.5000 281.8383 0.099759 1 Complies Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.099759 / 1 + 0.289424 / 1 = 0.389183, which is less than “1”. This confirmed that the device complies.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company AirTies Wireless Networks Applicant Address Gülbahar Mah. Avni Dilligil Sok. Celik Is Merkezi ISTANBUL, 34394 Turkey FCC ID Z3WAIR49200 Manufacturer’s company SHENZHEN GONGJIN ELECTRONICS CO.,LTD. Manufacturer Address 2F/3F/4F Baiying Building,1019#Naihai RD, Nanshan Dist., Shenzhen, Guangdong, CHINA Product Name 2 Port Gigabit Ethernet 11ac/11n Wireless Router Brand Name AirTies Model No. Air 4920 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Oct. 22, 2014 Final Test Date May 23, 2015 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02, KDB 662911 D01 v02r01, KDB644545 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Note: Using 1.5m table as an alternative was permitted by the FCC per TCBC conference call of Dec. 2, 2014. Report No.: FR552501AA Report Format Version: Rev. 01 Page No. : i of ii FCC ID: Z3WAIR49200 Issued Date : May 26, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. EUT Operation during Test .................................................................................................................................................................12 3.10. Duty Cycle ........................................................................................................................................................................................13 3.11. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 18 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................18 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................22 4.3. Power Spectral Density Measurement ..............................................................................................................................................26 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................41 4.5. Radiated Emissions Measurement ....................................................................................................................................................54 4.6. Emissions Measurement ....................................................................................................................................................................82 4.7. Antenna Requirements ...................................................................................................................................................................111 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 22°C Humidity 38% Test Engineer Mars Lin Configurations 2.4GHz + 5GHz Horizontal Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : C3 of C3 Vertical

Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR552501 FCC ID: Z3WAIR49200 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
