Z3WAIR49605400 Mbps 11ax Wi-Fi Mesh Extender, 5400 Mbps 11ax Wi-Fi Mesh Access Point, AX5400 Wi-Fi 6 Router, Home Wi-Fi Solution Kit

Air 4960 Multi Pack Generic QIG (Printed Material Specification) Dimension after binding Pages Cover Printing Color Inner Printing Color Cover page Material Inner pages Material Cover Pages Coating Inner pages Coating Binding & Folding Process Output lpi Tolerance PART NUMBER A6 12 pages colour printing colour printing 128g copperplate paper 128g copperplate paper varnishing varnishing Booklet 200 Lpi L*W:±1mm MP-0000067761 Printing Colors PANTONE 432C C:60,M:60,Y:40,K:100C:0,M:85,Y:100,K:0 BACKGROUND’S COLOR PANTONE 871 C Ref. PN.PN.Part DescriptionDateChange NotesAuthor Change Point MP-000006776117.02.2020Initial ReleaseMBQIG, 4960, Generic, EN, Color, Multi, R0, v0 REVISION TABLE USER MANUAL Ar 4960 5400 Mbps 11ax Wi-Fi Mesh Extender 1 PORTS and BUTTONS Status LED WPS Button Reset Button Power On/OFF Button External Power Supply Gigabit Ethernet Ports 2 INSTALLATION To install the AirTies Wireless devices, please download “AirTies Vision” application on your mobile device. Please follow the instructions on your mobile application to complete your setup. Please remove protective plastic cover from the products before installation. ! 3 • Keep devices away from: - Potential sources of electrical interference. Equipment that may potentially cause interference include home security systems, microwaves and consumer electronic devices. - Large metal surfaces and objects. - Sources and areas of heat such as ovens and sun rooms as well as direct sun light. • Please make sure to remove the protective plastic covers used on the device before first use • Please use the device in upright position. The openings are provided for ventilation, do not block or cover openings. • Your device is designed to work indoors and under room temperature conditions only. Avoid placing the device to very cold, very hot, very humid or very dry locations inside your home.” TIPS FOR BEST PERFORMANCE: RETURNING TO FACTORY SETTINGS To return the device to factory settings, press down on the reset button (in the small opening on the back shown above) for 5 seconds and release. A metal paperclip (with an extended tip) or strong toothpick are typically good choices for this task. When the reset process is triggered, the LED in the front will “blink rapidly” and the device will reboot to factory settings. 4 • Operational modes: • Maximum power consumption of networked standby mode is 4.50 W. • This device is restricted for indoor use. 2.4 GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ax (HE20), 802.11ax (HE40) 5 GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80), 802.11ac (VHT160), 802.11ax (HE20), 802.11ax (HE40), 802.11ax (HE80), 802.11ax (HE160) Hereby, [AirTies Wireless Networks] declares that the radio equipment type [Air 4960] is in compliance with Directive 2014/53/EU. The full text of the EU decleration of conformity is available at the following internet address: http://www.airties.com/declarations-of-conformity.html PRODUCT NOTICES This product makes use of software developed by the open source community. Any such software is licensed under the specific license terms applicable to that particular software (like GPL, LGPL etc). Detailed information on the applicable licenses and license terms can be found on the device's user interface. By using this product, you acknowledge that you have reviewed such license terms and that you agree to be bound by them. Where such terms entitle you to the source code of said software, that source code will be made available at cost upon request from AirTies. To obtain a copy of said source code, please send your request in writing via email to [email protected] or via snail mail to: AirTies Wireless Communications Mithat Uluünlü Sokak No. 23 Esentepe, P.K. 34394 Şişli ISTANBUL/Turkey AirTies will mail to you a CD with the requested source code at the cost of CD preparation and shipping&handling. For details please contact [email protected] 5 TROUBLESHOOTING Condition LED BehaviorTiming -Power OFF LED Color OFF BlinkingPower ON, bootingWhite Blinking 5O milliseconds OFF 5 seconds ON Wireless network healthyGreen Solid Weak connection to the wireless mesh network Red Blinking 4 seconds OFF 4 seconds ON Unconfigured mesh device Blue Solid Device configured as single wireless access point Green Blinking 1 second OFF 1 second ON Cannot connect to the wireless mesh network Red Blinking 1/2 second OFF 1/2 second ON Software upgrade Blue 6 ExplanationRecommended Action(s) Make sure the power button on the back is pressed and power supply unit is connected to the device Device is turned off No action required. If the device was just powered on, please wait for at least 2 minutes for the device to boot up. No action required. LED is steady green with a short blink every 5 seconds Bring device closer to another device in the wireless mesh network. Device is not configured and connected to the wireless mesh network Configure the device using AirTies Vision app. No action required, more mesh devices can be added to the wireless mesh network if needed. Device is connected to the router/ gateway with an ethernet cable and acts as a wireless access point. No other mesh devices are configured in the network. Device is part of wireless mesh network but unable to find any of its mesh partners. Make sure other device(s) that are part of the wireless mesh network are powered on and close enough to connect. Device is retrieving the latest software Wait for the upgrade to complete. Device will automatically start with the latest software For more information: http://www.airties.com/products FCC ID: Z3WAIR4960 MP-0000067761 REV17022020 MP-00000XXXXX MP-0000068362 MP-00000XXXXXMP-0000068362 FCC, 4960, Generic, EN, Color, Multi, R0, v0 FCC, 4960, Generic, EN, Color, Multi, R1, v0 24.01.2020 19.02.2020 MB MB Initial Release Added IC text on the back. Air 4960 / US / GENERIC / FCC STATEMENT (Printed material S…

Text truncated - open the document above for the full version.

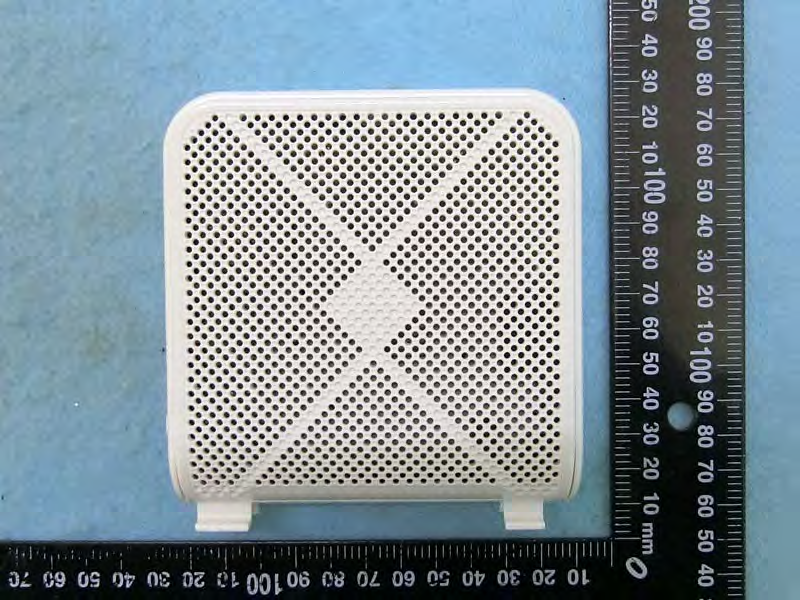

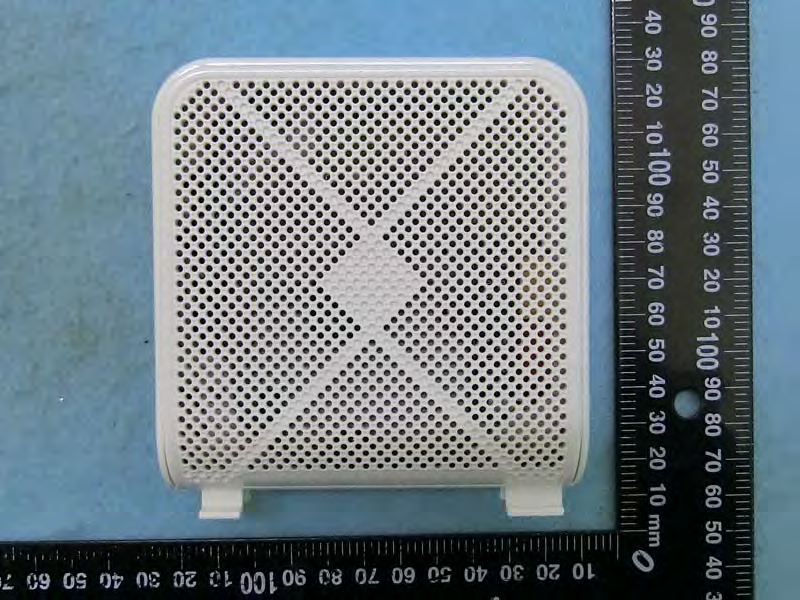

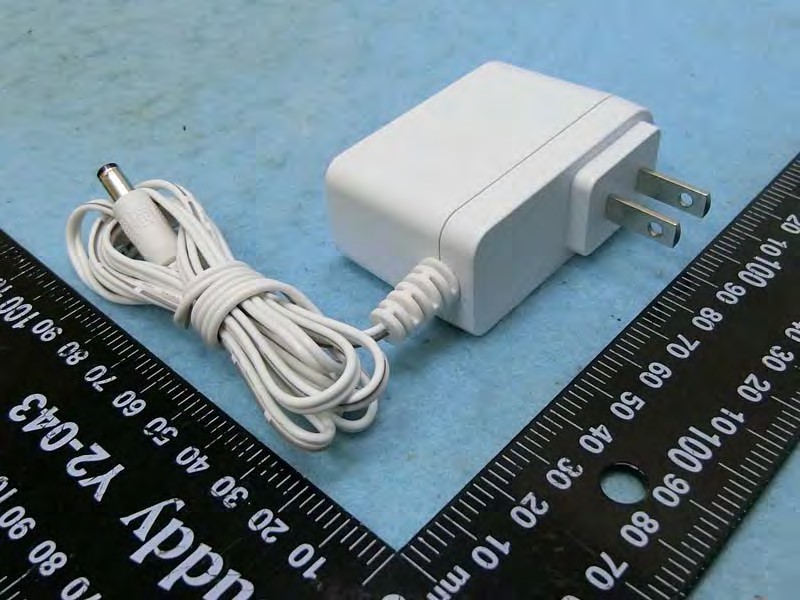

PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: AirTies Model Name: Air 4960R/Air 4960 EUT 2 PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP EUT 1 PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 7 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 8 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 9 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Adapter PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 10 of 10 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP RJ-45 cable

Label Location <Bottom of the EUT> Label Here (1) Label Here (2) Label 1 Label 2

PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: AirTies Model Name: Air 4960R/Air 4960 EUT 2 PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 7 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP EUT 1 PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 8 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP982017-02 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 9 of 9 TEL : 886-3-656-9065 Issued Date : Apr. 30, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

FCC RADIO EXPOSURE TEST REPORT Report No. : FA982017-02 TEL : 886-3-656-9065 Page Number : 2 of 8 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Table for Multiple Listing ........................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................... 6 2 Maximum Permissible Exposure ........................................................................................................ 7 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 7 2.2 MPE Calculation Method ........................................................................................................................ 7 2.3 Calculated Result and Limit .................................................................................................................... 8 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA982017-02 TEL : 886-3-656-9065 Page Number : 3 of 8 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA982017-02 01 Initial issue of report Apr. 30, 2020 FCC RADIO EXPOSURE TEST REPORT Report No. : FA982017-02 TEL : 886-3-656-9065 Page Number : 4 of 8 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang FCC RADIO EXPOSURE TEST REPORT Report No. : FA982017-02 TEL : 886-3-656-9065 Page Number : 5 of 8 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5250 5250-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 1.2 Table for Multiple Listing The EUT has four equipment names and two model names which are identical to each other in all aspects except for the following table: EUT Equipment Name Model Name I/O Port Function I/O Port Color DDR WLAN Function 1 5400 Mbps 11ax Wi-Fi Mesh Extender Air 4960 LAN*2 yellow Brand: Winbond Model Name: W632GU6NB-12 Capacity: 256MB Mesh: Only 5GHz 802.11a/an/ac 20/40/80MHz AP: 802.11abgn/ac/ax 20/40/80/160MHz 5400 Mbps 11ax Wi-Fi Mesh Access Point Home Wi-Fi Solution Kit 2 AX5400 Wi-Fi 6 Router Air 4960R LAN*1 WAN*1 LAN: yellow WAN: Red Brand: Winbond Model Name: W634GU6NB-11 Capacity: 512MB 802.11abgn/ac/ax 20/40/80/160MHz FCC RADIO EXPOSURE TEST REPORT Report No. : FA982017-02 TEL : 886-3-656-9065 Page Number : 6 of 8 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1.3 Testing Location Testing Location HW A YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA982017-02 TEL : 886-3-656-9065 Page Number : 7 of 8 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|² ,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method T…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR982017-02AA TEL : 886-3-656-9065 Page Number : 2 of 32 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A10_10 Ver1.0 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 4 Summary of Test Result................................................................................................................................... 5 1 General Description ............................................................................................................................. 6 1.1 Information .............................................................................................................................................. 6 1.2 Applicable Standards ............................................................................................................................. 9 1.3 Testing Location Information .................................................................................................................. 9 1.4 Measurement Uncertainty ...................................................................................................................... 9 2 Test Configuration of EUT ................................................................................................................. 10 2.1 Test Channel Mode .............................................................................................................................. 10 2.2 The Worst Case Measurement Configuration ...................................................................................... 11 2.3 EUT Operation during Test .................................................................................................................. 12 2.4 Accessories .......................................................................................................................................... 12 2.5 Support Equipment ............................................................................................................................... 13 2.6 Test Setup Diagram ............................................................................................................................. 14 3 Tr ansmitter Test Result ..................................................................................................................... 18 3.1 AC Power-line Conducted Emissions .................................................................................................. 18 3.2 DTS Bandwidth..................................................................................................................................... 20 3.3 Maximum Conducted Output Power .................................................................................................... 21 3.4 Power Spectral Density ........................................................................................................................ 24 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 26 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 27 4 Test Equipment and Calibration Data .............................................................................................. 31 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Results of Radiated Emission Co-location FCC RADIO TEST REPORT Report No. : FR982017-02AA TEL : 886-3-656-9065 Page Number : 3 of 32 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A10_10 Ver1.0 Report Version : 01 Appendix H. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR982017-02AA TEL : 886-3-656-9065 Page Number : 4 of 32 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A10_10 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FR982017-02AA 01 Initial issue of report Apr. 30, 2020 FCC RADIO TEST REPORT Report No. : FR982017-02AA TEL : 886-3-656-9065 Page Number : 5 of 32 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A10_10 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PA SS - 3.1 15.207 AC Power-line Conducted Emissions PA SS - 3.2 15.247(a) DTS Bandwidth PA SS - 3.3 15.247(b) Maximum Conducted Output Power PA SS - 3.4 15.247(e) Power Spectral Density PA SS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PA SS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PA SS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: 1. The test configuration, test mode and test software were written in this test report are declared by the manufacturer. 2. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Sandy Chuang FCC RADIO TEST REPORT Report No. : FR982017-02AA TEL : 886-3-656-9065 Page Number : 6 of 32 FAX : 886-3-656-9085 Issued Date : Apr. 30, 2020 Report Template No.: CB-A10_10 Ver1.0 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.1…

Text truncated - open the document above for the full version.

Test Photos Appendix H SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 1 of 3 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Appendix H SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 2 of 3 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Test Photos Appendix H SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : 3 of 3 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW ─────THE END─────
