Z49-00003PVO Heater Display Board Module

7211990100R00 Precision Comfort Heater PCH1000TCW / PCH2000TCW CAUTION: Place furniture/objects no closer than 3ft (91cm) in front of the heater. Ensure that the inlet and bottom of the heater is unobstructed to allow for sufficient air flow through the unit. Unpack the heater from the carton.1. Determine the correct mounting height for the heater. 2. The bottom of the heater should be mounted a minimum of 8” (20.3 cm) from the floor. The recess box is designed so that it can be mounted between two studs within the wall. The recess box requires an opening in the wall 13.5” 3. (34.5 cm) high by 8 3/8” (21.5 cm) wide (see Figure 1). Depth of opening must be 3 3/4” (9.5 cm) minimum, measured from finished wall surface. ! NOTE: The sides of the recess box are marked with guidelines to allow for ½” and ⅝” drywall thickness. When installing the recess box before installing drywall, when installing the recess box before installing drywall, use the depth guidelines to mount the box at the appropriate depth for drywall thickness, and proper grille installation. Remove appropriate electrical knockout and secure 4. supply wire using an approved strain relief connector, leaving 6” (15.2 cm) of wire leads in the recess box. (Figure 1) ! NOTE: It is only necessary to remove the knockout that will feed the power supply wiring, keeping in mind the heater mounting location and supply wire location on the wall. The recess box can be secured using the front flanges 5. at the top and bottom or from the inside into surrounding studs. Ensure that the recess box is oriented so that the knockouts are located at the bottom and the flanges are flush with the finished wall. INsTAllATION INsTrUCTIONs ImPOrTANT INsTrUCTIONs When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to person, including the following: Read all instructions before using this heater.1. Wiring procedures and connections should be in accor-2. dance with the National Electric Code (NEC & CEC) and local codes. Extreme caution is necessary when any heater is used 3. by or near children or invalids and whenever the unit is left operating and unattended. Do not operate any heater after it malfunctions. Discon-4. nect power at service panel and have heater inspected by a certified electrician before reusing. To disconnect heater, turn off power to heater circuit at 5. main disconnect panel. Use this heater only as described in this manual. Any 6. other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. A heater has hot and arcing or sparking parts inside. Do 7. not use it in areas where gasoline, paint or flammable liquids are used or stored. This heater is hot when in use. To avoid burns, do not let 8. bare skin touch hot surfaces. Keep combustible materials such as: furniture, pillows, bedding, papers, clothes and curtains away from heater. To prevent a possible fire, do not block air intakes or 9. exhaust in any manner. Do not use on soft surfaces like a bed where openings may become blocked. Do not insert or allow foreign objects to enter any venti-10. lation or exhaust opening as this may cause an electric shock or fire, or damage the heater. ! NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment on a circuit different from that to which the • receiver is connected. Consult the dealer or an experienced radio/TV technician for help.• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. sAvE THEsE INsTrUCTIONs 8 3 8 " (21.5 cm) 13 1 2 " (34.5 cm) Figure 1 Electrical Knockouts Front Mounting Holes Side Mounting Holes Top Mounting Holes For securing Front Panel Do not use for mounting! OPErATION 2www.dimplex.com Proceed to the wiring instructions.6. supply Wiring and Heater Installation WArNINg: Wiring procedures and connections should be in accordance with the National Electric Code (NEC & CEC) and local codes. Insert approximately 6” (15.2 cm) of supply wire into 1. recess box through the desired knockout. Wire should be rated for a minimum of 75°C (167°F) Connect power supply to terminals provided marked L1 2. and L2. Ground wire should be secured to green wire provided inside of the heater assembly. WArNINg: All units are factory prewired for operation with the built-in thermostat. THIS HEATER IS nOT TO BE USED WITH A REGULAR WALL THERMOSTAT. Do a final and complete check of all wiring.3. Attach heater by hanging…

Text truncated - open the document above for the full version.

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] August 16, 2012 Ultratech Engineering Labs, Inc. (TCB Division) 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Limited Single Modular Application for Equipment Authorization under FCC Part 15, Subpart C, Section 15.249, Low Power Transmitters Operating in the Frequency Band 2400 - 2483.5 MHz. Applicant: Dimplex North America Limited Product: PVO Heater Display Board Module Model No.: 3001040000 FCC ID: Z49-00003 Dear Sir/Madam: As appointed agent for Dimplex North America Limited, we submit the application for equipment certification of the above product. Kindly review all required documents uploaded to your E-Filing Site. NOTE: This application is subject to Limited Single Modular Approval; see Applicant’s cover letter requesting the same. If you have any queries, please do not hesitate to contact us. Yours truly, Dharmajit Solanki Dharmajit Solanki Authorized Agent

ANNEX 3 – EXTERNAL PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 1 ANNEX 3 – EXTERNAL PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 2

10.00 17.00 6.00 15.15 30.79 7.50 1.90 TYP. 2 PLCS 2.00 TYP. 2 PLCS 6.50 8.00 8.61 22.20 28.00 51.25 72.00 1.78 TYP. 2 PLCS 20.50 7.00 REF. 32.00 1.57 1.78 TYP. 3 PLCS 38.50 16.00 3.50 65.00 6.00 FCC LABEL NOTES: SEE SHEET 2 OF 2 FOR PCB LAYOUTS, SCHEMATICS AND BOM'S1. ALL CONFIGURATIONS TO BE UL APPROVED IN APPLIANCE BY DIMPLEX N.A. 2. ENGINEERING. CONSTRUCTIONS, COMPONENTS AND MATERIALS MUST MEET FILE REQUIREMENTS. ALL DIMENSIONS TO OUTSIDE EDGES UNLESS OTHERWISE SPECIFIED.3. PCB'S TO BE MARKED WITH DIMPLEX N.A. PART NUMBER (3001040X00), REVISION, 4. SOFTWARE PART NUMBER, REVISION AND DATE CODE. PRINTED WIRING BOARD TO HAVE 94V-0 FLAMMABILITY RATING AND MIN 105 DEG 5. C TEMPURATURE RATING. SOLDER TIME AND TEMPERATURE AS PUBLISHED IN RECOGNIZED COMPONENT DIRECTORY. RECEIVER MUST COMPLY WITH FCC PART 15, UL 60730-1A AND CAN/CSA STD. 6. E60720-1. LABELLING MUST BE AS PER THE REGULATORY REQUIREMENTS. CONSTRUCTION DETAILS NOT SHOWN ON DRAWING TO BE AS PER SAMPLE 7. APPROVED BY DIMPLEX N.A. LTD. ASSEMBLY # 3001040100 AS SHOWN.8. ANY ALTERNATIVE PARTS NOT SHOWN MUST BE APPROVED BY DNA ENGINEERING 9. 8 WEEKS BEFORE USE. ALL COMPONENTS TO BE FULLY ASSEMBLED.10. EACH BOARD TO HAVE FCC/ID LABEL APPLIED.11. ALL LABELING TO BE CLEARLY LEGIBLE.12. DIMPLEX Model No: 3001040000 FCC ID: Z49-00003 IC: 6592A-00003 01 02 REVISIONS REV.DESCRIPTIONDATEPCNIN'L 00INITIAL RELEASE FOR PRODUCTIONFEB 24/1213171VGH 01 UPDATE SOFTWARE P/N AND REV LEVEL, ADDED COMPLETE LABELLING AND CERTIFICATION NOTES, ADDED SH2 FOR BOM, SCHEMATIC AND LAYOUT JUL 31/1213494JS/MG 02UPDATE FCC CODEAUG/16/1213547JS 3001040100PCH DISPLAY BOARD4401040100R24 PART NUMBERDESCRIPTIONSOFTWARE 10.00 17.00 ~ 02 VH DATE PCB, LCD DISPLAY B ALL DIM. IN MILLIMETERS DO NOT SCALE FLAT IS FOR REFERENCE ONLY TOLERANCES: X.XX 0.15 X.X 0.8 X 3 HOLES: 0.15 ANGLES: 2 C THIS SYMBOL REPRESENTS A CONTROL DIMENSION. CONTROL DIMENSIONS ARE CONSIDERED TO BE A GOOD INDICATOR OF WHETHER A MANUFACTURING PROCESS IS IN CONTROL. THESE DIM. MUST HAVE A MIN. Cpk OF 1.33 FOR A SAMPLE 31 CONSECUTIVE PIECES. UNLESS OTHERWISE SPECIFIED 3:2 This drawing and the design of this article represented herein, are the exclusive property of Dimplex North America Limited and are provided strictly on a confidential basis. The drawing and design shall be used only for the purposes for which they have been provided and shall not be produced, reproduced, altered, used, published or disclosed to others without the prior written consent of Dimplex North America Limited. SCALE: CHK'D: DR BY: WHERE USED: FINISH: MATERIAL: REV.: SIZE: SHEET: DWG NO.: TITLE: 1 OF 2 3001040000 SEE NOTES SEE NOTES FEB, 2012 No sharp edges on all parts. ~ 4 [102] 1 [25] TYPICAL 0.1 [2.5] MADE IN CHINA FABRIQUÉ EN CHINE INSTALL HEATER WITH RECESS BOX 1011650100. DO NOT OPERATE HEATER WITHOUT FRONT COVER INSTALLED. INSTALLER LA CHAFFERETTE AVEC LA BOITE D'ENCASTREMENT 1011650100. NE PAS FAIRE FONCTIONNER L'APPAREIL AVANT RETIRE. CAT. NO: RDH2010TCW UL LOGO DIA. 0.35 [9] MIN MODEL: 6902270100 WATTS: 1000/2000W VOLTS: 240V NOTES: PRINTED LABELS MUST PASS DEFACEMENT TESTS AS OUTLINED IN UL STANDARD1. 969, EQUIVALENT TO DIMPLEX LABEL STOCK PART NUMBER 19984001. BLACK LETTERING AND ARTWORK PRINTED LEGIBLE ON SILVER LABEL.2. LABEL TO HAVE ADHESIVE BACKING.3. 1 2 2 LABEL PART NUMBER LABEL REVISION MOD A MOD LEVEL 5708 RECESS BOX NUMBER 08 08 60Hz CONTAINS FCC ID:Z49-00003 IC:6592A-00003 FCC CODE IS ONLY APPLY FOR PCH HEATER 09 REVISIONS REV.DESCRIPTIONDATEPCNIN'L 00RELEASE FOR PRODUCTION03/02/068682VGH 01REVISED TEXT HEIGHT PER SER 432604/04/069021VGH 02CHANGE SOME PARTS TO 240/208VFEB 8/079640VGH 03REMOVED CSA LOGO, CHANGED UL TO cULus LOGO11-AUG-0911551ML 04ADDED MOD LEVEL15-NOV-1012378ML 05ADDED FOUR PART NUMBERS 3200-3500MAR 8/1213232VGH 06ADDED 3600 AND 3700MAR 25/1213171VGH 07 PCH1000TCW WAS PWH1000TCW,PCH2000TCW WAS PWH2000TCW JUL 16/1213486JS 08 UPDATE PCH HEATER WATTAGE AT 208V PER TEST AND ADD RECESS COLUMN IN TABEL, ADD 60Hz JUL/27/1213521JS 09ADD FCC CODE FOR PCH HEATERAUG/16/1213547JS 4 [102] 1 [25] TYPICAL 0.1 [2.5] 08 VGH DATE LABEL, RATING B ALL DIM. IN INCHES DO NOT SCALE FLAT IS FOR REFERENCE ONLY TOLERANCES: .XXX .005 .XX .030 .X .100 HOLES: .005 FRACT: 1/16 ANGLES: 2 C THIS SYMBOL REPRESENTS A CONTROL DIMENSION. CONTROL DIMENSIONS ARE CONSIDERED TO BE A GOOD INDICATOR OF WHETHER A MANUFACTURING PROCESS IS IN CONTROL. THESE DIM. MUST HAVE A MIN. Cpk OF 1.33 FOR A SAMPLE 31 CONSECUTIVE PIECES. UNLESS OTHERWISE SPECIFIED NTS This drawing and the design of this article represented herein, are the exclusive property of Dimplex North America Limited and are provided strictly on a confidential basis. The drawing and design shall be used only for the purposes for which they have been provided and shall not be produced, reproduced, altered, used, published or disclosed to others without the prior written consent of Dimplex North America Limited. SCALE: CHK'D: DR BY: WHERE USED: FINISH: MATERIAL: REV.: SIZE: SHEET: DWG NO.: TITLE: 1 OF 1 7110850000 SH/DH/WH/PCH DEC 13/05 No sharp edges on all parts. POLYESTER NOTED

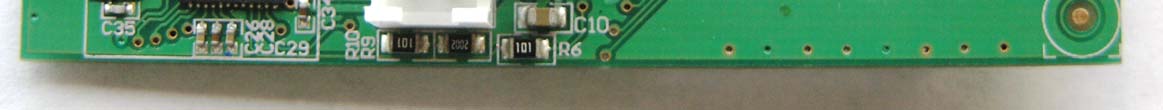

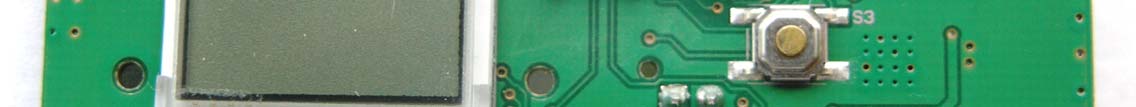

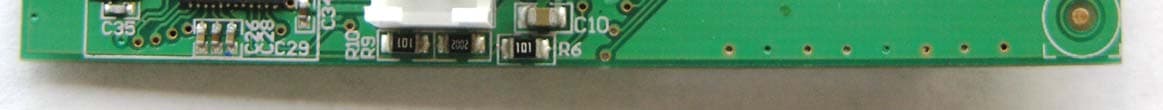

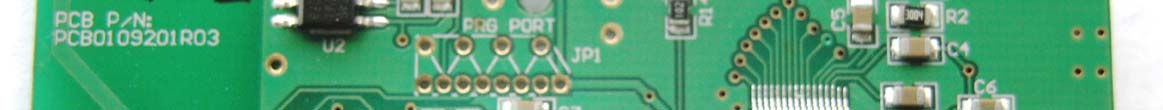

ANNEX 2 – INTERNAL PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 1 ANNEX 2 – INTERNAL PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 2

PVO Heater Display Board Module Model: 3001040000 FCC ID: Z49-00003 Applicant: Dimplex North America Limited 1367 Industrial Road Cambridge, ON N1R7G8 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.249 Low Power Transmitters Operating in the Frequency Band 2400 – 2483.5 MHz UltraTech's File No.: DIEX-016Q_FCC15C This Test report is Issued under the Authority of Tri M. Luu, BASc Vice President of Engineering UltraTech Group of Labs Date: August 16, 2012 Report Prepared by: Dharmajit Solanki Issued Date: August 16, 2012 Tested by: Hung Trinh Test Dates: August 10-15, 2012  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Part 15, Subpart C, Section 15.249 Page 1 PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ......................................................................................................................................... 2 1.1. SCOPE......................................................................................................................................................................... 2 1.2. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................................. 2 1.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 2. PERFORMANCE ASSESSMENT .............................................................................................................. 3 2.1. CLIENT INFORMATION .......................................................................................................................................... 3 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................ 3 2.3. EUT’S TECHNICAL SPECIFICATIONS ................................................................................................................. 4 2.4. ASSOCIATED ANTENNA DESCRIPTION ............................................................................................................. 4 2.5. LIST OF EUT’S PORTS............................................................................................................................................. 4 2.6. ANCILLARY EQUIPMENT ...................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 5 3.1. CLIMATE TEST CONDITIONS ............................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS ............................................................ 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ............................................................................................................... 6 4.1. LOCATION OF TESTS.............................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ............................................................. 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES....................................... 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 7 5.1. TEST PROCEDURES................................................................................................................................................. 7 5.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED ................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUACTURER.......................................... 7 5.5. ANTENNA REQUIREMENTS [47 CFR § 15.203]................................................................................................... 7 5.6. POWER LINE CONDUCTED EMISSION [47 CFR §15.207(A)] ............................................................................ 8 5.7. RADIATED EMISSIONS FROM UNINTENTIONAL RADIATORS (DIGITAL DEVICES) [47 CFR §15.109(A)] ............................................................................................................................................................... 11 5.8. 20 DB BANDWIDTH [§ 15.215(C)] ....................................................................................................................... 13 5.9. FUNDAMETAL FIELD STRENGTH AND HAROMIC EMISSIONS (RADIATED AT 3M) [47 CFR §§ 15.249(A), 15.209 & 15.205] .................................................................................................................................... 17 EXHIBIT 6. TEST EQUIPMENT LIST ......................................................................................................................... 24 EXHIBIT 7. MEASUREMENT UNCERTAINTY.........................................................................................................25 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY (0.15-30 MHZ) ...................................... 25 7.2. RADIATED EMISSION MEASUREMENT UNC…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 1 Tx Radiated Emissions at 3 m, Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 2 Tx Radiated Emissions at 3 m, Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 3 Tx Radiated Emissions at 3 m, Orthogonal Position 3 ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 4 Tx Radiated Emissions at 3 m, Orthogonal Position 3 ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 5 Tx Radiated Emissions at 3 m, Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 6 AC Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Dimplex North America Limited PVO Heater Display Board Module, Model 3001040000 FCC ID: Z49-00003, IC: 6592A-00003 A1 - 7 AC Conducted Emissions
