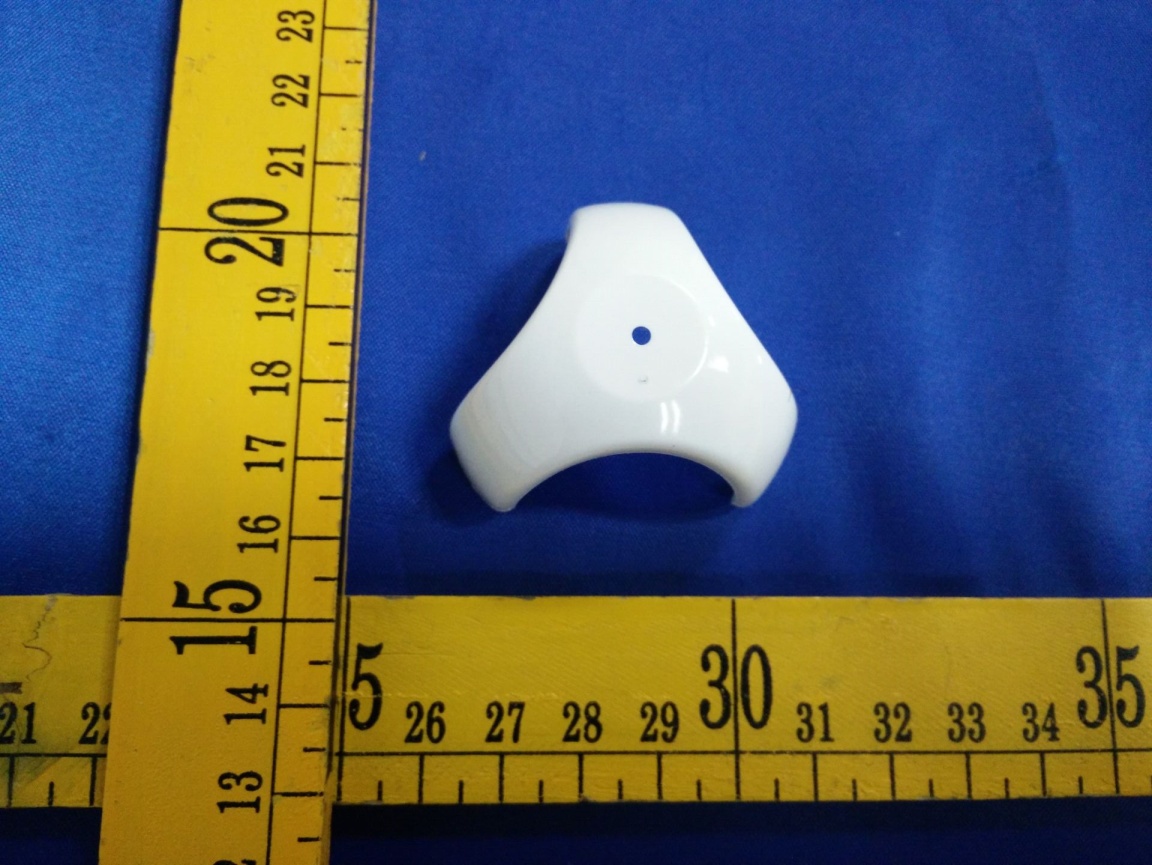

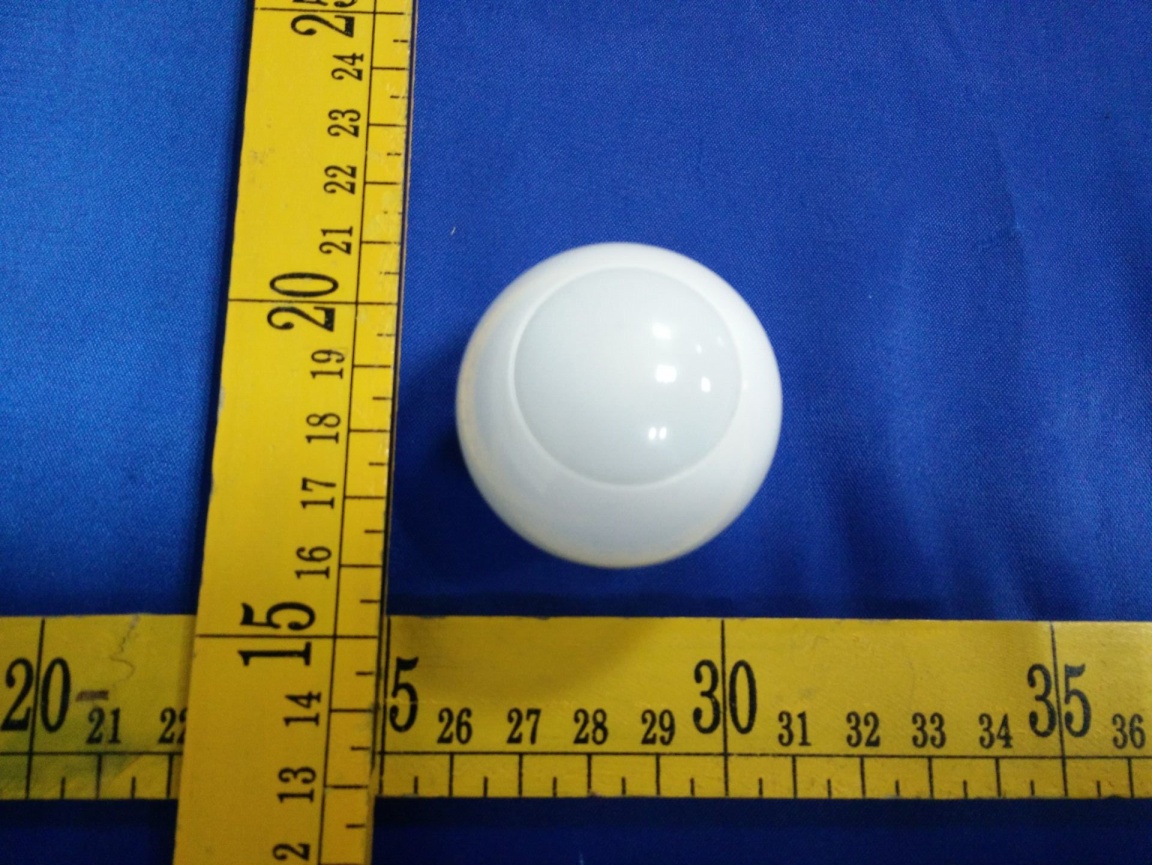

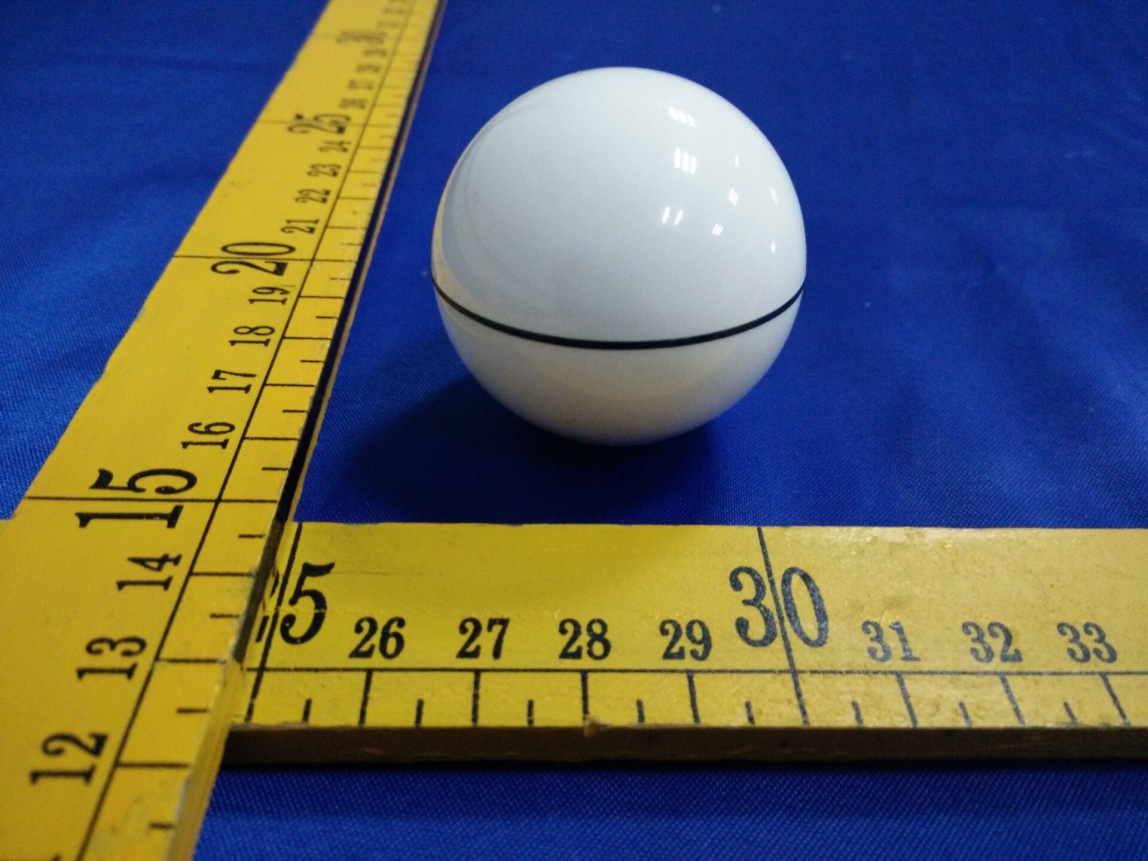

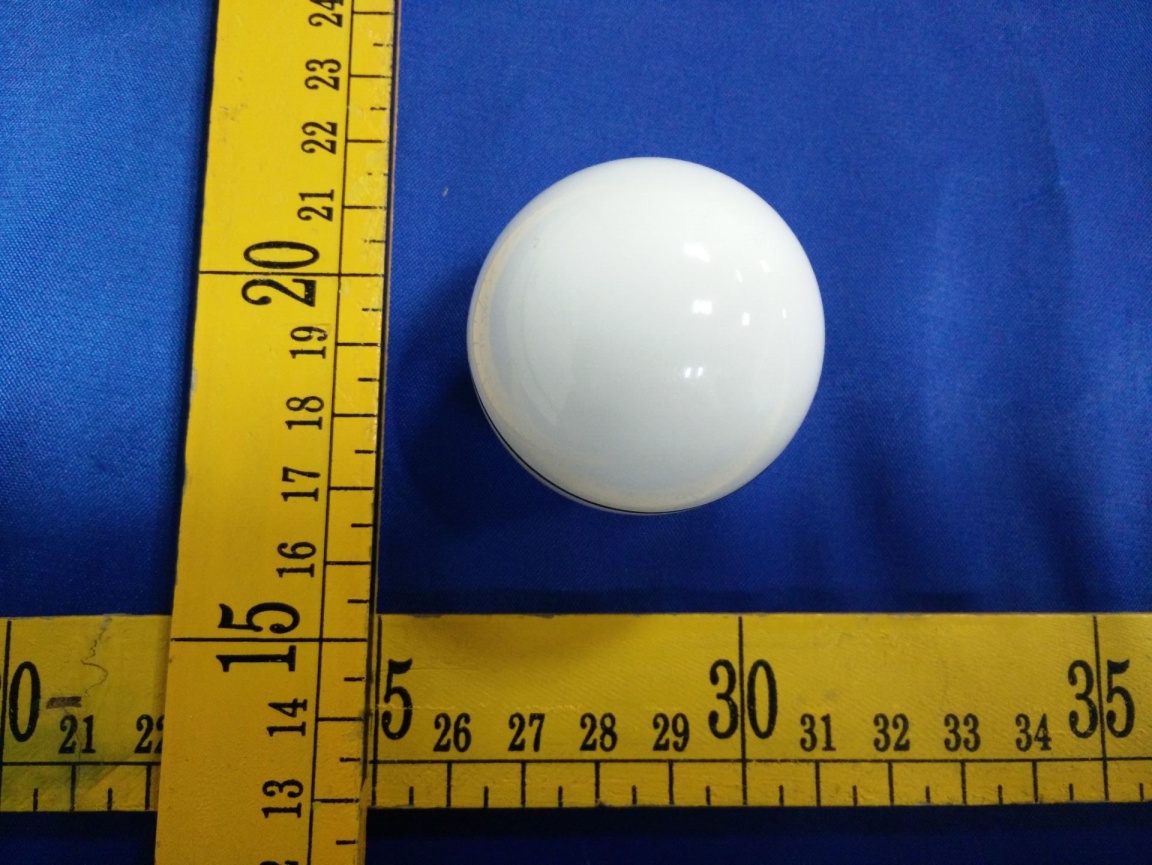

Z52NAS-PD02ZMotion Sensor(PIR)

Instruction Manual Motio n Sensor(PIR) Model Name: NAS-PD02Z Thank you for your support Please read the instruction manual carefully before operating Please keep the instruction manual after reading Shenzhen Neo Electr onics Co., LTD Product Introduction PIR is a passive infrared detector or physical sensor, the sensor doesn’t emit any energy but only passively receive and detect infrared radiation from outside. Under room temperature, all items have radiation. Human beings are warm-blooded animal with stable infrared radiation, are most easily to be detected. That’s why we also call it body sensor. PIR send messages via Z-wave network to the Z-Wave main controller. In the Z-Wave network communications, PIR can be connected to any Z-wave main controller,Different countries or areas, the radio frequency is different of the Z-wave network. In the communication between the PIR and Z-wave main controller, PIR can only send messages, not be able to receive messages. When the PIR is triggered, PIR will send message to the Z-wave main controller, and associate devices to work through the Z-Wave main controller. The PIR is battery powered, is small and can be installed easily. Technical Parameters Power supply: CR123A x 1 Standby current: 15uA Battery life: 7 years Radio Protocol: Z-wave  Radio Frequency: 908.42MHz Detection range: 7 meters Viewing angle: 90 degree Operation temper: 0-40°C Storage temperature: 0-60°C Size (D x W x H): 45mm x 45mm x 48mm Technical Information Use passive IR sensor to detect what is moving. When the PIR is triggered, LED light flashes in the detection area. Easily install with screws or sticker on the wall or the table. When there are people or animal that is moving in the PIR detection area, PIR will send alarm messages to the Z-wave main controller. Compatible with any Z-Wave main controller. Product Configuration Product List  PIR 1pc  Holder 1pc  Battery 1pc  Screw 2pcs  Screw stopper 2pcs  Sticker 1pc  Instruction manual 1pc Code button Holder Sticker Screw Battery Screw stopper LED light Inductive area Including Sensor (PIR) to Z-Wave Network The PIR can be included to the Z-wave network by pressing on the code button. 1) Disassemble the PIR main body and insert the battery into the contact sensor. Make sure the device is located within the direct range of the controller. 2) Set the controller into the learning mode (see mail controller’s operating manual). 3) Quickly, triple click the code button, LED light will flash red for 5 times. 4) PIT will be detected and included in the Z-Wave network. 5) Wait for the main controller to configure the PIR. Excluding Sensor (PIR) from Z-Wave Network 1) Make sure the sensor is connected to power source. 2) Set the main controller into the learning mode (see main controller’s operating manual). 3) Quickly, triple click the code button,LED light will flash red for 5 times. 4) Wait for the main controller to delete the sensor. Installation Steps  Holder Installation  Battery Installation  Fix PIR on the holder Holder Installation Option One Option Two Fix the holder with screws and screw stopper Fix the holder with double-sided adhesive Battery Installation Open the PIR Install the battery Close the PIR Fix PIR on the Holder Detection range and Working conditions PIR has to be installed in a corner of the room or perpendicularly to the doors. Actual detection range of the sensor can be influenced by environment conditions. Should false alarms be reported, check for any moving objects within the sensor’s detection area, such as trees blowing in the wind, cars passing by, windmills. False motion alarms may be caused by moving masses of air and heat as well. If the device keeps on reporting false alarms, despite eliminating all of the above-mentioned factors, install the device in another place. Detection range of PIR shown in the following picture Working condition If there is someone moving within the detection area, alarm triggered, and LED lights flash in the inductive area at the same time. Work schematic diagram of PIR shown in the following picture Tips  Make sure the PIR is in the Gateway’s network.  PIR is recommended to be fixed at the height of 2.0-2.2 meters off the ground.  When install PIR, please keep it far away from the place where the air temperature changed sensitively, e.g., the neighborhood of air conditioners, refrigerators, stoves and so on.  Furniture, large bonsai or other spacers shouldn’t be placed within the PIR’s detection area.  When installing the PIR, please avoid stairs、elevators and other obstructions within the PIR’s detection area.  After installation of the PIR, please test whether the PIR works properly or not, if there is false alarm from PIR, please change the location of the PIR.  Association allows for direct communication between Z-Wave network devices. Main controller does not take part in such communication. Using this mechanism, PIR may communicate with other devices even when the main controller is damaged. The status of LED 1. when the PIR is triggered, LED light flashes red for 2 times. 2. When the PIR installs battery, LED light will flash red for 2 times. 3. Quickly, triple click the code button ,add the PIR to the Z-WAVE network or delete PIR from Z-WAVE network , LED light flashes red for 5 times. 4. Press on the code button for 10 seconds, the PIR to restore factory settings, LED light flashes for 1 times. 5. In the normal condition, the LED light keeps being out. Associations This has the effect that when the sensor is triggered, all devices associated with the sensor will receive the relevant reports. Through an association the sensor may control another Z-Wave network device, e.g. the alarm device, wall plug, lamp etc. This Sensor supports two association groups. Association group 1 is assigned the status of the device status - send the BASIC SET control frame to the associated to the associated devices having detected motion. Associat…
