Z52NAS-WR02Z1USmart plug

Instruction Manual Power plug Thank you for your support ⚫ Please read the instruction manual carefully before operating ⚫ Please keep the instruction manual for further reference Shenzhen NEO Electronics Co., LTD Product Introduction SmartPlug is a universal, Z-Wave™ Plus compatible and relay switch in the form of a socket adapter. The device may be used to operate any device up to 3000w power output. The device features voltage, current, active power and power consumption measuring. This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. This device must be used in conjunction with a Security Enabled Z-Wave Controller in order to fully utilize all implemented functions NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications Power Supply 110 – 230V AC, ±10%, 50/60Hz Power Consumption Up to 0.8W Operational Temperature 0 - 70°C Communication frequency 908.40MHz, 916.00MHz(US) Range Up to 45m indoors (depending on the building structure),Up to 80m outdoors. Technical Information ⚫ The on and off of the power plug can be switched remotely by mobile phone App. ⚫ The working status of the power plug can be viewed through the mobile phone App ⚫ Compatible with any Z-Wave main controller. ⚫ Witching power supply is convenient and quick ⚫ Protect the safety of household electricity ⚫ Electricity metering can be used to calculate electricity consumption ⚫ Over current protection can be used more safely pins Product Configuration Product List ⚫ Power plug 1pc ⚫ Instruction manual 1pc Z-Wave™ Network Inclusion/Exclusion/Reset There is one button on the side of the device, it can be executed inclusion, exclusion and reset from Z-Wave™ network. Add¹ 1、 Power up the device. 2 、 Set Z-Wave™ Controller into inclusion mode 3 、 Press and hold the button for 5s until green led lights is on, then release the button before green led turn off. Blue led will blink with 1s interval until inclusion successful. Remove 1、 Power up the device. 2 、 Set Z-Wave™ Controller into exclusion mode 3 、 Press and hold the button for 5s until Green led lights is on, then release the button before green led turn off. Blue led will blink with 1s interval until exclusion successful. Factory Reset² 1、 Power up the device. 2、 Press and hold the button for 10s until Red led lights is on, then release the button before red led turn off. Product Test Mode 1、 Press and hold the button. 2 、 Power on the device, device will enter factory product test mode Send NIF³ Press and hold the button for 5s until Green led lights is on, then release the button before green led turn off. Notice 1: When device enters into inclusion mode, the device all functionality will be useless. The inclusion mode will be timeout after 30s, user can press and hold the button for 5s to terminate The code button slot LED light inclusion mode. Notice 2: Factory Reset will clear the device all Z-Wave™ Network data (include home id, node id, etc...) saved in memory, and restore all configuration parameters to factory default. Please use this procedure only when the network primary controller is missing or otherwise inoperable. Notice 3: NIF – Node Information Frame Installation Steps ⚫ Plug the power plug in the socket ⚫ Plug the load in the power plug Plug the power plug in the socket Plug the load in the power plug Tips ⚫ Please do not spray water on the power plug. ⚫ The on and off of power plug can be switched remotely by mobile phone APP. ⚫ The load connected with the power plug shouldn’t exceed 2500w to avoid damaging the power plug. ⚫ Make sure of that power plug is in the z-wave network. Association The device supports 2 association groups, and each group supports max 5 associated nodes. Group 1, Lifeline – All nodes which associated in group 1(lifeline group) will receive the messages that send by device through lifeline. Group 2, all nodes which associated in group 2 will be controlled by device through BASIC_SET command. When device detect a over-current event, the device will trigger a OCP Alarm and send a notification report to controller, the meantime device also send a BASIC_SET = 0xFF to the nodes that associated in group 2. And BASIC_SET = 0x00 will be sent after OCP Alarm Event is cleared. The Command Class supported by each association group is shown in the table below: Group Command Class Com…

Text truncated - open the document above for the full version.

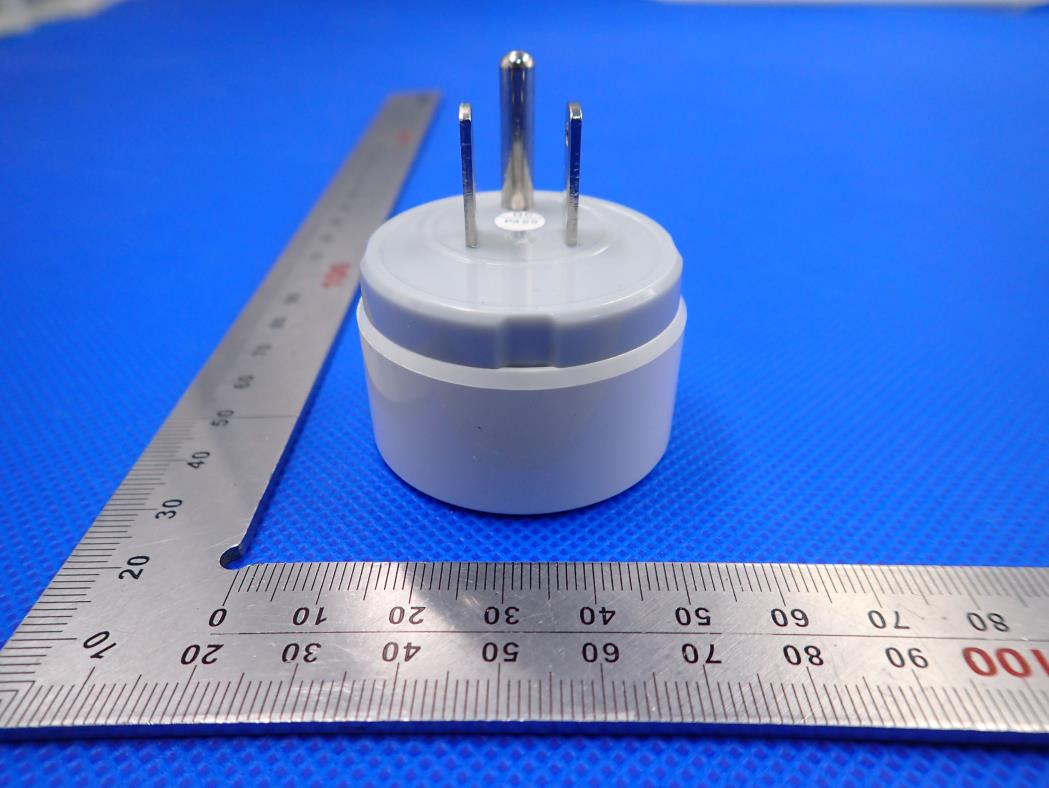

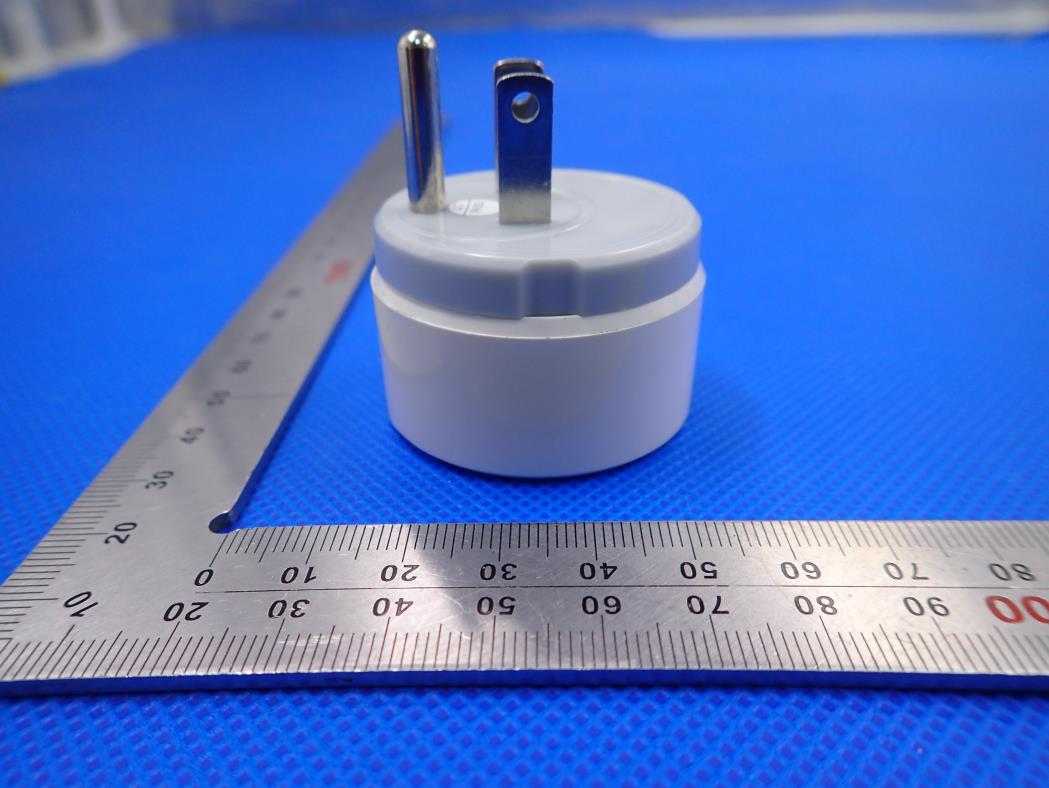

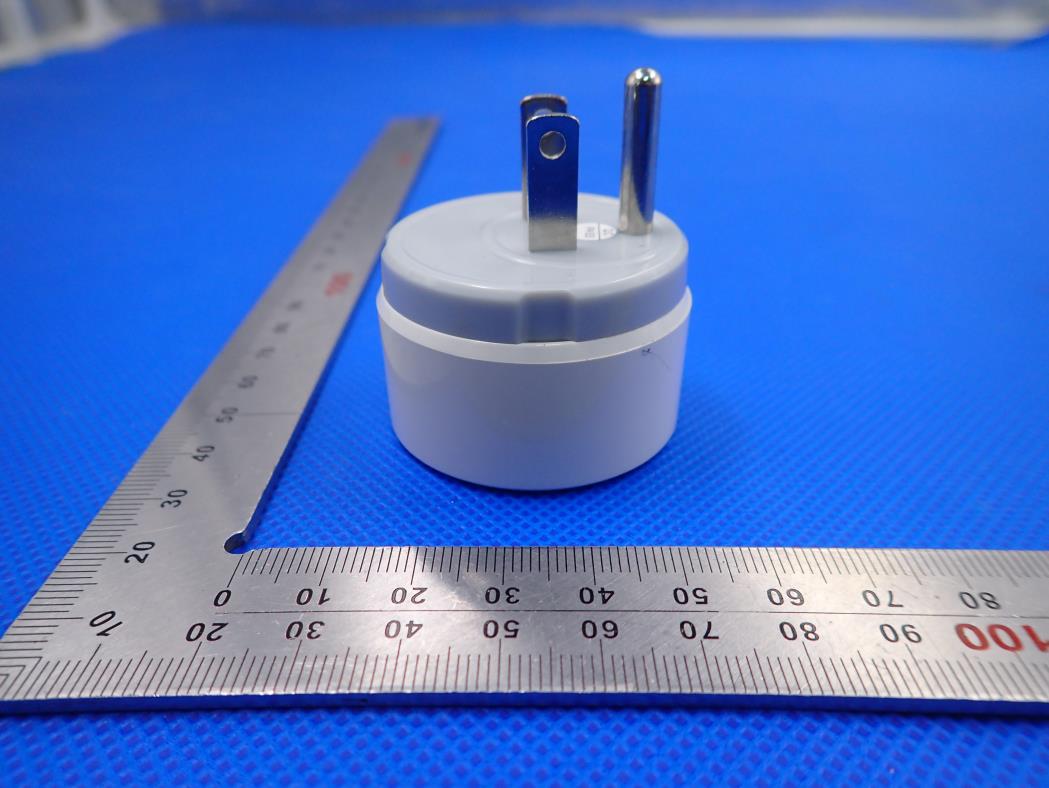

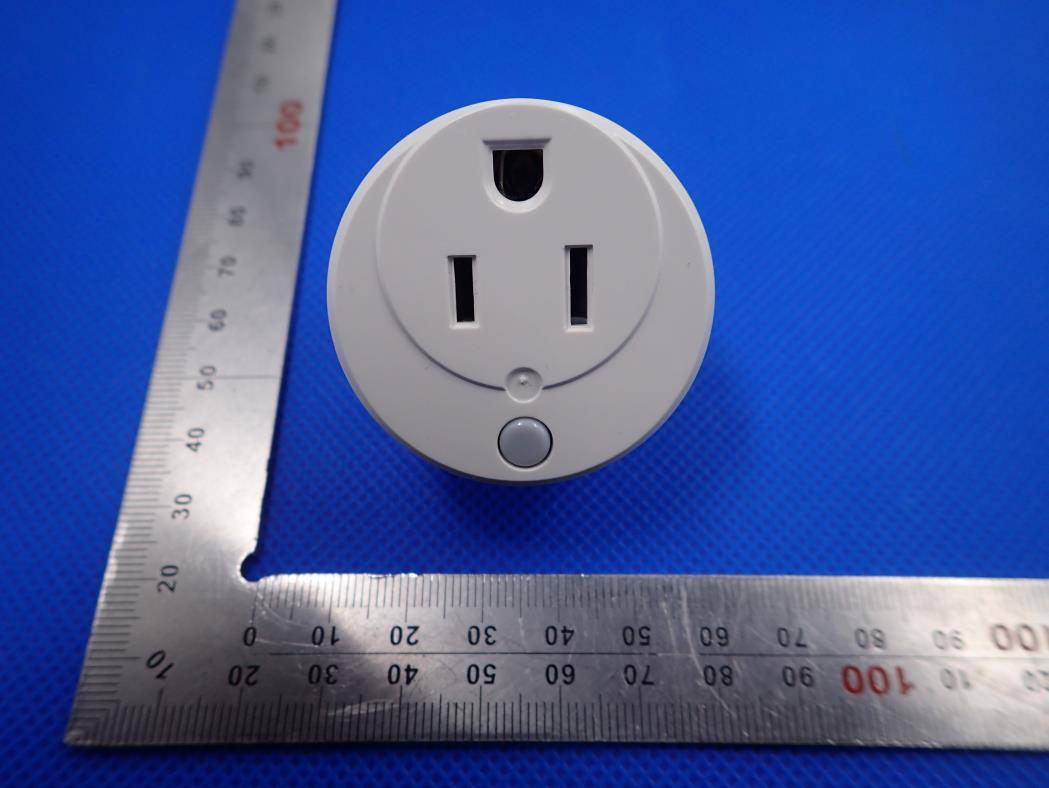

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: Z52NAS-WR02Z1U

Internal Photos OPEN VIEW OF EUT (FIGURE 1) OPEN VIEW OF EUT (FIGURE 2) INTERNAL VIEW OF EUT (FIGURE 1) INTERNAL VIEW OF EUT (FIGURE 2) Antenna INTERNAL VIEW OF EUT (FIGURE 3) OPEN VIEW OF EUT (FIGURE 3) OPEN VIEW OF EUT (FIGURE 4) INTERNAL VIEW OF EUT (FIGURE 1) INTERNAL VIEW OF EUT (FIGURE 2) INTERNAL VIEW OF EUT (FIGURE 3) INTERNAL VIEW OF EUT (FIGURE 4) INTERNAL VIEW OF EUT (FIGURE 5)

SHENZHEN NEO ELECTRONICS CO., LTD East 6/F Building 2, Laobing industry, Baoan District, Shenzhen, China Declaration concerning Antenna Specification It is hereby declared that the product Model Number: NAS-WR02Z1U FCC ID: Z52NAS-WR02Z1U fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Spring antenna Gain of the antenna: 2dBi Frequency range: 908.4MHz, 916MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Signature [Wu Binnv] [Manager] SHENZHEN NEO ELECTRONICS CO., LTD

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Smart plug Model Name NAS-WR02Z1U FCC ID Z52NAS-WR02Z1U 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) 908.4MHz: P t =0.032 mW The result for RF exposure evaluation SAR=(0.032mW /5mm) .[√0.9084(GHz)]= 0.006<3.0 for 1-g SAR 916MHz: P t =0.0007mW The result for RF exposure evaluation SAR=(0.0007mW /5mm) .[√0.9084(GHz)]= 0.0001<3.0 for 1-g SAR 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 36 FCC Test Report Report No.: AGC03767191201FE03 FCC ID : Z52NAS-WR02Z1U APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart plug BRAND NAME : NEO MODEL NAME : NAS-WR02Z1U APPLICANT : SHENZHEN NEO ELECTRONICS CO., LTD DATE OF ISSUE : Jan. 07, 2020 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03767191201FE03 Page 2 of 36 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 07, 2020 Valid Initial Release Report No.: AGC03767191201FE03 Page 3 of 36 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCY ....................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 6 4. DESCRIPTION OF TEST MODES ................................................................................................................. 7 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM ..................................................................................................... 8 5.2 EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 8 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 8 6. TEST FACILITY ............................................................................................................................................. 9 7. RADIATED EMISSION ................................................................................................................................. 10 7.1 TEST LIMIT ............................................................................................................................................ 10 7.2. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.3. TEST SETUP ........................................................................................................................................ 13 7.4. TEST RESULT ...................................................................................................................................... 14 8. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 20 8.1. LIMITS OF LINE CONDUCTED EMISSION TEST ............................................................................... 20 8.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................................. 20 8.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 21 8.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ......................................................... 21 8.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ................................................................... 22 9. 20DB BANDWIDTH ..................................................................................................................................... 24 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 24 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 24 9.3. MEASUREMENT RESULTS ................................................................................................................. 25 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ........................................................................................ 26 APPENDIX B: PHOTOGRAPHS OF EUT ....................................................................................................... 28 Report No.: AGC03767191201FE03 Page 4 of 36 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN NEO ELECTRONICS CO., LTD Address East 6/F, Building 2LaoBing Industry, No.44 TieZai Road, Baoan District, Shenzhen. Manufacturer SHENZHEN NEO ELECTRONICS CO., LTD Address East 6/F, Building 2LaoBing Industry, No.44 TieZai Road, Baoan District, Shenzhen. Factory SHENZHEN NEO ELECTRONICS CO., LTD Address East 6/F, Building 2LaoBing Industry, No.44 TieZai Road, Baoan District, Shenzhen. Product Designation Smart plug Brand Name NEO Test Model NAS-WR02Z1U Date of test Dec. 11, 2019~Jan. 07, 2020 Deviation No any deviation from the test method. Condition of Test Sample Normal Test Result Pass Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Donjon Huang (Project Engineer) Jan. 07, 2020 Reviewed By Max Zhang ( Reviewer ) Jan. 07, 2020 Approved By Forrest Lei (Authorized Officer) Jan. 07, 2020 Report No.: AGC…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST
