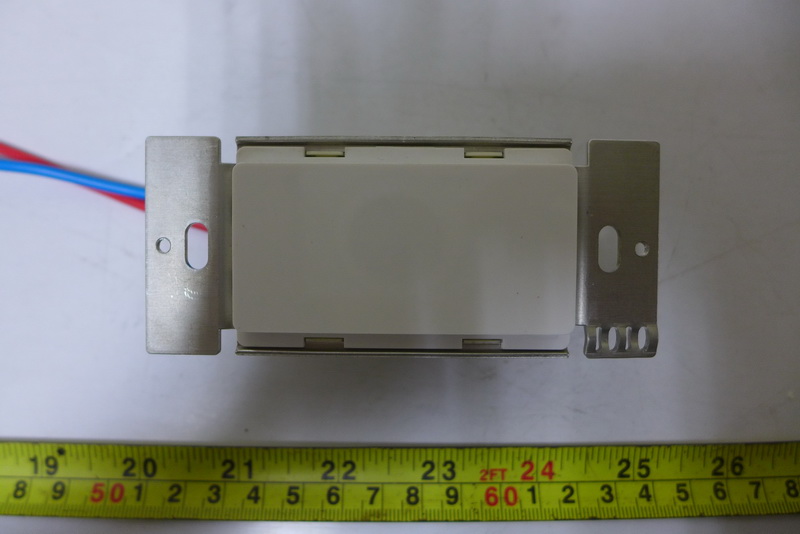

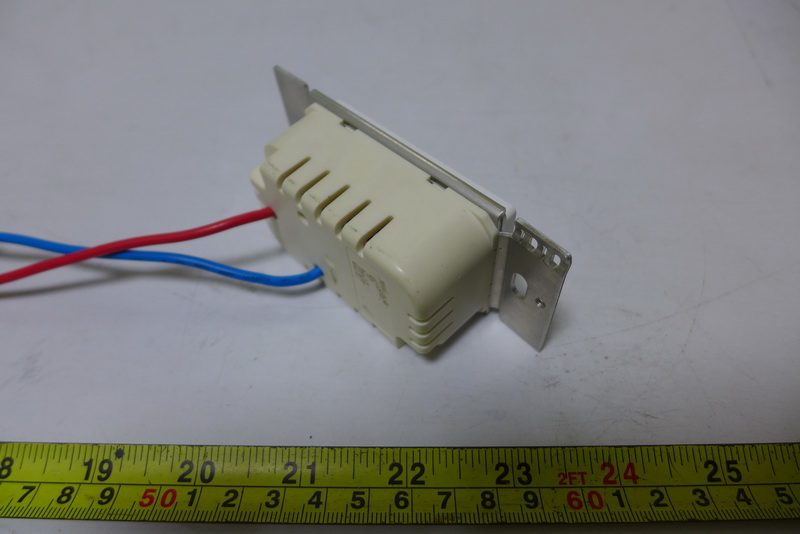

Z5N-7AM12Touch Switch

1key Touch Switch (LR7A-M12)Specification  Traditional wiring neutral wire is not necessary (no Null Line)  Per channel lighting load (700 Watts)  Lighting overload protect function  Lighting switch over temperature protect function  Auto lighting turn off delay function  Relay protecting circuit  AC Full range input：100~240V AC(50/60 Hz)  2.4G RF Remote Control LR7A-M12 L6N5A-AW Touch Switch wiring circuit Front View Specification AC 100~240V (50/60 Hz) Junction BOX 1 Key Touch Switch (LR7A-M12) Fire Wire Neutral When the touch switch circuit loop, if installed too many lamps, switch will detect the loop current after turn on the lighting, touch switch normal operating current is 7A (amps), once the instantaneous current detection circuit exceeds 13A (amps), touch switch will automatically power-off , Buzzer (beeper) will beep sound after 10 stops, At the same time light control switch delay the function stop of 30 seconds, touch function is inactive during this period, when the touch function recovery, and lighting control switch function stop, please kindly check the lighting circuit. If the lamp lighting control switch in the ON state when the touch switch detects the ambient temperature above 75 °C ± 5%, the internal over-temperature protection circuit will immediately power off, wait until the temperature drops below to 60 °C ± 5% , The protection circuit automatically back to function state, when the pre to this case, please kindly check the lighting loop circuit. Lighting control switch can set the delay time of 5 minutes turn off the lights. AC input 100~240V AC (60/50 Hz) RF remote distance 12 Meter Touch switch load 700W Time delay turn off 1 Minutes Over load >700W +30% Over temperature >75°C ±5% turn off；60°C ±5% Back to function Over Load Over Temperature Delay Time Electrical Characteristics FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! 1. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Indoor use only

Project No.: 1507004 Page 2 of 1 0 Project No.: 1507004 Page 3 of 1 0

Report No.: BTL-FCCP-2-1507004 Page 1 of 39 FCC Radio Test Report FCC ID: Z5N-7AM12 This report concerns (check one): Original Grant Class II Change Project No. : 1507004 Equipment : Touch Switch Model Name : LR7A-M12 Applicant : LoongYee Industry Co.,Ltd Address : No.14, Lane 103, Sec.2,Zhongxing Rd, Wu Gu Dist,24873 New Taipei City, Taiwan, R.O.C. Date of Receipt : Jul. 01, 2015 Date of Test : Jul. 01, 2015~Oct. 13, 2015 Issued Date : Oct. 14, 2015 Tested by : BTL Inc. Testing Engineer : (Josh Lin) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) BTL INC. B1, No.37, Lane 365, Yang Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Report No.: BTL-FCCP-2-1507004 Page 2 of 39 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-2-1507004 Page 3 of 39 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 8 3 .GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION 12 4.1.2 TEST PROCEDURE 12 4.1.3 DEVIATION FROM TEST STANDARD 12 4.1.4 TEST SETUP 13 4.1.5 EUT OPERATING CONDITIONS 13 4.1.6 EUT TEST CONDITIONS 13 4.1.7 TEST RESULTS 13 4.2 RADIATED EMISSION MEASUREMENT 14 4.2.1 RADIATED EMISSION LIMITS 14 4.2.2 TESTPROCEDURE 15 4.2.3 DEVIATION FROM TEST STANDARD 15 4.2.4 TESTSETUP 16 4.2.5 EUT OPERATING CONDITIONS 17 4.2.6 EUT TEST CONDITIONS 17 4.2.7 TEST RESULTS (9KHZ 30MHZ) 17 4.2.8 TEST RESULTS (30MHZ to 1000 MHZ) 17 4.2.9 TEST RESULTS (ABOVE1000 MHZ) 18 5 . BANDWIDTH TEST 19 5.1 TEST PROCEDURE 19 5.2 DEVIATION FROM STANDARD 19 5.3 TEST SETUP 19 5.4 EUT OPERATION CONDITIONS 19 5.5 EUT TEST CONDITIONS 19 5.6 TEST RESULTS 19 6 . MEASUREMENT INSTRUMENTS LIST AND SETTING 20 7 . EUT TEST PHOTO 21 Report No.: BTL-FCCP-2-1507004 Page 4 of 39 Table of Contents Page ATTACHMENT A - CONDUCTED EMISSION 25 ATTACHMENT B -RADIATED EMISSION (9KHZ to 30MHZ) 28 ATTACHMENT C -RADIATED EMISSION (30MHZ TO 1000MHZ) 30 ATTACHMENT D -RADIATED EMISSION (ABOVE 1000MHZ) 33 ATTACHMENT E - BANDWIDTH 38 Report No.: BTL-FCCP-2-1507004 Page 5 of 39 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-2-1507004 Original Issue. Oct. 14, 2015 Report No.: BTL-FCCP-2-1507004 Page 6 of 39 1. CERTIFICATION Equipment : Touch Switch Brand Name : Loong Yee Model Name : LR7A-M12 Applicant : LoongYee Industry Co.,Ltd Manufacturer : LoongYee Industry Co.,Ltd Address : No.14, Lane 103, Sec.2,Zhongxing Rd, Wu Gu Dist,24873 New Taipei City, Taiwan, R.O.C. Factory : LoongYee Industry Co.,Ltd Address : No.14, Lane 103, Sec.2,Zhongxing Rd, Wu Gu Dist,24873 New Taipei City, Taiwan, R.O.C. Date of Test : Jul. 01, 2015~Oct. 13, 2015 Test Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C :2014 (15.249)/ ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc.. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-2-1507004) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-2-1507004 Page 7 of 39 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark FCC 15.207(a) Conducted Emission PASS 15.205 Restricted Band of Operation PASS 15.209 15.249(a) Radiated Emissions PASS 15.215(c) 20dB Bandwidth Test PASS NOTE: (1)”N/A” denotes test is not applicable to this device. 2.1 TEST FACILITY Conducted emission Test: C05: FCC RN:965108; FCC DN:TW1082) No. 68-1, Ln. 169, Sec.2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan Radiated emission Test (Below 1 GHz): CB08: (FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Radiated emission Test (Above 1 GHz): CB08: (FCC RN: 614388; FCC DN: TW1054; IC Assigned Code: 4428C-1) 1F., No. 61, Ln. 77, Sing-ai Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Report No.: BTL-FCCP-2-1507004 Page 8 of 39 2.2 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performe…
