TetraFlex ® V7.5 US DRAFT version Manual version 1.01 27.01.2012 The information contained in this document is the property of Damm Cellular Systems A/S. This document is subject to copyright and shall not be published or reproduced, in whole or in part, without the written permission of Damm Cellular Systems A/S. © 2010 Damm Cellular Systems A/S. All rights reserved. Møllegade 68, DK-6400 Sønderborg, Denmark Phone: +45 74 42 35 00, Fax: +45 74 42 30 31, E-Mail: [email protected], Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - Introduction TetraFlex® 7.5 Manual 2 http://www.damm.dk INTRODUCTION This manual is intended for installation and maintenance of BS4xx TetraFlex ® Base Station, including additional units, installation software, and how to configure the system for operational use. Remark: TetraFlex ® ver. 7.5 is not compatible with earlier versions! Please follow the update instructions or contact DAMM support if you have systems with older software versions. Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - Introduction TetraFlex® 7.5 Manual 3 Indoor Base station models BS411 BS414 Max. 8 carriersMax. 4 carriers Max. 16 carriers Outdoorstation BS421 + SB 421 It is recommended that engineers doing the installation and configuration of a BS4xx have practical experience in installation of radio and computer systems, and have made themselves familiar with the BS4xx equipment through appropriate DAMM training courses and study of the content of this manual. This installation guide covers the installation of indoor as well as outdoor Base Stations as well as single units. Please skip the sections, which are not relevant for the actual case. Max. 4 carriers Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - Introduction TetraFlex® 7.5 Manual 4 The manual is divided into more sections which may be printed separately. When doing so please print the Table of contents, introduction, update sheets and Index (all pages prior to page 1-1 and after page 4-x) and insert these in the printed section IMPORTANT: Updates / changes / important information related to the TetraFlex® system and software may be downloaded from the protected part of www.damm.dk Please check this URL for updated information before attempting to install or correct errors NOTE: Chapters marked with a indicate areas where special care must be taken to avoid personal injury or damage to the equipment. Before starting installation and configuration, please read the entire manual carefully. NOTE: It is the responsibility of the system owner / operator to ensure that only authorized service persons has access to the keys / inside circuits of the SB412 / BS4xx. NOTE: It is the responsibility of the system owner / operator to ensure that all local legislation, rules and regulations are complied with. The SB412 / BS4xx are protected by internal fuses. Always replace with fuses of equivalent value and type. General Warning This manual contains important safety and operational information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your device. Changes and modifications to this device not expressly proved by DAMM could void the user’s authorization to operate this device FCC Regulations The DAMM developed device mentioned in this User Manual fulfills the below statements according to FCC/IC warning statements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - Reference documents TetraFlex® 7.5 Manual 5 RF Exposure The DAMM developed transmitting devices mentioned in this User Manual have the Nemko approval concerning “Maximum Permissible Exposure Calculations” which are the European limits for maximum permissible exposure defined in the document 1995/519/EC, Council Recommendation of 12. July 1999. The results are to be found in the Nemko Document 128948/5 in the appendix of this User Manual. Antennas The outside antenna connected to this device must be installed on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. Notice  Do not modify any part of this device for any reason  Do not place any combustible material near the transceiver  Do not spray any liquid over the device  Ensure that the power and antenna connections are securely made, using cables recommended and with excess capacity for the power being utilized. REFERENCE DOCUMENTS For detailed information’s regarding the TetraFlex ® release and features supported, please consult the documents listed below: No.: Document Title Document Contents 1 TetraFlex v7.5 System description.pdf * TetraFlex ® system overview 2 TetraOM_7.5.pdf TetraFlex ® OM manual 3 TetraFlex_RN_7.52_2011-09-30_02.pdf * TetraFlex ® system release note 4 TetraFlex 7.4x to 7.5 update.pdf Update guideline for ver.7.4x to 7.5 5 TetraFlex 7.5 BS41x redundant setup.pdf Redundancy sw setup guideline for BS41x *) These documents is a part of the TetraFlex ® release and placed in the C:\tetra\Active\Doc directory All documents can be found on www.damm.dk extranet. TETRAFLEX ® MANUAL BREAKDOWN Section Description Level Part 1 Physical hardware installation Tech Part 2 Software installation and configuration of software and system Tech Part 3 User manual intended for operators and non technical personnel User Part 4 Technical reference Tech Part 5 Hardware Units Ref. Tech Part 6 List of figures and Alphabetic index All Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - …

Text truncated - open the document above for the full version.

Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - IP Backbone network layout and configuration TetraFlex® 7.5 Manual 2-162 All interfaces in the router network that must be able to join in a multicast group must have IGMP and PIM-SM enabled. 2.16.10.2.2.1 Multicast and VPN As such – VPN/IPSec does not support the transport of multicast packets. GRE tunneling does support multicast routing – but is not encrypted. Therefore the configuration shown at end of this document – the recommended configuration – uses IPSec encrypted GRE tunnels. Combining the IPSec and GRE will ensure the routing of both unicast and multicast – and still maintaining integrity and intrusion security of the network. 2.16.10.2.2.2 GRE tunneling Generic Routing Encapsulation (GRE) is a tunneling protocol designed to encapsulate a wide variety of network layer packets inside IP tunneling packets. The original packet is the payload for the final packet. GRE was developed by Cisco and was designed to be stateless; the tunnel end-points do not monitor the state or availability of other tunnel end-points. GRE creates a virtual point-to-point link with routers at remote points on an IP internetwork. 2.16.11 Applicable tools for router programming The Cisco offers a CLI – Command Line Interface. This is accessible through the console port of the router. Use the blue cable delivered with the router. In this case use the serial port of your PC. You can use any of a variety of terminal emulation programs. If you know the IP address of one of the Ethernet ports on the router – you can also telnet into the router and use the same CLI. The configuration of any Cisco router – can be exported from the router and onto a so called TFTP server. The router configuration file is then an ASCII formatted text string. This can be opened – edited and saved by the use of any of a variety of text editor programs. After editing – the file can be re-imported to the Cisco router. After a reload of the router – it will reflect the newly introduced configuration changes that you made offline. 2.16.11.1 Ultraedit: o A text editor program for offline editing of configuration files. 2.16.11.2 WordPad: o A text editor program for offline editing of configuration files. Available typically in Windows. 2.16.11.3 HyperTerminal: o A Windows standard program that can do both serial communication and also use TCP/IP to connect to router via Ethernet. 2.16.11.4 Putty: o A very versatile program that does serial and IP connections. Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - IP Backbone network layout and configuration TetraFlex® 7.5 Manual 2-163 2.16.11.5 3CDeamon: o A TFTP program from 3COM. 2.16.11.6 Tftp32: o A TFTP program from http://tftpd32.jounin.net: Freeware. 2.16.11.7 Example of router configuration Rendezvous point router: ! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname 24-S000-VPN1 ! boot-start-marker boot-end-marker ! no logging buffered no logging console enable password xxxxx ! no aaa new-model ! resource policy ! ip cef ! ! ! ! no ip domain lookup ip multicast-routing ! ! ! ! crypto isakmp policy 10 hash md5 authentication pre-share crypto isakmp key s001-s000 address 10.239.24.1 crypto isakmp key s002-s000 address 10.239.24.2 crypto isakmp key s003-s000 address 10.239.24.3 crypto isakmp key s004-s000 address 10.239.24.4 Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - IP Backbone network layout and configuration TetraFlex® 7.5 Manual 2-164 crypto isakmp key s005-s000 address 10.239.24.5 ! ! crypto ipsec transform-set tetra esp-3des esp-md5-hmac mode transport ! crypto map GRE local-address FastEthernet0/0 crypto map GRE 11 ipsec-isakmp set peer 10.239.24.1 set transform-set tetra match address 101 crypto map GRE 12 ipsec-isakmp set peer 10.239.24.2 set transform-set tetra match address 102 crypto map GRE 13 ipsec-isakmp set peer 10.239.24.3 set transform-set tetra match address 103 crypto map GRE 14 ipsec-isakmp set peer 10.239.24.4 set transform-set tetra match address 104 crypto map GRE 15 ipsec-isakmp set peer 10.239.24.5 set transform-set tetra match address 105 ! ! ! ! interface Tunnel1 description "s000-s001" ip unnumbered FastEthernet0/1 ip mtu 1440 ip pim sparse-mode ip igmp version 3 keepalive 10 3 tunnel source FastEthernet0/0 tunnel destination 10.239.24.1 crypto map GRE ! interface Tunnel2 description "s000-s002" ip unnumbered FastEthernet0/1 ip mtu 1440 ip pim sparse-mode ip igmp version 3 keepalive 10 3 tunnel source FastEthernet0/0 Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - IP Backbone network layout and configuration TetraFlex® 7.5 Manual 2-165 tunnel destination 10.239.24.2 crypto map GRE ! interface Tunnel3 description "s000-s003" ip unnumbered FastEthernet0/1 ip mtu 1440 ip pim sparse-mode ip igmp version 3 keepalive 10 3 tunnel source FastEthernet0/0 tunnel destination 10.239.24.3 crypto map GRE ! interface Tunnel4 description "s000-s004" ip unnumbered FastEthernet0/1 ip mtu 1440 ip pim sparse-mode ip igmp version 3 keepalive 10 3 tunnel source FastEthernet0/0 tunnel destination 10.239.24.4 crypto map GRE ! interface Tunnel5 description "s000-s005" ip unnumbered FastEthernet0/1 ip mtu 1440 ip pim sparse-mode ip igmp version 3 keepalive 10 3 tunnel source FastEthernet0/0 tunnel destination 10.239.24.5 crypto map GRE ! interface FastEthernet0/0 ip address 10.239.24.100 255.0.0.0 ip access-group 199 in ip nbar protocol-discovery duplex auto speed auto no cdp enable crypto map GRE ! interface FastEthernet0/1 ip address 172.16.0.1 255.255.255.0 ip pim sparse-mode ip igmp version 3 duplex auto Doc. No. Rev. Date DRAFT 1.01 2012-01-27 Damm Cellular Systems A/S, Denmark TetraFlex ® 7.5 Manual - IP Backbone network layout and configur…

Text truncated - open the document above for the full version.

Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-84 3.5.9 DGNA Dynamic Group Assignment (DGNA) is used to send Groups to radios that not already have these groups programmed. 3.5.9.1 Assigning subscribers to DGNA 1: Right click on a group to be assigned  If it is not desirable to assign a group already programmed into the tetra terminals, a new group specific for DGNA should be defined in the Subscriber Register 2: Select function; “Add Group(s) to DGNA”  This selects the parent group for the DGNA Figure 3-63: DGNA group Assignment 3: Right click on a subscriber(s) to be assigned to the DGNA group. More subscribers may be selected by holding down the <Shift> or <Ctrl> keys 4: Select “Add mobile(s) to DGNA) Figure 3-64: DGNA subscriber selection Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-85 5: Accept the selection Figure 3-65: DGNA subscriber Assignment Alternatively it is possible to drag and drop the selections to the DGNA group window Figure 3-66: DGNA Drag and Drop Selection Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-86 6: Repeat 3 and 4 if more subscribers are to be assigned to the DGNA group 7: After assigning subscribers, the DGNA group is transferred to the mobile by selecting “Assign the parent group to the mobile” Figure 3-67: DGNA Assignment 3.5.9.2 De-assigning subscribers to DGNA 1: Select group or subscriber to be de-assigned and press the de-assign icon Figure 3-68: DGNA de-assign Figure 3-69: DGNA de-assigned terminals 3.5.9.3 Showing DGNA history  Right click on the group or subscriber  Select DGNA History Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-87 Figure 3-70: Individual Subscriber DGNA history Figure 3-71: Group DGNA history 3.5.10 SDS Functionality All outgoing SDS traffic from the Dispatcher is initiated from the Call Dialog which is available in the SDS and Phone Book windows. The predefined Status SDS’s in the list are Organization in-depended, since they are completely transparent to the infrastructure. The predefined Status SDS list is located in a file named StatusSds.txt on the local dispatcher PC. All incoming SDS traffic to the dispatcher is placed in the inbox; please see Figure 3-72. This includes both text and status SDS’s. An open or closed envelope indicates whether the SDS has been read or not Figure 3-72: SDS Inbox All outgoing SDS traffic from the Dispatcher are copied to the SDS Outbox, see Figure 3-73. This includes both text and status SDS’s. The status of any requested SDS Reports is indicated here by icons. The types of SDS reports which are supported are: Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-88  Delivery/consumed Report Request The receiving Terminal shall report when the SDS has been received.  Action accomplished The receiving Terminal has opened (read) the SDS. Figure 3-73: SDS Outbox In the figure above, the left icon shows a SDS send with flag for Delivery- and Consumed Report set. The figure changes to when the SDS has been read / consumed 3.5.10.1 SDS details SDS details may be displayed by right click on the specific SDS message and selecting “Details” Figure 3-74: SDS Details 3.5.10.2 Receiving Emergency SDS Emergency calls will be indicated in the SDS call window as a red bar containing the standard SDS options. Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-89 Also an alarm tone will be played and can be reset by answering / selecting the call Figure 3-75: Emergency SDS The icons associated with the emergency SDS are: SDS received SDS answered 3.5.10.3 ADU200 emergency alarm box Please refer to the configuration section 3.5.3.2.6 external devices Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-90 3.5.11 Map 3.5.12 Detach Map The map window may be detached from the main dispatcher window and placed anywhere on the PC monitor(s) This detachment is accomplished by selecting the detach/attach icon positioned in the upper right hand corner of the map window. To attach again, select the detach/attach icon once more 3.5.12.1 Positioning The TetraFlex ® dispatcher offers GPS positioning Positions may be shown as a function of automatic positioning information send from the terminals or as a manual request from the dispatcher. This functionality uses WG84 map coordinates together with Google Maps or one of the other supported map formats. It is also possible to add layers in ESRI Shapefile format on top of one of the supported maps (except the standard Goggle map format) e.g..for showing details that are not on standard maps. Positions are shown as green circles and position history as yellow. When moving the mouse over the circle, the data and time for the subscriber is shown. Figure 3-76: Positioning Google Doc. No. Rev. Date 1.00 2011-12-08 Damm Cellular Systems A/S, Denmark TETRAFLEX ® V7.5 MANUAL - Dispatcher TetraFlex® 7.5 Manual 3-91 To request the position of a subscriber, right click on the phonebook entry and select the option you want: ○ Select mobile on map - This highlights the GPS position of the radio on the map with big green circle and subscriber details ○ Center on map – Center the GPS position on the map ○ Position History – Shows the Position History window and the historic GPS position on the map as yellow circles ○ Request position – This request the actual GPS position from the radio. This could be usefull when the radio has a long scan period for delivering GPS coordinates and you want a position here and now. ○ Star…

Text truncated - open the document above for the full version.

Applicant: DAMM Cellular Systems A/S FCC ID: Z5W-104028 IC: 10159A-104028 This document will serve as cover letter requesting limited modular approval on the following: Modular approval requirements for DAMM Cellular TR412 and TR412H. 1. The module is completely shielded top and bottom. 2. The data for the module comes from another module and is completely buffered. The RF transceiver module can only be operated in conjunction with the other dedicated components of the system. 3. The power for the module is either buffered on the module for some voltages used or from a voltage regulated power supply module that is dedicated to the system. 4. The system is a licensed device under part 90 of the FCC rules and as such the system can use various antennas. 5. The RF transceiver module is labeled as required (see exhibits). 6. The module is only installed by the grantee or authorized dealer and cannot be used in any other system than the ones supplied by the manufacturer (grantee). 7. The system is only operable as fixed installation equipment and under a licensed rule part.

TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 849 NW State Road 45 P. O. Box 370 Newberry, Florida 32669 USA Telephone (352) 472-5500 (888) 472-2424 FAX (352) 472-2030 email: [email protected] February 13, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Confidentiality request regarding application for Certification for FCC ID: Z5W-104028 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, Damm Cellular Systems A/S hereby requests confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name DAMM Description Circuit Description TetraFlex V7 5 System Description (1 2).pdf Circuit Description Tuning Procedure Tuning Procedure.pdf Tuning Procedure Block Diagram TR412_Block.pdf TR412H Transceiver 805-825_850-870MHz Parts List D104028-LST.pdf Parts List D204028-LST.pdf Schematic Diagram D304002-SCM.pdf Main Board for TR412 Parts List D304002-LST.pdf Schematic Diagram D304018-SCM.pdf RX Front End for TR41x 805-825 MHz Parts List D304018-LST.pdf Schematic Diagram D304028-SCM.pdf RX Synthesizer for TR41x 760-780 MHz Parts List D304028-LST.pdf Schematic Diagram D304038-SCM.pdf Exciter for TR41x 850-870 MHz Parts List D304038-LST.pdf Schematic Diagram D304051-304058-SCM.pdf RFTL switch for TR41x 850-960 MHz Parts List D304058-LST.pdf Schematic Diagram D304088-SCM.pdf PA for TR41x 150W 850-870 MHz Parts List D304088-LST.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to Damm Cellular Systems A/S and provide unjustified benefits to its competitors. TCB FCC Approvals FCB Industry Canada Approval NB Notified Body for Europe 849 NW State Road 45 P. O. Box 370 Newberry, Florida 32669 USA Telephone (352) 472-5500 (888) 472-2424 FAX (352) 472-2030 email: [email protected] Damm Cellular Systems A/S understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made public before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004, of the Commission’s public notice, we also request temporary confidential treatment up to 180 days of information accompanying this application as outlined below: Exhibit Type File Name External Photos External photos.pdf Internal Photos Internal photos.pdf User Manual TetraFlexV7.5_User_Manual_1.01_US_Draft-1.pdf TetraFlexV7.5_User_Manual_1.01_US_Draft-2.pdf TetraFlexV7.5_User_Manual_1.01_US_Draft-3.pdf TetraFlexV7.5_User_Manual_1.01_US_Draft-4.pdf Sincerely, Mario R. de Aranzeta

Generated by CamScanner from intsig.com

User Manual to be amended/updated with: General Warning This manual contains important safety and operation information. Please read and follow the instructions in this manual. Failure to do so could be hazardous and result in damage to your device. Changes and modifications to this device not expressly proved by DAMM could void the user’s authorization to operate this device FCC Regulations The DAMM developed device mentioned in this User Manual fulfill the below statements according to FCC/IC 2 warning statements: This device complies with part 15 of the FCC Rules. Operation is subjekt to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation RF Exposure The DAMM developed transmitting devices mentioned in this User Manual have the Nemko approval concerning “Maximum Permissible Exposure Calculations” which are the European limits for maximum permissible exposure defined in the document 1995/519/EC, Council Recommendation of 12. July 1999. The results are to be found in the Nemko Document 128948/5 in the appendix of this User Manual. Antennas The outside antenna connected to this device must be installed on an outdoor permanent structure with a separation of at least 20 feet from all persons during normal operation. Notice  Do not modify any part of this device for any reason  Do not place any combustible material near the transceiver  Do not spray any liquid over the device  Ensure that the power and antenna connections are securely made, using cables recommended and with excess capacity for the power being utilized.

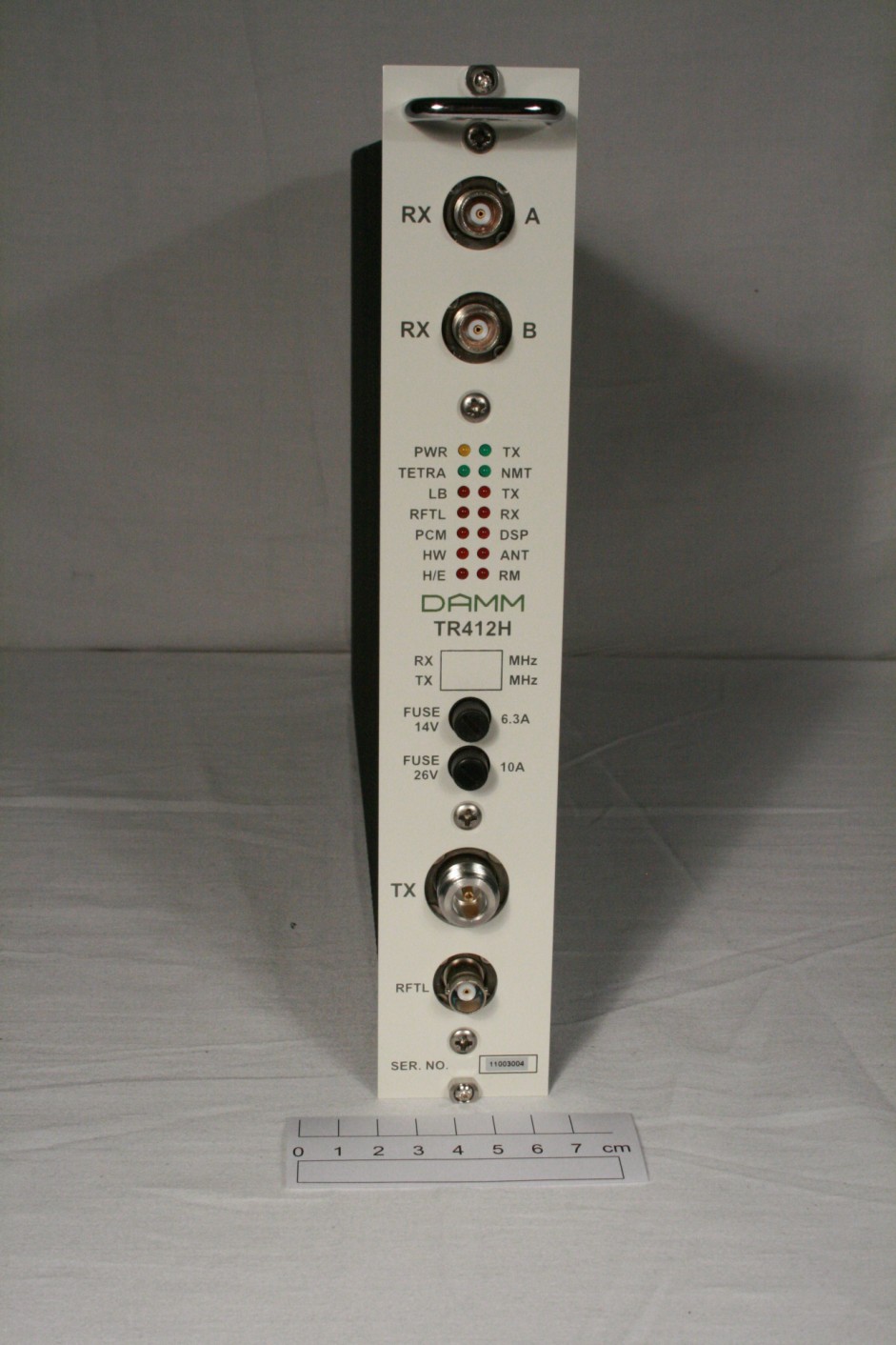

APPLICANT: DAMM CELLULAR SYSTEMS A/S FCC ID: Z5W-104028 IC: 10159A-104028 MODEL #: TR412H Transceiver 805-825 MHz/850-870 MHz External photos

APPLICANT: DAMM CELLULAR SYSTEMS A/S FCC ID: Z5W-104028 IC: 10159A-104028 MODEL #: TR412H Transceiver 805-825/850-870 MHz Internal photos TR412H Transceiver 805-825_850-870 MHz Main Board for TR412 RX Front End for TR41x 805-825 MHz RX Synthesizer for TR41x 760-780 MHz Exciter for TR41x 850-870 MHz RFTL SWITCH FOR TR41x 850-960 MHz PA for TR41x 150W 850-870 MHz

Maximum Permissible Exposure Calculations Page 1 of 1 Nemko AS Gaustadallèen 30 P.O.Box 73 Blindern N-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Product: DAMM TETRA Base Stations BS421, BS411, BS412, BS414 Document No.: 128948/5 Introduction The European limits for maximum permissible exposure are defined in document 1995/519/EC, Council Recommandation of 12. July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz), Annex II, Table 1, of this document defines the basic restrictions. Annex III, Table 2, defines the reference levels of exposure. Meeting the reference levels ensures the meeting of the basic restrictions. From table 2, in the frequency range from 10 to 400 MHz, the maximum power density(S) is 2 W/m². From 400 to 2000 MHz, the maximum power density is F/200 W/m², where (f) is the frequency. The DAMM TETRA Base Stations BS421,BS411, BS412 and BS414 transmits in the UHF band in different frequency bands. Calculation of Safety Distance at MPE limit S = PG or R= PG 4πR² 4πS S= Power Density P= (Power input to the antenna) G= Power gain of the antenna in the direction of interest relative to an isotropic radiator R= Distance to the centre of radiation of the antenna BS421 10W 1 carriers Ptot= Carrier + 10log(N) +3 dB (ant.gain) = 20W BS411 10W 8 carriers Ptot= Carrier + 10log(N) +3 dB (ant.gain) = 160W BS411H 25W 8 carriers Ptot= Carrier + 10log(N) +3 dB (ant.gain) = 400W BS412 7,5W 2 carriers Ptot= Carrier + 10log(N) +3 dB (ant.gain) = 30W BS414 10W 4 carriers Ptot= Carrier + 10log(N) +3 dB (ant.gain) = 80W BS414H 25W 4 carriers Ptot= Carrier + 10log(N) +3 dB (ant.gain) = 200W Safety Distance from centre of radiation of the antenna (cm) Freq. Band (MHz) Table 2 Maximum power density S (mW/cm²) BS421 Safety Distance 1 Ch. BS411 Safety Distance 8 Ch. BS411H Safety Distance 8 Ch. BS414 Safety Distance 4 Ch. BS414H Safety Distance 4 Ch. BS412 Safety Distance 2 Ch. 336 – 346 2/10 0,2 89,21 252,31 398,94 178,41 282,10 109,26 360 – 370 2/10 0,2 89,21 252,31 398,94 178,41 282,10 109,26 390 – 400 2/10 0,2 89,21 252,31 398,94 178,41 282,10 109,26 420 – 430 (f/200)/10 0,2125 86,54 244,78 387,03 173,09 273,67 105,99 460 – 470 (f/200)/10 0,2325 82,74 234,02 370,01 165,47 261,64 101,33 850 – 870 (f/200)/10 0,43 60,84 172,08 272,08 121,68 192,39 74,51 Council Recommandation 1995/519/EC Relevant Standard EN50385:2002 Date: 2011-10-06 --------------------------------------------------- Roy Uggerud, Certification Manager

FCC PART 90 AND IC RSS-119, RSS-GEN TEST REPORT APPLICANT DAMM CELLULAR SYSTEMS A/S MOLLEGADE 68 6400 SONDERBORG DENMARK FCC ID Z5W-104028 IC CERTIFICATION 10159A-104028 MODEL NUMBER TR412H TRANSCEIVER 805-825/851-869 MHz PRODUCT DESCRIPTION 800 MHz Transceiver DATE SAMPLE RECEIVED 12/12/2011 DATE TESTED 1/17/2012 TESTED BY Joe Scoglio APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 2916AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Testing Certificate #0955-01 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Applicant: DAMM CELLULAR SYSTEMS A/S FCC ID: Z5W-104028 IC CERT #: 10159A-104028 Report: D\DAMM\2916AT11\2916AT11TestReport.doc Page 2 of 23 TABLE OF CONTENTS GENERAL REMARKS ......................................................................................................... 3 GENERAL INFORMATION .................................................................................................. 4 GENERAL INFORMATION (cont’d) ...................................................................................... 5 GENERAL INFORMATION (cont’d) ...................................................................................... 6 TEST PROCEDURES ......................................................................................................... 7 RF POWER OUTPUT .......................................................................................................... 8 MODULATION CHARACTERISTICS .................................................................................... 9 AUDIO FREQUENCY RESPONSE ..................................................................................... 10 AUDIO LOW PASS FILTER ............................................................................................... 10 AUDIO INPUT VERSUS MODULATION ............................................................................. 10 OCCUPIED BANDWIDTH ................................................................................................. 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ................................... 16 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................. 18 TRANSIENT FREQUENCY BEHAVIOR .............................................................................. 20 EMC EQUIPMENT LIST ................................................................................................... 22 FREQUENCY STABILITY .................................................................................................. 21 Applicant: DAMM CELLULAR SYSTEMS A/S FCC ID: Z5W-104028 IC CERT #: 10159A-104028 Report: D\DAMM\2916AT11\2916AT11TestReport.doc Page 3 of 23 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledg…
