Z5YMD-SPBT01BLUETOOTH SPEAKER

USER GUIDE MD-SPBT01 Bluetooth Speaker Before using your new product, please read these instructions MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 1 Sunday, September 22, 2013 8:21 AM 2MD-SPBT01 Modal MD-SPBT01 Bluetooth Speaker Contents Introduction ...................................................................... 2 Features .............................................................................. 3 Setting up your speaker................................................ 7 Using your speaker ......................................................... 7 Troubleshooting .............................................................. 9 Specifications.................................................................... 9 Legal notices ................................................................... 10 One-Year Limited Warranty........................................ 11 Introduction Congratulations on your purchase of a high-quality Modal product. Your MD-SPBT01 represents the state of the art in Bluetooth speaker design and is designed for reliable and trouble-free performance. MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 2 Sunday, September 22, 2013 8:21 AM 3MD-SPBT01 Features • Compatible with most MP3 players, computers, mobile phones, and tablets. • Pairs and plays in seconds using a Bluetooth wireless connection. Up to 33' range offers flexible use. • Built-in rechargeable lithium-ion battery, providing up to 5 hours of battery life. • Battery level monitor that shows the battery level on your Apple/ iOS devices (currently this feature is not available on Android devices). • Lightweight design offering easy portability. • 3.5 mm line input providing a simple input connection. Package contents • Bluetooth speaker • USB charging cable •Quick Setup Guide MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 3 Sunday, September 22, 2013 8:21 AM 4MD-SPBT01 To p v i e w NumberComponentFunction 1 Multi-function button () In power-on state, press and hold the button for more than two seconds to enter into pairing mode. The LED alternates blinking red and white. • When the phone rings, quickly press the multi-function () button to answer the phone call. • To end a call, press the multi-function () button twice. Note: For Android users: make sure that the “Phone Audio” function is active in the Bluetooth settings. For more information see “Pairing your speaker with a Bluetooth device” on page 7. MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 4 Sunday, September 22, 2013 8:21 AM 5MD-SPBT01 2 Volume Up 3 AUX IN jack Plug an exter nal audio device into this jack. The default source for this speaker is Bluetooth. If a cable is inserted into this AUX IN jack, the source is automatically switched to AUX IN. Unplug the cable and the source automatically switches back to Bluetooth. 4 Volume Down 5 (power) button •Slide the switch to the right to power on the speaker – LED ON (red/white LED blinking to enter auto pairing mode). •Slide the switch to the left to turn the speaker o – LED OFF. When power is on, the unit automatically connects to the last pair ed Bluetooth device within six seconds. If the last paired Bluetooth device is not in range, the unit automatically searches for another device to pair to. 6 USB port Plug the USB cable into this port. 7 Status indicator LED Power •LED is white when the speaker is turned on. LED is o when the speaker is turned o. Charging •When the speaker is o, the LED is red while charging. After charging is complete, the LED turns o. •When the speaker is on, the LED is solid red while charging. After charging is complete, the red LED turns o and the white LED turns on. Oth er •No Bluetooth connection, the white LED ashes slowly. •Bluetooth is in pairing mode, the white and red LEDs alter nat e blinkin g. •Successful Bluetooth connection, solid white LED. •The white LED blinks quickly when incr easin g/decreasi ng the volume. When the minimum/maximum volume is reached, the LED is solid white. •The LED quickly blinks red when the battery is low. The speaker remains on for approximately 10 more minutes. NumberComponentFuncti on MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 5 Sunday, September 22, 2013 8:21 AM + - 6MD-SPBT01 Side views NumberComponentFuncti on 1 (volume down) Press to decrease the volu me. 2 (volume up) Micro-USB port. Press to increase the volume. 3 Plug the USB cable to charge battery 3 MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 6 Sunday, September 22, 2013 8:21 AM 7MD-SPBT01 Setting up your speaker Charging your speaker When your speaker’s batt ery is lo w, the red LED blinks. To charge your speaker: •Connect the char ging cable to your Bluet ooth speaker and to an availabl e USB port on your computer or a USB char ging station. Using your speaker Turning your speaker on and o To turn your speaker on and o: 1Slid e the (power ) switch to the rig ht to turn your speaker on. 2Slid e the (power) switch to the lef t to turn your speaker o. Pairing your speaker with a Bluetooth device Note: Bluetooth range is 33 feet (10 meters). To pair your speaker with a Bluetooth device: 1Press and hold the multi-function button () on your Bluetooth speaker until the whi te and red LED indicat ors blink. 2Enter pairing mode on your Bluetooth device, then select “Modal MD-SPBT01” from the list to pair. Note: For more information on entering pairing mode, see the instructions that came with your Bluetooth device. Micro USB charging port (under the ap cover) MD-SPBT01_13-0842_MAN_V1_ENG.fm Page 7 Sunday, September 22, 2013 8:21 AM 8MD-SPBT01 3To unpair, turn o Bluetooth on your Bluetooth device. To pair your speaker with an Android Bluetooth device: 1Open Sett ings, then open Wireless and Network. 2Open Bluetooth Settings and turn on Bluetooth. 3Press and hold the multi-function button () on your Bluetooth speaker until the whi te and red LED indicat ors blink. 4Search for devic es and select Modal device or MD-SPBT01 fr om the list to pair and connect wit h. 5Once paired and connected with the MD-SPBT01, touc…

Text truncated - open the document above for the full version.

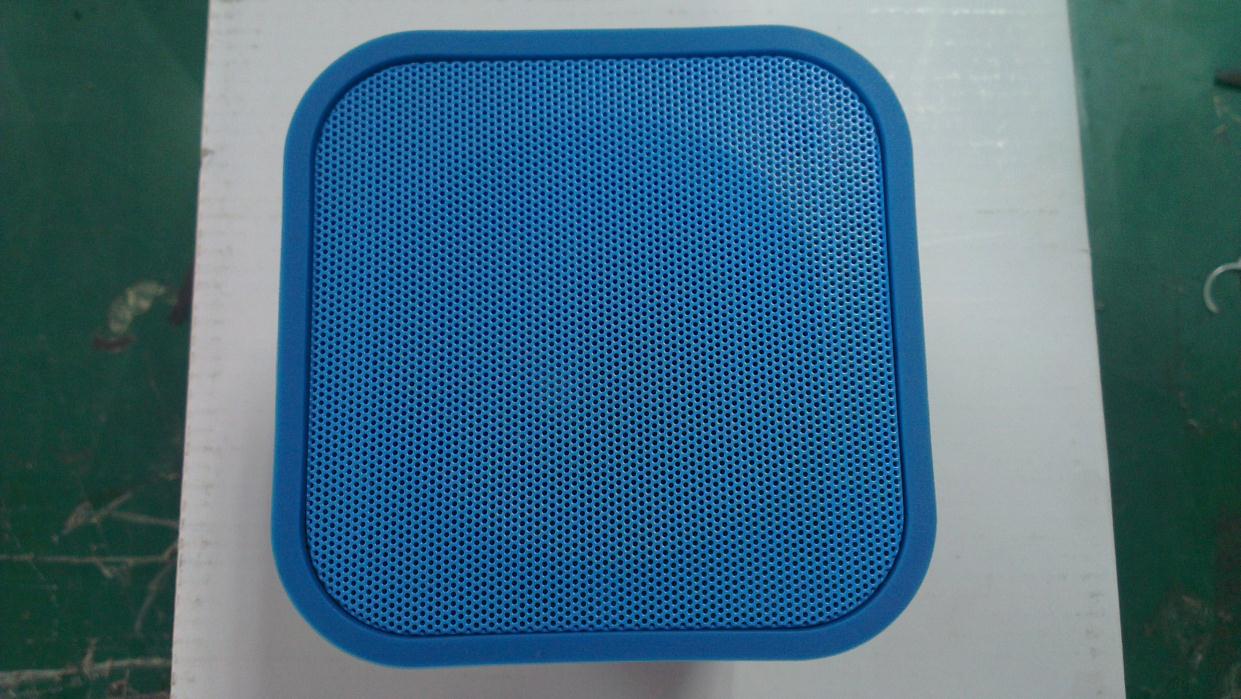

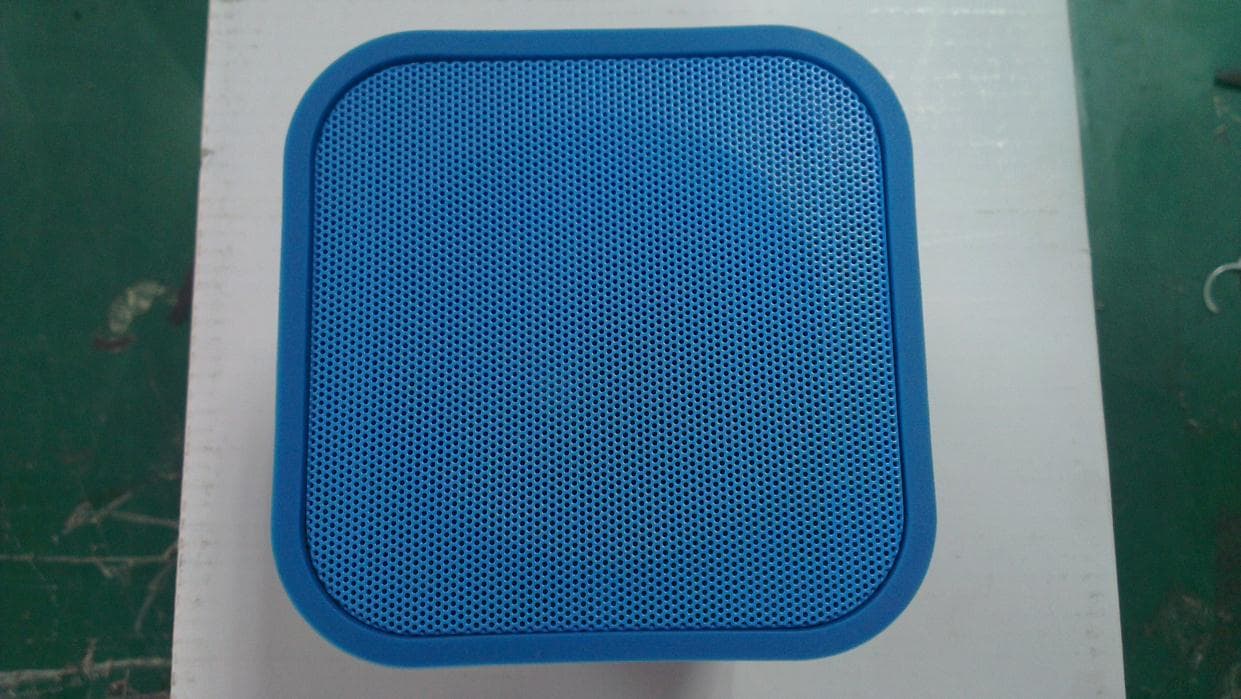

Page 1 of 6 Type Designation: MD-SPBT01 External Photos Report Number: 17035527 001 Page 2 of 6 Type Designation: MD-SPBT01 External Photos Report Number: 17035527 001 Page 3 of 6 Type Designation: MD-SPBT01 External Photos Report Number: 17035527 001 Page 4 of 6 Type Designation: MD-SPBT01 External Photos Report Number: 17035527 001 Page 5 of 6 Type Designation: MD-SPBT01 External Photos Report Number: 17035527 001 Page 6 of 6 Type Designation: MD-SPBT01 External Photos Report Number: 17035527 001

Page 1 of 4 Type Designation: MD-SPBT01 Internal Photos Report Number: 17035527 001 Page 2 of 4 Type Designation: MD-SPBT01 Internal Photos Report Number: 17035527 001 Page 3 of 4 Type Designation: MD-SPBT01 Internal Photos Report Number: 17035527 001 Page 4 of 4 Type Designation: MD-SPBT01 Internal Photos Report Number: 17035527 001

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: BLUETOOTH SPEAKER FCC ID: MD-SPBT01 IC ID: Z5YMD-SPBT01 Radio Frequency Exposure Compliance RESULT: Pass Test standard : RSS-102 Issue 4, March 2010 FCC KDB Publication 447498 v05 The maximum peak output power of the transmitter is 2.59mW only, which less than 20mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4, March 2010. The minimum user distance to the EUT is 5mm, since maximum peak output power of the transmitter is 2.59mW < 96mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure Guidance v05.

Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 2 von 96 Page 2 of 96 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK OUTPUT POWER RESULT: Pass 5.1.3 20DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.4 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Pass 5.1.5 SPURIOUS EMISSION RESULT: Pass 5.1.6 FREQUENCY SEPARATION RESULT: Pass 5.1.7 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.8 TIME OF OCCUPANCY RESULT: Pass 5.1.9 CONDUCTED EMISSIONS RESULT: Pass 5.1.10 RADIATED EMISSIONS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 3 von 96 Page 3 of 96 Contents 1. GENERAL REMARKS ......................................................................................................... 5 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 5 2. TEST SITES ...................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 6 2.3 TRACEABILITY .................................................................................................................. 7 2.4 CALIBRATION ................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 7 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 7 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 7 3. GENERAL PRODUCT INFORMATION .................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 8 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS................................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS ............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 13 5.1.1 Antenna Requirement ............................................................................................................ 13 5.1.2 Peak Output Power ............................................................................................................... 14 5.1.3 20dB Bandwidth and 99% Bandwidth .................................................................................... 15 5.1.4 Conducted Spurious Emissions measured in 100kHz Bandwidth ........................................... 16 5.1.5 Spurious Emission ................................................................................................................. 25 5.1.6 Frequency Separation ........................................................................................................... 76 5.1.7 Number of hopping frequency ................................................................................................ 77 5.1.8 Time of Occupancy ............................................................................................................... 79 5.1.9 Conducted emissions ............................................................................................................ 80 5.1.10 Radiated emissions ........................................................................................................... 83 6. SAFETY HUMAN EXPOSURE ............................................................................................. 92 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 92 6.1.1 Electromagnetic Fields .......................................................................................................... 92 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 93 8. LIST OF TABLES ............................................................................................................. 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 4 von 96 Page 4 of 96 9. LIST OF PHOTOGRAPHS .................................................................................................. 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 5 von 96 Page 5 of 96 1. General Remarks 1.1 Complementary Materials None. 2. Test Sites 2.1 Test Facilities Accurate Technology Co., Ltd. (FCC Registration N…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 61 von 96 Page 61 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 62 von 96 Page 62 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 63 von 96 Page 63 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 64 von 96 Page 64 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 65 von 96 Page 65 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 66 von 96 Page 66 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 67 von 96 Page 67 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 68 von 96 Page 68 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 69 von 96 Page 69 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 70 von 96 Page 70 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 71 von 96 Page 71 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 72 von 96 Page 72 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 73 von 96 Page 73 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 74 von 96 Page 74 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 75 von 96 Page 75 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 76 von 96 Page 76 of 96 5.1.6 Frequency Separation RESULT: Pass Date of testing : 2013-09-09 Test standard : FCC part 15.247(a)(1) RSS-210 A8.1(b) Basic standard : ANSI C63.4: 2009 Limit : ≥ 25kHz or two-thirds of 20dB bandwidth, whichever is greater Kind of test site : Shield room Test setup Test Channel : Low/ Middle/ High Operation Mode : A.1.a Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa Table 6: Test result of Frequency Separation Channel Channel Frequency (MHz) Measured Channel Separation (MHz) Limit (kHz) Result Low Channel 2402 1.002 ≥ 25kHz or two- thirds of 20dB bandwidth Pass Adjacency Channel 2403 Mid Channel 2441 1.002 ≥ 25kHz or two- thirds of 20dB bandwidth Pass Adjacency Channel 2442 High Channel 2479 1.002 ≥ 25kHz or two- thirds of 20dB bandwidth Pass Adjacency Channel 2480 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 77 von 96 Page 77 of 96 5.1.7 Number of hopping frequency RESULT: Pass Date of testing : 2013-09-09 Test standard : FCC part 15.247(a)(1)(iii) RSS-210 A8.1(d) Basic standard : ANSI C63.4: 2009 Limits :  15 non-overlapping channels Kind of test site : Shield room Test setup Test Channel : Low/ Middle/ High Operation Mode : A.1.a Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa Table 7: Test result of Number of hopping frequency Frequency Range Measured Quantity of Hopping Channel Limit Result 2402 to 2480MHz 79 15 Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 78 von 96 Page 78 of 96 Test Plot of Number of hopping frequency A 3DB Ref 10 dBmAtt 40 dB 9 MHz/Center2.441 GHzSpan90 MHz * RBW 100 kHz VBW 300 kHz SWT 10 ms 1 PK MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] 4.04 dBm 2.401940000 GHz 2 Marker 2 [T1 ] 3.64 dBm 2.480060000 GHz Date: 9.SEP.2013 11:12:19 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 79 von 96 Page 79 of 96 5.1.8 Time of Occupancy RESULT: Pass Date of testing : 2013-09-09 Test standard : FCC part 15.247(a)(1)(iii) RSS-210 A8.1(d) Basic standard : ANSI C63.4: 2009 Limits : 0.4s Kind of test site : Shield room Test setup Test Channel : Low/ Middle/ High Operation Mode : A.1.a Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa Table 8: Test result of Time of Occupancy Channel Pulse width (ms) Measured time of Occupancy (s) Limit (s) Result 2402MHz DH1 0.54 0.1728 0.4 Pass DH3 1.82 0.29848 0.4 Pass DH5 3.09 0.34299 0.4 Pass 2441MHz DH1 0.55 0.17655 0.4 Pass DH3 1.82 0.29848 0.4 Pass DH5 3.09 0.3399 0.4 Pass 2480MHz DH1 0.54 0.17334 0.4 Pass DH3 1.82 0.29848 0.4 Pass DH5 3.09 0.34299 0.4 Pass Note: Time of Occupancy = Pulse width x (Hopping rate / Number of channels) x Period Period = 0.4 (seconds/ channel) x 79 (channel) = 31.6 seconds Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 80 von 96 Page 80 of 96 5.1.9 Conducted emissions RESULT: Pass Date of testing : 2013-09-11 Test standard : FCC Part 15.107 (a) ICES-003 Issue 5 February 2012 Basic standard : ANSI C63.4: 2009 Frequency range : 0.15 – 30MHz Limits : FCC Part 15.107(a) ICES-003 Issue 5 February 2012 Kind of test site : Shield room Test setup Input Voltage : AC 120V, 60Hz Operation Mode : B Earthing : Not Connected Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa For details refer to following test plot. Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 81 von 96 Page 81 of 96 Test Plot of Conducted emissions Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 82 von 96 Page 82 of 96 Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 83 von 96 Page 83 of 96 5.1.10 Radiated emissions RESULT: Pass Date of testing : 2013-09-10 Test standard : FCC Part 15.109 ICES-003 Issue 5 February 2012 Basic standard : ANSI C63.4: 2009 Frequency range : 30 – 6000MHz * Limits : FCC Part 15.109(a) ICES-003 Issue 5 February 2012 Kind of test site : 3m Semi-Anechoic Chamber Test Setup Input Voltage : AC 120V, 60Hz Operation Mode : A.2, B Earthing : Not Connected Ambient temperature : 25°C Relative humidity : 52% Atmospheric pressure : 101kPa *- The EUT’s highest frequency generated and used is less than1000MHz, hence the highest scan frequency is up to 6GHz only. For details refer to following test plot. Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 84 von 96 Page 84 of 96 Test Plot …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 93 von 96 Page 93 of 96 7. Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emissions Photograph 2: Set-up for Radiated Emissions Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 94 von 96 Page 94 of 96 Photograph 3: Set-up for Spurious Emissions below 1GHz Photograph 4: Set-up for Spurious Emissions above 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17035527 001 Seite 95 von 96 Page 95 of 96 Photograph 5: Setup for Radio Spectrum testing
