Z5YNS-CSPBT02Portable Bluetooth Speaker

Flat size (W×H): 360.04 × 120 mm. Final folded size: 60 × 60 mm. TURNING YOUR SPEAKER ON AND OFF • Press the button to turn your speaker ON or OFF. The blue LED blinks quickly and the speaker enters pairing mode. CONNECTING WITH BLUETOOTH 1 Make sure that your Bluetooth device is turned on and within 33 feet (10 meters) of your speaker. 2 On your speaker, press the button. Your speaker enters pairing mode, and the Bluetooth LED blinks. Your speaker remains in pairing mode for 30 seconds or until it pairs with a Bluetooth device. Note: Press and hold the button to return to pairing mode. 3 Turn on your Bluetooth device and turn on Bluetooth. Set your device to pairing mode, then select NS-CSPBT02. See the instructions that came with your Bluetooth device for information about pairing. 4 If you are asked for a password, enter 0000. When pairing is complete, the LED on your speaker lights solid blue. Quick Setup Guide | NS-CSPBT02-BL / NS-CSPBT02-GR / NS-CSPBT02-PK / NS-CSPBT02-PU Bluetooth Speaker CHARGING YOUR SPEAKER 1 Connect the small end of your charging cable to the micro USB port underneath the cover on your speaker. 2 Connect the other end to a USB charging port. Note: When the battery is low, the LED blinks red slowly. The speaker will have about 10 minutes of battery life left. Before using your new product, please read these instructions to prevent any damage. Top view Side view PACKAGE CONTENTS • Bluetooth speaker • USB cable • Quick Setup Guide FEATURES • Bluetooth streams music wirelessly • Rechargeable battery lasts for up to six hours • Use as a speakerphone, for hands-free talking • Built-in travel hook • Splash-proof LED Blinks blue slowly Blinks blue Solid blue DESCRIPTION Speaker is not connected Speaker is in pairing mode Speaker is paired Travel hook Power/pairing button Volume up/down button Micro USB charging port cover Bottom of speaker Your speaker loses the Bluetooth connection if you... Turn off your speaker. Move the Bluetooth device out of range. Turn off your Bluetooth device. Turn off Bluetooth on your Bluetooth device. Connect your Bluetooth device to another Bluetooth device. To reconnect... Turn on your speaker. Your speaker searches for the last connected Bluetooth device and reconnects. Make sure that your Bluetooth device is within 33 feet of your speaker. Turn on your Bluetooth device, then make sure that Bluetooth is on. Turn on Bluetooth on your Bluetooth device. Disconnect your Bluetooth device from the other Bluetooth device, then set your device to pairing mode. Select “NS-CSPBT02” on your Bluetooth device. Microphone LED indicator LED Beep and blinks red slowly Solid red Light turns off DESCRIPTION Low battery Charging Fully charged 5 To disconnect from the paired Bluetooth device, press and hold the button on your speaker for three seconds. Your speaker disconnects from the Bluetooth device and enters pairing mode again. RECONNECTING TO A PAIRED DEVICE When your speaker is not paired to a device, the LED blinks blue slowly. Note: If a device does not automatically reconnect, you may need to reselect “NS-CSPBT02” on your Bluetooth device. NS-CSPBT02-BL_GR_PK_PU_15-0320_QSG_V2_EN.ai 1 3/24/2015 9:55:50 AMNS-CSPBT02-BL_GR_PK_PU_15-0320_QSG_V2_EN.ai 1 3/24/2015 9:55:50 AM USING YOUR SPEAKER Using the travel hook 1 Insert the knob at the top of the silicone strap into the hole at the top of the speaker. Listening to music 1 Press the button on your speaker, then connect to your Bluetooth device. 2 Begin playback on your Bluetooth device. 3 Adjust the volume on your speaker by pressing the + or - buttons. Note: Use the controls on your Bluetooth device to control playback. Taking a call 1 Press the button briefly to accept an incoming call. The LED lights blue and fades in and out. OR Press and hold the button to reject an incoming call. The LED blinks red once. 2 Press the button during a call to end the call. The LED blinks red once. TROUBLESHOOTINGLEGAL NOTICES FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maybe cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: V2 ENGLISH 15-0320 LED Fades blue in and out Blinks red once DESCRIPTION Currently connected to a call Call rejected or call ended • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different form that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RSS-Gen & RSS-210 statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux …

Text truncated - open the document above for the full version.

Flat size (W×H): 360.04 × 120 mm. Final folded size: 60 × 60 mm. TURNING YOUR SPEAKER ON AND OFF • Press the button to turn your speaker ON or OFF. The blue LED blinks quickly and the speaker enters pairing mode. CONNECTING WITH BLUETOOTH 1 Make sure that your Bluetooth device is turned on and within 33 feet (10 meters) of your speaker. 2 On your speaker, press the button. Your speaker enters pairing mode, and the Bluetooth LED blinks. Your speaker remains in pairing mode for 30 seconds or until it pairs with a Bluetooth device. Note: Press and hold the button to return to pairing mode. 3 Turn on your Bluetooth device and turn on Bluetooth. Set your device to pairing mode, then select NS-CSPBT03. See the instructions that came with your Bluetooth device for information about pairing. 4 If you are asked for a password, enter 0000. When pairing is complete, the LED on your speaker lights solid blue. Quick Setup Guide | NS-CSPBT03-BL / NS-CSPBT03-GR / NS-CSPBT03-PK / NS-CSPBT03-PU Bluetooth Speaker CHARGING YOUR SPEAKER 1 Connect the small end of your charging cable to the micro USB port underneath the cover on your speaker. 2 Connect the other end to a USB charging port. Note: When the battery is low, the LED blinks red slowly. The speaker will have about 10 minutes of battery life left. Before using your new product, please read these instructions to prevent any damage. Top view Side view PACKAGE CONTENTS • Bluetooth speaker • USB cable • Quick Setup Guide FEATURES • Stream high-quality music wirelessly • Rechargeable battery lasts for six hours • Hang it anywhere with the included carabiner • Use as a speaker for your smartphone LED Blinks blue slowly Blinks blue Solid blue DESCRIPTION Speaker is not connected Speaker is in pairing mode Speaker is paired Your speaker loses the Bluetooth connection if you... Turn off your speaker. Move the Bluetooth device out of range. Turn off your Bluetooth device. Turn off Bluetooth on your Bluetooth device. Connect your Bluetooth device to another Bluetooth device. To reconnect... Turn on your speaker. Your speaker searches for the last connected Bluetooth device and reconnects. Make sure that your Bluetooth device is within 33 feet of your speaker. Turn on your Bluetooth device, then make sure that Bluetooth is on. Turn on Bluetooth on your Bluetooth device. Disconnect your Bluetooth device from the other Bluetooth device, then set your device to pairing mode. Select “NS-CSPBT03” on your Bluetooth device. 5 To disconnect from the paired Bluetooth device, press and hold the button on your speaker for three seconds. Your speaker disconnects from the Bluetooth device and enters pairing mode again. RECONNECTING TO A PAIRED DEVICE When your speaker is not paired to a device, the LED blinks blue slowly. Note: If a device does not automatically reconnect, you may need to reselect “NS-CSPBT03” on your Bluetooth device. Power/pairing button Volume up/down button Micro USB charging port LED Beep and blinks red slowly Solid red Light turns off DESCRIPTION Low battery Charging Fully charged Micro USB charging port LED indicator Microphone Carabiner NS-CSPBT03-BL_GR_PK_PU_15-0321_QSG_V2_EN.ai 1 3/24/2015 9:48:07 AMNS-CSPBT03-BL_GR_PK_PU_15-0321_QSG_V2_EN.ai 1 3/24/2015 9:48:07 AM USING YOUR SPEAKER Listening to music 1 Press the button on your speaker, then connect to your Bluetooth device. 2 Begin playback on your Bluetooth device. 3 Adjust the volume on your speaker by pressing the + or - buttons. Note: Use the controls on your Bluetooth device to control playback. Taking a call 1 Press the button briefly to accept an incoming call. The LED lights blue and fades in and out. OR Press and hold the button to reject an incoming call. The LED blinks red once. 2 Press the button during a call to end the call. The LED blinks red once. TROUBLESHOOTINGLEGAL NOTICES FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maybe cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: V2 ENGLISH 15-0321 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different form that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RSS-Gen & RSS-210 statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accep…

Text truncated - open the document above for the full version.

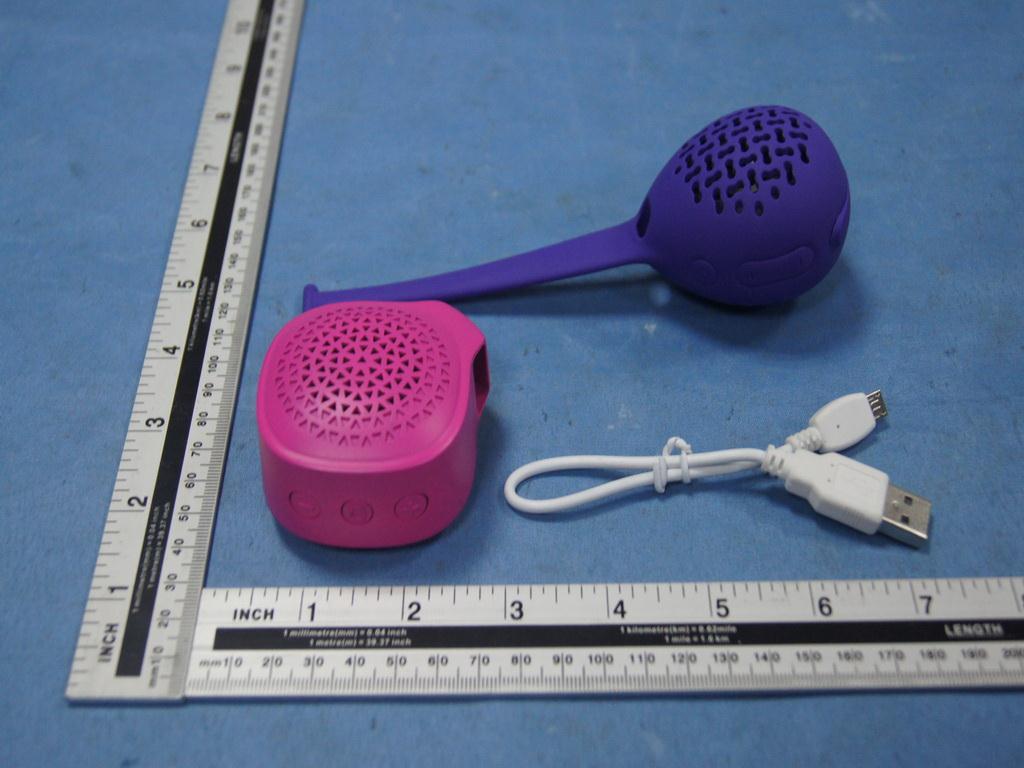

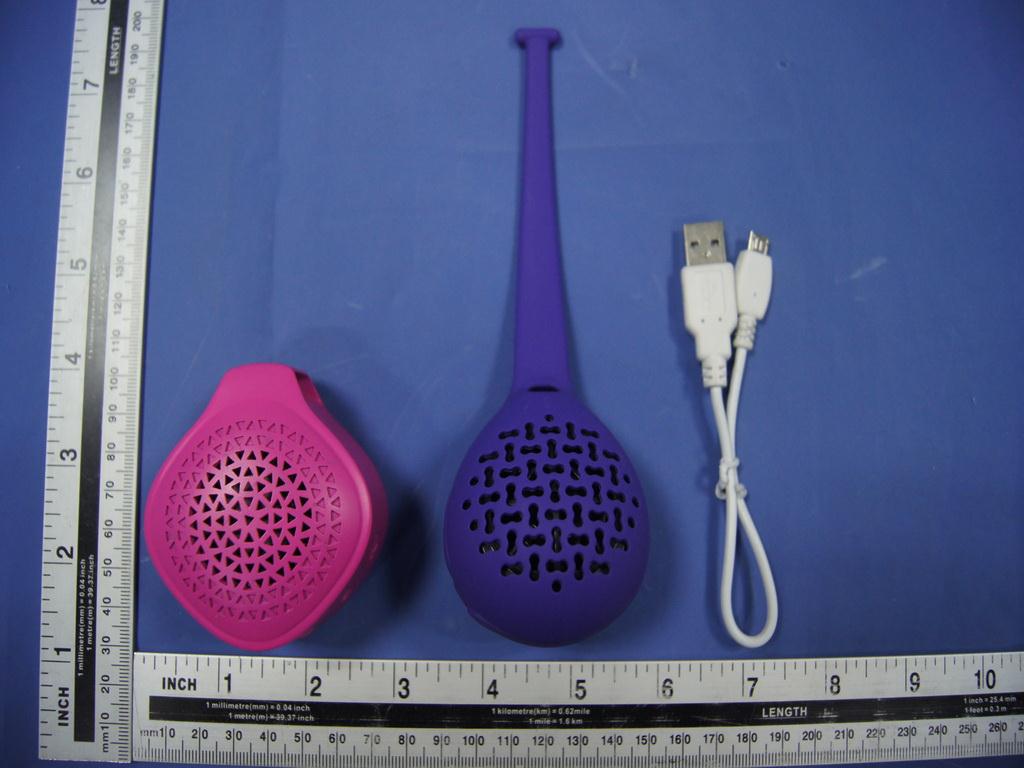

Page 1 of 2 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 1: External view Fig. 2: External view Page 2 of 2 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 3: External view

Page 1 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 1: Internal view of NS-CSPBT02 Fig. 2: Internal view of NS-CSPBT02 Page 2 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 3: Internal view of NS-CSPBT02 Fig. 4: Internal view of NS-CSPBT02 Page 3 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 5: Internal view of NS-CSPBT02 Fig. 6: Internal view of NS-CSPBT02 Page 4 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 7: Internal view of NS-CSPBT02 Fig. 8: Internal view of NS-CSPBT03 Page 5 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 9: Internal view of NS-CSPBT03 Fig. 10: Internal view of NS-CSPBT03 Page 6 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 11: Internal view of NS-CSPBT03 Fig. 12: Internal view of NS-CSPBT03 Page 7 of 7 Type Designation: NS-CSPBT02, NS-CSPBT03 Report Number: 17046279 001 Fig. 13: Internal view of NS-CSPBT03

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: Bluetooth Portable Speaker FCC ID: Z5YNS-CSPBT02 IC : 10828A-CSPBT02 Radio Frequency Exposure Compliance RESULT: Passed Test standard : RSS-102 Issue 4, March 2010 FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02 The minimum distance for the EUT is 10cm, since maximum peak output power of the transmitter is 6mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure.Guidance v05. The maximum peak output power of the transmitter is 6mW only, which less than 20mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4.

Produkte P roducts TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 17046279 001 Auftrags-Nr.: Order No.: 164028608 Seite 1 von 38 Page 1 of 38 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 05.01.2015 Auftraggeber: Client: Compupal (Group) Corporation. No.1555 Jiashan Avenue, Jiashan 314113, Z hejiang, China Prüfgegenstand: Test item: Portable Bluetooth Speaker Bezeichnung / Typ-Nr.: Identification / Type No.: NS-CSPBT02, NS-CSPBT03 Auftrags-Inhalt: Order content: FCC Certification and Verification Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 15: Subpart C Section 15.107 CFR47 FCC Part 15: Subpart C Section 15.109 Wareneingangsdatum: Date of receipt: 05.01.2015 Prüfmuster-Nr.: Test sample No.: A000151433-001 to 003 Prüfzeitraum: Testing period: 07.01.2015 - 26.01.2015 Ort der Prüfung: Place of testing: Shenzhen Accurate T echnology Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 10.01.2015 Owen Tian / Senior Project Manager kontrolliert von / reviewed by: 23.01.2015 Winnie Hou / Technical Certifier Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 17046279 001 Seite 2 von 38 P age 2 of 38 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5. 1.2 PEAK OUTPUT POWER RESULT: Passed 5. 1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Passed 5.1.4 -6DB BANDWIDTH RESULT: Passed 5. 1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5. 1.6 SPURIOUS EMISSION RESULT: Passed 5. 1.7 20DB BANDWIDTH RESULT: Passed 5.1.8 FREQUENCY SEPARATION RESULT: Passed 5.1.9 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.10 TIME OF OCCUPANCY RESULT: Passed 5. 1.11 CONDUCTED EMISSIONS RESULT: Passed 5.1.12 RADIATED EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17046279 001 Seite 3 von 38 P age 3 of 38 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1. 1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2. 1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2. 7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3. 1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 9 3. 4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. TEST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 10 4. 3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS .....…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17046279 001 Seite 34 von 38 Page 34 of 38 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17046279 001 Seite 35 von 38 Page 35 of 38 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17046279 001 Seite 36 von 38 Page 36 of 38 Photograph 5: Set-up for Conducted Emissions Photograph 6: Set-up for Radiated Emissions, below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17046279 001 Seite 37 von 38 Page 37 of 38 Photograph 7: Set-up for Radiated Emissions, above 1GHz
