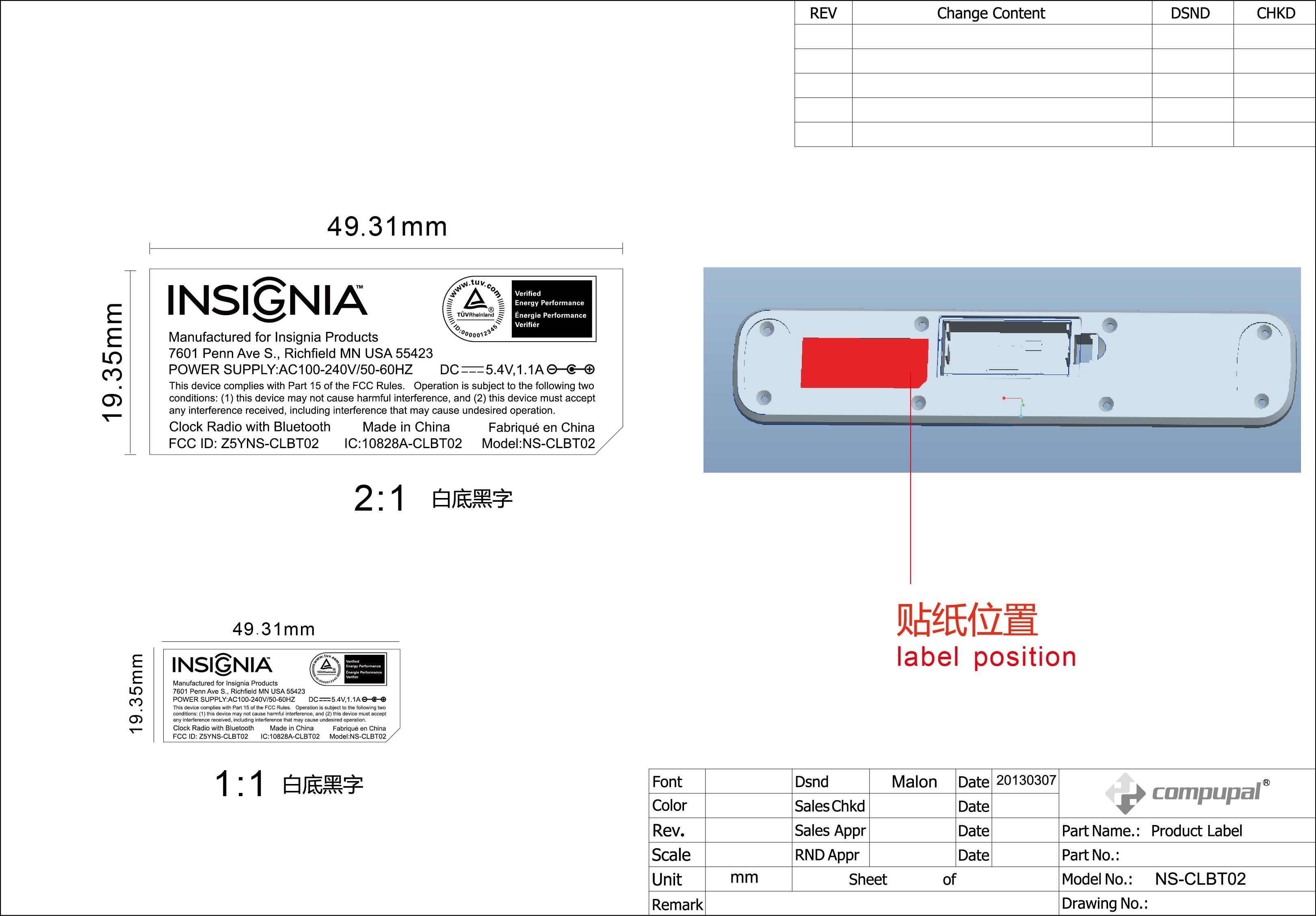

Z5YNS-CLBT02Clock Radio with Bluetooth

User Guide Digital Clock Radio with Bluetooth NS-CLBT02 Before using your new product, please read these instructions to prevent any damage. NS C LBT 02 _1 3  0222 _ MAN _ V 3 _ ENG.f mPage 1Fr id ay , M a rc h8 , 20 1 3 1 0 : 40 AM V3 FINAL FOR PRINT 2 NS-CLBT02 Digital Clock Radio with Bluetooth www.insigniaproducts.com NS-CLBT02 Digital Clock Radio with Bluetooth Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Important safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Top buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Setting up your radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Installing backup batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Connecting the AC/DC power adapter. . . . . . . . . . . . . . . . . . . . . . .8 Using your radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Setting the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Setting the alarm sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Setting the alarm time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Using the snooze feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Turning the alarm off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Setting the sleep timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Playing your radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Programming a radio station preset . . . . . . . . . . . . . . . . . . . . . . . .11 Tuning to a preset radio station . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Adjusting the LCD brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Playing audio from a Bluetooth device. . . . . . . . . . . . . . . . . . . . . .12 Connecting an audio device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Charging a device’s battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 90-day limited warranty - Insignia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-CLBT02 represents the state of the art in digital clock radio and Bluetooth design. Your radio is designed for reliable and trouble-free performance. NS C LBT 02 _1 3  0222 _ MAN _ V 3 _ ENG.f mPage 2 Fr id ay , M a rc h8 , 20 1 3 1 0 : 40 AM 3 NS-CLBT02 Digital Clock Radio with Bluetooth www.insigniaproducts.com Important safety instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Unplug this apparatus during lightning storms or when unused for long periods of time. 13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14 To reduce the risk of fire or electric shock, do not expose this device to rain, moisture, dripping, or splashing, and no objects filled with liquids, such as vases, shall be placed on it. 1 5 The wall plug is the disconnecting device. The plug must remain readily operable. 16 Batteries should not be exposed to excessive heat such as sunshine, fire, or the like. Caution Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. NS C LBT 02 _1 3  0222 _ MAN _ V 3 _ ENG.f mPage 3 Fr id ay , M a rc h8 , 20 1 3 1 0 : 40 AM 4 NS-CLBT02 Digital Clock Radio with Bluetooth www.insigniaproducts.com Features Top buttons #ItemDescription 1 (source) buttonWhen your radio is turned on, quickly press and release to switch between playing the radio, a Bluetooth device, or connected audio device. Se…

Text truncated - open the document above for the full version.

Page 1 of 2 Type Designation: NS-CLBT02 Report Number: 17030657 001 Fig. 1: External view Fig. 2: External view Page 2 of 2 Type Designation: NS-CLBT02 Report Number: 17030657 001 Fig. 3: External view

Page 1 of 4 Type Designation: NS-CLBT02 Report Number: 17030657 001 Fig. 1: Internal view Fig. 2: Internal view Page 2 of 4 Type Designation: NS-CLBT02 Report Number: 17030657 001 Fig. 3: Internal view Fig. 4: Internal view Page 3 of 4 Type Designation: NS-CLBT02 Report Number: 17030657 001 Fig. 5: Internal view Fig. 6: Internal view Page 4 of 4 Type Designation: NS-CLBT02 Report Number: 17030657 001 Fig. 7: Internal view Fig. 8: Internal view

Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 34 von 39 Page 34 of 39 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : RSS-102 Issue 4 FCC KDB Publication 447498 The maximum peak output power of the transmitter is 3.1mW only, which less than 20mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4. The minimum distance for the EUT is 5mm, since maximum peak output power of the transmitter is 3.1mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure.Guidance v05.

Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 2 von 39 Page 2 of 39 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 3 von 39 Page 3 of 39 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 C OMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 S TATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. G ENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 P RODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 S UBMITTED DOCUMENTS .................................................................................................. 9 4. T EST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 T EST OPERATION AND TEST SOFTWARE .......................................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 11 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS ............................................................................................................... 13 5.1 T RANSMITTER REQUIREMENT & TEST SUITES .................................................................. 13 5.1.1 Antenna Requirement ................................................................................................................ 13 5.1.2 Peak Output Power .................................................................................................................... 14 5.1.3 20dB Bandwidth ......................................................................................................................... 15 5.1.4 99% Bandwidth .......................................................................................................................... 16 5.1.5 Conducted spurious emissions measured in 100kHz Bandwidth .............................................. 17 5.1.6 Spurious Emission ..................................................................................................................... 26 5.1.7 Frequency Separation ................................................................................................................ 27 5.1.8 Number of hopping frequency .................................................................................................... 30 5.1.9 Time of Occupancy .................................................................................................................... 32 6. SAFETY HUMAN EXPOSURE ............................................................................................. 34 6.1 R ADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 34 6.1.1 Electromagnetic Fields ............................................................................................................... 34 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 35 8. LIST OF TABLES ............................................................................................................. 39 Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 4 von 39 Page 4 of 39 9. LIST OF PHOTOGRAPHS .................................................................................................. 39 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Result 2. Test Sites 2.1 Test Facilities Shenzhen Accurate Technology Co., Ltd. F1, Bldg. A, Changyuan New Meterial Port, Keyuan Rd., Science & Industry Park Nanshan …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 35 von 39 Page 35 of 39 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 36 von 39 Page 36 of 39 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 37 von 39 Page 37 of 39 Photograph 5: Set-up for Conducted Emissions Photograph 6: Set-up for Radiated Emissions, below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17030657 001 Seite 38 von 39 Page 38 of 39 Photograph 7: Set-up for Radiated Emissions, above 1GHz
