User Guide 2.4 GHz Digital Wireless Stereo Headphones NS-WHP314 Before using your new product, please read these instructions to prevent any damage. NS-WHP314_14-0122_MAN_V1_ENG.fm Page 1 Friday, April 4, 2014 8:55 AM 2 Insignia NS-WHP314 2.4 GHz Digital Wireless Stereo Headphones www.insigniaproducts.com Insignia NS-WHP314 2.4 GHz Digital Wireless Stereo Headphones Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Setting up your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Using your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Maintaining your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 One-year limited warranty - Insignia . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Introduction Congratulations on your purchase of high-quality Insignia 2.4 GHz Digital Wireless Stereo Headphones. This system represents the state of the art in 2.4 GHz wireless headphone design, and gives you complete freedom while enjoying your music or TV without the limitations of cables. The system has a maximum transmission range of up to 45 feet (15 m). You can use the docking station to recharge the headphones when they are not in use. The system can be used with your television or other audio components, like your CD/DVD player, home theater system, or even audio output from a computer or MP3 player. This User Guide explains how to correctly install, operate, and get the best performance from your Insignia Digital Wireless Stereo Headphones. Read this guide carefully before installing your system, and then keep it handy for quick reference. NS-WHP314_14-0122_MAN_V1_ENG.fm Page 2 Friday, April 4, 2014 8:55 AM 3 Insignia NS-WHP314 2.4 GHz Digital Wireless Stereo Headphones www.insigniaproducts.com Safety information •Read these instructions. •Keep these instructions. •Heed all warnings. •Follow all instructions. •Do not use this system near water. •Clean only with a dry cloth. •Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. •Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. •Protect the power cord from being walked on or pinched particularly at plugs, power outlets, and the point where they exit from the system. •Only use attachments or accessories specified by the manufacturer. •Unplug this system during lightning storms or when unused for long periods of time. •Refer all servicing to qualified service personnel. Servicing is required when the system has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the system, the system has been exposed to rain or moisture, does not operate normally, or has been dropped. •To reduce the risk of fire or electric shock, do not expose this system to rain or moisture. •The shock hazard marking and associated graphical symbol are provided on the supplied AC adapter. •The system shall not be exposed to dripping or splashing and objects filled with liquids should not be placed on the system. •The AC plug or AC adapter is used as the disconnect device. The disconnect device shall remain readily available. •Excessive sound pressure from headphones can cause hearing loss. Warning To reduce the risk of fire or electric shock, do not expose this system to rain or moisture Caution To reduce the risk of electric shock, do not remove screws, covers, or the cabinet. There are no user-serviceable parts inside. Refer servicing to qualified service personnel. NS-WHP314_14-0122_MAN_V1_ENG.fm Page 3 Friday, April 4, 2014 8:55 AM 4 Insignia NS-WHP314 2.4 GHz Digital Wireless Stereo Headphones www.insigniaproducts.com •Batteries (battery pack and batteries installed) should not be exposed to excessive heat such as sunshine or fire. •Do not place any conductive material in the cradle to avoid short circuits involving the charging pins. Features •High-Performance digital wireless audio with adjustable volume control. •Strong Wireless Signal - 45 ft. (15 m) wireless range (maximum, line-of-sight). •Easy to Use - Easy setup, built-in rechargeable batteries with convenient base docking station. Package contents Examine the contents of the box for your digital wireless stereo headphones. The box should contain: User Guide 3.5 mm-to-RCA adapter cable RCA audio cable Quick Setup Guide Headphones and docking station AC adapter NS-WHP314_14-0122_MAN_V1_ENG.fm Page 4 Friday, April 4, 2014 8:55 AM 5 Insignia NS-WHP314 2.4 GHz Digital Wireless Stereo Headphones www.insigniaproducts.com Headphones ItemDescription 1Headphone (power) switch (on right earpiece). Press and release to turn the headphones on. Press and hold (more than two seconds) to turn the headphones off. 2Volume Up (+) button. Press to increase the volume. 3Power/Pairing indicator (red/blue): •Blue - lights steadily if the headphone and…

Text truncated - open the document above for the full version.

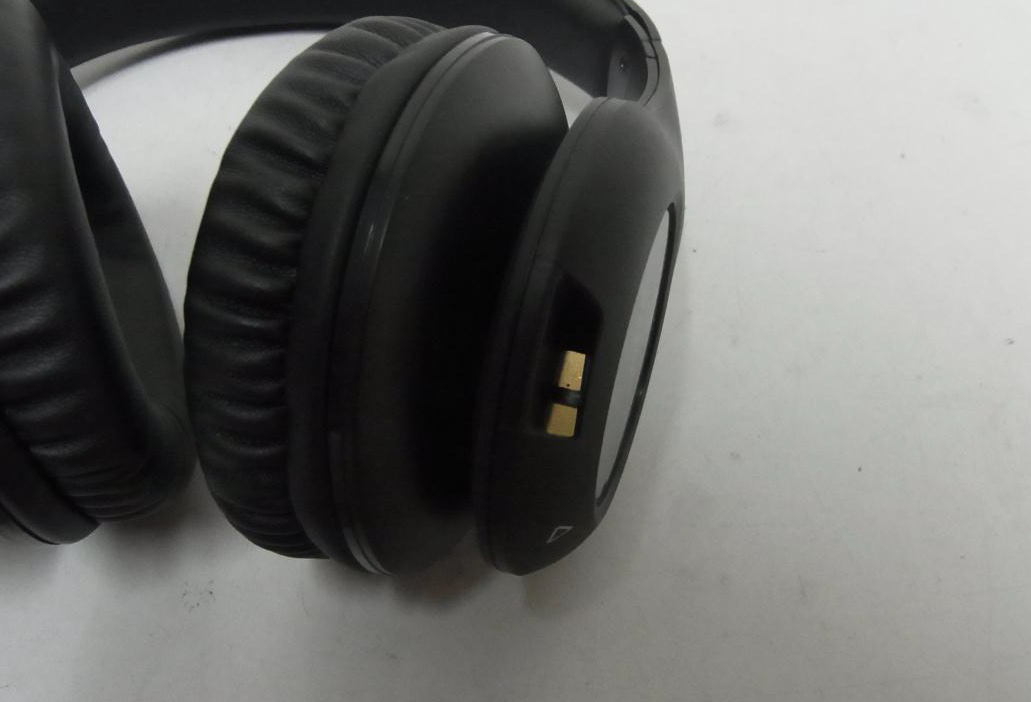

Page 1 of 2 Type Designation: NS-WHP314 External Photos Report Number: 17039425 001 Figure 1 Figure 2 Page 2 of 2 Type Designation: NS-WHP314 External Photos Report Number: 17039425 001 Figure 3 Figure 4

Page 1 of 4 Type Designation: NS-WHP314 Internal Photos Report Number: 17039425 001 Figure 1 Figure 2 Page 2 of 4 Type Designation: NS-WHP314 Internal Photos Report Number: 17039425 001 Figure 3 Figure 4 Page 3 of 4 Type Designation: NS-WHP314 Internal Photos Report Number: 17039425 001 Figure 5 Figure 6 Page 4 of 4 Type Designation: NS-WHP314 Internal Photos Report Number: 17039425 001 Figure 7 Figure 8 Figure 9

Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 17 von 23 Page 17 of 23 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Pass Test standard : RSS-102 Issue 4 March 2010 FCC KDB Publication 447498 D01 v05r01 The separation distance of the docking should be 40mm.The measured maximum peak output power of the docking is 4.7656mW, which is far below the SAR exclusion threshold level 77 mW (Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≥50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v05r01. The separation distance of the docking should be 5mm. The maximum peak output power of the headphone is 0.6920mW, which is far below the SAR exclusion threshold level 10mW (Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤50 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure. Guidance v05r01. And the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4 as well.

Produkte Products Appendix 1 17039425 001 Page 41 of 72 Figure 41: Test figure of radiated spurious emission outside band of headphone, high channel, 30MHz-1000MHz, horizontal Produkte Products Appendix 1 17039425 001 Page 42 of 72 Figure 42: Test figure of radiated spurious emission outside band of headphone, high channel, 30MHz-1000MHz, vertical Produkte Products Appendix 1 17039425 001 Page 43 of 72 Figure 43: Test figure of radiated spurious emission outside band of headphone, low channel, 1GHz-18GHz, vertical Produkte Products Appendix 1 17039425 001 Page 44 of 72 Figure 44: Test figure of radiated spurious emission outside band of headphone, low channel, 1GHz-18GHz, horizontal Produkte Products Appendix 1 17039425 001 Page 45 of 72 Figure 45: Test figure of radiated spurious emission outside band of headphone, middle channel, 1GHz-18GHz, vertical Produkte Products Appendix 1 17039425 001 Page 46 of 72 Figure 46: Test figure of radiated spurious emission outside band of headphone, middle channel, 1GHz-18GHz, horizontal Produkte Products Appendix 1 17039425 001 Page 47 of 72 Figure 47: Test figure of radiated spurious emission outside band of headphone, high channel, 1GHz-18GHz, horizontal Produkte Products Appendix 1 17039425 001 Page 48 of 72 Figure 48: Test figure of radiated spurious emission outside band of headphone, high channel, 1GHz-18GHz, vertical Produkte Products Appendix 1 17039425 001 Page 49 of 72 Figure 49: Test figure of radiated spurious emission outside band of headphone, low channel, 18GHz-25GHz, vertical Produkte Products Appendix 1 17039425 001 Page 50 of 72 Figure 50: Test figure of radiated spurious emission outside band of headphone, low channel, 18GHz-25GHz, horizontal Produkte Products Appendix 1 17039425 001 Page 51 of 72 Figure 51: Test figure of radiated spurious emission outside band of headphone, middle channel, 18GHz-25GHz, horizontal Produkte Products Appendix 1 17039425 001 Page 52 of 72 Figure 52: Test figure of radiated spurious emission outside band of headphone, middle channel, 18GHz-25GHz, vertical Produkte Products Appendix 1 17039425 001 Page 53 of 72 Figure 53: Test figure of radiated spurious emission outside band of headphone, high channel, 18GHz-25GHz, vertical Produkte Products Appendix 1 17039425 001 Page 54 of 72 Figure 54: Test figure of radiated spurious emission outside band of headphone, high channel, 18GHz-25GHz, horizontal Produkte Products Appendix 1 17039425 001 Page 55 of 72 Figure 55: Test figure of conducted emission, wireless mode, line N Produkte Products Appendix 1 17039425 001 Page 56 of 72 Figure 56: Test figure of conducted emission, wireless mode, line L Produkte Products Appendix 1 17039425 001 Page 57 of 72 Figure 57: Test figure of conducted emission, Audio input and output, line L Produkte Products Appendix 1 17039425 001 Page 58 of 72 Figure 58: Test figure of conducted emission, Audio input and output, line N Produkte Products Appendix 1 17039425 001 Page 59 of 72 Figure 59: Test figure of conducted emission, charging, line N Produkte Products Appendix 1 17039425 001 Page 60 of 72 Figure 60: Test figure of conducted emission, charging, line L Produkte Products Appendix 1 17039425 001 Page 61 of 72 Figure 61: Test figure of radiated emission, charging, 30Mz-1000MHz, vertical Produkte Products Appendix 1 17039425 001 Page 62 of 72 Figure 62: Test figure of radiated emission, charging, 30MHz-1000MHz, horizontal Produkte Products Appendix 1 17039425 001 Page 63 of 72 Figure 63: Test figure of radiated emission, Audio input & output, 30MHz-1000MHz, horizontal Produkte Products Appendix 1 17039425 001 Page 64 of 72 Figure 64: Test figure of radiated emission, Audio input & output, 30MHz-1000MHz, vertical Produkte Products Appendix 1 17039425 001 Page 65 of 72 Figure 65: Test figure of radiated spurious emission of docking at band edge, low channel, horizontal Produkte Products Appendix 1 17039425 001 Page 66 of 72 Figure 66: Test figure of radiated spurious emission of docking at band edge, low channel, vertical Produkte Products Appendix 1 17039425 001 Page 67 of 72 Figure 67: Test figure of radiated spurious emission of docking at band edge, high channel, vertical Produkte Products Appendix 1 17039425 001 Page 68 of 72 Figure 68: Test figure of radiated spurious emission of docking at band edge, high channel, horizontal Produkte Products Appendix 1 17039425 001 Page 69 of 72 Figure 69: Test figure of radiated spurious emission of headphone at band edge, low channel, vertical Produkte Products Appendix 1 17039425 001 Page 70 of 72 Figure 70: Test figure of radiated spurious emission of headphone at band edge, low channel, horizontal Produkte Products Appendix 1 17039425 001 Page 71 of 72 Figure 71: Test figure of radiated spurious emission of headphone at band edge, high channel, horizontal Produkte Products Appendix 1 17039425 001 Page 72 of 72 Figure 72: Test figure of radiated spurious emission of headphone at band edge, high channel, vertical

Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 2 von 23 Page 2 of 23 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 99% BANDWIDTH RESULT: Passed 5.1.3 FUNDAMENTAL & HARMONICS RADIATED EMISSION RESULT: Pass 5.1.4 RADIATED SPURIOUS EMISSIONS OUTSIDE BAND RESULT: Pass 5.1.5 RADIATED EMISSIONS RESULT: Pass 5.1.6 CONDUCTED EMISSIONS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 3 von 23 Page 3 of 23 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. G ENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. T EST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. T EST RESULTS ............................................................................................................... 11 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 11 5.1.1 Antenna Requirement ................................................................................................................ 11 5.1.2 99% Bandwidth .......................................................................................................................... 12 5.1.3 Fundamental & Harmonics Radiated Emission ......................................................................... 13 5.1.4 Radiated spurious emissions outside band ............................................................................... 14 5.1.5 Radiated emissions .................................................................................................................... 15 5.1.6 Conducted emissions ................................................................................................................. 16 6. SAFETY HUMAN EXPOSURE ............................................................................................. 17 6.1 R ADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 17 6.1.1 Electromagnetic Fields ............................................................................................................... 17 7. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 18 8. LIST OF TABLES ............................................................................................................. 23 9. LIST OF PHOTOGRAPHS .................................................................................................. 23 Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 4 von 23 Page 4 of 23 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results (Only the worst case test graphs were shown in the Appendix) 2. Test Sites 2.1 Test Facilities Accurate Technology Co., Ltd. F1, Bldg. A, Changyuan New Material Port Keyuan Rd., Science & Industry Park, Nanshan Shenzhen, P.R. China. FCC Registration No.: 752051 IC OATS Registration No.: 5077A-2 The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 5 von 23 Page 5 of 23 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Transmitter spurious emissions Spectrum Analyzer Agilent E7405A MY45115511 2015-01-11 Te…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 19 von 24 Page 19 of 24 7. Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emissions Photograph 2: Set-up for Radiated Emissions Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 20 von 24 Page 20 of 24 Photograph 3: Set-up for Spurious Emissions of headphone, below 30MHz Photograph 4: Set-up for Spurious Emissions of docking, below 30MHz Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 21 von 24 Page 21 of 24 Photograph 5: Set-up for Spurious Emissions of headphone, 30MHz - 1GHz Photograph 6: Set-up for Spurious Emissions of docking, 30MHz - 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 22 von 24 Page 22 of 24 Photograph 7: Set-up for Spurious Emissions of headphone, 1GHz – 18GHz Photograph 8: Set-up for Spurious Emissions of docking, 1GHz – 18GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17039425 001 Seite 23 von 24 Page 23 of 24 Photograph 9: Set-up for Spurious Emissions of headphone, 18GHz – 25GHz Photograph 10: Set-up for Spurious Emissions of docking, 18GHz – 25GHz
