Z5YNS-SPBT02Bluetooth Portable Speaker with Handle

Quick Setup Guide Bluetooth Speaker | NS-SPBT02-Y-C/NS-SPBT02-G-C/NS-SPBT02-BL-C/NS-SPBT02-P-C Charging your speaker When the battery is low, the LED blinks red quickly and the speaker will have about 10 minutes of battery life left. • Connect the small end of your charging cable to the micro-USB port on your speaker, then connect the other end to an available USB port on your computer. Before using your new product, please read these instructions to prevent any damage. Top view Bottom view Package contents • Bluetooth portable speaker • Micro USB charging cable • Quick Setup Guide Features • Travel hook for added portability • Connects to your Bluetooth devices • Embedded 3.5 mm audio cable • Rechargable battery Speaker is off Speaker is on CHARGING LED is red LED is purple NOT CHARGING LED is off LED is blue Micro USB charging port Travel hook Power switch 3.5 mm audio cable LED indicator NS-SPBT02-Y-C_G-C_BL-C_P-C_14-0099_QSG_V1_EN.ai 1 2/12/2014 1:13:28 PMNS-SPBT02-Y-C_G-C_BL-C_P-C_14-0099_QSG_V1_EN.ai 1 2/12/2014 1:13:28 PM Turning your speaker on and off • Slide the power switch to turn your speaker ON or OFF. The blue LED turns on or off. Connecting with the audio cable • Plug the 3.5 mm audio cable into the audio jack on your audio device. • When finished, put the 3.5 mm cable back into the bottom of your speaker for storage. Connecting with Bluetooth Note: The Bluetooth range is 33 feet (10 meters). 1 Slide the power switch to ON. Your speaker enters paring mode and the LED blinks red and blue quickly. 2 Navigate to your device's Bluetooth settings, turn on Bluetooth, then search for available devices. 3 Select NS-SPBT02 from the list of available devices on your Bluetooth device. The LED lights solid blue when your device is paired. Note: For more information on entering pairing mode, see the instructions that came with your Bluetooth device. V1 ENGLISH 14-0099 4 To unpair, turn off Bluetooth on your Bluetooth device. Note: The LED lights solid purple when the speaker is paired and charging. Using your speaker • Use your audio or Bluetooth device to play, pause, select tracks, and adjust the volume. • Use the travel hook to attach the speaker to a bag or other location. • If you have devices connected with both an audio cable and Bluetooth, you will only hear audio from the Bluetooth device. Unpair your speaker to hear audio from the device connected with the audio cable. Troubleshooting My speaker won’t pair or keeps unpairing: • Shorten the distance between your speaker and Bluetooth device. • Charge the battery of your speaker or Bluetooth device if it is low. This may also improve sound quality. LED LED blinks blue slowly LED blinks red and blue quickly LED lights solid blue DESCRIPTION Speaker is not connected Speaker is in pairing mode Speaker is paired • Make sure that your speaker and Bluetooth device are both in pairing mode. • Make sure that your Bluetooth device supports the Bluetooth v3.0 profile. • Make sure that your Bluetooth device is not connected to any other device. • Make sure that you have selected NS-SPBT02 on your Bluetooth device. My sound is distorted: • Your battery may be low. Charge your battery. • If paired to a Bluetooth device, move your audio device closer to your speaker. • Make sure the 3.5 mm cable is firmly connected to your audio device. One-year limited warranty Visit www.insigniaproducts.com for details. Contact Insignia: 1-877-467-4289 (U.S. and Canada) 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a registered trademark of BBY Solutions, Inc. Registered in some countries. Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2014 BBY Solutions, Inc. All Rights Reserved. NS-SPBT02-Y-C_G-C_BL-C_P-C_14-0099_QSG_V1_EN.ai 2 2/12/2014 1:13:38 PMNS-SPBT02-Y-C_G-C_BL-C_P-C_14-0099_QSG_V1_EN.ai 2 2/12/2014 1:13:38 PM

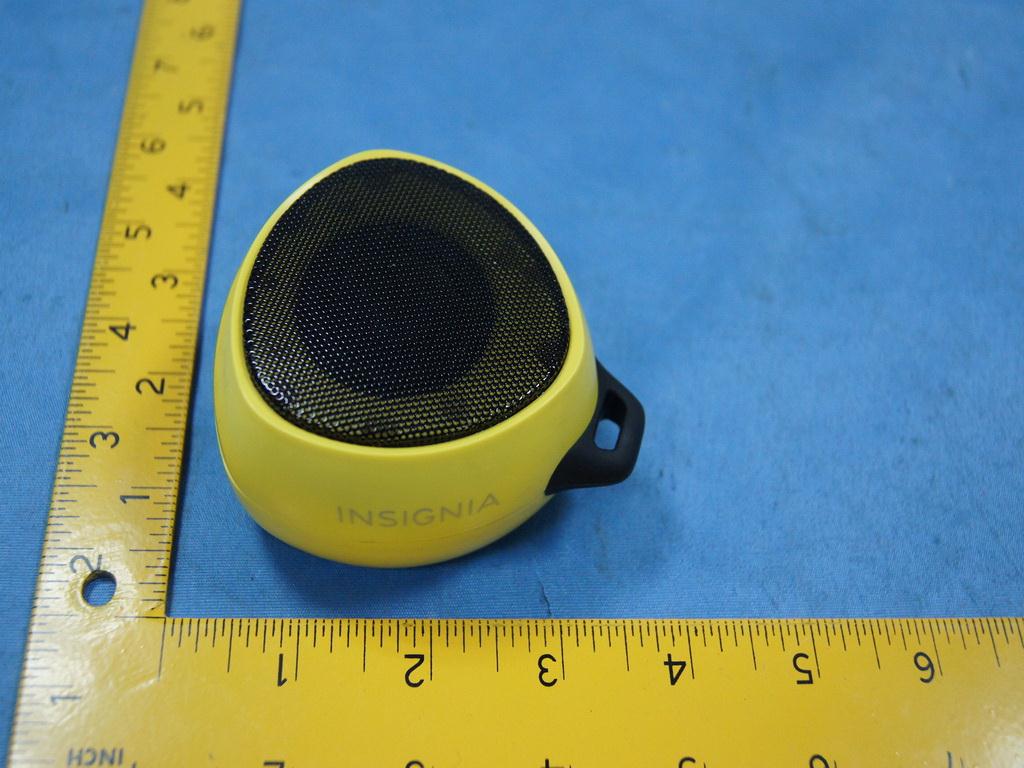

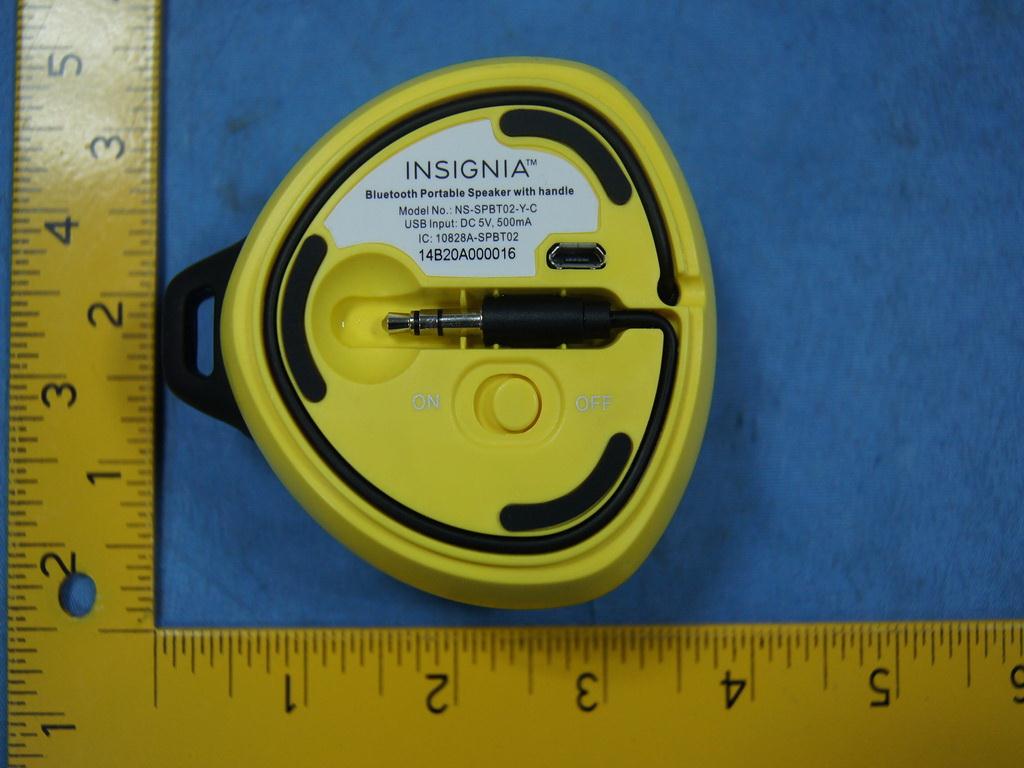

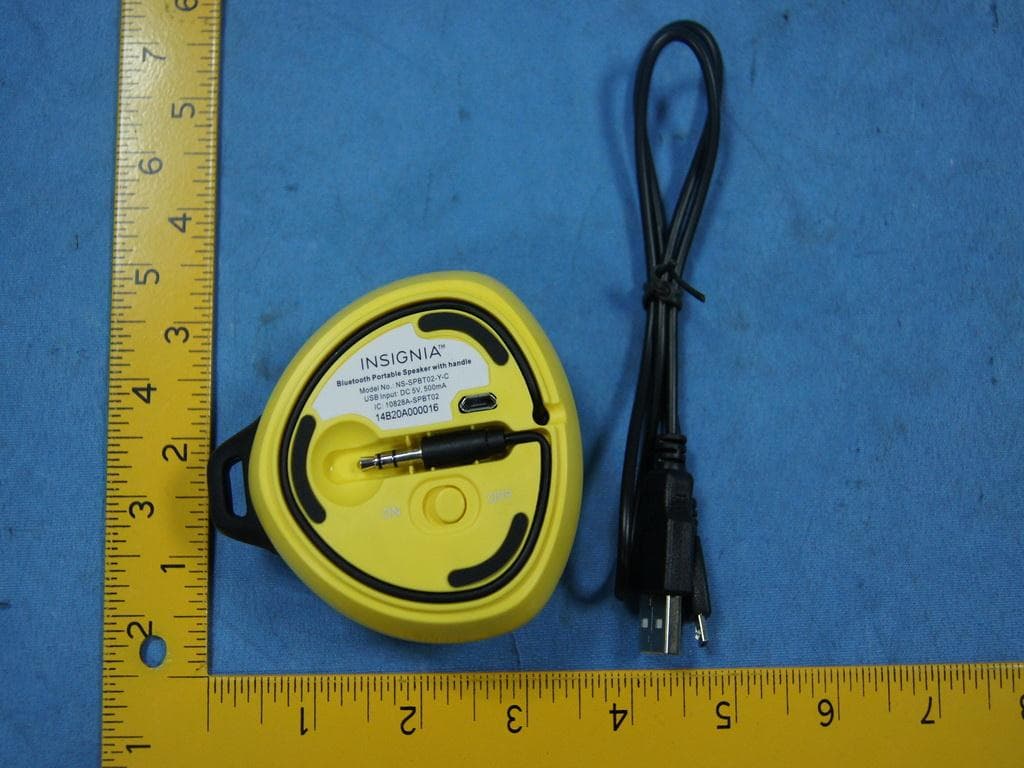

Page 1 of 2 Type Designation: Bluetooth Portable speaker with handle Report Number: 17039136 001 Fig. 1: External view Fig. 2: External view Page 2 of 2 Type Designation: Bluetooth Portable speaker with handle Report Number: 17039136 001 Fig. 3: External view Fig. 4: External view

Page 1 of 3 Type Designation: Bluetooth Portable speaker with handle Report Number: 17039136 001 Fig. 1: Internal view Fig. 2: Internal view Page 2 of 3 Type Designation: Bluetooth Portable speaker with handle Report Number: 17039136 001 Fig. 3: Internal view Fig. 4: Internal view Page 3 of 3 Type Designation: Bluetooth Portable speaker with handle Report Number: 17039136 001 Fig. 5: Internal view Fig. 6: Internal view

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: Bluetooth Portable speaker with handle FCC ID: Z5YNS-SPBT02 IC : 10828A-SPBT02 Radio Frequency Exposure Compliance RESULT: Passed Test standard : RSS-102 Issue 4, March 2010 FCC KDB Publication 447498 v05 The minimum distance for the EUT is 30mm, since maximum peak output power of the transmitter is 1.14mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure.Guidance v05. The maximum peak output power of the transmitter is 1.14mW only, which less than 20mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4.

Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 2 von 37 Page 2 of 37 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.5 SPURIOUS EMISSION RESULT: Passed 5.1.6 FREQUENCY SEPARATION RESULT: Passed 5.1.7 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.8 TIME OF OCCUPANCY RESULT: Passed 5.1.9 CONDUCTED EMISSIONS RESULT: Passed 5.1.10 RADIATED EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 3 von 37 Page 3 of 37 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. G ENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. T EST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 10 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 11 4.5 TEST SETUP DIAGRAM .................................................................................................... 11 5. T EST RESULTS ............................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 13 5.1.1 Antenna Requirement ................................................................................................................ 13 5.1.2 Peak Output Power .................................................................................................................... 14 5.1.3 20dB Bandwidth ......................................................................................................................... 15 5.1.4 Conducted spurious emissions measured in 100kHz Bandwidth .............................................. 17 5.1.5 Spurious Emission ..................................................................................................................... 26 5.1.6 Frequency Separation ................................................................................................................ 27 5.1.7 Number of hopping frequency .................................................................................................... 28 5.1.8 Time of Occupancy .................................................................................................................... 29 5.1.9 Conducted emissions ................................................................................................................. 31 5.1.10 Radiated Emission ................................................................................................................. 32 6. PHOTOGRAPHS OF THE TEST SET-UP .............................................................................. 33 7. L IST OF TABLES ............................................................................................................. 37 8. LIST OF PHOTOGRAPHS .................................................................................................. 37 Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 4 von 37 Page 4 of 37 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Result 2. Test Sites 2.1 Test Facilities Shenzhen Accurate Technology Co., Ltd. F1, Bldg. A, Changyuan New Meterial Port, Keyuan Rd., Science & Industry Park Nanshan District, Shenzhen 518057, P.R. China FCC Registration No.: 752051 The tests at the test site have been conducted under the supervision of a TÜV engineer. Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 5 von 37 Page…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 33 von 37 Page 33 of 37 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 34 von 37 Page 34 of 37 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 35 von 37 Page 35 of 37 Photograph 5: Set-up for Conducted Emissions Photograph 6: Set-up for Radiated Emissions, below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17039136 001 Seite 36 von 37 Page 36 of 37 Photograph 7: Set-up for Radiated Emissions, above 1GHz
