Z6QFC09549RC Monster car/Thunder Tumbler

[Name] Shaona Cai [Title] Vice President

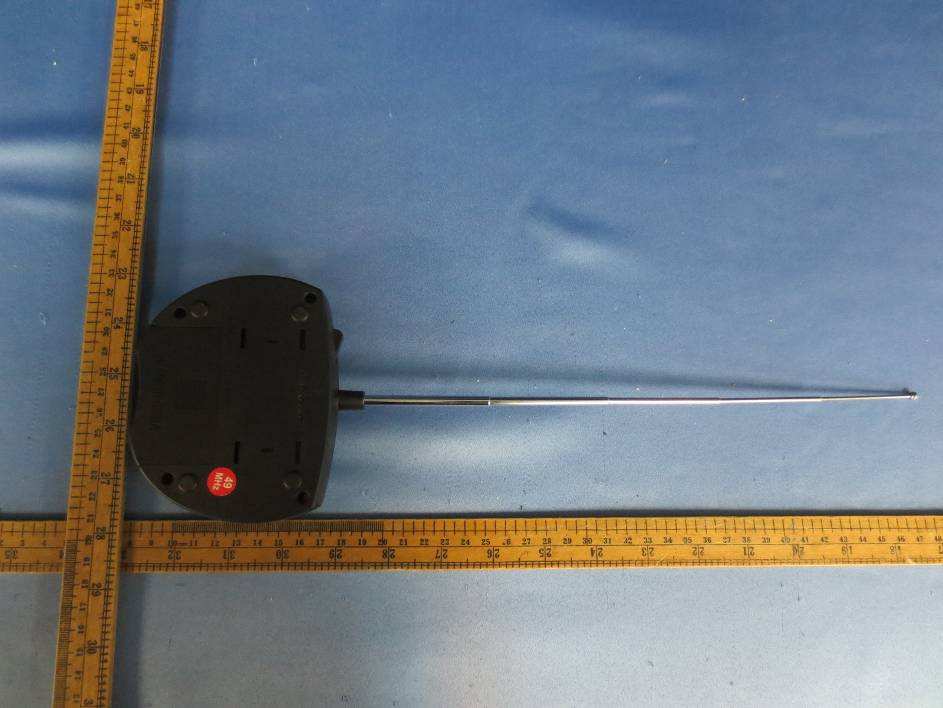

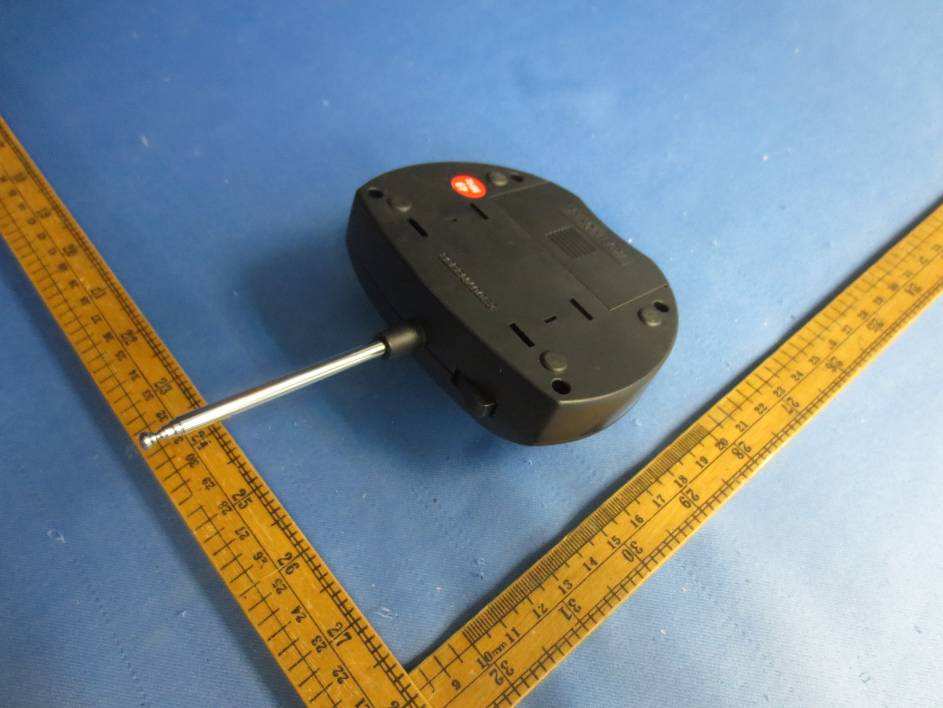

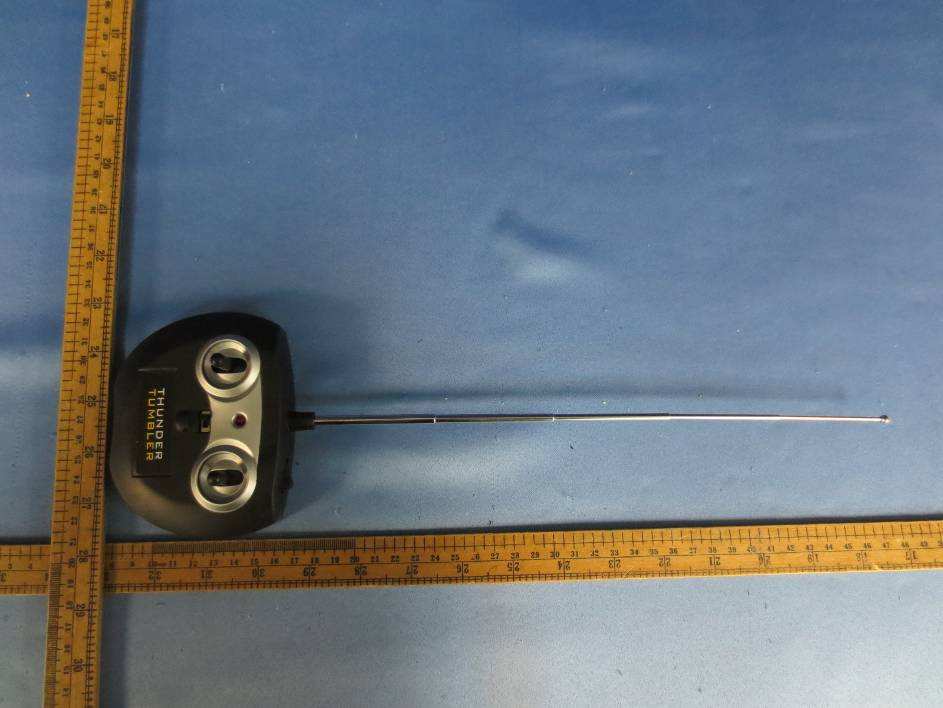

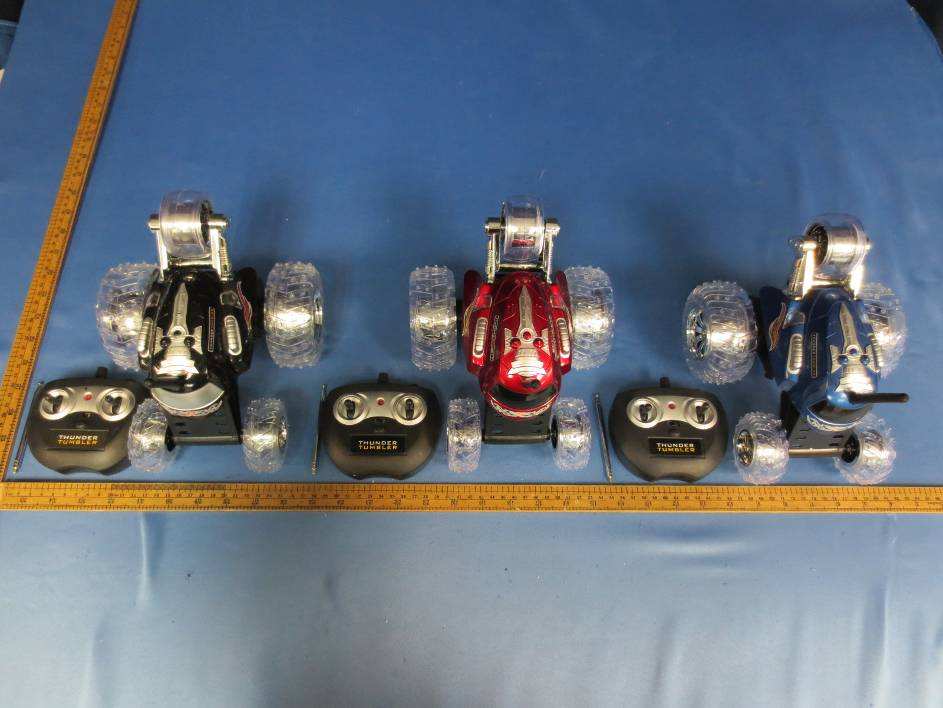

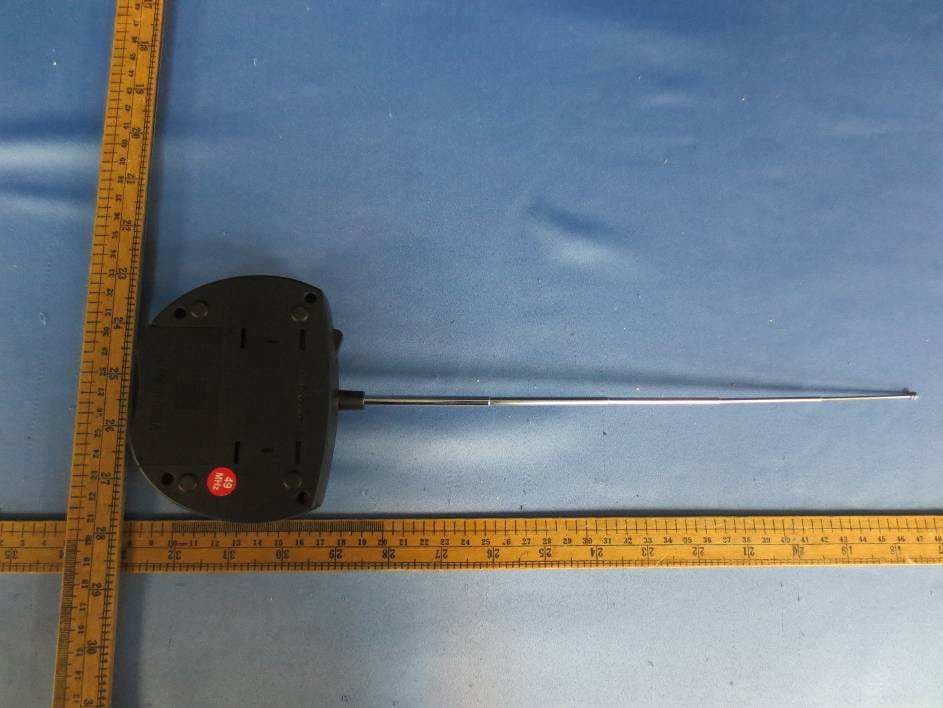

External Photos

Label Artwork and Location

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC Monster car/Thunder Tumbler operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 9.0V 6F22 size battery.For more detail information pls. refer to the user manual. Antenna Type: telescope antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -20dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -22.15d Bm (+/- 3dB) Mo dulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 75.6dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW = -19.6dBm The ERP = EIRP – 2.15 = -21.8 dBm which is within the production variation. The maximum conducted output power specified is -17dB m = 0.02mW The source- based time-averaging conducted output power = 0.02 * Duty Cycle mW= 0.013 mW < 0.1 mW The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz))]/ 2 = 308.6mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 18.54ms Effective period of the cycle = 1.56msx 4 + 540μs x 10 = 11.64ms Duty Cycle = 11.64ms / 18.54ms = 0.628 or 62.8% FCC ID: Z6QFC09549

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6 F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Application F or Certification FCC ID: Z6QFC09549 RC Monster car/Thunder Tumbler Model: FL2013 Transmitter Report No.: 121217004SZN-001 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-12] Pr epared and Checked by: Approved by: Sign on file Harry Wu Testing Engineer Billy Li Supervisor Date: 4 January 2013 INTERTEK TESTING SERVICES Report No.:121217004SZN-001 FCC ID: Z6QFC09549 TRF No.: FCC 15C_TX_b i GENERAL INFORMATION GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. MODEL: FL2013 FCC ID: Z6QFC09549 Grantee: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Grantee Address: Haisheng Road, Laimei Industrial District, Fengxiang Chenghai Shantou, Guangdong China Contact Person: Shaona Cai Tel: 86-0754-85717755 Manufacturer: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Manufacturer Address: Haisheng Road, Laimei Industrial District, Fengxiang Chenghai Shantou, Guangdong China Model: FL2013 Type of EUT: Transmitter Description of EUT: RC Monster car/Thunder Tumbler Serial Number: N/A FCC ID : Z6QFC09549 Date of Sample Submitted: 17 December 2012 Date of Test: 4 January 2013 Report No.: 121217004SZN-001 Report Date: 4 January 2013 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.:121217004SZN-001 FCC ID: Z6QFC09549 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. MODEL: FL2013 FCC ID: Z6QFC09549 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 1 5.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 1 5.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a telescope antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.:121217004SZN-001 FCC ID: Z6QFC09549 TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description.......................................................................................1 1.1 Product Description..........................................................................................1 1.2 Related Submittal(s) Grants..............................................................................1 1.3 Test Methodology.............................................................................................1 1.4 Test Facility......................................................................................................1 2.0 System Test Configuration ............................................................................2 2.1 Justification ......................................................................................................2 2.2 EUT Exercising Software.......................................…

Text truncated - open the document above for the full version.

A * 3DB RBW 1 kHz SWT 100 ms * VBW 3 kHz Att 10 dB * Ref 107 dBμV Start 49.81 MHzStop 49.91 MHz10 kHz/ 1 PK VIEW 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 95.33 dBμV 49.861000000 MHz 2 Delta 2 [T1 ] -44.75 dB -51.000000000 kHz 3 Delta 3 [T1 ] -45.26 dB 49.000000000 kHz

Ref 107 dBμVAtt 10 dB * * A 3DB RBW 3 MHz VBW 3 MHz SGL Center 49.861 MHz10 ms/ SWT 100 ms 1 PK VIEW 10 20 30 40 50 60 70 80 90 100 Ref 107 dBμVAtt 10 dB * * A RBW 3 MHz VBW 3 MHz SGL Center 49.861 MHz3 ms/ SWT 30 ms 3DB VIEW 1 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 91.26 dBμV 8.880000 ms 1 Delta 1 [T1 ] -0.02 dB 18.540000 ms Ref 107 dBμVAtt 10 dB * * A RBW 3 MHz VBW 3 MHz SGL Center 49.861 MHz3 ms/ SWT 30 ms 3DB VIEW 1 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 91.26 dBμV 8.880000 ms 1 Delta 1 [T1 ] -0.38 dB 1.560000 ms Ref 107 dBμVAtt 10 dB * * A RBW 3 MHz VBW 3 MHz SGL Center 49.861 MHz3 ms/ SWT 30 ms 3DB VIEW 1 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 91.18 dBμV 17.100000 ms 1 Delta 1 [T1 ] -0.28 dB 540.000000 μs

Radiated Photos
