Z6QFL09527Toy RC Monster Spinning Car

User Manual Trade name: Toy RC Monster Spinning Car Model number: FL2012 Remote-controller’s battery installation 1) Release the cover of battery box 2) Install 9V battery into battery compartment according to the right poles 3) Close the cover of the battery box Car battery installation 1) Unlock the battery cover of the battery compartment which is back of the car; 2) Install four 1.5V AA Size batteries into battery compartment according to the right poles; 3) Close the cover of the battery compartment; 4) Lock the battery cover. Use instruction 1) Turn the power switch of car-body to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move Forward and Backward clockwise. After play, turn the power switches of car-body to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145MHz ANT IC1 128KHz

GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Address: Haisheng Road, Laimei Industrial District, Fengxiang, Chenghai, Shantou, Guangdong, China.

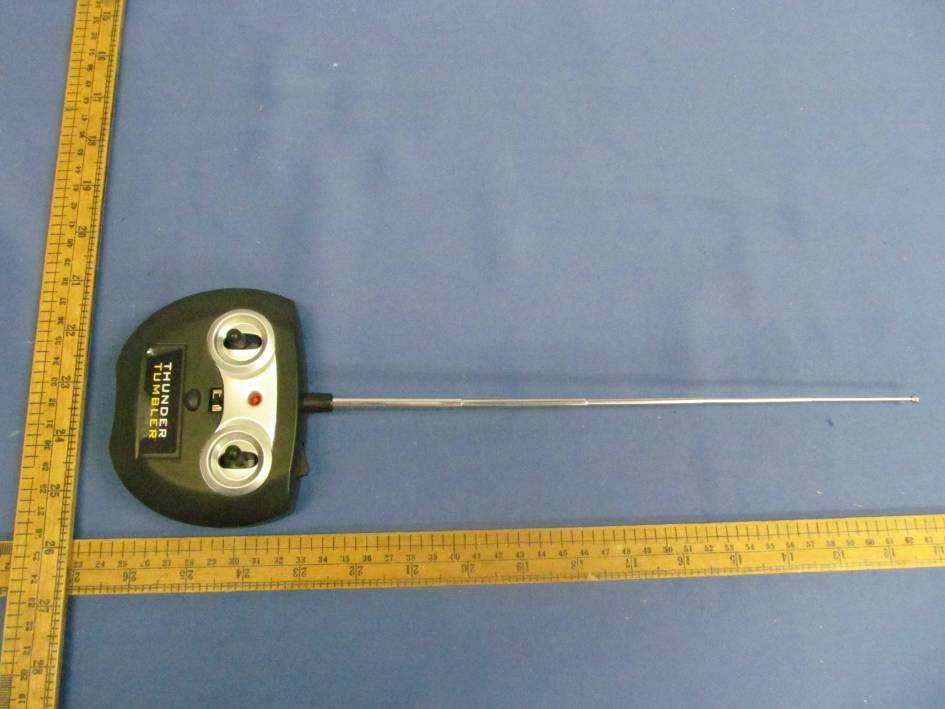

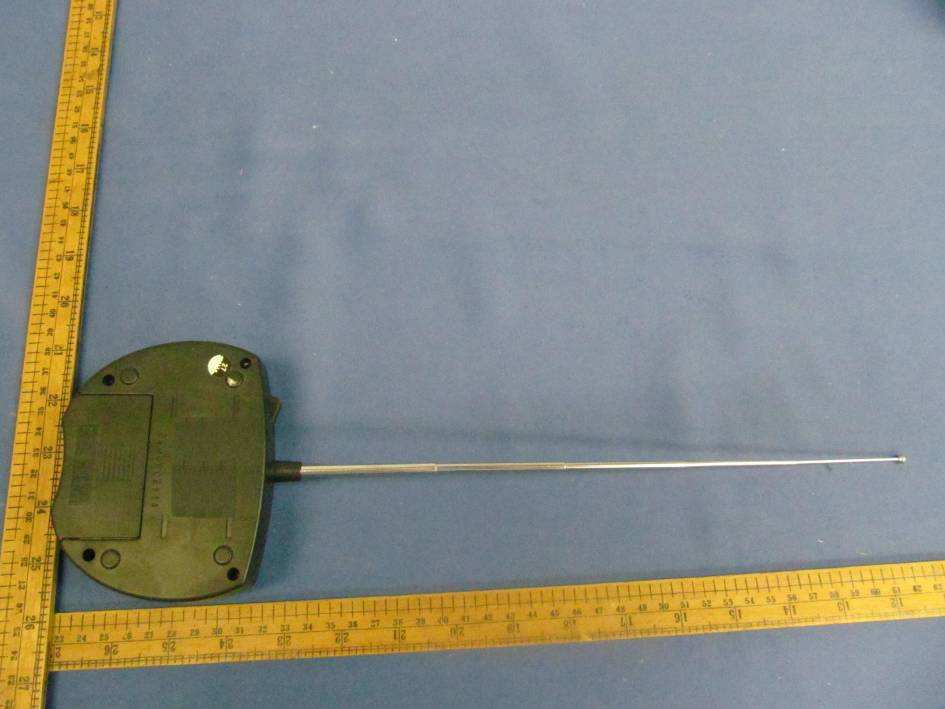

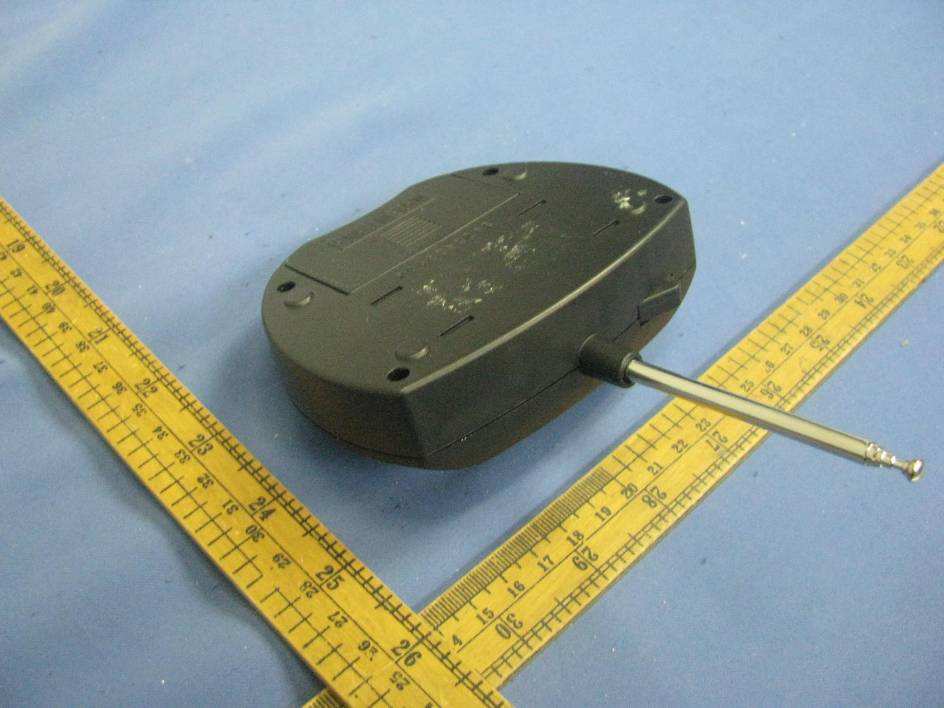

External Photos

Label Artwork and Location FL2012 27MHz FCC ID label

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C1, C2 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q1 Oscillator Generate 27.145 MHz carrier Y1, Q2 Encoder IC Generate code signal to modulator IC1 Type of antenna: telescope antenna with unique antenna connector Type of modulation: Pulse modulation

Y1 27.145MHz 3.9V

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC IC_C_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Application For Certification FCC ID: Z6QFL09527 Toy RC Monster Spinning Car Model: FL2012 Transmitter Report No.: SZ12060477-1 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-11] Prepared and Checked by: Approved by: Sign on file Chris Chen Engineer Billy Li Supervisor Date: July 20, 2012 INTERTEK TESTING SERVICES Report No.: SZ12060477-1 FCC ID: Z6QFL09527 TRF No.: FCC IC_C_b i GENERAL INFORMATION GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. MODEL: FL2012 FCC ID: Z6QFL09527 Grantee: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Grantee Address: Haisheng Road, Laimei Industrial District, Fengxiang, Chenghai, Shantou, Guangdong, China. Contact Person: Shaona Cai Tel: 86-0754-85717755 Manufacturer: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Manufacturer Address: Haisheng Road, Laimei Industrial District, Fengxiang, Chenghai, Shantou, Guangdong, China. Model: FL2012 Type of EUT: Transmitter Description of EUT: Toy RC Monster Spinning Car Serial Number: N/A FCC ID : Z6QFL09527 Date of Sample Submitted: June 27, 2012 Date of Test: July 20, 2012 Report No.: SZ12060477-1 Report Date: July 20, 2012 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZ12060477-1 FCC ID: Z6QFL09527 TRF No.: FCC IC_C_b ii SUMMARY OF TEST RESULT GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. MODEL: FL2012 FCC ID: Z6QFL09527 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement (for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a telescope antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZ12060477-1 FCC ID: Z6QFL09527 TRF No.: FCC IC_C_b iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification ...................................................…

Text truncated - open the document above for the full version.

Radiated Photos
