Z6QFLFC10249RC Baja Truck

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Block Diagram Filte r RF po wer amplifier and Modulator Oscil lator 49.860MHz Encod er Contr ol key 49.86 0MHz ANT J JP1

GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO.,LTD Address:Laimei Industrial District,Fengxiang Chenghai,Shantou city,Guangdong,China TEL:86-754-85728755 FAX:86-754-85730555 www.feiluntoys.com e-mail:Feilun factory-Koni<[email protected]> To whom it may concern, Letter of Agency I, an officer of GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO.,LTD do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, J une. 04, 2013 Haisheng Rd., Laimei Industrial District, Fengxiang Chenghai, Shantou City, Guangdong, China. Terry Chan

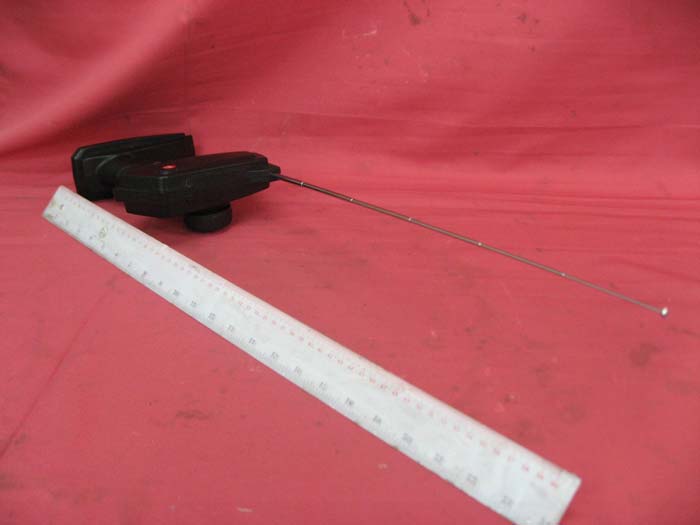

INTERTEK TESTING SERVICE Report No.: 13061132HKG-001 Equipment Photographs Model: FL2013C (External) FCC ID: Z6QFLFC10249

INTERTEK TESTING SERVICE Report No.: 13061132HKG-001 Equipment Photographs Model: FL2013C (Internal) FCC ID: Z6QFLFC10249 INTERTEK TESTING SERVICE Report No.: 13061132HKG-001 Equipment Photographs Model: FL2013C (Internal) FCC ID: Z6QFLFC10249 INTERTEK TESTING SERVICE Report No.: 13061132HKG-001 Equipment Photographs Model: FL2013C (Internal) FCC ID: Z6QFLFC10249

Model: FL2013C (Transmitter portion) Technical Description of Transmitter The transmitter is operating at 49.860 MHz as dictated by a crystal. The EUT has control levers to control the the receiver forward, backward, turn left and turn right. The circuit of the transmitter comprises of, 1. Encoding circuit Consisting: S2, S3, S4, S5, JP1 (TX-2) 2. RF Oscillator Consisting: Y1 (49.860MHz) 3. Amplifier and modulator Consisting: Q1, Q2 4. Filter Consisting: L3, C3, C6, C7 5. Power Supply Consisting: One 9.0V battery The transmitter uses an external, integral and non-detachable antenna. The nominal rated field strength is 69. 9dBuV/m @ 3m Production tolerance of field strength is +/- 3dB Antenna gain is 0dBi

Analysis Report Report No.: 13061132HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x “9V” batteries). The EUT has 2 control levers to control the RC car left, right, forward and backward. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 69.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.9dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0058mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0058mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.
