Z6QFLFR00149Toy RC Fighting Robot

User Manual Use instruction 1) Turn the power switch of car-body to “ON” position; 2) When the user control the control stick, the LED light will be turn on; When the light is turning dimmer, the batteries are to be replaced; 3) Operate the handle of the controller, the car can move Forward and Backward clockwise. After play, turn the power switches of car-body to “OFF” position. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment such modifications could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Local company: MerchSource LLC Address: 19517 Pauling Foothill Ranch CA 92610 USA Phone, Fax: 949-900-0924, 949-707-2780

Block Diagram Filter Encoder IC1 128KHz 49.860MHz ANT Control key RF power amplifier and Modulator Oscillator 49.860MHz

GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO.,LTD Address:Laimei Industrial District,Fengxiang Chenghai,Shantou city,Guangdong,China TEL:86-754-85728755 FAX:86-754-85730555 www.feiluntoys.com e-mail:Feilun factory-Koni<[email protected]> Nov. 23, 2012 To whom it may concern, Letter of Agency I, an officer of GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO.,LTD do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards,

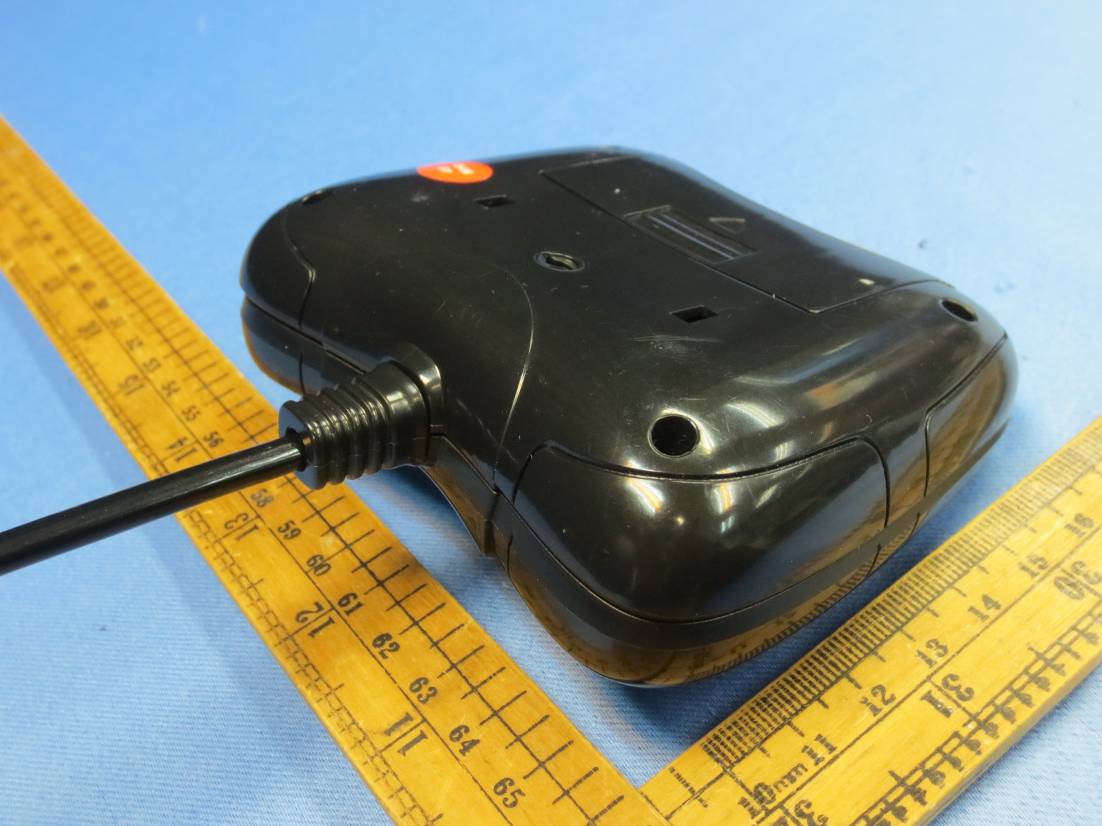

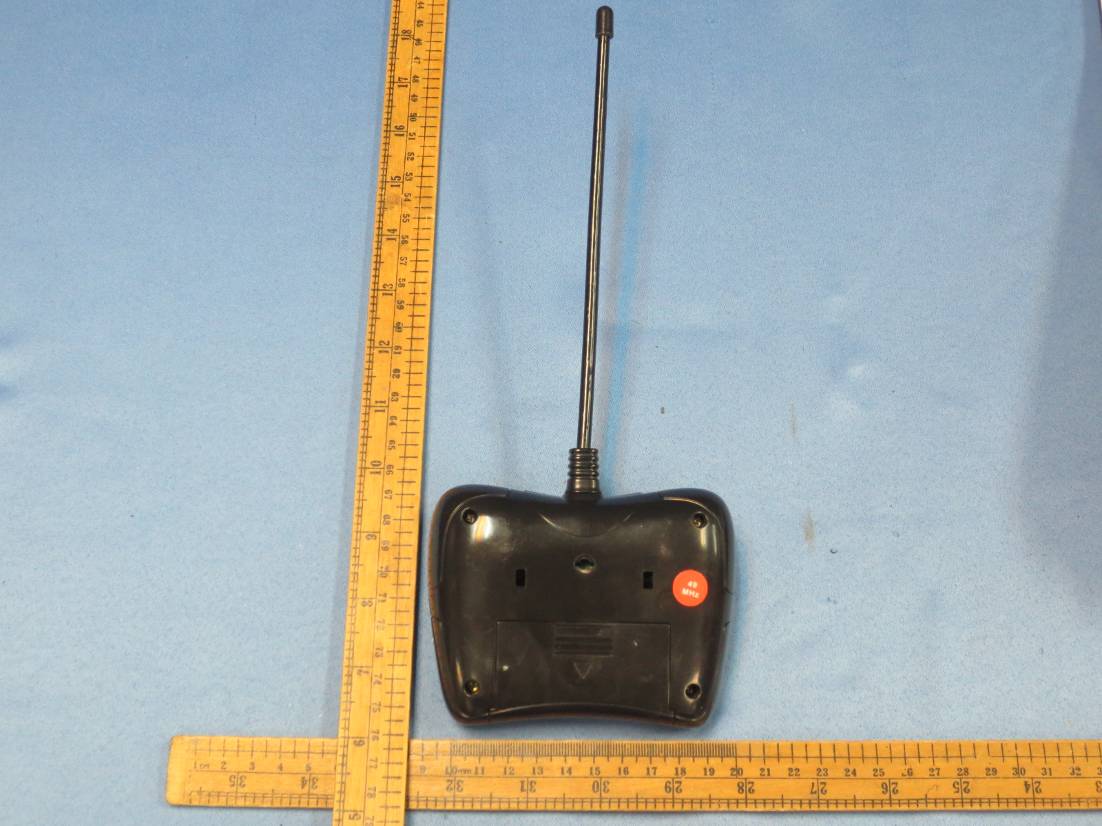

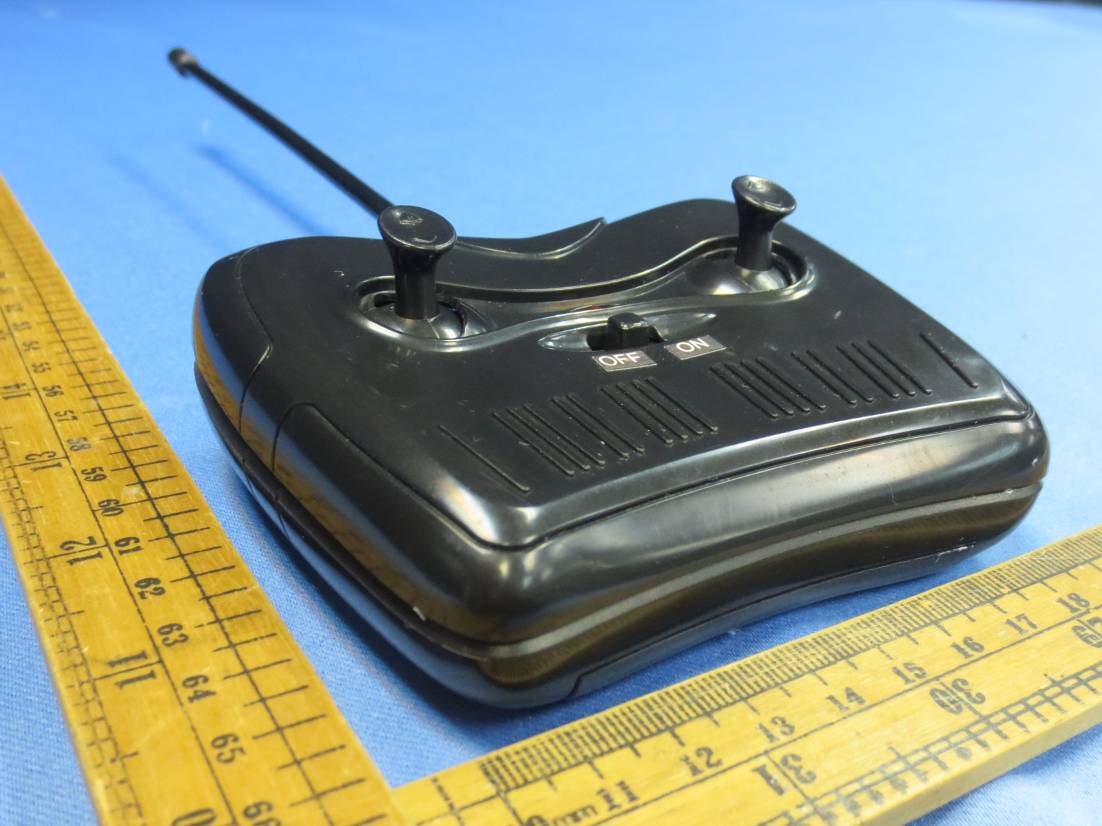

External Photos

Label location:

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L3, C3 RF IC Encode, logic control and sent out SD signal IC1 Oscillator Generate 49.860 MHz carrier Y1, Q1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Type of antenna: Integral antenna Type of modulation: Pulse modulation

VCC V1+9V ANT1 L32.2UH C3100PF C1 33P R522K L22.2UH R7 120K RIGHT 1 NC 2 GND 3 BACK 4 FORW 5 TURBO 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 NC 13 LEFT 14 TX-2B IC1 R6 200K Q22222 C4 104 R8 330R K3 VCC Q1 C1815 C733P C5 100P VDD VDD PCSO PC L11.0UH Y1 49.860M K1K2 C2104 D13.3V SO R92.2K LED D2IN4148

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Application For Certification FCC ID: Z6QFLFR00149 Toy RC Fighting Robot Model: 1647697 (FR001) Transmitter Report No.: 121204028SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-11] Prepared and Checked by: Approved by: Sign on file Chris Chen Engineer Billy Li Supervisor Date: 14 December 2012 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: Z6QFLFR00149 Report No.: 121204028SZN-001 i GENERAL INFORMATION GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. MODEL: 1647697 (FR001) FCC ID: Z6QFLFR00149 Grantee: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Grantee Address: Haisheng Road, Laimei Industrial District, Fengxiang Chenghai, Shantou, Guangdong, China Contact Person: Shaona Cai Tel: (+86)0754-85717755 Manufacturer: GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Manufacturer Address: Haisheng Road, Laimei Industrial District, Fengxiang Chenghai, Shantou, Guangdong, China Model: 1647697 (FR001) Type of EUT: Transmitter Description of EUT: Toy RC Fighting Robot Serial Number: N/A FCC ID : Z6QFLFR00149 Date of Sample Submitted: 4 December 2012 Date of Test: 14 December 2012 Report No.: 121204028SZN-001 Report Date: 14 December 2012 Environmental Conidtions: Temperature: +10 to +40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: Z6QFLFR00149 Report No.: 121204028SZN-001 ii SUMMARY OF TEST RESULT GUANGDONG FEILUN TECHNOLOGY INDUSTRIAL CO., LTD. Model: 1647697 (FR001) FCC ID: Z6QFLFR00149 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an Integral antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: Z6QFLFR00149 Report No.: 121204028SZN-001 iii Table of Contents 1.0 General Description.......................................................................................1 1.1 Product Description..........................................................................................1 1.2 Related Submittal(s) Grants..............................................................................1 1.3 Test Methodology.............................................................................................1 1.4 Test Facility......................................................................................................1 2.0 System Test Configuration ............................................................................2 2.1 Justification ......................................................................................................2 2.2 EUT Exercising Software..................................................................................2 2.3 Special Accessories .........................................................................................2 2.4 Equipment Modification ..................................................................…

Text truncated - open the document above for the full version.

Radiated Photos
