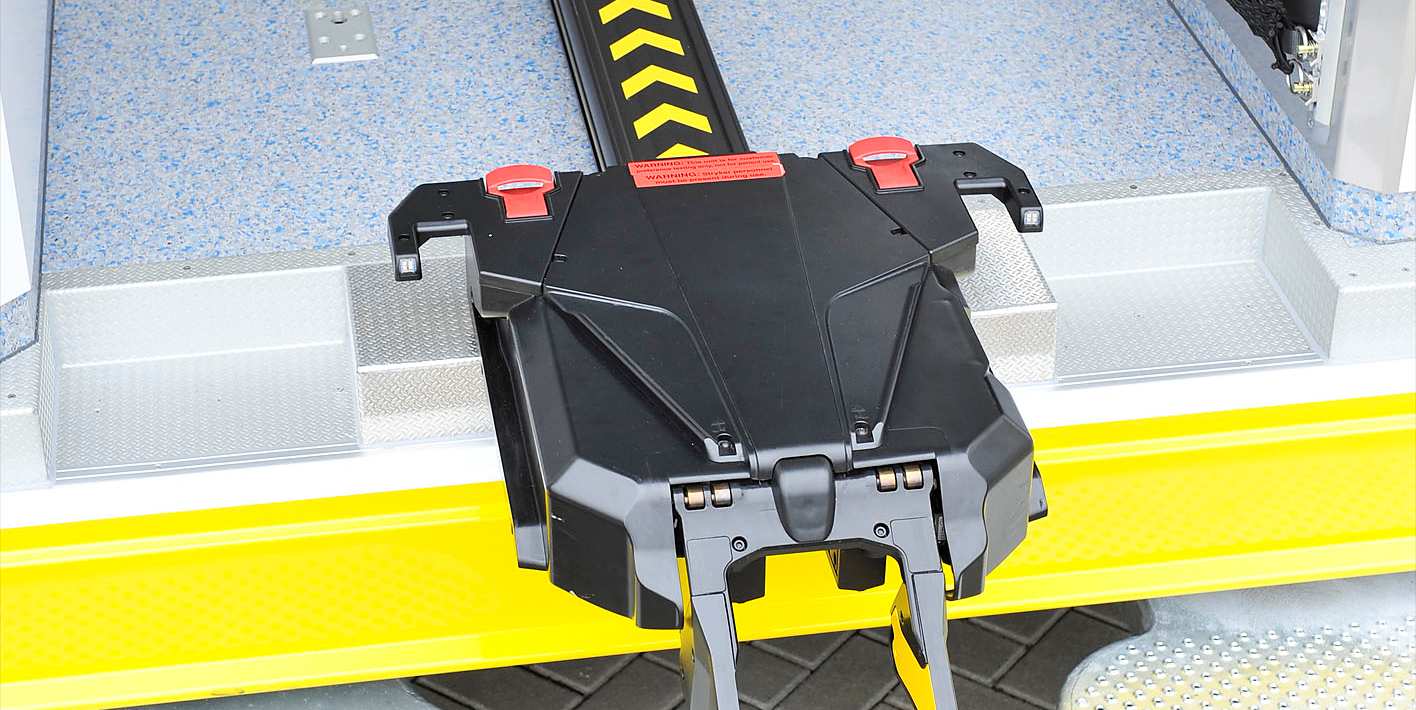

2 011/10 B. 46390-009-001 REV Bwww.stryker.com Power-LOAD™ Cot Fastener System Model 6390 Operations/Maintenance Manual For parts or technical assistance: USA: 1-800-327-0770 www.stryker.com6390-009-001 REV B3 Table of Contents Symbols and Definitions....................................................................5 Symbols ............................................................................5 Warning/Caution/Note Definition...........................................................6 Introduction .............................................................................7 Product Description....................................................................7 Intended Use of Product.................................................................7 Product Illustration.....................................................................7 Important Contact Information ............................................................8 Stryker Contact Information ..............................................................8 Serial Number Location .................................................................8 Specifications ........................................................................9 Summary of Safety Precautions .............................................................11 Pinch Points ........................................................................13 Vehicle Cot Compatibility Information .........................................................14 Installation Setup Procedures ...............................................................15 Floor Plate Assembly Installation Component Checklist.........................................15 Power-LOAD Assembly Installation Component Checklist .......................................16 Optional Wheel Guide Assembly Installation Component Checklist ................................17 Quality System Regulation for Installation ......................................................18 Quality System Regulation..............................................................18 Floor Plate Installation Guidelines............................................................19 Installation Guide ........................................................................21 Installing the Floor Plate (with a Wood Floor) ................................................21 Installing the Power-LOAD System ........................................................27 Installing The Optional Wheel Guide.......................................................34 Installing Cot Wheel Covers.............................................................37 Power-LOAD Installation Checklist ........................................................38 User Setup Procedures....................................................................40 User Controls and LED Indicators............................................................41 Manual User Controls.....................................................................43 Power-PRO Cot User Controls...............................................................44 Using the Cot Control Switches ..........................................................44 Checking the Cot Battery Power Level .....................................................45 Powered Operations Instructions.............................................................46 Manual Operations Instructions..............................................................47 Operation Guide.........................................................................48 Operating Guidelines..................................................................48 Checking the Battery Power Level ........................................................49 Charging the Battery ..................................................................49 Storing Power-LOAD ..................................................................49 Setting the Cot Load Height.............................................................49 Using a Non-Upgraded X-Frame Cot for a Mass Casualty Incident ................................50 Extending Power-LOAD from the Vehicle without a Cot.........................................50 Loading a Performance-PRO Cot into a Vehicle (Model 6085/6086 with the Power-LOAD Option) .........51 Unloading a Performance-PRO Cot from a Vehicle (Model 6085/6086 with the Power-LOAD Option) .......53 46390-009-001 REV Bwww.stryker.com Loading a Power-PRO Cot into a Vehicle (Model 6500/6506 & 6510/6516 with the Power-LOAD Option).....55 Unloading a Power-PRO Cot from a Vehicle (Model 6500/6506 & 6510/6516 with the Power-LOAD Option) ..57 Unloading a Cot From a Vehicle Manually (Power-LOAD Power Loss or System Error)..................59 Loading a Cot into a Vehicle Manually (Power-LOAD Power Loss or System Error) ....................61 Unloading a Cot from a Vehicle Manually...................................................62 Removing a Cot from a Vehicle for Repair ..................................................63 Loading a Cot into a Vehicle Manually (Power-PRO Power Loss)..................................64 Cleaning...............................................................................66 Cleaning Procedure...................................................................66 Cleaning Limitations...................................................................66 Removal of Iodine Compounds...........................................................67 Preventative Maintenance..................................................................68 Warranty ..............................................................................69 Stryker EMS Return Policy..............................................................70 Return Authorization...................................................................70 Damaged Merchandise ................................................................70 International Warranty Clause...............…

Text truncated - open the document above for the full version.

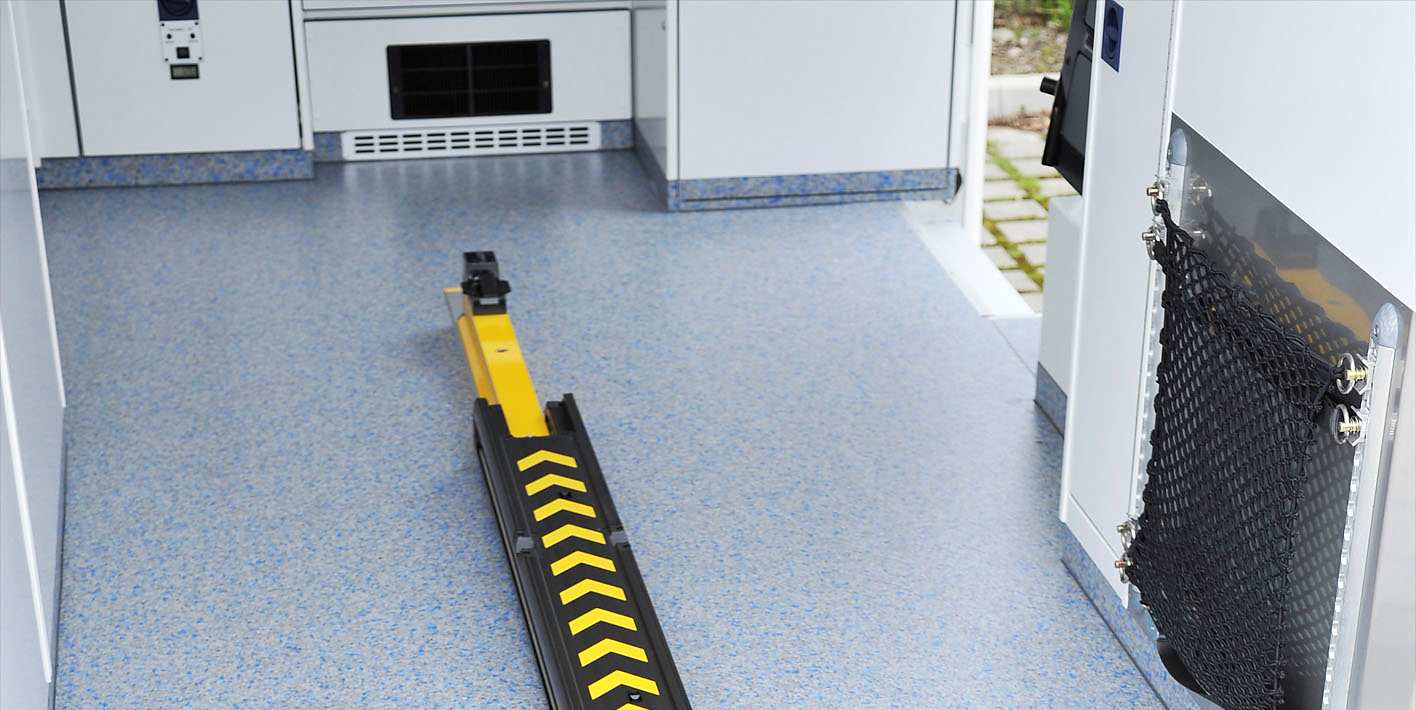

206390-009-001 REV Bwww.stryker.com Return To Table of Contents Figure 8: Power-LOAD Floor Plate with Standard Wall Mount Cot Fastener Wall Plate (Optional) Sill Sill Edge 4 3 2 1 3 Figure 9: Power-LOAD Floor Plate with Dual Standard Floor Mount Cot Fastener Floor Plates (Optional) Sill Sill Edge 4 3 2 1 3 Floor Plate Installation Guidelines www.stryker.com6390-009-001 REV B21 Return To Table of Contents Installation Guide INSTALLING THE FLOOR PLATE (WITH A WOOD FLOOR) Floor Plate Assembly Kit Components (6390-001-055) Ǩɣ(6) Flat Head Cap Screw (p/n 0001-194-000)Ǩɣ(2) Set Screw (p/n 0021-197-000) Ǩɣ(4) Sub Anchor Attachment Bracket Retainer (p/n 6390-001-110) Ǩɣ(5) Floor Plate Attachment Bracket (p/n 6390-001-108) Ǩɣ(1) Rubber Grommet (p/n 0037-247-000) Ǩɣ(2) Floor Plate End Cap (p/n 6390-001-111) Ǩɣ(1) Anchor to Vehicle Cable (p/n 6390-001-135)Ǩɣ(1) Power-LOAD Safety Hook (p/n 6390-001-148) Ǩɣ(1) Wire Protection Loom (p/n 6390-001-153)Ǩɣ(2) Floor Plate Cover, Short (p/n 6390-001-166) Ǩɣ(1) Drain Tube (p/n 6390-001-170)Ǩɣ(1) Floor Plate Drain Tube (p/n 6390-001-183) Ǩɣ(6) P-Style Clamp (p/n 6390-001-202) Tools Required: ǨɣPencilǨɣSawǨɣ5/32” Allen Wrench ǨɣRouterǨɣ1/2” to 1” Router BitǨɣShop Vacuum ǨɣDrillǨɣ1/2” Drill BitǨɣSilicone Sealant ǨɣTape MeasureǨɣ9/16” Drill BitǨɣ1/2” Drive Torque Wrench (ft-lb) Ǩɣ1/2” Drive 7/32” HexǨɣ1/4” Allen WrenchǨɣSafety Glasses ǨɣFace MaskǨɣExtension CordǨɣRubber Hammer Procedure: Note: You must install the optional wheel guide (6390-027-000) for Type II ambulances (see page 34). 1. Center the floor plate based on your desired distance from the vehicle patient compartment walls (see Figure 7 on page 19 or Figures 8 or 9 on page 20). Use a pencil to mark the center location for the entire length of the floor plate. 2. Identify the mounting location relative to the distance from the door sill. Start at the location where the door sill first drops off as shown in Figure 7 on page 19 or Figures 8 or 9 on page 20 and measure 2-3/4 in (7 cm) inwards. Use a pencil to mark the location along the width of the vehicle patient compartment. 3. Lay the floor plate on the floor and note the three electrical inlet locations in the center towards the head end of the vehicle patient compartment. Note: The floor plate can be cut in front of the third or second power inlet hole to better fit the vehicle patient compartment (see Figure 7 on page 19 or Figures 8 or 9 on page 20). WARNING To avoid the risk of personal injury or equipment damage, properly secure the item that you are cutting and be aware of the area around your cutting location. Always wear appropriate eye protection while operating a saw. 4. If the floor plate is too long for the vehicle patient compartment, use a saw to cut the floor plate at the head end of the vehicle patient compartment only. 5. Using a 5/32” Allen wrench, install the set screw (0021-197-000) to attach the floor plate end cap (6390-001-111) on one end. Repeat on the opposite end. 6. Using the line that was marked in step 1, measure 1-5/16 in (3.3 cm) on either side. Use a pencil to mark a reference line on each side of the center line. 7. Using the floor plate as a template, line up the sides with the lines (marked in step 6) and the front with the door threshold line (marked in step 2). Securely hold the floor plate in place and use a pencil to trace the shape of the floor plate onto the vehicle patient compartment floor. 8. Remove the floor plate. Note: If you are installing multiple Power-LOAD systems, you can make a template to expedite installation. You can then trace the template instead of the floor plate in steps 6 and 7. 226390-009-001 REV Bwww.stryker.com Return To Table of Contents Installation Guide WARNING During installation, always wear safety glasses and a face mask while operating a router. 9. Using a router and 1/2” to 1” router bit, router out the floor by following the lines marked onto the floor in step 7. Note: Set the router bit depth by using the floor plate as a depth gauge to 1/2 in (1.3 cm). Use a firm stance when using the router to avoid damaging the floor. 10. Using a shop vacuum, clean the floor plate channel in the vehicle patient compartment floor and verify that the area is straight and free of burrs. Completely clean the vehicle patient compartment to remove any material that was removed from the floor. 11. Using a drill and a 1/2” drill bit, drill a 1/2 in (1.3 cm) hole through the floor plate and floor at the selected location of the electrical inlet (see Figure 7 on page 19 or Figures 8 or 9 on page 20). Using a router and 1/2” to 1” router bit, router a 1 in (2.54 cm) diameter hole 1/4 in (.635 cm) below the floor plate cutout. WARNING To avoid the risk of personal injury or vehicle damage, be aware of items around and below the electrical inlet during floor plate installation. 12. Using the silicone sealant, seal the floor plate inside the channel that was made in the floor and then firmly set the floor plate down into the channel. WARNING Ensure that all gaps to the exterior of the vehicle are sealed to prevent exhaust fumes from entering the vehicle patient compartment. Note: Make sure that you clean up any silicone that may have seeped out. 13. Using a tape measure, identify which one of the five mounting holes in each of the five hole patterns lines up with a supporting structure in all five locations on the vehicle patient compartment. If none of the five mounting holes in any one hole pattern lines up with a supporting structure, you may need to create a support structure for that location, such as a plate or bracket. 14. Using a pencil, mark the best mounting hole locations. Note: You need to evaluate which mounting hole will be used based on the five mounting location options. Consider any restrictions due to clearances with any vehicle component. 15. Using a drill and a 9/16” drill bit, drill the mounting bolt holes through the floor plate and the floor (as marked in step 13). Note: Consider…

Text truncated - open the document above for the full version.

406390-009-001 REV Bwww.stryker.com Return To Table of Contents User Setup Procedures POWER-LOAD SETUP The condition of Power-LOAD is the responsibility of the user. It is important that Power-LOAD is working properly before the product is placed into service. Have a qualified service person use the following list and the operation guide instructions to check Power-LOAD functionality before the product is placed into service. 1. Raise the lifting arms and manually push the Power-LOAD trolley into the head end of the transfer assembly to charge the battery. The batteries require approximately 2 hours to recharge before Power-LOAD is put into service for its first use. Note: The battery power LED flashes green when charging. 2. Confirm that the installation checklist is complete (see “Power-LOAD Installation Checklist” on page 38). 3. If the installation checklist was completed by a third-party installer, the installation checklist should be repeated by the end user. Do not place Power-LOAD into service if the installation checklist cannot be completed. POWER-LOAD COMPATIBLE COT SETUP The condition of the Power-LOAD compatible cot is the responsibility of the user. It is important that the Power-LOAD compatible cot is working properly before the product is placed into service. Ensure that the cot is setup according to the requirements specified in the appropriate cot operations/maintenance manual for your cot model. WARNING To avoid the risk of patient injury, adjust the cot height to match the vehicle deck height as described in the appropriate cot operations/maintenance manual for your cot model. www.stryker.com6390-009-001 REV B41 Return To Table of Contents Ref Icon/Button NameDescriptionTypeLocation 1 Main Power Press to power the unit on or off. Note: The battery power LED also illuminates to indicate that the Power-LOAD system is on. If the trolley battery is low, a flashing amber LED may appear. ButtonPower-LOAD Control Panel 2 Battery Power If LED is solid green, the Power-LOAD system is on and not charging. If LED is flashing green, the battery is charging. Note: The battery will only charge when the trolley is locked at the head end of the vehicle patient compartment. LEDPower-LOAD Control Panel 3 Error If LED is solid amber, there is a Power-LOAD error. Press the main power button twice to reset the unit. If the LED remains solid amber, contact technical support. If LED is flashing amber, the Power-LOAD battery power is low. LEDPower-LOAD Control Panel 4 Up/Down Press up () to raise the lifting arms to the highest position. Note: The cot legs do not retract. Press down () to lower the lifting arms and cot. ButtonPower-LOAD Control Panel 5 Manual Release Ensure that the cot base is extended before pressing. Press to unload the cot in the event of a Power-LOAD power failure. Continue holding the button until the arms are clear of the cot. ButtonPower-LOAD Control Panel 6 Head End Lock Indicator If LEDs are solid green, the cot head end is locked into Power-LOAD. If LEDs are flashing red, the cot head end is not locked into Power-LOAD. LEDTrolley Head End User Controls and LED Indicators Power-LOAD LED indicators, located on the side Power-LOAD control panel and at the head end of Power-LOAD, display Power-LOAD battery and system status. This figure and table highlight all Power-LOAD buttons and LED indicators. 2 3 1 Power-LOAD Control Panel 4 5 6 Head End Foot End Note: If Power-LOAD will not be in use for a week or more, press the main power button (1) to turn the unit off and avoid draining the battery. 426390-009-001 REV Bwww.stryker.com Return To Table of Contents User Controls and LED Indicators 7 8 9 Trolley Head End Label Ref Icon/Button NameDescriptionTypeLocation 7 Battery Power If LED is solid green, the Power-LOAD system is on and not charging. If LED is flashing green, the battery is charging. Note: The battery will only charge when the trolley is locked at the head end of the vehicle patient compartment. LED Trolley Head End 8 ErrorIf LED is solid amber, there is a Power-LOAD error. Press the main power button twice to reset the unit. If the LED remains solid amber, contact technical support. If LED is flashing amber, the Power-LOAD battery power is low. LEDTrolley Head End 9 Oil Reservoir Add Mobil Mercon ® V Synthetic Blend Oil (6500- 001-293) here until full. To avoid the risk of a unit malfunction or leak, do not overfill the reservoir with oil. Not Applicable Trolley Head End 10Not Applicable USB Port Remove plate to access the USB port for input/output diagnostics. Service only by qualified personnel. Not Applicable Trolley Head End These Power-LOAD LED indicators are located at the head end of the Power-LOAD trolley. The oil reservoir location is shown for your reference. 10 www.stryker.com6390-009-001 REV B43 Return To Table of Contents Manual User Controls Ref Manual ControlNameDescriptionLocation 11Release Lever Press and hold to disengage the cot from the vehicle patient compartment. Foot End 12 Trolley Release Button Press while raising the lifting arms to release and extend Power- LOAD from the vehicle patient compartment without a cot. Then, pull the trolley out of the vehicle patient compartment. Head End 13 Cot Release Handle Lift to unlock the cot from Power-LOAD when the cot base is fully extended. Trolley Head End These three manual user controls allow you to release a cot from Power-LOAD without any power: ǨɣRelease Lever ǨɣTrolley Release Button ǨɣCot Release Handle 11 13 Head End Foot End 12 446390-009-001 REV Bwww.stryker.com Return To Table of Contents Power-PRO Cot User Controls USING THE COT CONTROL SWITCHES There are two cot control switches located on the Power-PRO cots (models 6500/6506 and 6510/6516). Press the buttons on either of these switches to extend the cot, retract the cot, or release the cot from Power-LOAD. This figure and table highlight the three buttons located on the cot control switch. 1 3 2 Ref NameDescription 1ReleaseP…

Text truncated - open the document above for the full version.

606390-009-001 REV Bwww.stryker.com Return To Table of Contents Figure 51Figure 52 UNLOADING A COT FROM A VEHICLE MANUALLY (POWER-LOAD POWER LOSS OR SYSTEM ERROR) (CONTINUED) Operation Guide 3. Press the manual release button on the Power-LOAD control panel as shown in Figure 51 to lower the lifting arms until they are clear of the cot. 4. Lift one of the red manual cot release handles at the head end of Power-LOAD to unlock the cot as shown in Figure 52. 5. Raise the lifting arms and guide the trolley into the vehicle patient compartment until the arms are far enough in to not interfere with the vehicle doors. 6. Following the call, remove the vehicle from service to diagnose and repair Power-LOAD. www.stryker.com6390-009-001 REV B61 Return To Table of Contents Operation Guide LOADING A COT INTO A VEHICLE MANUALLY (POWER-LOAD POWER LOSS OR SYSTEM ERROR) WARNING • Loading and/or unloading an occupied cot into a vehicle requires a minimum of two (2) trained operators. • Make sure that all occupants enter the vehicle patient compartment after the Power-LOAD compatible cot has been loaded into the vehicle patient compartment. 1. Lift the vehicle bumper to the raised position (if equipped). 2. Ensure that the trolley is located at the head end of the vehicle patient compartment with the lifting arms down. If not, raise the lifting arms and guide the trolley into the vehicle patient compartment until Power-LOAD locks into position with the lifting arms down. 3. Make sure that the cot retractable head section is fully extended and locked. 4. Place the cot in a loading position (any position where the loading wheels meet the vehicle patient compartment floor height). 5. Roll the cot to the open vehicle patient compartment. 6. Push the cot forward until the loading wheels are on the vehicle patient compartment floor and the safety bar passes the safety hook as shown in Figure 53. Note: For maximum clearance to lift the base, pull the cot out until the safety bar engages the safety hook. For models 6500/6506 and 6510/6516 with the Power-LOAD option: • Grasp the cot frame at the foot end. • Lift the foot end of the cot and press and hold the retract (-) button on the cot control switch to fully retract the cot undercarriage. Note: The cot undercarriage will retract in less than three seconds. For models 6085/6086 with the Power-LOAD option: • Operator 1 (Foot End) − Grasp the cot frame at the foot end. Squeeze and hold the cot manual release. • Operator 2 (Side) − Stabilize the cot by placing one hand on the outer rail. Grasp the base frame. After the foot end operator has lifted the cot and squeezed the cot manual release, retract the undercarriage with one hand and hold it in place. • Operator 1 (Foot End) - Release the cot manual release to lock the undercarriage in the retracted position. CAUTION To avoid the risk of equipment damage, do not push the cot into the vehicle patient compartment until the cot base is fully retracted. 7. Push the cot into the vehicle patient compartment until the cot locks into Power-LOAD. 8. Ensure that the cot is locked into Power-LOAD by firmly pulling on the foot end of the cot. 9. Following the call, remove the vehicle from service to diagnose and repair Power-LOAD. Figure 53 626390-009-001 REV Bwww.stryker.com Return To Table of Contents Operation Guide UNLOADING A COT FROM A VEHICLE MANUALLY WARNING • Loading and/or unloading an occupied cot into a vehicle requires a minimum of two (2) trained operators. • Power-LOAD is only an assisting device. Operators are responsible for evaluating each situation to determine how to distribute and lift the weight being transported. Always use both hands when handling the cot. • When handling weights over 400 lb (181 kg), ensure there are enough operators to handle the forces required for loading/unloading. To increase safety, users should attempt to perform loading/unloading on flat surfaces. 1. Lift the vehicle bumper to the raised position (if equipped). 2. Press and hold the release lever at the foot end of the Power-LOAD system and pull to remove the cot from the vehicle patient compartment as shown in Figure 54. 3. Grasp the cot frame at the foot end to pull the cot out of the vehicle patient compartment. For models 6500/6506 and 6510/6516 with the Power-LOAD option: • Operator 1 - Grasp the cot frame at the foot end. While supporting the weight of the cot, guide and pull the cot out of the vehicle patient compartment until the safety bar engages the safety hook. Press and hold the extend (+) button on the cot control switch to extend the cot undercarriage to the set load height with the cot wheels on the ground. • Operator 2 - Verify that the safety bar engages the safety hook and stabilize the cot during the unloading operation by securely grasping the outer rail. Push the safety bar release lever forward to disengage the safety bar from the safety hook in the vehicle patient compartment. For models 6085/6086 with the Power-LOAD option: • Operator 1 (Foot End) − Grasp the cot frame at the foot end. While supporting the weight of the cot, guide and pull the cot out of the vehicle patient compartment until the safety bar engages the safety hook. • Operator 2 (Side) − Grasp the base frame where indicated, lift slightly, and lower the base frame to its fully extended position while Operator 1 squeezes and holds the cot manual release. • Operator 1 (Foot End) − Let go of the cot manual release and ensure that the undercarriage locks into place. Set the cot onto the ground. • Operator 2 (Side) − Disengage the safety bar from the safety hook by pushing the safety bar release lever forward. WARNING When unloading the cot, ensure that the cot wheels are on the ground before lowering the arms. Note: In the unlikely case that the cot foot end fails and the cot cannot be removed from the vehicle, remove the patient by alternate means (for example, by using a backboard or field cot). Figure 54 www.stryker.com6390-009-001 REV B6…
