Z87Q5Mobile phone

1 User’s Manual of Q5 Mobile Phone 2 CONFIDENTIALITY STATEMENT The contents of this document (including any accessory) are confidential. The receiver should be aware of the confidentiality of the document and will neither use it for any other purpose except f-or the purposes specified nor disclose the document to any third party. 3 TABLE OF CONTENT 1. BASIC INFORMATION .................... 9 1.1. BRIEF INTRODUCTION ........................................... 9 1.2. SAFETY NOTICE .................................................. 10 1.3. SAFETY ALERT AND CAUTIONS ........................... 11 1.3.1. General Cautions ..................................... 11 1.3.2. Cautions of Using the Phone ................... 13 1.3.3. Cautions of Using the Battery ................. 15 1.3.4. Cautions of Using the Charger ................ 17 1.3.5. Cleaning and Maintenance ...................... 18 2. BEFORE USE .................................... 19 2.1. NAME AND EXPLANATION OF EACH PART ........... 19 2.1.1. Appearance Sketch Map ......................... 19 2.1.2. Description of the Standby Pictures ........ 20 2.1.3. Description of Keys ................................ 25 2.2. INSTALL SIM CARD AND MEMORY CARD ........... 27 4 2.2.1. SIM Card ................................................. 27 2.2.2. Inserting and Taking out SIM Card ........ 28 2.2.3. Memory Card .......................................... 28 2.3. BATTERY ............................................................ 29 2.3.1. Install the Battery .................................... 29 2.3.2. Charging .................................................. 29 2.4. SECURITY PASSWORD ......................................... 30 3. QUICK USER GUIDE ..................... 31 3.1. FEATURE FUNCTIONS ............................................. 31 3.2. FUNCTION HOT KEY ............................................... 33 3.3. DIAL A CALL ....................................................... 34 3.4. REJECT A CALL ................................................... 35 3.5. RECEIVE A CALL ................................................. 35 3.6. END A CALL ........................................................ 35 3.7. EMERGENCY SERVICES ....................................... 36 3.8. EXTENSION SPEED DIAL ..................................... 36 3.9. DIALED CALLS/MISSED CALLS/RECEIVED CALLS/REJECTED CALLS .............................................. 36 3.10. CALL FORWARD .................................................. 36 3.11. CALL WAITING ................................................... 37 3.12. CALL BARRING ................................................... 37 5 3.13. POWER OFF THE PHONE ...................................... 37 3.14. T-FLASH CARD ................................................... 38 3.15. USB CABLE ........................................................ 38 4. FUNCTION MENU .......................... 39 4.1. STRUCTURE OF FUNCTION MENU ....................... 39 4.2. CALL LOG ........................................................... 46 4.2.1 Dialed numbers ....................................... 47 4.2.2 Received calls ......................................... 47 4.2.3 Missed calls ............................................. 48 4.2.4 Rejected calls .......................................... 48 4.2.5 Delete All: ............................................... 48 4.2.6 Call timer ................................................ 48 4.2.7 Call Costs ................................................ 49 4.2.8 GPRS flowrate ........................................ 49 4.3. CONTACTS .............................................................. 49 4.3.1 NEW ....................................................... 50 4.3.2 Contacts search ....................................... 50 4.3.3 Write Message ........................................ 51 4.3.4 Dial up .................................................. 51 4.3.5 Send Vcard .............................................. 51 4.3.6 Delete ...................................................... 51 6 4.3.7 Mark ........................................................ 51 4.3.8 Copy ........................................................ 52 4.3.9 Others ...................................................... 52 4.4 INTERNET ........................................................... 53 4.4.1 URL ......................................................... 53 4.4.2 Homepage ............................................... 53 4.4.3 Bookmarks .............................................. 54 4.4.4 Histories .................................................. 54 4.4.5 Snapshot .................................................. 55 4.4.6 WAP Settings .......................................... 55 4.5 MEDIA ................................................................ 58 4.5.1 Camera .................................................... 58 4.5.2 Audio Player ........................................... 63 4.5.3 Video Player ............................................ 65 4.5.6 FM Radio ....................................66 4.6 MESSAGE ............................................................ 69 4.6.1. Write Message ........................................ 69 4.6.2. Inbox ....................................................... 72 4.6.3. Outbox ..................................................... 73 4.6.4. Drafts ....................................................... 74 4.6.5. Sentbox ................................................... 74 4.6.6. Template SMS ........................................ 75 4.6.7. Voice mail ............................................... 75 7 4.6.8. Cell broadcast .......................................... 76 4.6.9. SMS Settings ........................................... 77 4.6.10. MMS Settings ......................................... 78 4.6.11. Message memory .................................... 80 4.7 TOOLS ..................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ABBA INNOVATION S.A.S 2012-1-13 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ABBA INNOVATION S.A.S hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Mobile phone model name: Q5, Q5 pro FCC ID: Z87Q5 We affirm that between SIEMIC and ABBA INNOVATION S.A.S, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title:Ernesto Sequera/General Manager Tel:57-5-3608855 Address:Calle 76 No 52-40 Local 1, Alto Prado, Barranquilla, Colombia

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 ABBA INNOVATION S.A.S 2012-1-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: Z87Q5 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic - Tune up procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title:Ernesto Sequera/General Manager Tel:57-5-3608855 Address:Calle 76 No 52-40 Local 1, Alto Prado, Barranquilla, Colombia

ABBA INNOVATION S.A.S To：SIEMIC ,2206 Ringwood Avenue,San Jose,C,USA Declaration letter Dear Sir， For our business issue and marketing requirement, we would like to list 2 model numbers on the FCC certificates and reports, as following: Model No.: Q5, Q5 pro We declare that there is no electrical change has been made to the equipment that alters the compliance characteristics. The difference of these two models is for different Color and Surface of the printing . Please kindly handle on the project. Thank you! Signature: Printed name/title: Ernesto .Sequera /General manager Tel: 57-5-3608855 Fax: 57-5-3608855 Address: CALLE 76 N52-40, Local , Alto Prado,1BARRANQUILLA CITY, COLOMBIA PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

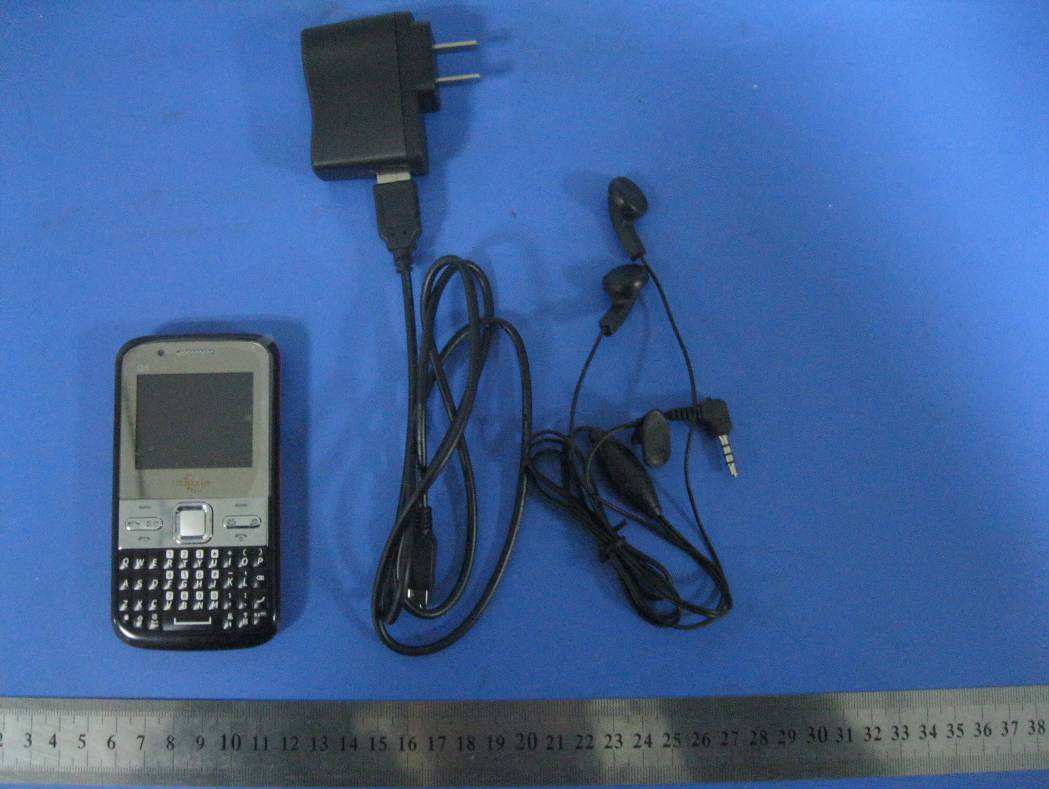

Annex B. EUT External Photo Whole Package - Top View EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View

Label location PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

Annex B. EUT Internal Photo Cover Off - Bottom View Cover Off - Top View Battery - Top View Battery - Bottom View LCD - Top View LCD - Bottom View Uncover - Top View Uncover - Bottom View Uncover without LCD - Top View Uncover Without Shielding - Top View GSM Antenna - Top View Bluetooth Antenna - Top View GSM Antenna Bluetooth Antenna

ABBA INNOVATION S.A.S Mobile Phone Main Model: Q5 Serial Model: Q5 Pro January 13, 2012 Report No.: 11070198-FCC-15B (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Mobile Phone Main Model: Q5 Serial Model: Q5 Pro To: FCC Part 15 Subpart B Class B: 2011 Report No: 11070198-FCC-15B Issue Date: January 13, 2012 Page: 2 of 26 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: EMC Test Report for Mobile Phone Main Model: Q5 Serial Model: Q5 Pro To: FCC Part 15 Subpart B Class B: 2011 Report No: 11070198-FCC-15B Issue Date: January 13, 2012 Page: 3 of 26 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for Mobile Phone Main Model: Q5 Serial Model: Q5 Pro To: FCC Part 15 Subpart B Class B: 2011 Report No: 11070198-FCC-15B Issue Date: January 13, 2012 Page: 4 of 26 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS.......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 15 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 20 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 21 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 25 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 26 Title: EMC Test Report for Mobile Phone Main Model: Q5 Serial Model: Q5 Pro To: FCC Part 15 Subpart B Class B: 2011 Report No: 11070198-FCC-15B Issue Date: January 13, 2012 Page: 5 of 26 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Shenzhen Sumtech Industry Development Co., limited Mobile Phone and model: Q5 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2011. EUT Information EUT Description : Mobile Phone Main Model : Q5 Serial Model : Q5 Pro Input Power : AC/DC Adaptor Model: AQ5 Input: AC 100-240V 50/60Hz 150mA Output: DC 5V 500 mA Li-ion Battery Model: BL-5BT 3.7 V Classification Per Stipulated Test Standard : FCC Part 15 Subpart B Class B: 2011 Title: EMC Test Report for Mobile Phone Main Model: Q5 Serial Model: Q5 Pro To: FCC Part 15 Subpart B Class B: 2011 Report No: 11070198-FCC-15B Issue Date: January 13, 2012 Page: 6 of 26 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile Phone with stipulated standard Applicant / Client ABBA INNOVATION S.A.S Calle 76 No 52-40 Local 1, Alto Prado, Barranquilla, Colombia Manufacturer Shenzhen Sumtech Industry Development Co., limited Room 521,No.1001 Shennian East Road,Luohu,Shenzhen,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 11070198-FCC-15B Date EUT received January 09, 2012 Standard applied FCC Part 15 Subpart B Class B: 2011 Dates of test January 10, 2012 No of Units #1 Equipment Category Class B Emission Product Trade Name ABBA ONE RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX :869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX :1930.2 ~ 1989.8 MHz Bluetooth: 2402 ~ 2480 MHz Number of Channels 300CH (PCS1900) and 125CH (GSM850) Bluetooth: 79CH …

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Radiated Emissions Test Setup Below 1GHz - Front View
