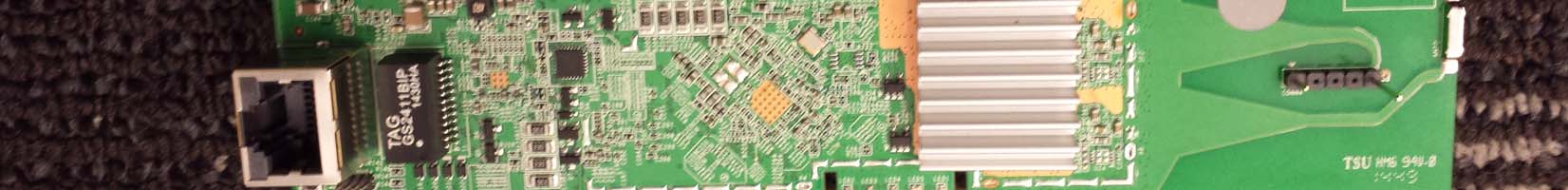

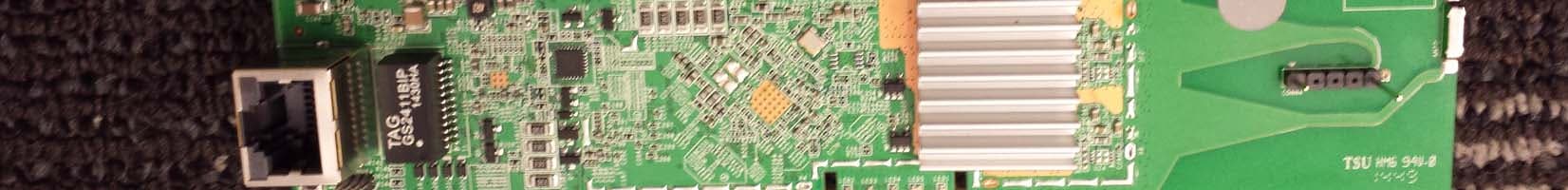

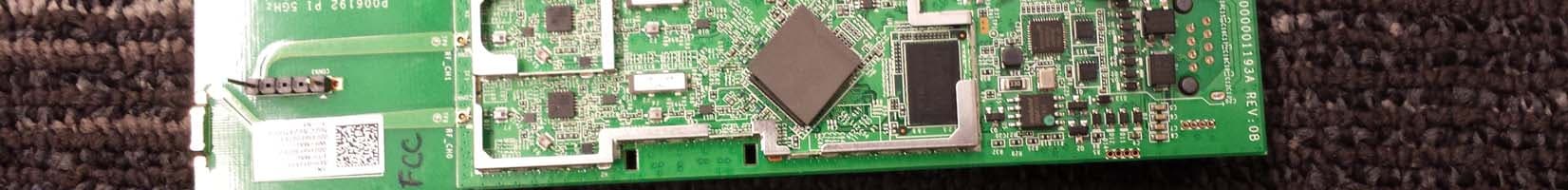

Z8H89FT0015Dual Channel OFDM MIMO/SISO Transceiver

Cambium Fixed Outdoor Radio Module Assembly instructions for Professional Installers FCC Band 5725-5850MHz 1. Insert FCCID: Z8H89FT0015 into center slot of Cambium 24dBi Reflector Dish. 2. Connect and secure alignment bracket with center screw to back of dish radio assembly. 3. Connect and secure 4 screws through front of dish to bracket enclosure. 4. Plug in Ethernet cable from POE injector to power the device: a. Connect via computer to IP address 169.254.1.1 b. Login to radio via GUI c. Enter password i. Contains FCCid (Z8H89FT0015) is visible on the GUI system tab and not alterable by third parties ii. United States region code is also Locked and visible on the monitor/wireless tab Factory programming above is secure, locked and not alterable by any third parties. Parameters below may be changed by professional installers. d. Select Configuration / Radio tab on GUI: i. Enter antenna gain 24dBi for dish. ii. Select carrier frequency 5800MHz or alternate frequency as desired within certified range. DTS Band (5725MHz -5850MHz) iii. Set channel bandwidth: widest 40MHz, narrowest bandwidth 5MHz. iv. Select combined power in dBm (from -24 up to 29) v. Select up to the maximum DL/UL ratio 75/25 vi. Save configuration by clicking the save icon 5. Install complete assembly at final location. To comply with FCC and Industry Canada RF radiation exposure limits for general population, the antenna(s) used for this transmitter must be installed such that a minimum separation distance of 1.32m is maintained between the radiator (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter. This Cambium module has been certified under the following conditions: 1) The antennas must be installed such that a minimum separation distance of 1.32m is maintained between the antenna and all persons at all times. 2) The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter. If these conditions are met then further testing will not be required. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Review the user manual for antenna information and safe minimum R.F. exposure distances. End Product Labelling: The Cambium Module is labelled with its own FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. In that case, the final end product must be labelled in a visible area with the following: Contains Transmitter Module FCC ID: Z8H89ft0015” or “Contains FCC ID: Z8H-89ft0015” The OEM of the Cambium Module must only use the approved antenna(s) listed in the user manual, which have been certified with this module. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module or change RF related parameters in the user manual of the end product. For more information goto: www.cambiumnetworks.com

System Release 2.4 • Product Description • System Planning • Configuration • Operation and Troubleshooting • Legal and Reference Information User Guide CAMBIUM NETWORKS Accuracy While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. Cambium reserves the right to make changes to any products described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Cambium does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Cambium products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Cambium intends to announce such Cambium products, programming or services in your country. Copyrights This document, Cambium products, and 3 rd Party software products described in this document may include or describe copyrighted Cambium and other 3 rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Cambium, its licensors, and other 3 rd Party supplied software certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Cambium, its licensors, or the 3 rd Party software supplied material contained in the Cambium products described in this document may not be copied, reproduced, reverse engineered, distributed, merged or modified in any manner without the express written permission of Cambium. Furthermore, the purchase of Cambium products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Cambium or other 3rd Party supplied software, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Restrictions Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Cambium. License Agreements The software described in this document is the property of Cambium and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. High Risk Materials Cambium and its supplier(s) specifically disclaim any express or implied warranty of fitness for any high risk activities or uses of its products including, but not limited to, the operation of nuclear facilities, aircraft navigation or aircraft communication systems, air traffic control, life support, or weapons systems (“High Risk Use”). Any High Risk is unauthorized, is made at your own risk and you shall be responsible for any and all losses, damage or claims arising out of any High Risk Use. © 2014 Cambium Networks Limited. All Rights Reserved. 2 CAMBIUM NETWORKS Safety and regulatory information This section describes important safety and regulatory guidelines that must be observed by personnel installing or operating ePMP equipment. IMPORTANT SAFETY INFORMATION Warning To prevent loss of life or physical injury, observe the safety guidelines in this section. Power lines Exercise extreme care when working near power lines. Working at heights Exercise extreme care when working at heights. Grounding and protective earth Connectorized ePMP devices must be properly grounded to protect against lightning. It is the user’s responsibility to install the equipment in accordance with national regulations. In the USA, follow Section 810 of the National Electric Code, ANSI/NFPA No.70-1984 (USA). In Canada, follow Section 54 of the Canadian Electrical Code. These codes describe correct installation procedures for grounding the outdoor unit, mast, lead-in wire and discharge unit, size of grounding conductors and connection requirements for grounding electrodes. Other regulations may apply in different countries and therefore it is recommended that installation be contracted to a professional installer. Powering down before servicing Always power down and unplug the equipment before servicing. Primary disconnect device The ePMP power supply is the primary disconnect device. External cables Safety may be compromised if outdoor rated cables are not used for connections that will be exposed to the outdoor environment. RF exposure near the antenna Strong radio frequency (RF) fields will be present close to the antenna when the transmitter is on. Always turn off the power to the ePMP device before undertaking maintenance activities in front of the antenna. Minimum separation distances Install the ePMP device so as to provide and maintain the minimum separation distances from all persons. The minimum separation distances for each frequency variant are specified in Calculated distances and power compliance margins on page 310. 3 CAMBIUM NETWORKS IMPORTANT REGULATORY INFORMATION The ePMP product is certified as an unlicensed device in frequency bands where it is not allowed to cause interference to licensed services (called primary users of the bands). Radar avoidance In countries where radar systems are the primary band users, the regulators have mandated special…

Text truncated - open the document above for the full version.

CAMBIUM NETWORKS To upgrade the device software, follow this: Procedure: 1 Download the software upgrade packages from https://support.cambiumnetworks.com/files/epmp 2 Clear the cache of the accessing browser 3 On the device GUI, navigate to Tools => Software Upgrade 4 Select the SW Upgrade Option which represents the location of your software upgrade packages 5 Based on the configuration of SW Upgrade Option, enter either the Software Upgrade Source Info or click the Browse button and locate the software package 6 Click Upgrade 7 When the upgrade is completed successfully, click the Reset icon 198 CAMBIUM NETWORKS SM Backup / Restore page Use the SM Backup / Restore page to perform the following functions: • Back up the configuration in either text (.json) format or binary (.bin) format. • Restore the configuration of using a configuration file that was previously backed up. • Reset the device to its factory default configuration. For more factory defaulting methods, see: o Using the device external reset button on page 229 o Resetting the ePMP to factory defaults by power cycling on page 230 Figure 55 SM Backup / Restore page 199 CAMBIUM NETWORKS Table 80 SM Backup / Restore attributes Attribute Meaning Backup Configuration Configuration File Format Text (Editable): Choosing this option will download the configuration file in the .json format, and can be viewed and/or edited using a standard text editor. Binary (Secured): Choosing this option will download the configuration file in the .bin format, and cannot be viewed and/or edited using an editor. Use this format for a secure backup. Restore Configuration Select File Click Browse to select a local file (located on the device accessing the web management interface) for restoring the device configuration. Factory Default Configuration Reset to Factory Defaults Use this button to reset the device to its factory default configuration. Caution A reset to factory default configuration resets all device parameters. With the SMs in default configuration it may not be able to register to an AP configured for your network. 200 CAMBIUM NETWORKS SM eDetect page The eDetect tool (not available in ePTP Slave mode) is used to measure the 802.11 interference at the ePMP radio or system when run from the AP, on the current operating channel. When the tool is run, the ePMP device processes all frames received from devices not connected to the ePMP system and collects the interfering frame’s information such as MAC Address, RSSI, and MCS. Use the SM eDetect page to collect information about interferers locally at the SM to display on the SM’s GUI. Figure 56 SM eDetect page 201 CAMBIUM NETWORKS Table 81 SM eDetect attributes Attribute Meaning eDetect Detection Duration Configure the duration for which the SM scans for interferers. Caution During the scanning period, the SM must be connected to the AP and passing user traffic, and there cannot be any outage (unlike running a Spectrum Analyzer). There may be a negligible degradation in the SM’s throughput. Start/Stop Use to start or stop the interference detection. Export to CSV Choose this option to export the detection results to .csv format. Status Current status of the Interference Detection tool. Detection Results Use the Detection Results table to monitor interferers at the SM and their key RF parameters. Device Instant Health This is an indicator of the device’s health in terms of channel conditions in the presence of interferer(s). Green: Indicates that the channel is relatively clean and has good C/I levels (>25dB). The interference level is low. Yellow: Indicates that the channel has moderate or intermittent interference (C/I between 10dB and 25dB). Red: Indicates that the channel has high interference and poor C/I levels (<10dB). Device MAC The MAC address of the SM’s wireless interface. Device RSSI (dBm) The Received Signal Strength Indicator, which is a measurement of the power level being received by the device’s antenna. Device MCS Modulation and Coding Scheme – indicates the modulation mode used for a radio’s receiver side, based on radio conditions (MCS 1-7, 9-15). Interferers’ MAC The MAC address of the interferer’s wireless interface. Interferers’ RSSI (dBm) The Received Signal Strength Indicator, which is a measurement of the interferer’s power level being received by the device’s antenna. Interferers’ MCS Modulation and Coding Scheme – indicates the modulation mode used by the interferer, based on radio conditions (ex: MCS 1--15). 202 CAMBIUM NETWORKS SM Spectrum Analyzer page Use the SM Spectrum Analyzer page to configure SM spectrum analyzer parameters and to download the spectrum analyzer tool. To download the spectrum analyzer tool, the AP Device Mode must be set to Spectrum Analyzer. Java Runtime Environment is required to run the AP spectrum analyzer. Caution Conducting spectrum analysis causes the SM to enter scan mode and the SM drops all RF connections. Vary the days and times when you analyze the spectrum in an area. The RF environment can change throughout the day or throughout the week. To conduct a spectrum analysis, follow these steps: Required Software: • Java Run-time Environment (JRE) Procedure: 1 On the SM GUI, navigate to Configure => System 2 Configure Device mode to Spectrum Analyzer 3 Click the Save button 4 Click the Reset button 5 Login to the SM and navigate to Tools => Spectrum Analyzer. Following screen is displayed: 6 Click Download Spectrum Analyzer Tool 7 Locate the folder to which the spectrum analyzer tool was saved, and double-click on file csa.jnlp to launch the tool 8 If a security warning window is presented, tick the checkbox next to “I accept the risk and want to run this application” 203 CAMBIUM NETWORKS 9 In the security warning window, click Run The spectrum analyzer interface is displayed 10 Click Range to configure the range of frequencies to scan. 204 CAMBIUM NETWORKS 11 Click Start Scan to begin scanning When scanning is complete, follow th…

Text truncated - open the document above for the full version.

FCC ID: Z8H89FT0006 28.3 ESN: 0A003EA005B3 Contains FCC ID: Z8H89FT0015 IC: 109W-0015 IC: 109W-0006 0977 *(01)0789955600077* Este equipamento opera em carater secundario, Isto e, nao tem direlto a protecao contra Interferencia prejudicial, mesmo de estacoes do mesmo tipo, e nao pode causar interferencia a sistemas operando em carater primario. (01)0789955600077 0553-12-7745 N136 Z571 CAUTION Class 2 only 5.7 11.4 6.5 17.1 12.2 22.7 17.9 MODEL NO: C058900P072A *C058900P112A* PART NO: C058900C072A *C058900A112A* MSN: 6069NS006U *6069NS006U* *0A003EA005B3* 0.8 25.5 35.4 54.1 21.4 MADE IN CHINA IMPORTANT See the System User Guide before connecting to AC power. The guide is available online at http://www.cambiumnetworks.com 35.4 39.0 32.1 54.457.9 E221154 I.T.E. 21.4 42.5 2.2 63.8 0.8 KEEP IN: ALL TEXT MUST REMAIN INSIDE THIS AREA. ALL ITEMS SHOWN IN RED ARE PRINTED BY THE FACTORY. 4X R 1.5 mm 0.0 43.5 66.0 0.0 DIMENSIONS LABELGRAPHICS PMS BLACK ARTWORK NUMBER:APC CODE REVDATE 5488841D03 TITLE / DESCRIPTION DETAILS / CHANGE SUMMARY Label, Product REQUESTERDESIGNERSTATUS 5488841D03-Artwork B07-18-2013 PROD. REL. AS “B” PER FAMILY TABLE M.J. KHAN F. McNATT PROD. C07-30-2013 ADD IC NUMBER FIELDSM.J. KHAN F. McNATT UPREV. PART NUMBER: CAUTION Class 2 only MADE IN CHINA IMPORTANT See the System User Guide before connecting to AC power. The guide is available online at http://www.cambiumnetworks.com E221154 I.T.E. CAUTION Class 2 only MODEL NO: C058900P112A *C058900P112A* PART NO: C058900A112A *C058900A112A* MSN: 6069NS006U *6069NS006U* ESN: 0A003EA005B3 *0A003EA005B3* MADE IN CHINA IMPORTANT See the System User Guide before connecting to AC power. The guide is available online at http://www.cambiumnetworks.com E221154 I.T.E. FCC ID: Z8H89FT0006 D09-04-2013UL LISTING # CHANGED E218211 TO: E221154 J.S C.C.GUPREV. 31.4 18.2 V IN : 22V-56V ; I MAX : 500mA V IN : 22V-56V ; I MAX : 500mA

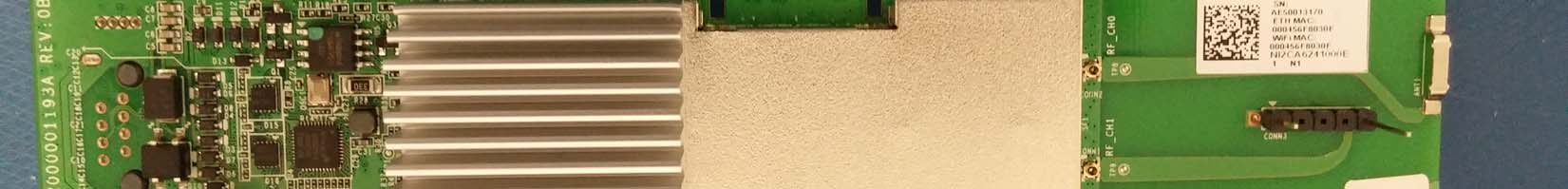

Label location: Bottom of Board

Document Number PMP-1101 Revision 000v001 Ironman/Ironlad Regulatory Antenna Information Application Global Effective Date April 10, 2015 Page 1 of 5 Contents 1 ABSTRACT ......................................................................................................................................................... 2 2 DEFINITIONS / ABBREVIATIONS / ACRONYMS .................................................................................................. 2 3 RADIATION INFORMATION OF P006192 ........................................................................................................... 3 4 RADIATION INFORMATION OF P006192 + P006439 + P006444 (MODULE MOUNTED IN A DISH ANTENNA CONFIGURATION) ..................................................................................................................................................... 3 5 RADIATION INFORMATION OF P006560 (MODULE MOUNTED WITH A PATCH ARRAY) .................................... 4 5.1 ................................................................................................................................................................................. 4 6 VSWR TEST PROCEDURE ................................................................................................................................... 4 DOCUMENT APPROVAL ............................................................................................................................................. 5 DOCUMENT REVIEW ................................................................................................................................................. 5 DOCUMENT REVISION HISTORY ................................................................................................................................ 5 Printed versions of this document are considered non-controlled. Verify latest version before use. Cambium Networks Confidential Restricted – Do Not Redistribute Document Number PMP-1101 Revision 000v001 Ironman/Ironlad Regulatory Antenna Information Application Global Effective Date April 10, 2015 Page 2 of 5 1 Abstract Radiation patterns for modular filing Z8H89FT0006, which applies to part numbers P006192 (module with integrated antennas), P006192 + P006439 + P006444 (module mounted in a dish antenna configuration) and P006560 (module mounted with a patch array) 2 Definitions / Abbreviations / Acronyms Term Meaning VSWR Voltage Standing Wave Ratio Printed versions of this document are considered non-controlled. Verify latest version before use. Cambium Networks Confidential Restricted – Do Not Redistribute Document Number PMP-1101 Revision 000v001 Ironman/Ironlad Regulatory Antenna Information Application Global Effective Date April 10, 2015 Page 3 of 5 3 Radiation Information of P006192 4 Radiation information of P006192 + P006439 + P006444 (module mounted in a dish antenna configuration) Printed versions of this document are considered non-controlled. Verify latest version before use. Cambium Networks Confidential Restricted – Do Not Redistribute Document Number PMP-1101 Revision 000v001 Ironman/Ironlad Regulatory Antenna Information Application Global Effective Date April 10, 2015 Page 4 of 5 5 Radiation information of P006560 (module mounted with a patch array) 6 VSWR Test Procedure 1. The VSWR will be less than 2.0 from 5.185 GHz to 5.85 GHz Printed versions of this document are considered non-controlled. Verify latest version before use. Cambium Networks Confidential Restricted – Do Not Redistribute Document Number PMP-1101 Revision 000v001 Ironman/Ironlad Regulatory Antenna Information Application Global Effective Date April 10, 2015 Page 5 of 5 Document Approval Role Name Approval Method Principal Staff Engineer John Ley Document Server Project Leader Jim Nahra Document Server Document Review Role Name Approval Method Document Revision History Revision Author Change 000v001 Joe Steffen 1 st Draft Printed versions of this document are considered non-controlled. Verify latest version before use. Cambium Networks Confidential Restricted – Do Not Redistribute

Template Number: TARANG/T/032 Template Version:1.01 Template Date: Mar 14, 2013 This report should always be reproduced in full. Any extracts of this report is invalid. EMC TEST REPORT TEST REPORT NUMBER DOJ 1504TEL567-A1 TEST REPORT DATE 27 th Apr 2015 TEST REPORT VERSION 1.30 MANUFACTURER Gemtek Electronics (ChangSHU) Co. PRODUCT NAME 5GHz ePMP Integrated Radio and 5GHz ePMP Connectorized Radio PRODUCT MODEL NO. C058900P072A, C058900C072A, C058900P062A, C058900C062A PART NO. 142000001193A REV 0B CONDITION OF EUT WHEN RECEIVED GOOD and in working condition ISSUED TO 3800 Golf Road, Suite 360 Rolling Meadows, IL 60008. USA +1 888-863-5250 ISSUED BY TARANG Lab Wipro Technologies, SJP2, Survey#70,77,78/8A, Dodda Kanelli, Sarjapur road, Bangalore. Karnataka. India - 560 035 Tel: +91-80-30292929 Fax: +91-80-30298200 Email: [email protected] Web: www.wipro.com Report Number DOJ 1504TEL567-A1 EMC TEST REPORT Page 2 of 105 This report should always be reproduced in full. Any extracts of this report is invalid. AMENDMENT HISTORY Amendment Number Amendment Date Author of Amendment Previous Report Version Previous Report Date 1.10 14 th Apr 2015 Harsha K 1.0 11 th Apr 2015 Amendment Details Updated Peak detector measurement results for frequencies above 1GHz. These amendments are reflected in Section 5.3.2.6 & Section 5.3.2.7 Amendment Number Amendment Date Author of Amendment Previous Report Version Previous Report Date 1.20 22 nd Apr 2015 Harsha K 1.10 14 th Apr 2015 Amendment Details The reference to the Tunable Band reject/Notch filter from Wainwright Instruments GmbH used to reject the intentional frequency has been listed in Section 3.2 More specific details of firmware settings of the radio module have been captured in Section 4.2. Updated EUT configuration details. This amendment is reflected in Section 5.1.1 Amendment Number Amendment Date Author of Amendment Previous Report Version Previous Report Date 1.30 27 th Apr 2015 Harsha K 1.20 22 nd Apr 2015 Amendment Details The conducted emissions tests were repeated by ensuring that the distance from the EUT to the LISN is maintained at 0.8m. This was done by using a power cord extender. The updated results are captured in the test report in Section 5.3.1.5 & Section 5.3.1.6. The radiated emissions tests beyond 1GHz were repeated using floor absorbers of shorter height (max allowable 30cm). The updated results are captured in the test report in Section 5.3.2.6 & Section 5.3.2.7. Report Number DOJ 1504TEL567-A1 EMC TEST REPORT Page 3 of 105 This report should always be reproduced in full. Any extracts of this report is invalid. TABLE OF CONTENTS 1 TEST REPORT SUMMARY ........................................................................................................................................... 8 2 GENERAL INFORMATION ........................................................................................................................................ 10 2.1 TEST DETAILS ....................................................................................................................................................... 10 2.2 TEST FACILITY DETAILS .................................................................................................................................... 10 2.3 MEASUREMENT UNCERTAINTY ...................................................................................................................... 10 3 INSTRUMENTATION AND CALIBRATION ........................................................................................................... 11 3.1 TEST AND MEASURING EQUIPMENT ............................................................................................................... 11 3.2 EQUIPMENTS USED ............................................................................................................................................. 11 4 PRODUCT INFORMATION ........................................................................................................................................ 12 4.1 DESCRIPTION OF THE PRODUCT ...................................................................................................................... 12 4.2 SOFTWARE AND FIRMWARE DETAILS ........................................................................................................... 12 4.3 LIST OF PRODUCT CABLES ................................................................................................................................ 12 5 TEST DETAILS .............................................................................................................................................................. 13 5.1 PRODUCT AND TEST SETUP .............................................................................................................................. 13 5.1.1 Product Configuration .......................................................................................................................................... 13 5.1.2 Test Setup Details ................................................................................................................................................ 13 5.1.3 Accessories .......................................................................................................................................................... 13 5.2 APPLICABLE TESTS ............................................................................................................................................. 14 5.3 TEST RESULT ........................................................................................................................................................ 15 5.3.1 Conducted Emission ............................................................................................................................................ 15 5.3.2 Radiated Emission ......................................................................................…

Text truncated - open the document above for the full version.

Template Number: TARANG/T/032 Template Version:1.01 Template Date: Mar 14, 2013 This report should always be reproduced in full. Any extracts of this report is invalid. EMC TEST REPORT TEST REPORT NUMBER DOJ 1504TEL567-A2 TEST REPORT DATE 22 nd Apr 2015 TEST REPORT VERSION 1.20 MANUFACTURER Gemtek Electronics (ChangSHU) Co. PRODUCT NAME 5GHz ePMP Integrated Radio and 5GHz ePMP Connectorized Radio PRODUCT MODEL NO. C058900P072A, C058900C072A, C058900P062A, C058900C062A PART NO. 142000001193A REV 0B CONDITION OF EUT WHEN RECEIVED GOOD and in working condition ISSUED TO 3800 Golf Road, Suite 360 Rolling Meadows, IL 60008. USA +1 888-863-5250 ISSUED BY TARANG Lab Wipro Technologies, SJP2, Survey#70,77,78/8A, Dodda Kanelli, Sarjapur road, Bangalore. Karnataka. India - 560 035 Tel: +91-80-30292929 Fax: +91-80-30298200 Email: [email protected] Web: www.wipro.com Report Number DOJ 1504TEL567-A2 EMC TEST REPORT Page 2 of 271 This report should always be reproduced in full. Any extracts of this report is invalid. AMENDMENT HISTORY Amendment Number Amendment Date Author of Amendment Previous Report Version Previous Report Date 1.10 14 th Apr 2015 Harsha K 1.0 11 th Apr 2015 Amendment Details • Measurement of “Restricted Band of Operations” (Conducted) shown as Section 5.3.1. • Updated “Maximum conducted Output power” test using Power meter as described in Section 9.2.3 (Method AVGPM) of KDB “558074 D01 DTS measurement Guidance v03r02”. This amendment is reflected in Section 5.3.3 Amendment Number Amendment Date Author of Amendment Previous Report Version Previous Report Date 1.20 22 nd Apr 2015 Harsha K 1.10 14 th Apr 2015 Amendment Details • The reference to the Tunable Band reject/Notch filter from Wainwright Instruments GmbH used to reject the intentional frequency has been listed in Section 3.2 • More specific details of firmware settings of the radio module for the various tests have been captured in Section 4.2. • Added conducted measurement data till 40GHz for “Emissions in Restricted Frequency bands” test. This amendment is reflected in Section 5.3.1. • Added conducted measurement data till 40GHz for “Radio frequency power in any 100 kHz bandwidth outside the intention band” test. This amendment is reflected in Section 5.3.5. Report Number DOJ 1504TEL567-A2 EMC TEST REPORT Page 3 of 271 This report should always be reproduced in full. Any extracts of this report is invalid. TABLE OF CONTENTS 1 TEST REPORT SUMMARY ............................................................…
